private implementation detail of the ChannelList API. More...

#include <introspected-doxygen.h>

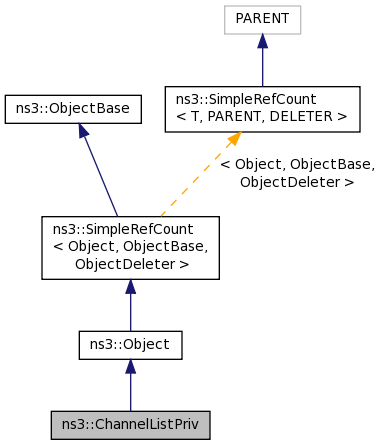

Inheritance diagram for ns3::ChannelListPriv:

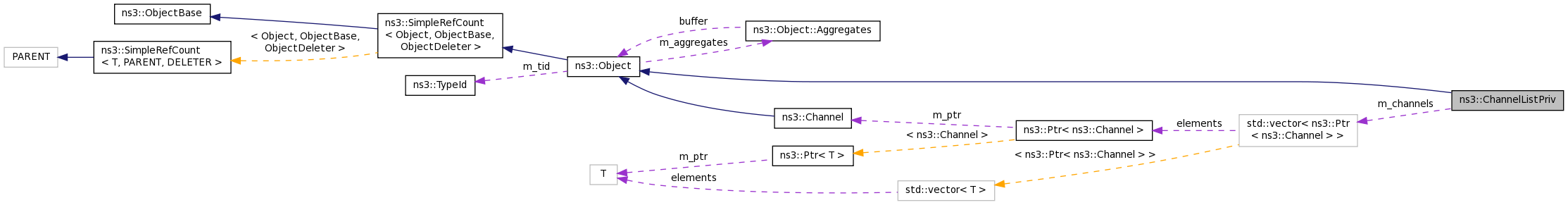

Collaboration diagram for ns3::ChannelListPriv:

Public Member Functions
	ChannelListPriv ()

	~ChannelListPriv ()

uint32_t	Add (Ptr< Channel > channel)

ChannelList::Iterator	Begin (void) const

ChannelList::Iterator	End (void) const

Ptr< Channel >	GetChannel (uint32_t n)

uint32_t	GetNChannels (void)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static Ptr< ChannelListPriv >	Get (void)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
virtual void	DoDispose (void)

Static Private Member Functions
static void	Delete (void)

static Ptr< ChannelListPriv > *	DoGet (void)

Private Attributes
std::vector< Ptr< Channel > >	m_channels

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

private implementation detail of the ChannelList API.

Config Paths

ns3::ChannelListPriv is accessible through the following paths with Config::Set and Config::Connect:

Attributes

ChannelList: The list of all channels created during the simulation.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Channel >
- Flags: read

No TraceSources are defined for this type.

Definition at line 34 of file channel-list.cc.

Constructor & Destructor Documentation

ns3::ChannelListPriv::ChannelListPriv ( )

Definition at line 102 of file channel-list.cc.

References NS_LOG_FUNCTION.

ns3::ChannelListPriv::~ChannelListPriv ( )

Definition at line 107 of file channel-list.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::ChannelListPriv::Add ( Ptr< Channel > channel )

Definition at line 127 of file channel-list.cc.

References m_channels, and NS_LOG_FUNCTION.

ChannelList::Iterator ns3::ChannelListPriv::Begin ( void ) const

Definition at line 137 of file channel-list.cc.

References m_channels, and NS_LOG_FUNCTION.

void ns3::ChannelListPriv::Delete ( void )

staticprivate

Definition at line 95 of file channel-list.cc.

References DoGet(), Get(), NS_LOG_FUNCTION_NOARGS, and ns3::Config::UnregisterRootNamespaceObject().

Referenced by DoGet().

Here is the call graph for this function:

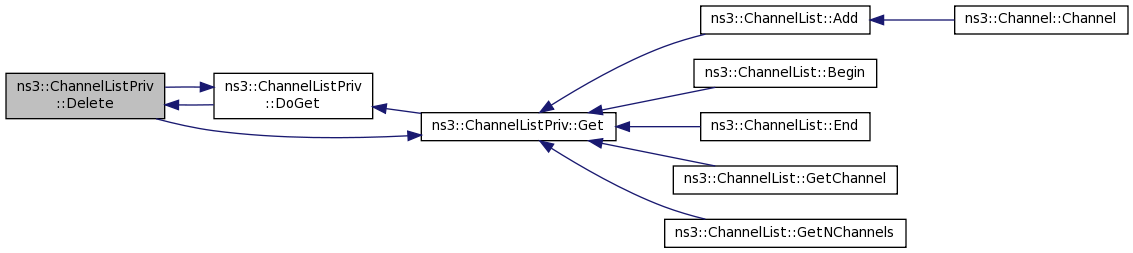

Here is the caller graph for this function:

void ns3::ChannelListPriv::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 112 of file channel-list.cc.

References ns3::Object::DoDispose(), m_channels, and NS_LOG_FUNCTION.

Here is the call graph for this function:
