#include <epc-x2.h>

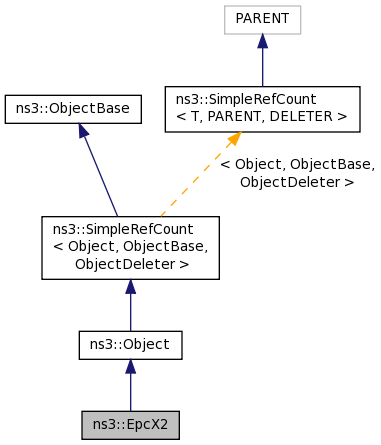

Inheritance diagram for ns3::EpcX2:

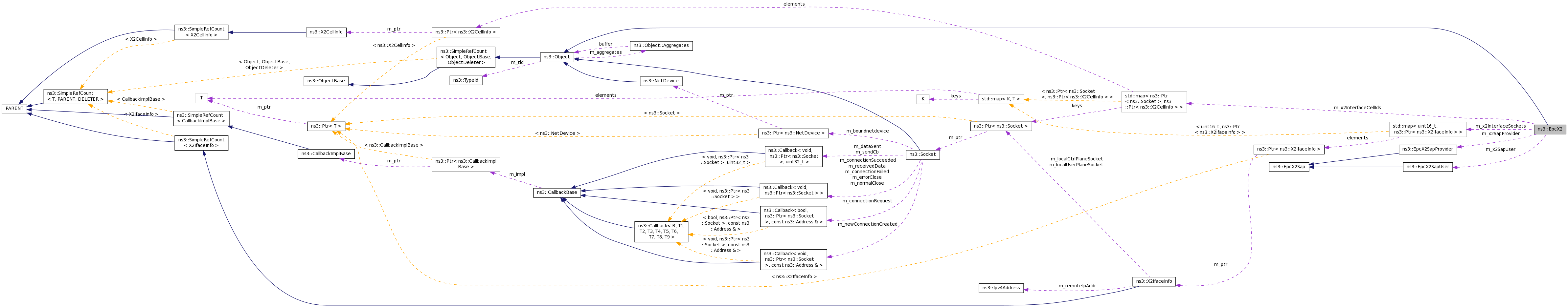

Collaboration diagram for ns3::EpcX2:

Public Member Functions
	EpcX2 ()

virtual	~EpcX2 (void)

void	AddX2Interface (uint16_t enb1CellId, Ipv4Address enb1X2Address, uint16_t enb2CellId, Ipv4Address enb2X2Address)

virtual void	DoDispose (void)

EpcX2SapProvider *	GetEpcX2SapProvider ()

void	RecvFromX2cSocket (Ptr< Socket > socket)

void	RecvFromX2uSocket (Ptr< Socket > socket)

void	SetEpcX2SapUser (EpcX2SapUser *s)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoSendHandoverPreparationFailure (EpcX2SapProvider::HandoverPreparationFailureParams params)

virtual void	DoSendHandoverRequest (EpcX2SapProvider::HandoverRequestParams params)

virtual void	DoSendHandoverRequestAck (EpcX2SapProvider::HandoverRequestAckParams params)

virtual void	DoSendLoadInformation (EpcX2SapProvider::LoadInformationParams params)

virtual void	DoSendResourceStatusUpdate (EpcX2SapProvider::ResourceStatusUpdateParams params)

virtual void	DoSendSnStatusTransfer (EpcX2SapProvider::SnStatusTransferParams params)

virtual void	DoSendUeContextRelease (EpcX2SapProvider::UeContextReleaseParams params)

virtual void	DoSendUeData (EpcX2SapProvider::UeDataParams params)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes
EpcX2SapProvider *	m_x2SapProvider

EpcX2SapUser *	m_x2SapUser

Private Attributes
uint16_t	m_x2cUdpPort

std::map< Ptr< Socket >, Ptr < X2CellInfo > >	m_x2InterfaceCellIds

std::map< uint16_t, Ptr < X2IfaceInfo > >	m_x2InterfaceSockets

uint16_t	m_x2uUdpPort

Friends
class	EpcX2SpecificEpcX2SapProvider< EpcX2 >

Detailed Description

This entity is installed inside an eNB and provides the functionality for the X2 interface

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 70 of file epc-x2.h.

Constructor & Destructor Documentation

ns3::EpcX2::EpcX2 ( )

Constructor

Definition at line 85 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

ns3::EpcX2::~EpcX2 ( void )

virtual

Destructor

Definition at line 94 of file epc-x2.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcX2::AddX2Interface	(	uint16_t	enb1CellId,
		Ipv4Address	enb1X2Address,
		uint16_t	enb2CellId,
		Ipv4Address	enb2X2Address
	)

Parameters

s	the X2 SAP Provider interface offered by this EPC X2 entity

Definition at line 133 of file epc-x2.cc.

References ns3::Socket::Bind(), ns3::Socket::CreateSocket(), ns3::TypeId::LookupByName(), m_x2cUdpPort, m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2uUdpPort, ns3::MakeCallback(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, RecvFromX2cSocket(), RecvFromX2uSocket(), and ns3::Socket::SetRecvCallback().

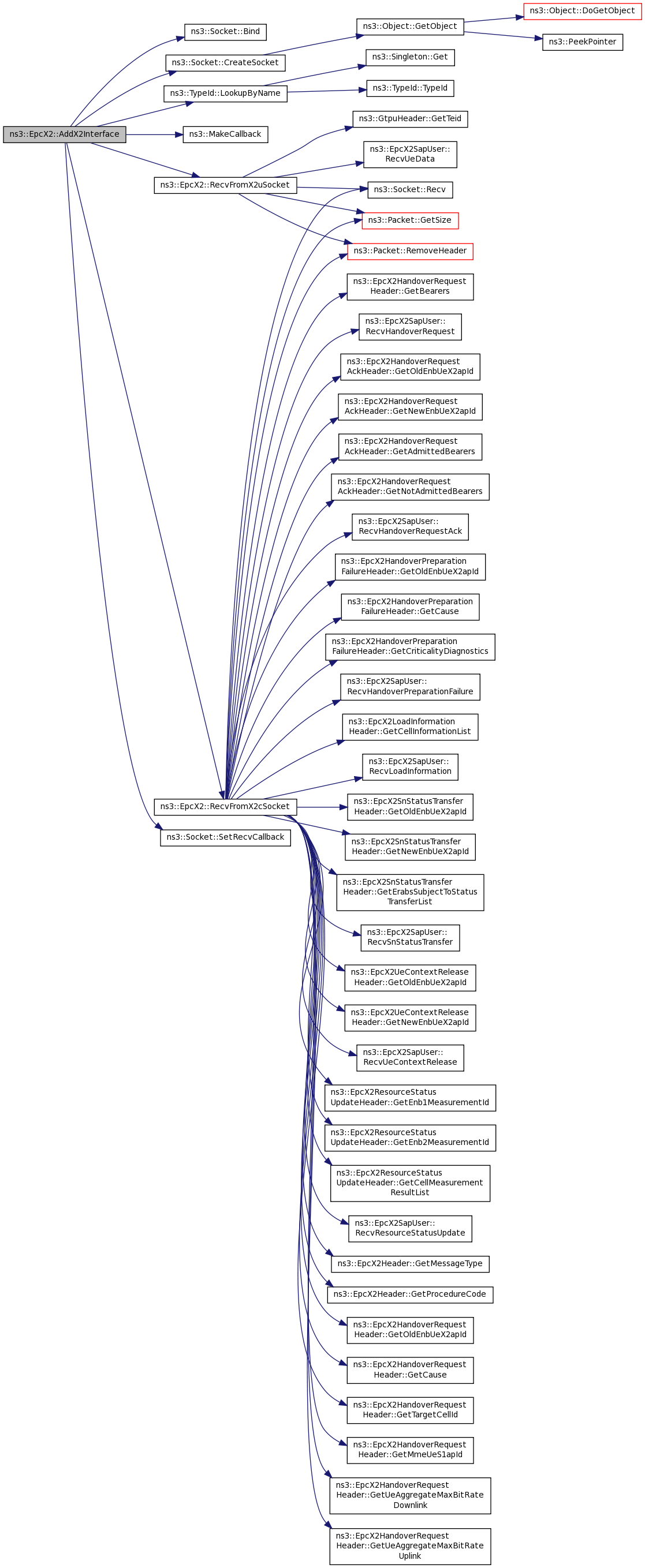

Here is the call graph for this function:

void ns3::EpcX2::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 100 of file epc-x2.cc.

References m_x2InterfaceCellIds, m_x2InterfaceSockets, m_x2SapProvider, and NS_LOG_FUNCTION.

void ns3::EpcX2::DoSendHandoverPreparationFailure ( EpcX2SapProvider::HandoverPreparationFailureParams params )

protectedvirtual

Definition at line 501 of file epc-x2.cc.

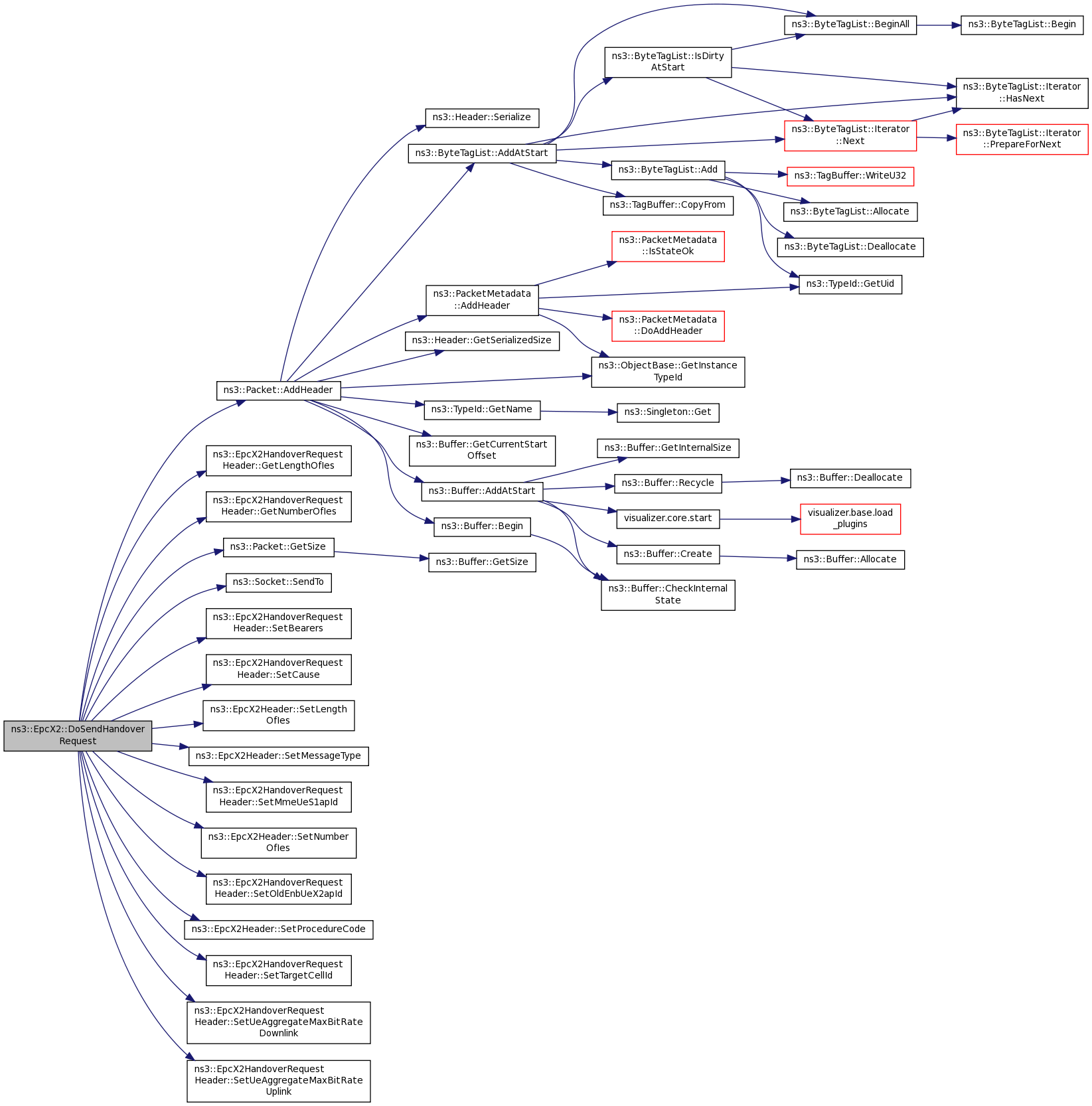

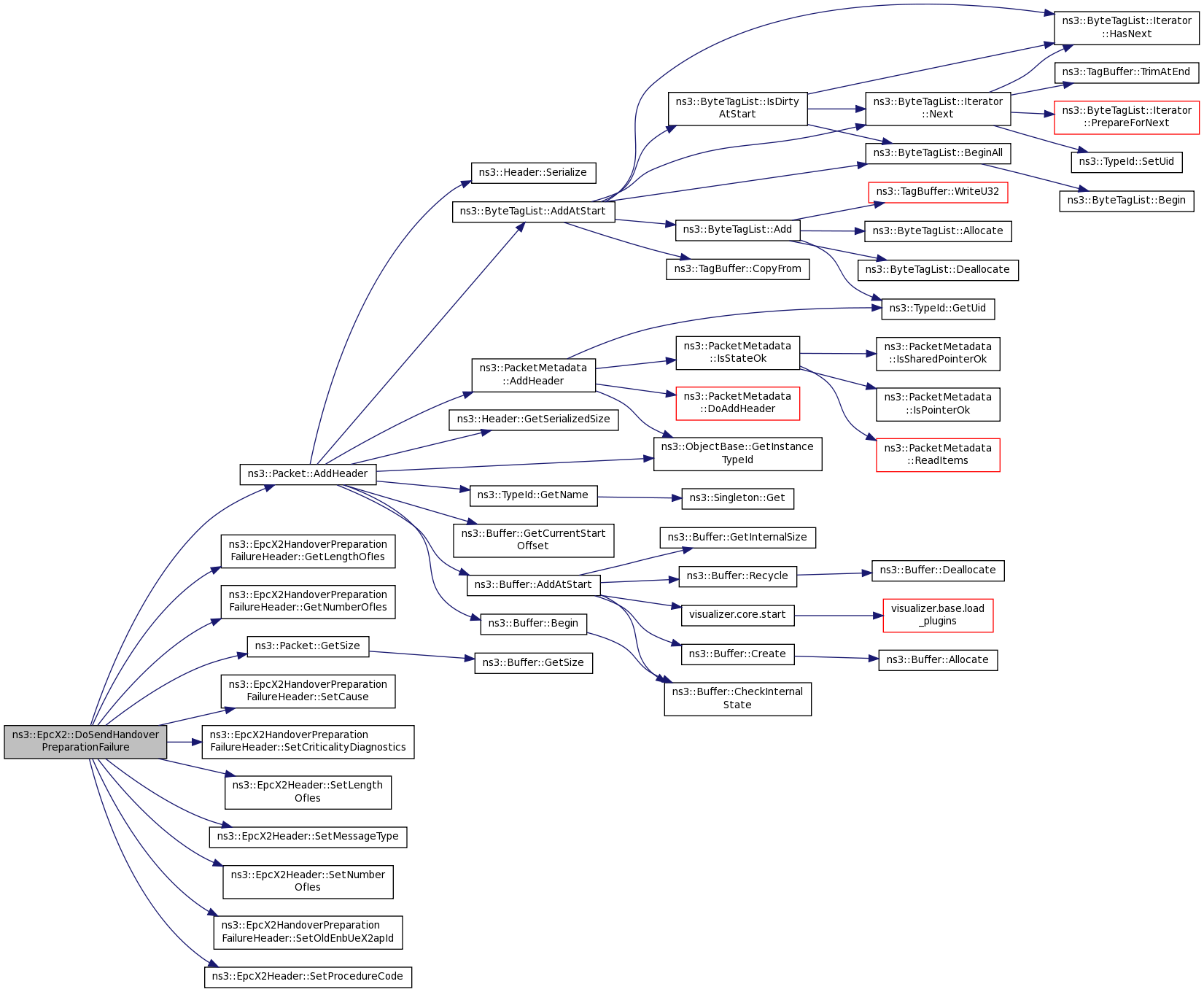

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequest ( EpcX2SapProvider::HandoverRequestParams params )

protectedvirtual

Definition at line 401 of file epc-x2.cc.

Here is the call graph for this function:

void ns3::EpcX2::DoSendHandoverRequestAck ( EpcX2SapProvider::HandoverRequestAckParams params )

protectedvirtual

Definition at line 452 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::HandoverRequestAckParams::admittedBearers, ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes(), ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::HandoverPreparation, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::HandoverRequestAckParams::newEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::notAdmittedBearers, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::HandoverRequestAckParams::oldEnbUeX2apId, ns3::EpcX2Sap::HandoverRequestAckParams::rrcContext, ns3::EpcX2HandoverRequestAckHeader::SetAdmittedBearers(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2HandoverRequestAckHeader::SetNewEnbUeX2apId(), ns3::EpcX2HandoverRequestAckHeader::SetNotAdmittedBearers(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2HandoverRequestAckHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::HandoverRequestAckParams::sourceCellId, ns3::EpcX2Header::SuccessfulOutcome, and ns3::EpcX2Sap::HandoverRequestAckParams::targetCellId.

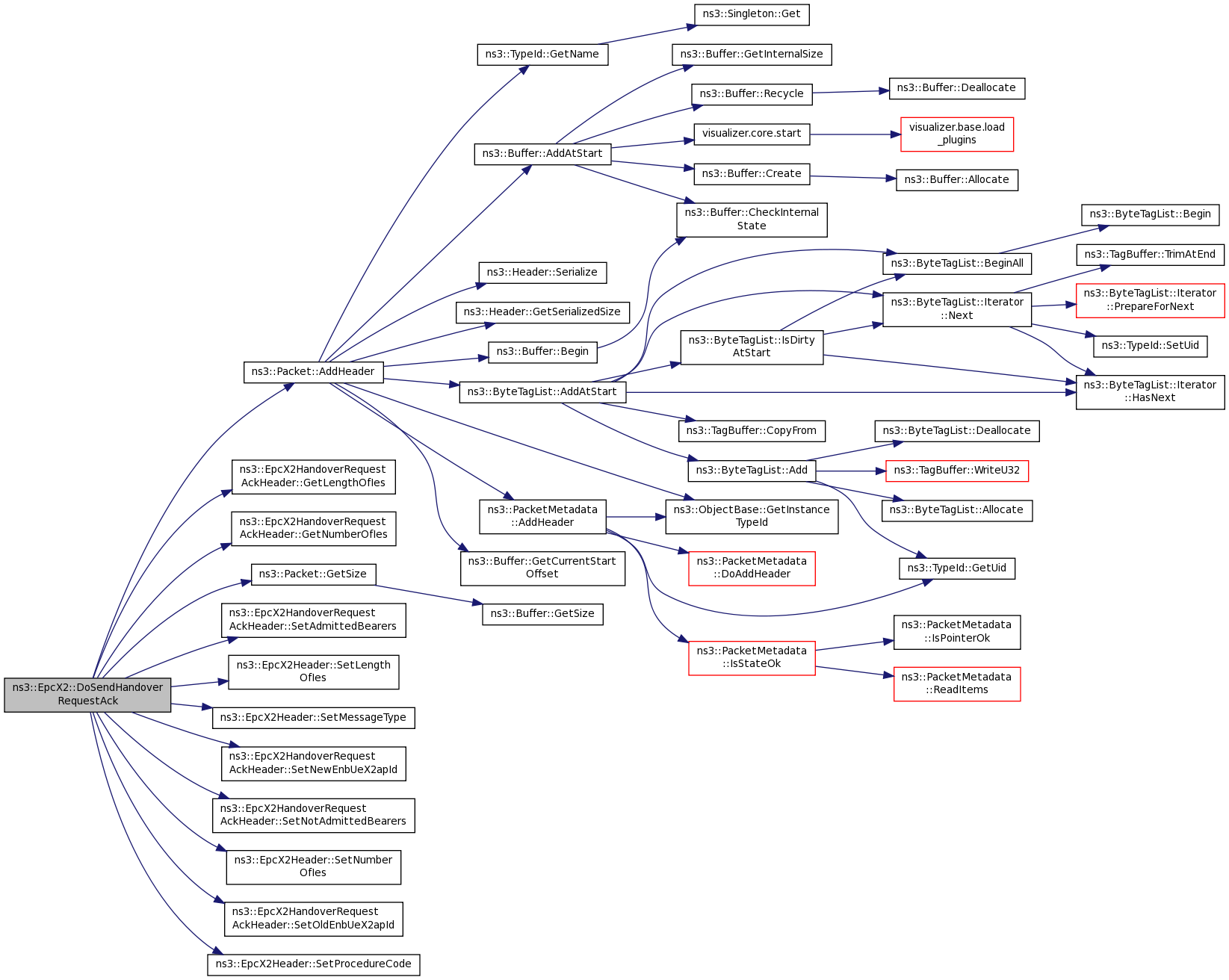

Here is the call graph for this function:

void ns3::EpcX2::DoSendLoadInformation ( EpcX2SapProvider::LoadInformationParams params )

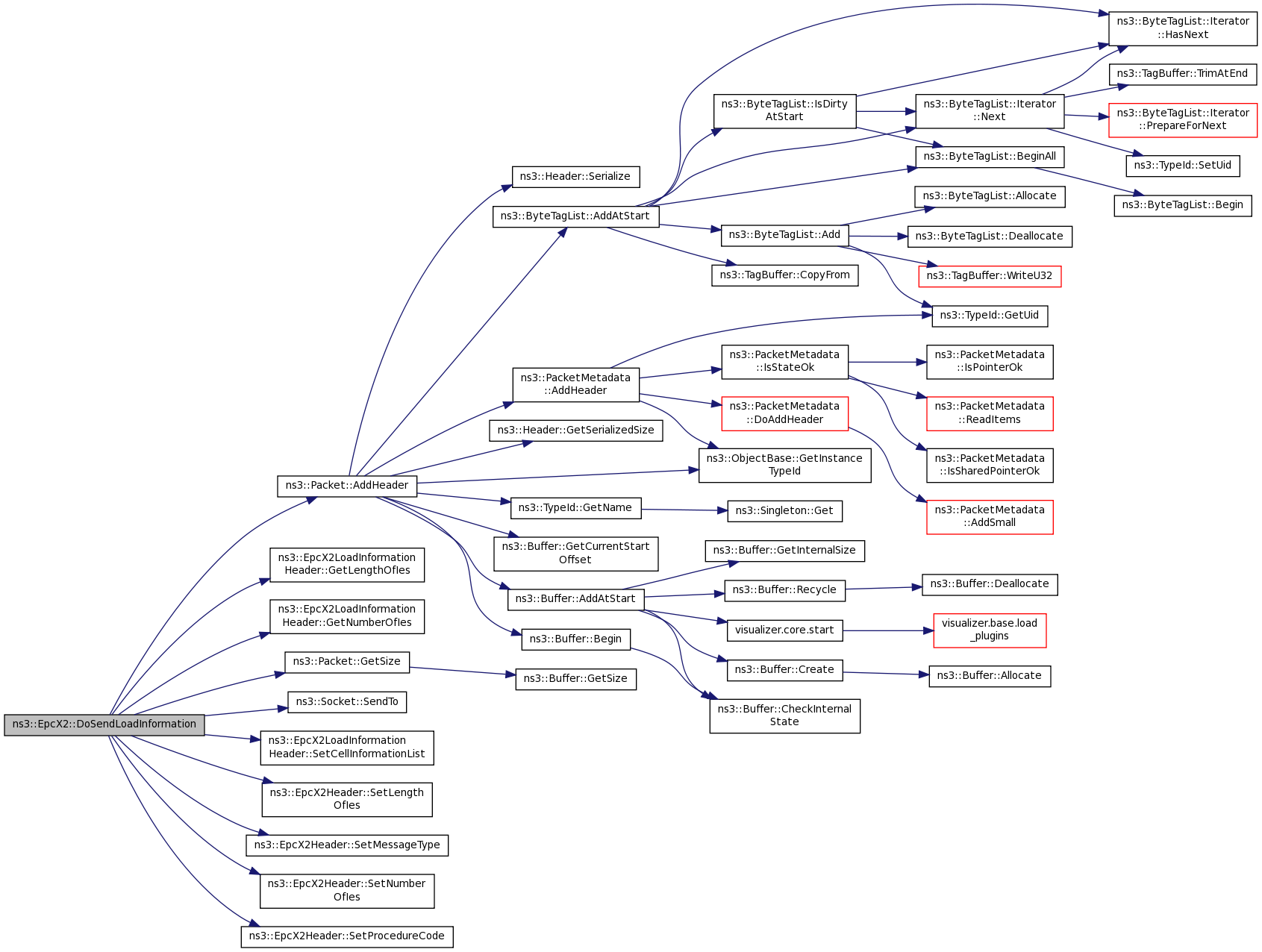

protectedvirtual

void ns3::EpcX2::DoSendResourceStatusUpdate ( EpcX2SapProvider::ResourceStatusUpdateParams params )

protectedvirtual

Definition at line 686 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::ResourceStatusUpdateParams::cellMeasurementResultList, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb1MeasurementId, ns3::EpcX2Sap::ResourceStatusUpdateParams::enb2MeasurementId, ns3::EpcX2ResourceStatusUpdateHeader::GetLengthOfIes(), ns3::EpcX2ResourceStatusUpdateHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Header::ResourceStatusReporting, ns3::Socket::SendTo(), ns3::EpcX2ResourceStatusUpdateHeader::SetCellMeasurementResultList(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb1MeasurementId(), ns3::EpcX2ResourceStatusUpdateHeader::SetEnb2MeasurementId(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2Header::SetProcedureCode(), and ns3::EpcX2Sap::ResourceStatusUpdateParams::targetCellId.

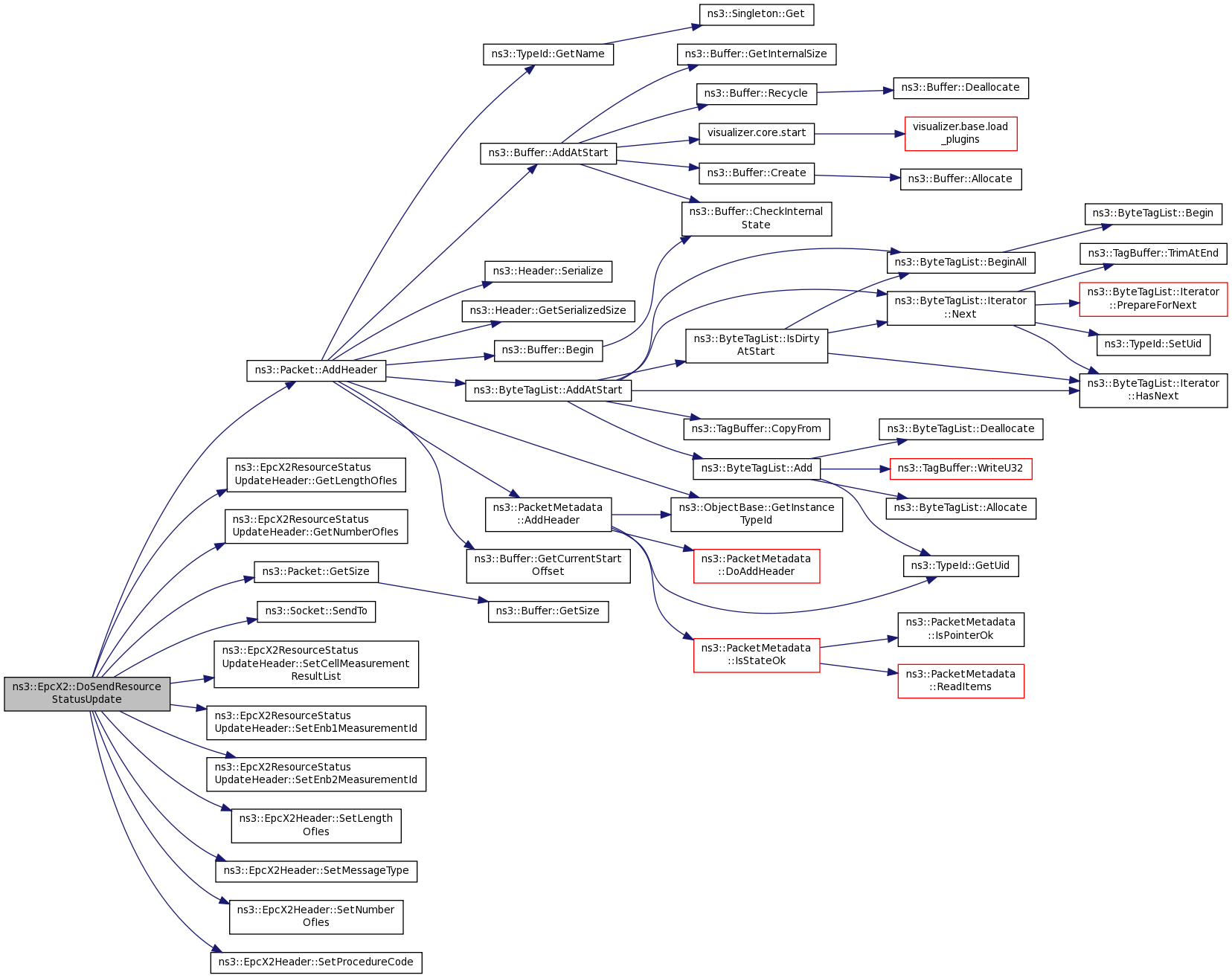

Here is the call graph for this function:

void ns3::EpcX2::DoSendSnStatusTransfer ( EpcX2SapProvider::SnStatusTransferParams params )

protectedvirtual

Definition at line 549 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2Sap::SnStatusTransferParams::erabsSubjectToStatusTransferList, ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes(), ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::SnStatusTransferParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::SnStatusTransferParams::oldEnbUeX2apId, ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList(), ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Header::SnStatusTransfer, ns3::EpcX2Sap::SnStatusTransferParams::sourceCellId, and ns3::EpcX2Sap::SnStatusTransferParams::targetCellId.

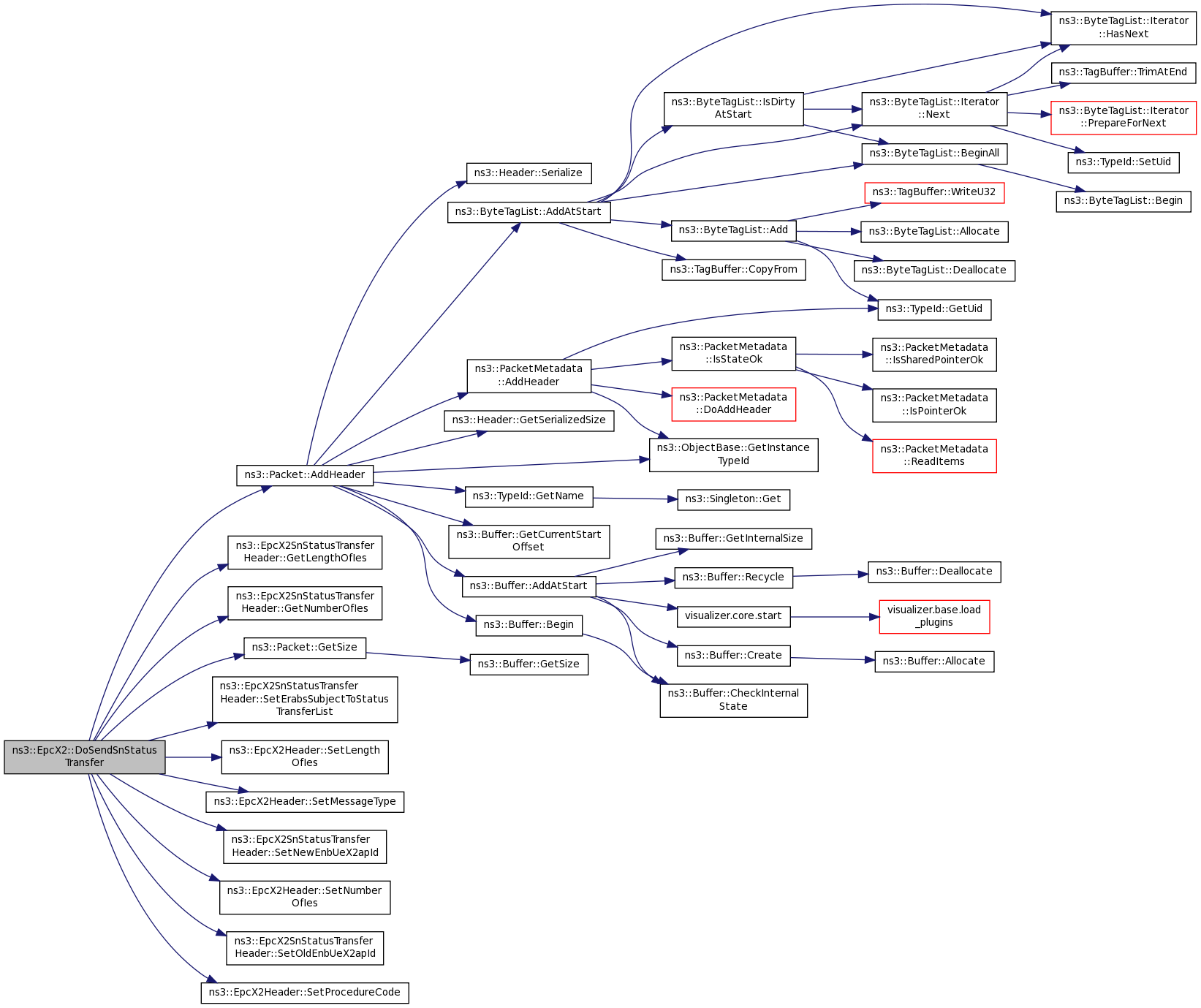

Here is the call graph for this function:

void ns3::EpcX2::DoSendUeContextRelease ( EpcX2SapProvider::UeContextReleaseParams params )

protectedvirtual

Definition at line 597 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::EpcX2UeContextReleaseHeader::GetLengthOfIes(), ns3::EpcX2UeContextReleaseHeader::GetNumberOfIes(), ns3::Packet::GetSize(), ns3::EpcX2Header::InitiatingMessage, m_x2cUdpPort, m_x2InterfaceSockets, ns3::EpcX2Sap::UeContextReleaseParams::newEnbUeX2apId, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::EpcX2Sap::UeContextReleaseParams::oldEnbUeX2apId, ns3::EpcX2Header::SetLengthOfIes(), ns3::EpcX2Header::SetMessageType(), ns3::EpcX2UeContextReleaseHeader::SetNewEnbUeX2apId(), ns3::EpcX2Header::SetNumberOfIes(), ns3::EpcX2UeContextReleaseHeader::SetOldEnbUeX2apId(), ns3::EpcX2Header::SetProcedureCode(), ns3::EpcX2Sap::UeContextReleaseParams::sourceCellId, and ns3::EpcX2Header::UeContextRelease.

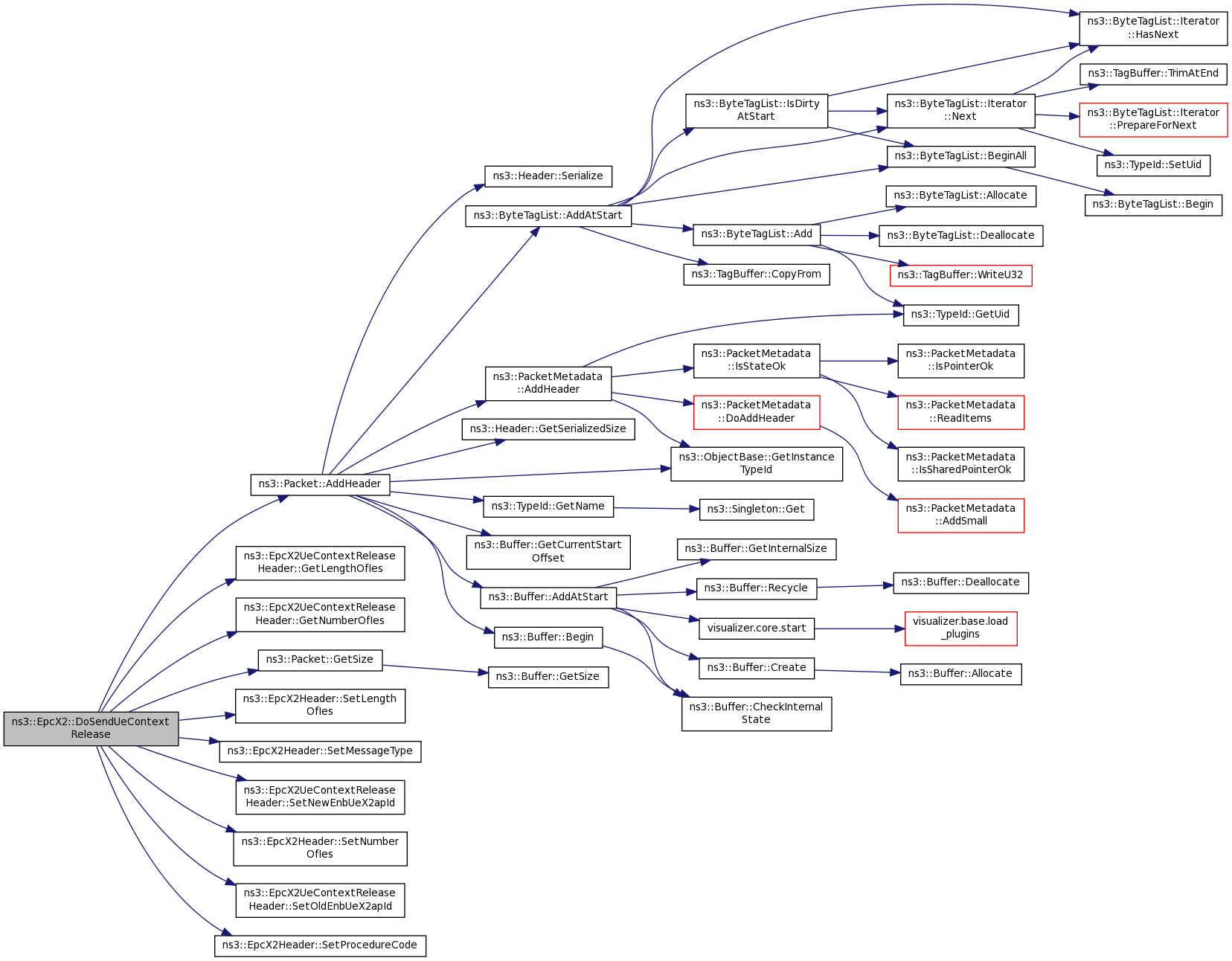

Here is the call graph for this function:

void ns3::EpcX2::DoSendUeData ( EpcX2SapProvider::UeDataParams params )

protectedvirtual

Todo:: This should be done in GtpuHeader

Definition at line 734 of file epc-x2.cc.

References ns3::Packet::AddHeader(), ns3::GtpuHeader::GetSerializedSize(), ns3::Packet::GetSize(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceSockets, m_x2uUdpPort, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::Socket::SendTo(), ns3::GtpuHeader::SetLength(), ns3::GtpuHeader::SetTeid(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.

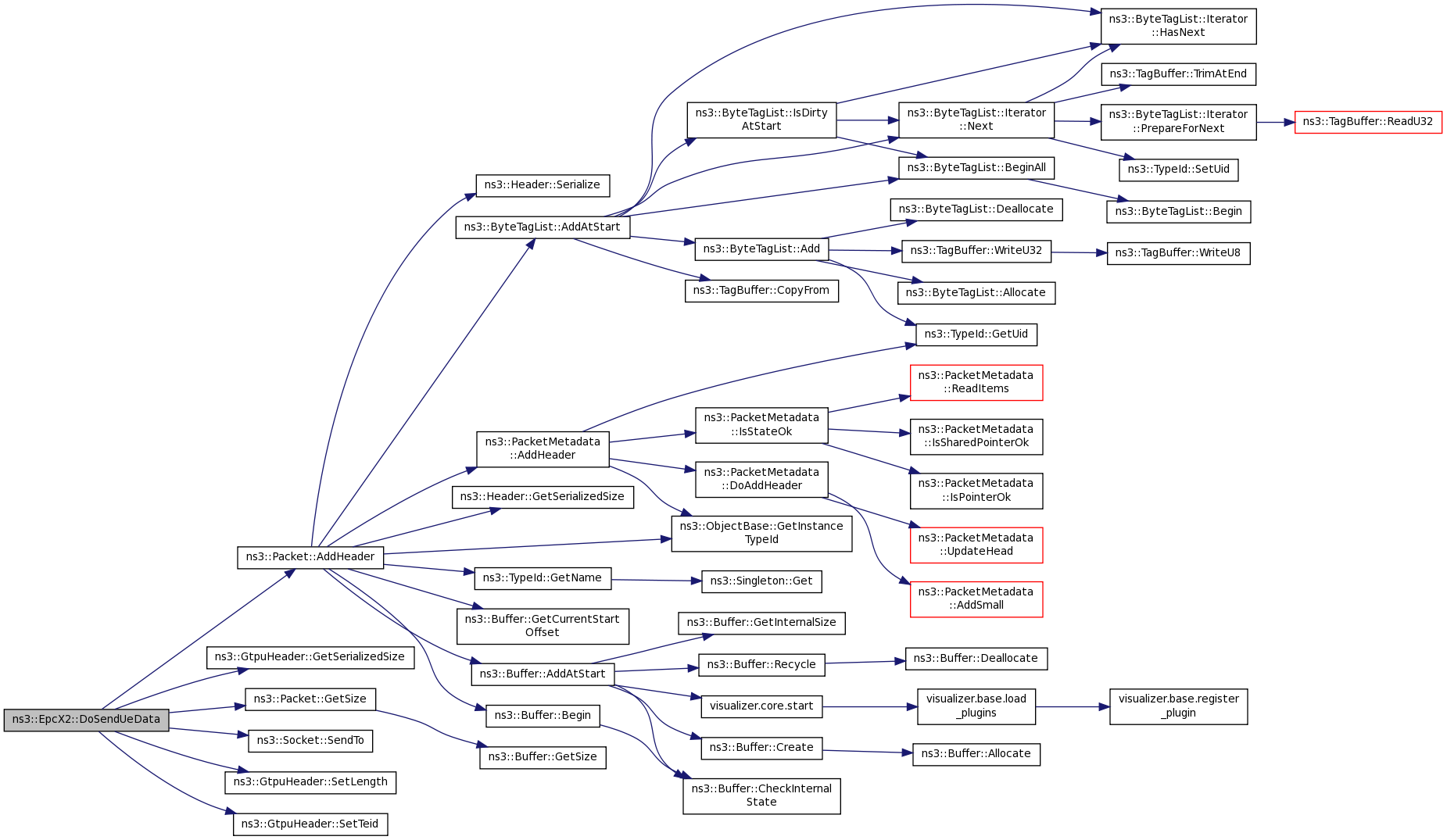

Here is the call graph for this function:

EpcX2SapProvider * ns3::EpcX2::GetEpcX2SapProvider ( )

Parameters

s	the X2 SAP Provider interface offered by this EPC X2 entity

Definition at line 125 of file epc-x2.cc.

References m_x2SapProvider, and NS_LOG_FUNCTION.

TypeId ns3::EpcX2::GetTypeId ( void )

static

Definition at line 110 of file epc-x2.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::EpcX2::RecvFromX2cSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-C (X2 Control Plane) socket. It is called when the eNB receives a packet from the peer eNB of the X2-C interface

Parameters

socket socket of the X2-C interface

Definition at line 170 of file epc-x2.cc.

Referenced by AddX2Interface().

Here is the call graph for this function:

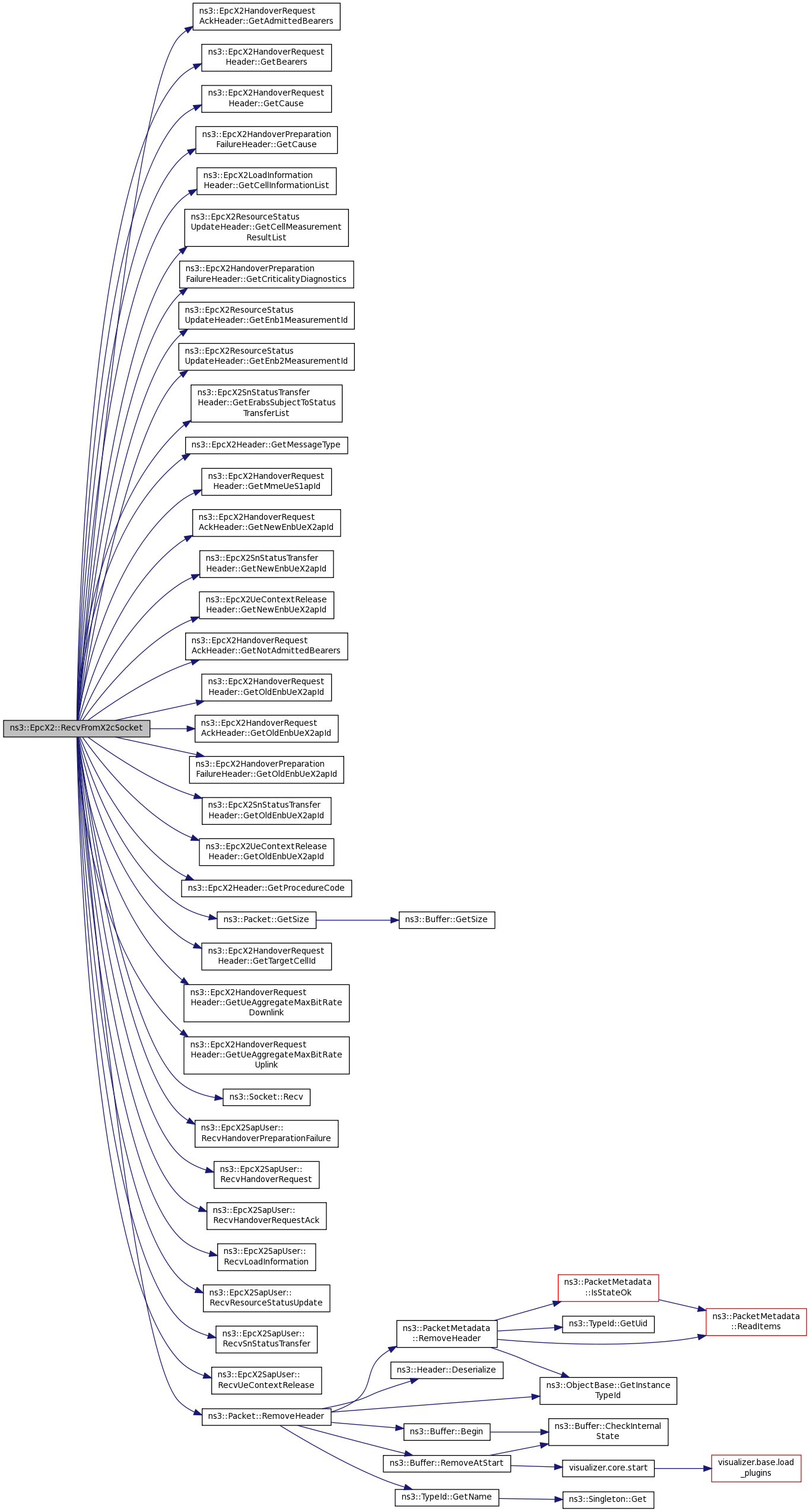

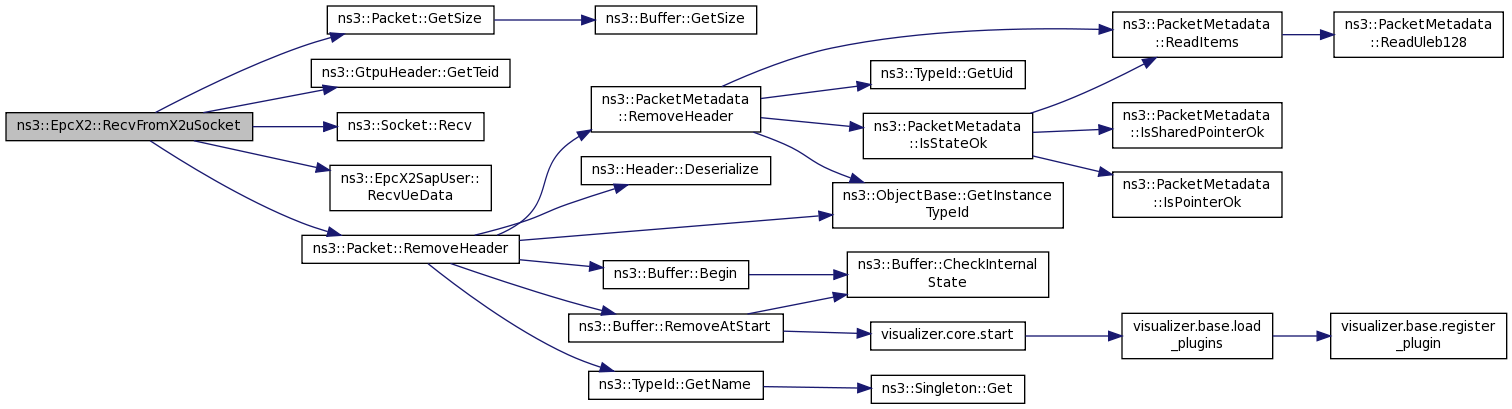

Here is the caller graph for this function:

void ns3::EpcX2::RecvFromX2uSocket ( Ptr< Socket > socket )

Method to be assigned to the recv callback of the X2-U (X2 User Plane) socket. It is called when the eNB receives a packet from the peer eNB of the X2-U interface

Parameters

socket socket of the X2-U interface

Definition at line 370 of file epc-x2.cc.

References ns3::Packet::GetSize(), ns3::GtpuHeader::GetTeid(), ns3::EpcX2Sap::UeDataParams::gtpTeid, m_x2InterfaceCellIds, m_x2SapUser, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Socket::Recv(), ns3::EpcX2SapUser::RecvUeData(), ns3::Packet::RemoveHeader(), ns3::EpcX2Sap::UeDataParams::sourceCellId, ns3::EpcX2Sap::UeDataParams::targetCellId, and ns3::EpcX2Sap::UeDataParams::ueData.
