ns3::ErrorNetDevice Class Reference

Error net device for Error things and testing. More...

#include <error-net-device.h>

Inheritance diagram for ns3::ErrorNetDevice:

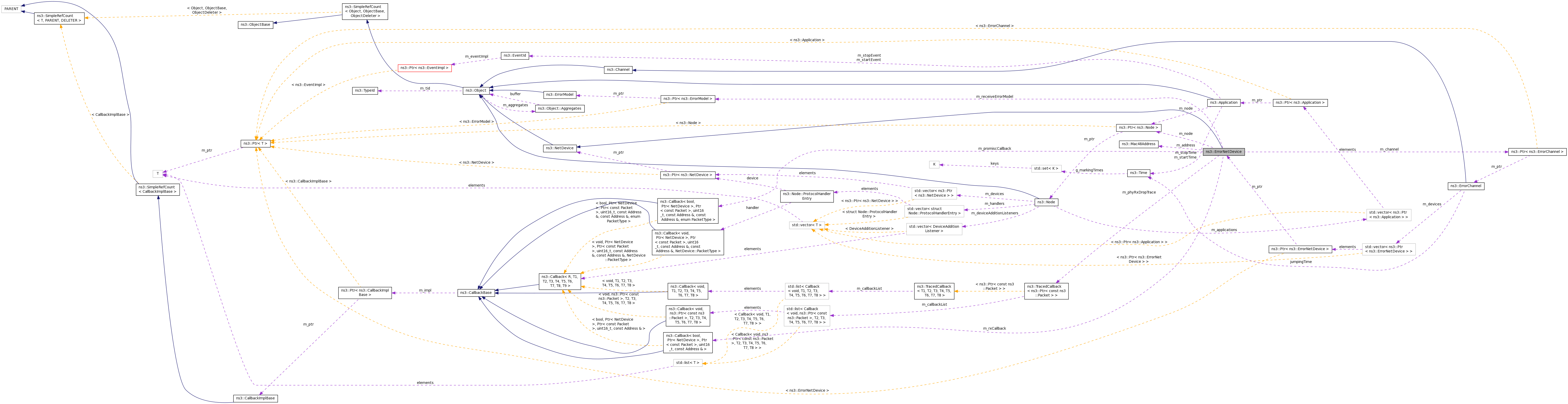

Collaboration diagram for ns3::ErrorNetDevice:

Public Member Functions
	ErrorNetDevice ()
virtual void	AddLinkChangeCallback (Callback< void > callback)
virtual Address	GetAddress (void) const
virtual Address	GetBroadcast (void) const
virtual Ptr< Channel >	GetChannel (void) const
virtual uint32_t	GetIfIndex (void) const
virtual uint16_t	GetMtu (void) const
virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...
virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...
virtual Ptr< Node >	GetNode (void) const
virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...
virtual bool	IsBroadcast (void) const
virtual bool	IsLinkUp (void) const
virtual bool	IsMulticast (void) const
virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...
virtual bool	NeedsArp (void) const
void	Receive (Ptr< Packet > packet, uint16_t protocol, Mac48Address to, Mac48Address from)
virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)
virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)
virtual void	SetAddress (Address address)
void	SetChannel (Ptr< ErrorChannel > channel)
virtual void	SetIfIndex (const uint32_t index)
virtual bool	SetMtu (const uint16_t mtu)
virtual void	SetNode (Ptr< Node > node)
virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)
virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)
void	SetReceiveErrorModel (Ptr< ErrorModel > em)
virtual bool	SupportsSendFrom (void) const
Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Private Attributes
Mac48Address	m_address
Ptr< ErrorChannel >	m_channel
uint32_t	m_ifIndex
uint16_t	m_mtu
Ptr< Node >	m_node
TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
NetDevice::PromiscReceiveCallback	m_promiscCallback
Ptr< ErrorModel >	m_receiveErrorModel
NetDevice::ReceiveCallback	m_rxCallback

Additional Inherited Members
Public Types inherited from ns3::NetDevice
enum	PacketType {   PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST,   PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback
typedef Callback< bool, Ptr < NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Detailed Description

Error net device for Error things and testing.

This device does not have a helper and assumes 48-bit mac addressing; the default address assigned to each device is zero, so you must assign a real address to use it. There is also the possibility to add an ErrorModel if you want to force losses on the device.

Definition at line 45 of file error-net-device.h.

Constructor & Destructor Documentation

ns3::ErrorNetDevice::ErrorNetDevice

(

)

Definition at line 53 of file error-net-device.cc.

Member Function Documentation

void ns3::ErrorNetDevice::AddLinkChangeCallback ( Callback< void >  callback )

virtual

Parameters

callback

the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 154 of file error-net-device.cc.

void ns3::ErrorNetDevice::DoDispose ( void  )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 234 of file error-net-device.cc.

References ns3::Object::DoDispose(), m_channel, m_node, and m_receiveErrorModel.

Here is the call graph for this function:

Address ns3::ErrorNetDevice::GetAddress ( void  ) const

virtual

Returns

the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 130 of file error-net-device.cc.

References m_address.

Address ns3::ErrorNetDevice::GetBroadcast ( void  ) const

virtual

Returns

the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 162 of file error-net-device.cc.

Ptr< Channel > ns3::ErrorNetDevice::GetChannel ( void  ) const

virtual

Returns

the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 120 of file error-net-device.cc.

References m_channel.

uint32_t ns3::ErrorNetDevice::GetIfIndex ( void  ) const

virtual

Returns

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 115 of file error-net-device.cc.

References m_ifIndex.

uint16_t ns3::ErrorNetDevice::GetMtu ( void  ) const

virtual

Returns

the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 144 of file error-net-device.cc.

References m_mtu.

Address ns3::ErrorNetDevice::GetMulticast ( Ipv4Address  multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup

The IP address for the multicast group destination of the packet.

Returns

The MAC multicast Address used to send packets to the provided multicast group.

Warning

Calling this method is invalid if IsMulticast returns not true.

See also

Ipv4Address

Address

NetDevice::IsMulticast

Implements ns3::NetDevice.

Definition at line 172 of file error-net-device.cc.

References ns3::Mac48Address::GetMulticast().

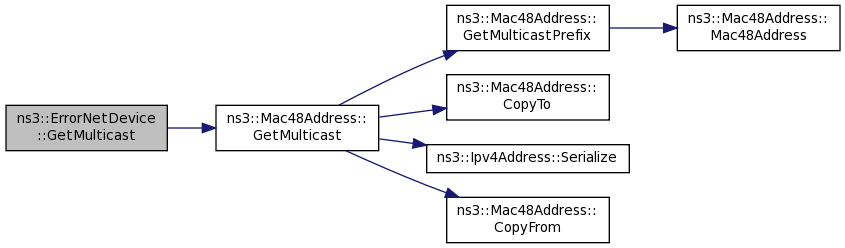

Here is the call graph for this function:

Address ns3::ErrorNetDevice::GetMulticast ( Ipv6Address  addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns

the MAC multicast address

Warning

Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 177 of file error-net-device.cc.

References ns3::Mac48Address::GetMulticast().

Here is the call graph for this function:

Ptr< Node > ns3::ErrorNetDevice::GetNode ( void  ) const

virtual

Returns

the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 213 of file error-net-device.cc.

References m_node.

TypeId ns3::ErrorNetDevice::GetTypeId ( void  )

static

Definition at line 36 of file error-net-device.cc.

References m_phyRxDropTrace, m_receiveErrorModel, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

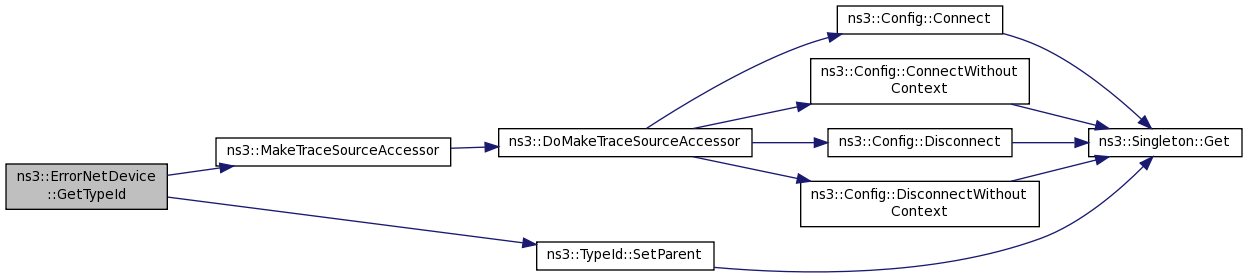

Here is the call graph for this function:

bool ns3::ErrorNetDevice::IsBridge ( void  ) const

virtual

Return true if the net device is acting as a bridge.

Returns

value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 189 of file error-net-device.cc.

bool ns3::ErrorNetDevice::IsBroadcast ( void  ) const

virtual

Returns

true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 157 of file error-net-device.cc.

bool ns3::ErrorNetDevice::IsLinkUp ( void  ) const

virtual

Returns

true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 149 of file error-net-device.cc.

bool ns3::ErrorNetDevice::IsMulticast ( void  ) const

virtual

Returns

value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 167 of file error-net-device.cc.

bool ns3::ErrorNetDevice::IsPointToPoint ( void  ) const

virtual

Return true if the net device is on a point-to-point link.

Returns

value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 183 of file error-net-device.cc.

bool ns3::ErrorNetDevice::NeedsArp ( void  ) const

virtual

Returns

true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 223 of file error-net-device.cc.

void ns3::ErrorNetDevice::Receive	(	Ptr< Packet >	packet,
		uint16_t	protocol,
		Mac48Address	to,
		Mac48Address	from
	)

Definition at line 61 of file error-net-device.cc.

References ns3::Mac48Address::IsBroadcast(), ns3::Mac48Address::IsGroup(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_address, m_phyRxDropTrace, m_promiscCallback, m_receiveErrorModel, m_rxCallback, NS_LOG_FUNCTION, ns3::NetDevice::PACKET_HOST, ns3::NetDevice::PACKET_MULTICAST, and ns3::NetDevice::PACKET_OTHERHOST.

Referenced by ns3::ErrorChannel::Send().

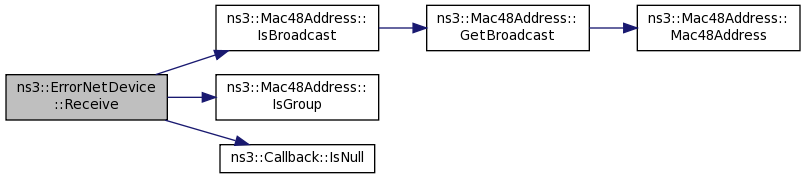

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::ErrorNetDevice::Send ( Ptr< Packet >  packet, const Address &  dest, uint16_t  protocolNumber  )

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns

whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 195 of file error-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_address, m_channel, and NS_LOG_FUNCTION.

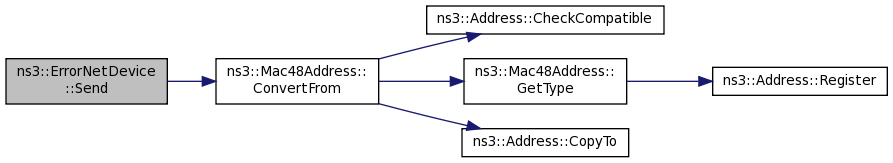

Here is the call graph for this function:

bool ns3::ErrorNetDevice::SendFrom ( Ptr< Packet >  packet, const Address &  source, const Address &  dest, uint16_t  protocolNumber  )

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns

whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 203 of file error-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), m_channel, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::ErrorNetDevice::SetAddress ( Address  address )

virtual

Set the address of this interface

Parameters

address

address to set

Implements ns3::NetDevice.

Definition at line 125 of file error-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), and m_address.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

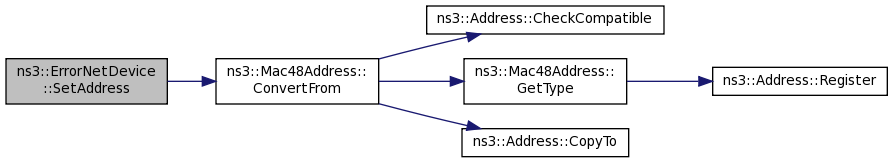

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::ErrorNetDevice::SetChannel

(

Ptr< ErrorChannel >

channel

)

Definition at line 97 of file error-net-device.cc.

References m_channel.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

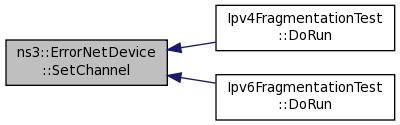

Here is the caller graph for this function:

void ns3::ErrorNetDevice::SetIfIndex ( const uint32_t  index )

virtual

Parameters

index

ifIndex of the device

Implements ns3::NetDevice.

Definition at line 110 of file error-net-device.cc.

References m_ifIndex.

bool ns3::ErrorNetDevice::SetMtu ( const uint16_t  mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns

whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 138 of file error-net-device.cc.

References m_mtu.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

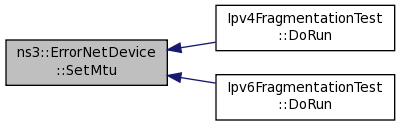

Here is the caller graph for this function:

void ns3::ErrorNetDevice::SetNode ( Ptr< Node >  node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 218 of file error-net-device.cc.

References m_node.

void ns3::ErrorNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback  cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 244 of file error-net-device.cc.

References m_promiscCallback.

void ns3::ErrorNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback  cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Implements ns3::NetDevice.

Definition at line 228 of file error-net-device.cc.

References m_rxCallback.

void ns3::ErrorNetDevice::SetReceiveErrorModel

(

Ptr< ErrorModel >

em

)

Attach a receive ErrorModel to the ErrorNetDevice.

The ErrorNetDevice may optionally include an ErrorModel in the packet receive chain.

See also

ErrorModel

Parameters

em	Ptr to the ErrorModel.

Definition at line 104 of file error-net-device.cc.

References m_receiveErrorModel.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

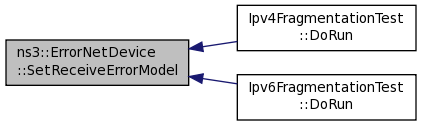

Here is the caller graph for this function:

bool ns3::ErrorNetDevice::SupportsSendFrom ( void  ) const

virtual

Returns

true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 250 of file error-net-device.cc.

Member Data Documentation

Mac48Address ns3::ErrorNetDevice::m_address

private

Definition at line 102 of file error-net-device.h.

Referenced by GetAddress(), Receive(), Send(), and SetAddress().

Ptr<ErrorChannel> ns3::ErrorNetDevice::m_channel

private

Definition at line 96 of file error-net-device.h.

Referenced by DoDispose(), GetChannel(), Send(), SendFrom(), and SetChannel().

uint32_t ns3::ErrorNetDevice::m_ifIndex

private

Definition at line 101 of file error-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

uint16_t ns3::ErrorNetDevice::m_mtu

private

Definition at line 100 of file error-net-device.h.

Referenced by GetMtu(), and SetMtu().

Ptr<Node> ns3::ErrorNetDevice::m_node

private

Definition at line 99 of file error-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

TracedCallback<Ptr<const Packet> > ns3::ErrorNetDevice::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received due to the error model being active. Although ErrorNetDevice doesn't really have a Phy model, we choose this trace source name for alignment with other trace sources.

See also

class CallBackTraceSource

Definition at line 112 of file error-net-device.h.

Referenced by GetTypeId(), and Receive().

NetDevice::PromiscReceiveCallback ns3::ErrorNetDevice::m_promiscCallback

private

Definition at line 98 of file error-net-device.h.

Referenced by Receive(), and SetPromiscReceiveCallback().

Ptr<ErrorModel> ns3::ErrorNetDevice::m_receiveErrorModel

private

Definition at line 103 of file error-net-device.h.

Referenced by DoDispose(), GetTypeId(), Receive(), and SetReceiveErrorModel().

NetDevice::ReceiveCallback ns3::ErrorNetDevice::m_rxCallback

private

Definition at line 97 of file error-net-device.h.

Referenced by Receive(), and SetReceiveCallback().

---

The documentation for this class was generated from the following files:

• src/internet/test/error-net-device.h
• src/internet/test/error-net-device.cc
