ns3::EutranMeasurementMapping Class Reference

#include <lte-common.h>

Static Public Member Functions
static uint8_t	Db2RsrqRange (double db)
static uint8_t	Dbm2RsrpRange (double dbm)
static double	QuantizeRsrp (double v)
static double	QuantizeRsrq (double v)
static double	RsrpRange2Dbm (uint8_t range)
static double	RsrqRange2Db (uint8_t range)

Detailed Description

Implements the E-UTRA measurement mappings defined in 3GPP TS 36.133 section 9.1 E-UTRAN measurements

Definition at line 156 of file lte-common.h.

Member Function Documentation

uint8_t ns3::EutranMeasurementMapping::Db2RsrqRange ( double  db )

static

convert an RSRQ value in dB to the corresponding range as per 3GPP TS 36.133 section 9.1.7 RSRQ Measurement Report Mapping

Parameters

db	the RSRQ value in dB

Returns

the corresponding range

Definition at line 226 of file lte-common.cc.

Referenced by QuantizeRsrq(), ns3::LteUeMeasurementsTestCase::RecvMeasurementReport(), and ns3::LteUeRrc::SendMeasurementReport().

Here is the caller graph for this function:

uint8_t ns3::EutranMeasurementMapping::Dbm2RsrpRange ( double  dbm )

static

convert an RSRP value in dBm to the corresponding range as per 3GPP TS 36.133 section 9.1.4 RSRP Measurement Report Mapping

Parameters

dbm	the RSRP value in dBm

Returns

the corresponding range

Definition at line 210 of file lte-common.cc.

Referenced by QuantizeRsrp(), ns3::LteUeMeasurementsTestCase::RecvMeasurementReport(), and ns3::LteUeRrc::SendMeasurementReport().

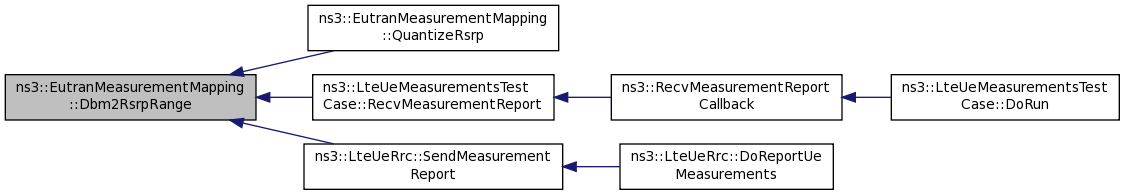

Here is the caller graph for this function:

double ns3::EutranMeasurementMapping::QuantizeRsrp ( double  v )

static

Quantize an RSRP value according to the measurement mapping of TS 36.133

Parameters

v	RSRP value in dBm

Returns

the quantized RSRP value in dBm

Definition at line 234 of file lte-common.cc.

References Dbm2RsrpRange(), and RsrpRange2Dbm().

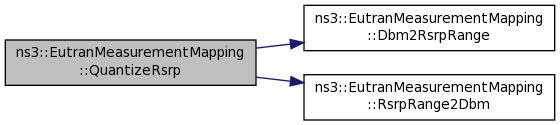

Here is the call graph for this function:

double ns3::EutranMeasurementMapping::QuantizeRsrq ( double  v )

static

Quantize an RSRQ value according to the measurement mapping of TS 36.133

Parameters

v	RSRQ value in dB

Returns

the quantized RSRQ value in dB

Definition at line 240 of file lte-common.cc.

References Db2RsrqRange(), and RsrqRange2Db().

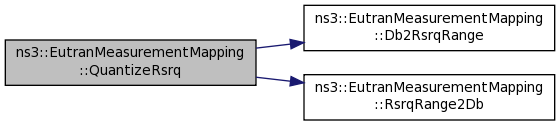

Here is the call graph for this function:

double ns3::EutranMeasurementMapping::RsrpRange2Dbm ( uint8_t  range )

static

converts an RSRP range to dBm as per 3GPP TS 36.133 section 9.1.4 RSRP Measurement Report Mapping

Parameters

range

the RSRP range value

Returns

the corresponding RSRP value in dBm

Definition at line 202 of file lte-common.cc.

References NS_ASSERT_MSG.

Referenced by ns3::LteUeRrc::DoReportUeMeasurements(), and QuantizeRsrp().

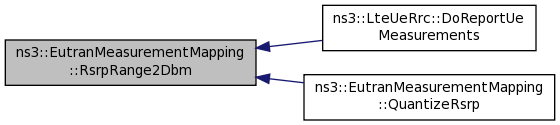

Here is the caller graph for this function:

double ns3::EutranMeasurementMapping::RsrqRange2Db ( uint8_t  range )

static

converts an RSRQ range to dB as per 3GPP TS 36.133 section 9.1.7 RSRQ Measurement Report Mapping

Parameters

range

the RSRQ range value

Returns

the corresponding RSRQ value in dB

Definition at line 218 of file lte-common.cc.

References NS_ASSERT_MSG.

Referenced by ns3::LteUeRrc::DoReportUeMeasurements(), and QuantizeRsrq().

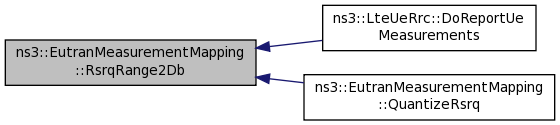

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-common.h
• src/lte/model/lte-common.cc
