Return a constant received power level independent of the transmit power. More...

#include <propagation-loss-model.h>

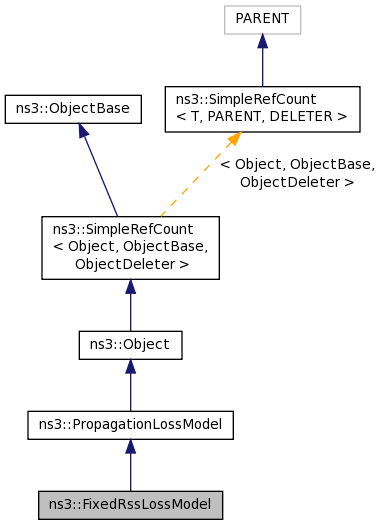

Inheritance diagram for ns3::FixedRssLossModel:

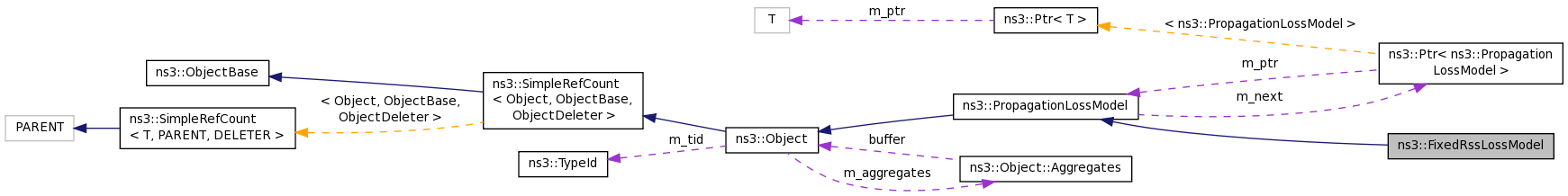

Collaboration diagram for ns3::FixedRssLossModel:

Public Member Functions
	FixedRssLossModel ()

virtual	~FixedRssLossModel ()

void	SetRss (double rss)

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
	FixedRssLossModel (const FixedRssLossModel &o)

virtual int64_t	DoAssignStreams (int64_t stream)

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

FixedRssLossModel &	operator= (const FixedRssLossModel &o)

Private Attributes
double	m_rss

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Return a constant received power level independent of the transmit power.

The received power is constant independent of the transmit power. The user must set received power level through the Rss attribute or public SetRss() method. Note that if this loss model is chained to other loss models via SetNext() method, it can only be the first loss model in such a chain, or else it will disregard the losses computed by loss models that precede it in the chain.

Config Paths

ns3::FixedRssLossModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::FixedRssLossModel

Attributes

Rss: The fixed receiver Rss.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: -150
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 514 of file propagation-loss-model.h.

Constructor & Destructor Documentation

ns3::FixedRssLossModel::FixedRssLossModel ( )

Definition at line 770 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::~FixedRssLossModel ( )

virtual

Definition at line 775 of file propagation-loss-model.cc.

ns3::FixedRssLossModel::FixedRssLossModel ( const FixedRssLossModel & o )

private

Member Function Documentation

int64_t ns3::FixedRssLossModel::DoAssignStreams ( int64_t stream )

privatevirtual

Subclasses must implement this; those not using random variables can return zero

Implements ns3::PropagationLossModel.

Definition at line 794 of file propagation-loss-model.cc.

double ns3::FixedRssLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatevirtual

Implements ns3::PropagationLossModel.

Definition at line 786 of file propagation-loss-model.cc.

References m_rss.

TypeId ns3::FixedRssLossModel::GetTypeId ( void )

static

Definition at line 758 of file propagation-loss-model.cc.

References m_rss, and ns3::TypeId::SetParent().

Here is the call graph for this function:

FixedRssLossModel& ns3::FixedRssLossModel::operator= ( const FixedRssLossModel & o )

private

void ns3::FixedRssLossModel::SetRss ( double rss )

Parameters

rss	(dBm) the received signal strength

Set the received signal strength (RSS) in dBm.

Definition at line 780 of file propagation-loss-model.cc.

References m_rss.

Member Data Documentation

double ns3::FixedRssLossModel::m_rss

private

Definition at line 535 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), GetTypeId(), and SetRss().

The documentation for this class was generated from the following files:

src/propagation/model/propagation-loss-model.h
src/propagation/model/propagation-loss-model.cc
