ns3::GlobalRouteManagerImpl Class Reference

A global router implementation. More...

#include <global-route-manager-impl.h>

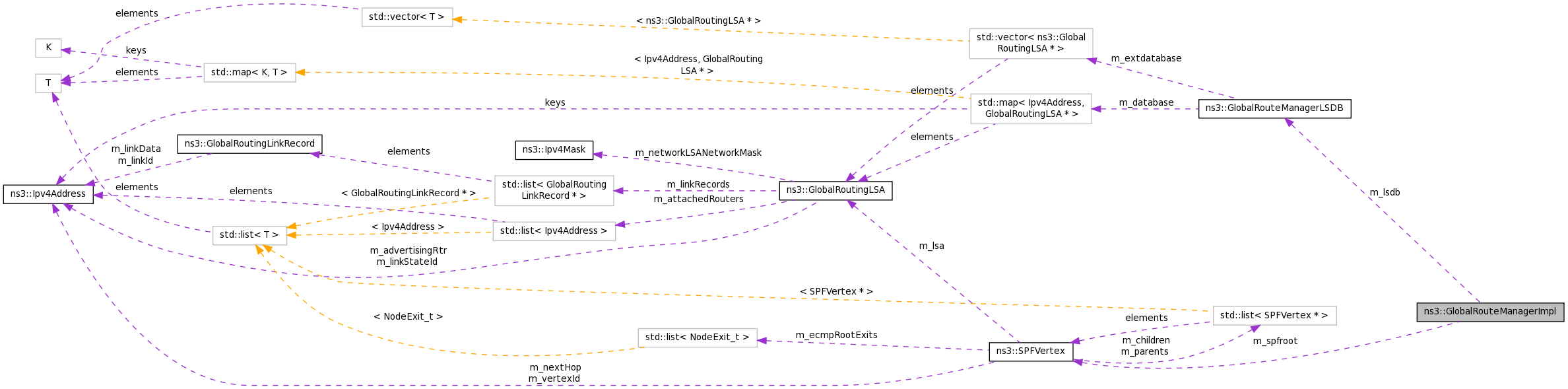

+ Collaboration diagram for ns3::GlobalRouteManagerImpl:

Public Member Functions

 GlobalRouteManagerImpl ()

virtual ~GlobalRouteManagerImpl ()

virtual void BuildGlobalRoutingDatabase ()
 Build the routing database by gathering Link State Advertisements from each node exporting a GlobalRouter interface. More...

void DebugSPFCalculate (Ipv4Address root)
 Debugging routine; call the core SPF from the unit tests. More...

void DebugUseLsdb (GlobalRouteManagerLSDB *)
 Debugging routine; allow client code to supply a pre-built LSDB. More...

virtual void DeleteGlobalRoutes ()
 Delete all static routes on all nodes that have a GlobalRouterInterface. More...

virtual void InitializeRoutes ()
 Compute routes using a Dijkstra SPF computation and populate per-node forwarding tables. More...


Private Member Functions

 GlobalRouteManagerImpl (GlobalRouteManagerImpl &srmi)
 GlobalRouteManagerImpl copy construction is disallowed. There's no need for it and a compiler provided shallow copy would be wrong. More...

bool CheckForStubNode (Ipv4Address root)

int32_t FindOutgoingInterfaceId (Ipv4Address a, Ipv4Mask amask=Ipv4Mask("255.255.255.255"))

GlobalRouteManagerImpl & operator= (GlobalRouteManagerImpl &srmi)
 Global Route Manager Implementation assignment operator is disallowed. There's no need for it and a compiler provided shallow copy would be hopelessly wrong. More...

void ProcessASExternals (SPFVertex *v, GlobalRoutingLSA *extlsa)

void SPFAddASExternal (GlobalRoutingLSA *extlsa, SPFVertex *v)

void SPFCalculate (Ipv4Address root)

GlobalRoutingLinkRecord * SPFGetNextLink (SPFVertex *v, SPFVertex *w, GlobalRoutingLinkRecord *prev_link)

void SPFIntraAddRouter (SPFVertex *v)

void SPFIntraAddStub (GlobalRoutingLinkRecord *l, SPFVertex *v)

void SPFIntraAddTransit (SPFVertex *v)

void SPFNext (SPFVertex *, CandidateQueue &)

int SPFNexthopCalculation (SPFVertex *v, SPFVertex *w, GlobalRoutingLinkRecord *l, uint32_t distance)

void SPFProcessStubs (SPFVertex *v)

void SPFVertexAddParent (SPFVertex *v)


Private Attributes

GlobalRouteManagerLSDB * m_lsdb

SPFVertex * m_spfroot


Detailed Description

A global router implementation.

This singleton object can query interface each node in the system for a GlobalRouter interface. For those nodes, it fetches one or more Link State Advertisements and stores them in a local database. Then, it can compute shortest paths on a per-node basis to all routers, and finally configure each of the node's forwarding tables.

The design is guided by OSPFv2 RFC 2328 section 16.1.1 and quagga ospfd.

Definition at line 700 of file global-route-manager-impl.h.

Constructor & Destructor Documentation

ns3::GlobalRouteManagerImpl::GlobalRouteManagerImpl ( )

Definition at line 533 of file global-route-manager-impl.cc.

References m_lsdb, and NS_LOG_FUNCTION.

ns3::GlobalRouteManagerImpl::~GlobalRouteManagerImpl ( )
virtual

Definition at line 541 of file global-route-manager-impl.cc.

References m_lsdb, and NS_LOG_FUNCTION.

ns3::GlobalRouteManagerImpl::GlobalRouteManagerImpl ( GlobalRouteManagerImpl &  srmi)
private

GlobalRouteManagerImpl copy construction is disallowed. There's no need for it and a compiler provided shallow copy would be wrong.

Member Function Documentation

void ns3::GlobalRouteManagerImpl::BuildGlobalRoutingDatabase ( )
virtual

Build the routing database by gathering Link State Advertisements from each node exporting a GlobalRouter interface.

Internal:

Definition at line 606 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::Object::GetObject(), ns3::GlobalRouteManagerLSDB::Insert(), m_lsdb, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

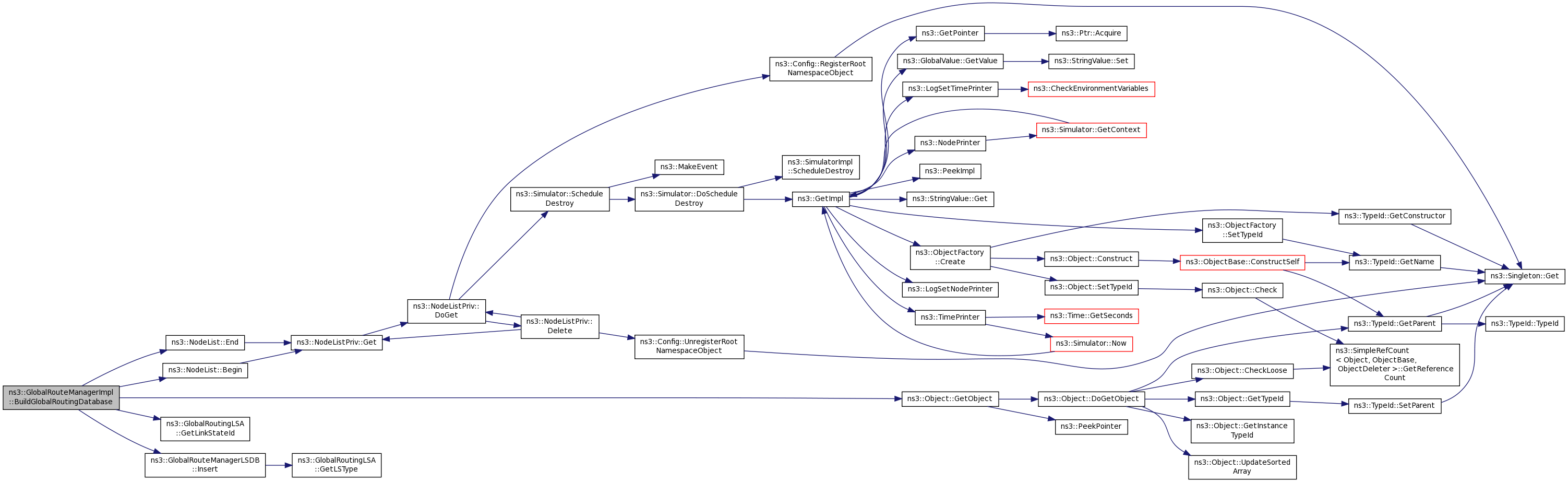

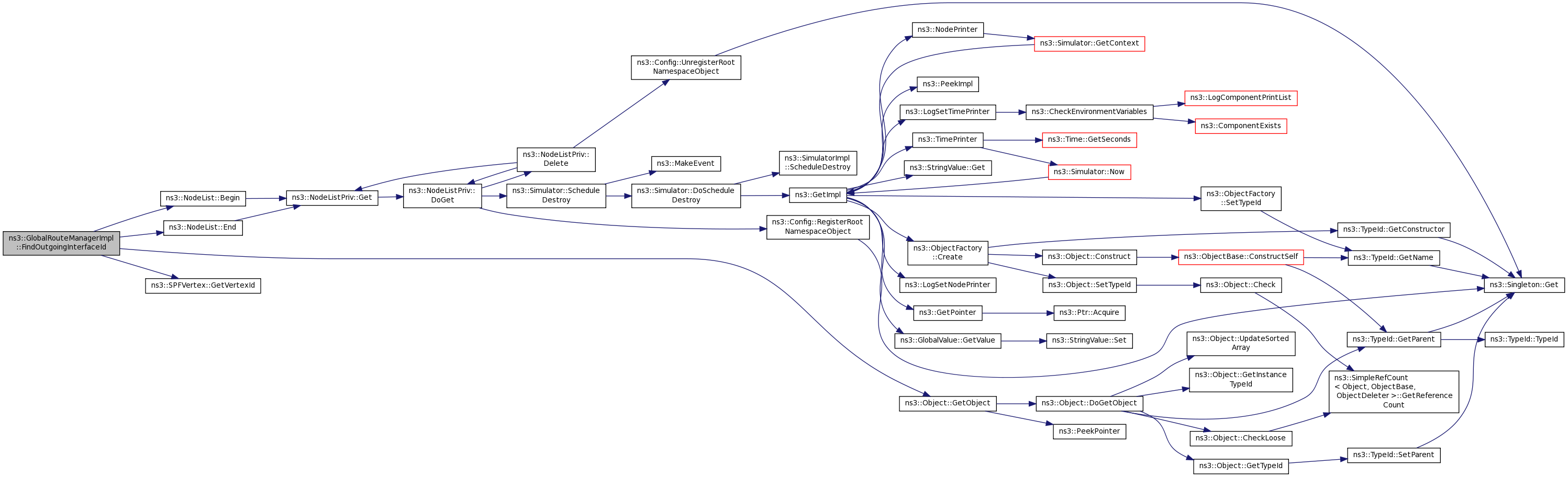

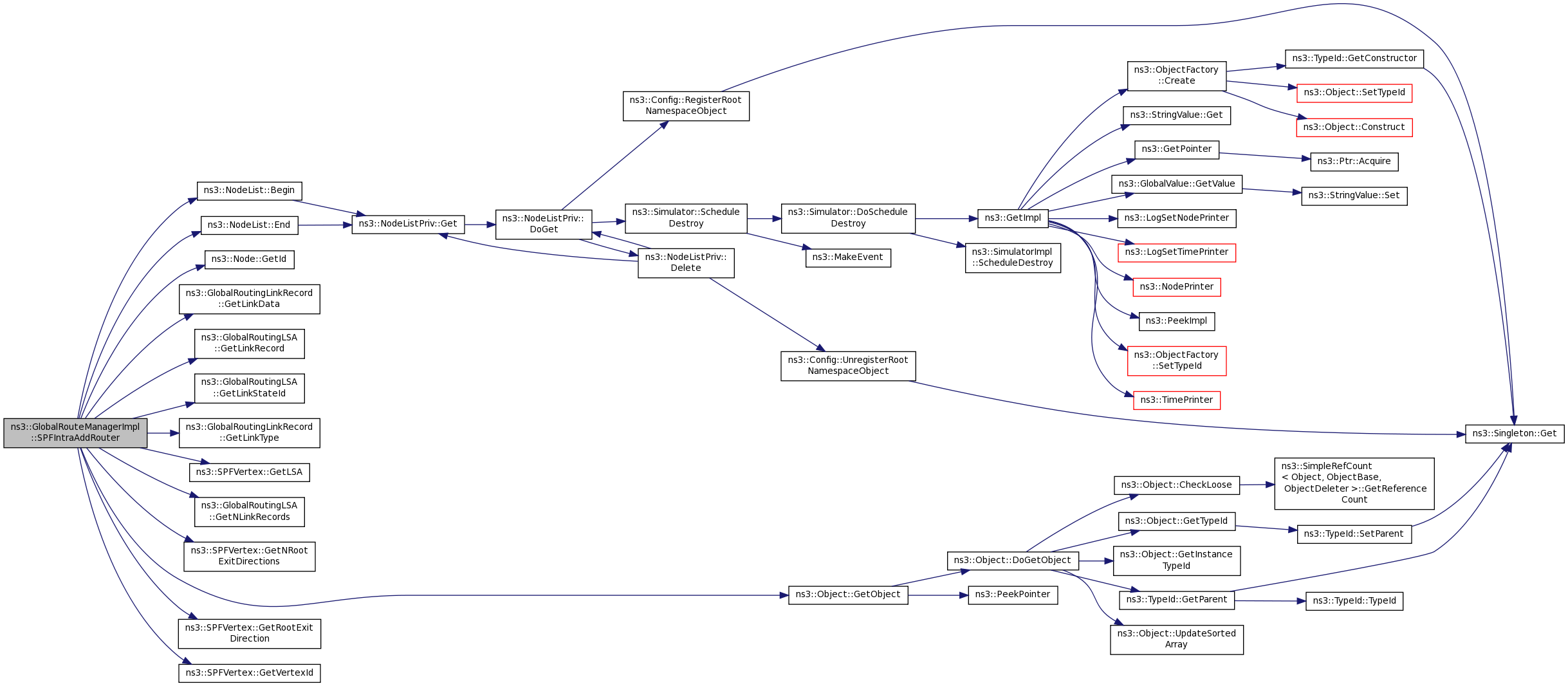

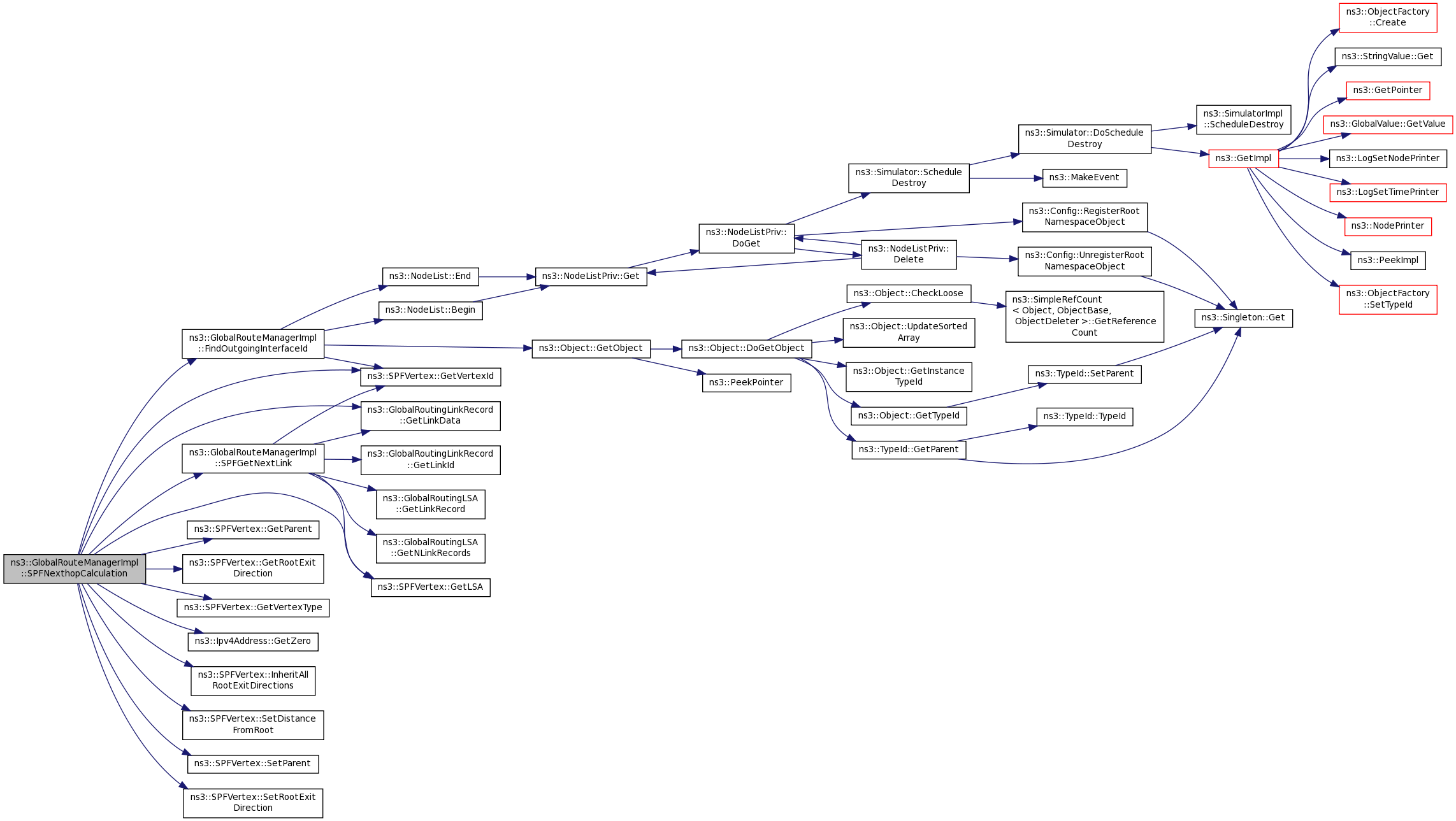

+ Here is the call graph for this function:

bool ns3::GlobalRouteManagerImpl::CheckForStubNode ( Ipv4Address  root)
private

Definition at line 1252 of file global-route-manager-impl.cc.

References FindOutgoingInterfaceId(), ns3::GlobalRoutingLinkRecord::GetLinkData(), ns3::GlobalRoutingLinkRecord::GetLinkId(), ns3::GlobalRoutingLSA::GetLinkRecord(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::GlobalRoutingLinkRecord::GetLinkType(), ns3::GlobalRouteManagerLSDB::GetLSA(), ns3::GlobalRoutingLSA::GetNLinkRecords(), ns3::GlobalRoutingLSA::GetNode(), ns3::Object::GetObject(), m_lsdb, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::GlobalRoutingLinkRecord::PointToPoint, and ns3::GlobalRoutingLinkRecord::TransitNetwork.

Referenced by SPFCalculate().

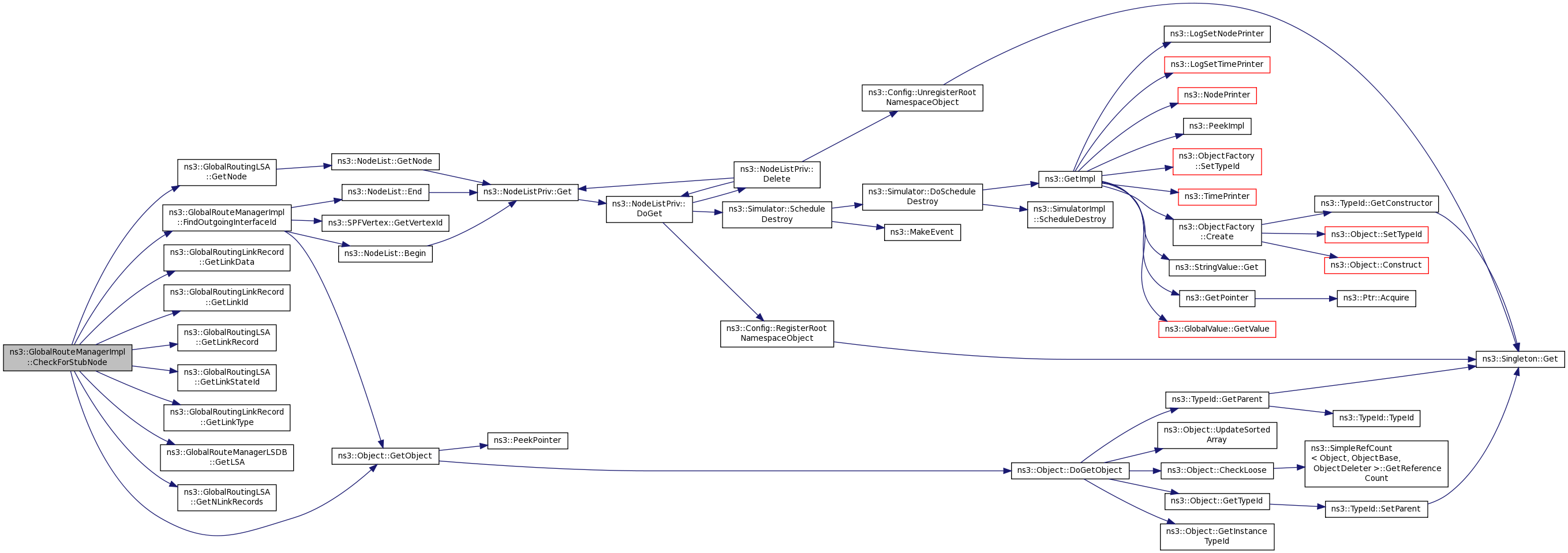

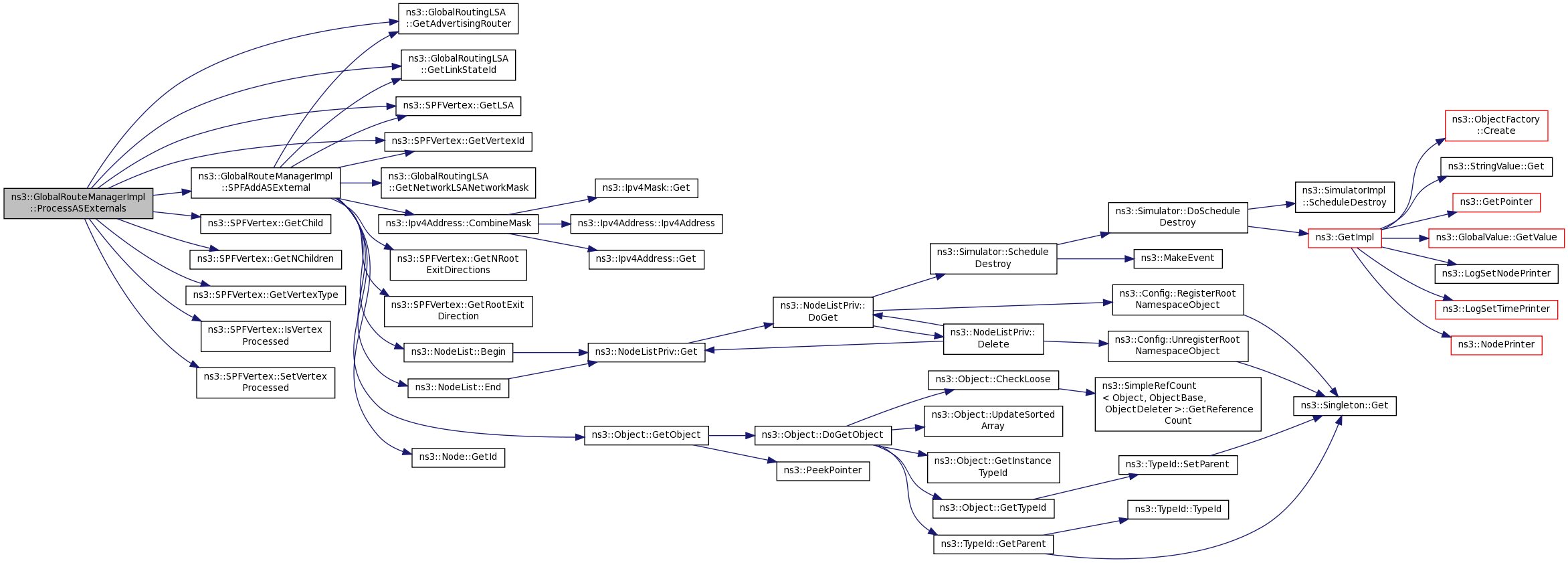

+ Here is the call graph for this function:

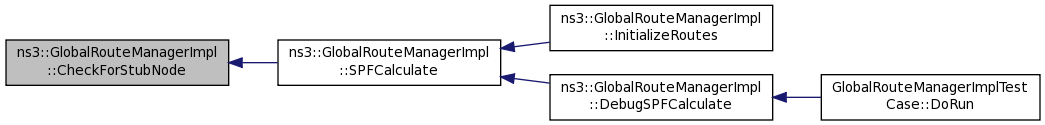

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::DebugSPFCalculate ( Ipv4Address  root)

Debugging routine; call the core SPF from the unit tests.

Internal:

Definition at line 1239 of file global-route-manager-impl.cc.

References NS_LOG_FUNCTION, and SPFCalculate().

Referenced by GlobalRouteManagerImplTestCase::DoRun().

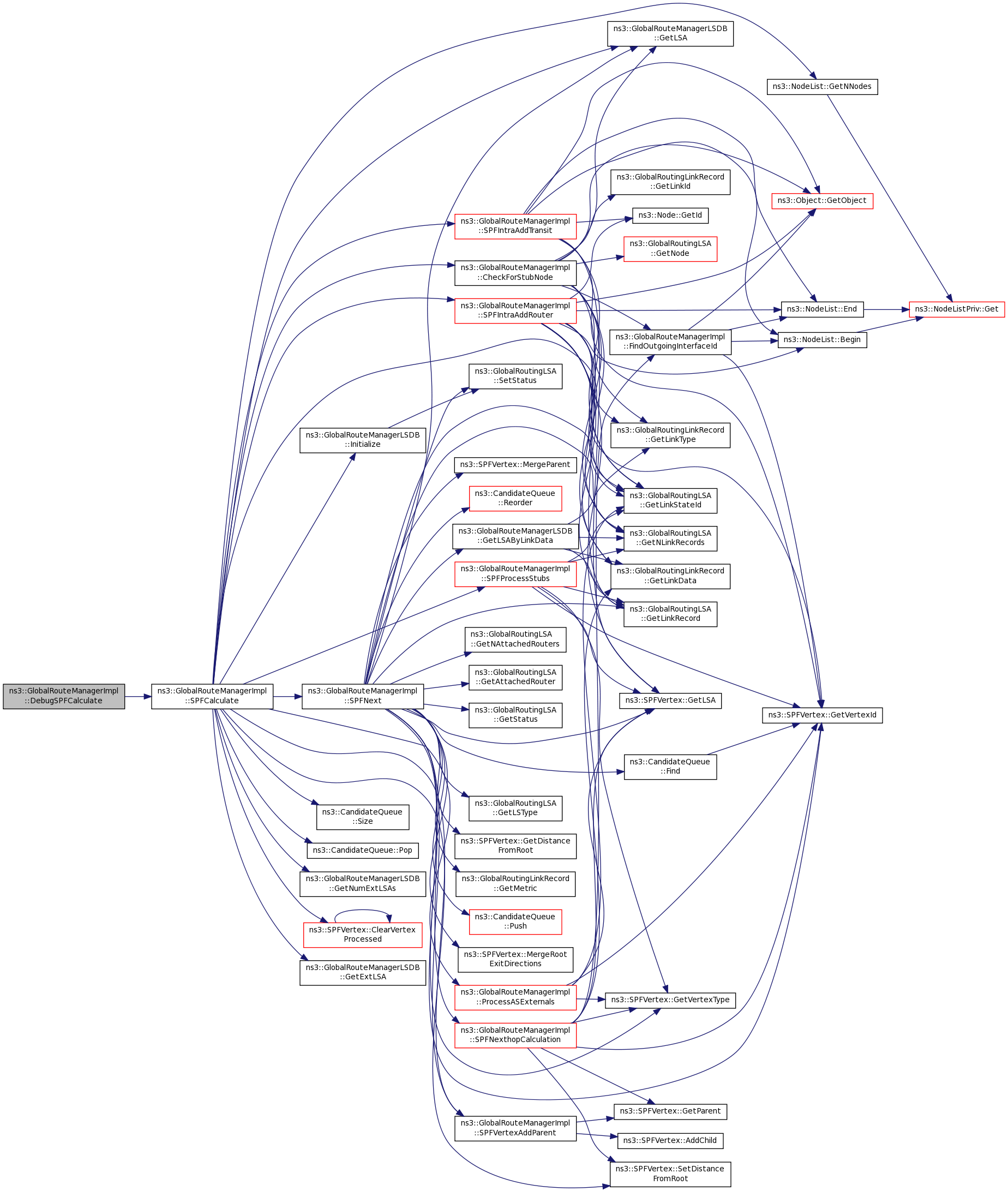

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::DebugUseLsdb ( GlobalRouteManagerLSDB *  lsdb)

Debugging routine; allow client code to supply a pre-built LSDB.

Internal:

Definition at line 551 of file global-route-manager-impl.cc.

References m_lsdb, and NS_LOG_FUNCTION.

Referenced by GlobalRouteManagerImplTestCase::DoRun().

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::DeleteGlobalRoutes ( )
virtual

Delete all static routes on all nodes that have a GlobalRouterInterface.

Todo:
separate manually assigned static routes from static routes that the global routing code injects, and only delete the latter
Internal:

Definition at line 562 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), ns3::Object::GetObject(), m_lsdb, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

+ Here is the call graph for this function:

int32_t ns3::GlobalRouteManagerImpl::FindOutgoingInterfaceId ( Ipv4Address  a,
Ipv4Mask  amask = Ipv4Mask ("255.255.255.255")
)
private

Definition at line 1835 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::SPFVertex::GetVertexId(), m_spfroot, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by CheckForStubNode(), and SPFNexthopCalculation().

+ Here is the call graph for this function:

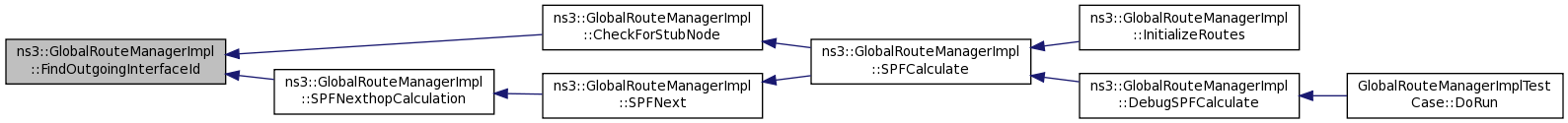

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::InitializeRoutes ( )
virtual

Compute routes using a Dijkstra SPF computation and populate per-node forwarding tables.

Internal:

Definition at line 689 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Object::GetObject(), ns3::Node::GetSystemId(), ns3::MpiInterface::GetSystemId(), NS_LOG_FUNCTION, NS_LOG_INFO, and SPFCalculate().

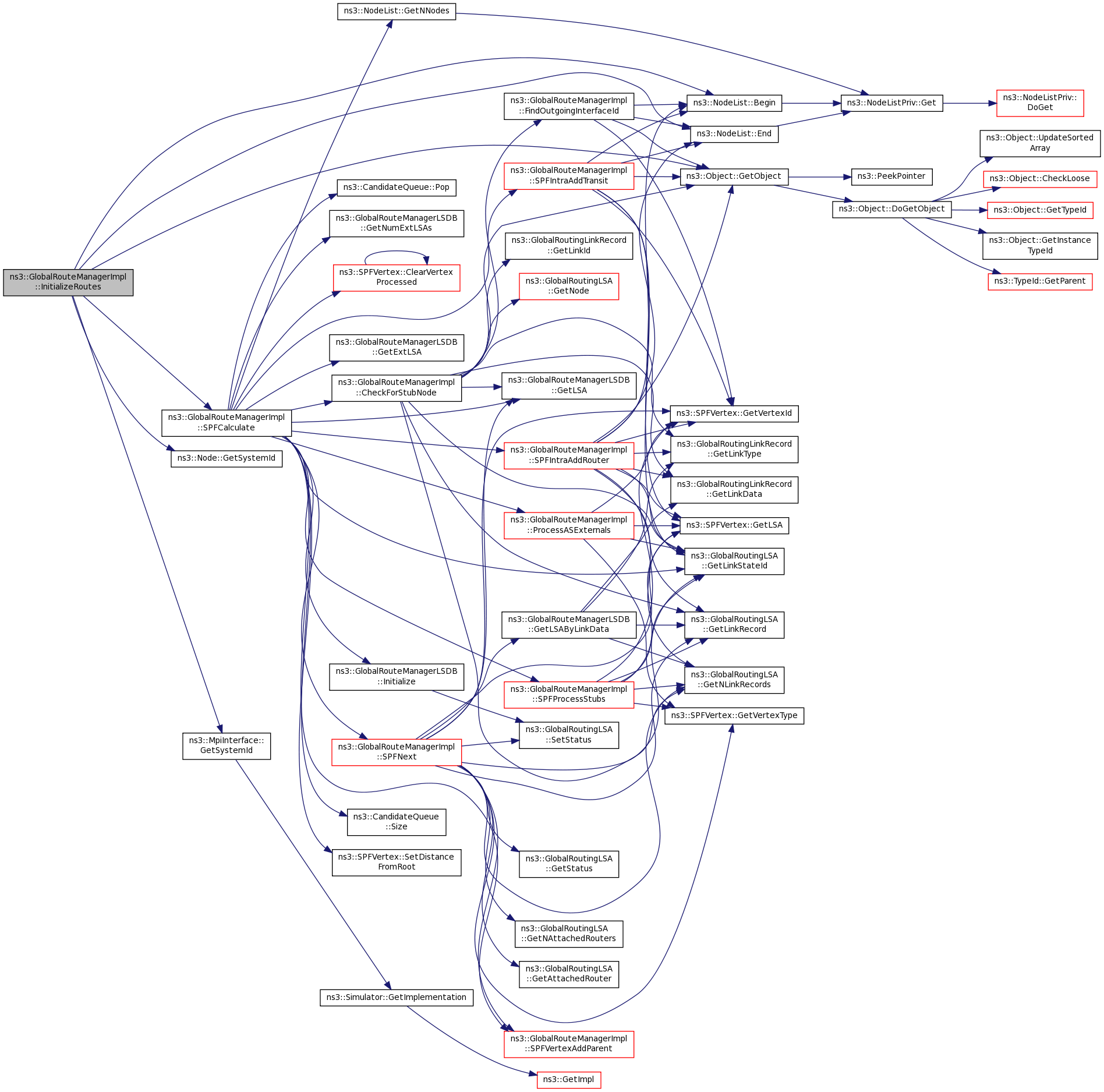

+ Here is the call graph for this function:

GlobalRouteManagerImpl& ns3::GlobalRouteManagerImpl::operator= ( GlobalRouteManagerImpl &  srmi)
private

Global Route Manager Implementation assignment operator is disallowed. There's no need for it and a compiler provided shallow copy would be hopelessly wrong.

void ns3::GlobalRouteManagerImpl::ProcessASExternals ( SPFVertex *  v,
GlobalRoutingLSA *  extlsa
)
private

Definition at line 1500 of file global-route-manager-impl.cc.

References ns3::GlobalRoutingLSA::GetAdvertisingRouter(), ns3::SPFVertex::GetChild(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::SPFVertex::GetLSA(), ns3::SPFVertex::GetNChildren(), ns3::SPFVertex::GetVertexId(), ns3::SPFVertex::GetVertexType(), ns3::SPFVertex::IsVertexProcessed(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SPFVertex::SetVertexProcessed(), SPFAddASExternal(), and ns3::SPFVertex::VertexRouter.

Referenced by SPFCalculate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFAddASExternal ( GlobalRoutingLSA *  extlsa,
SPFVertex *  v
)
private

Definition at line 1534 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::Ipv4Address::CombineMask(), ns3::NodeList::End(), ns3::GlobalRoutingLSA::GetAdvertisingRouter(), ns3::Node::GetId(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::SPFVertex::GetLSA(), ns3::GlobalRoutingLSA::GetNetworkLSANetworkMask(), ns3::SPFVertex::GetNRootExitDirections(), ns3::Object::GetObject(), ns3::SPFVertex::GetRootExitDirection(), ns3::SPFVertex::GetVertexId(), m_spfroot, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ProcessASExternals().

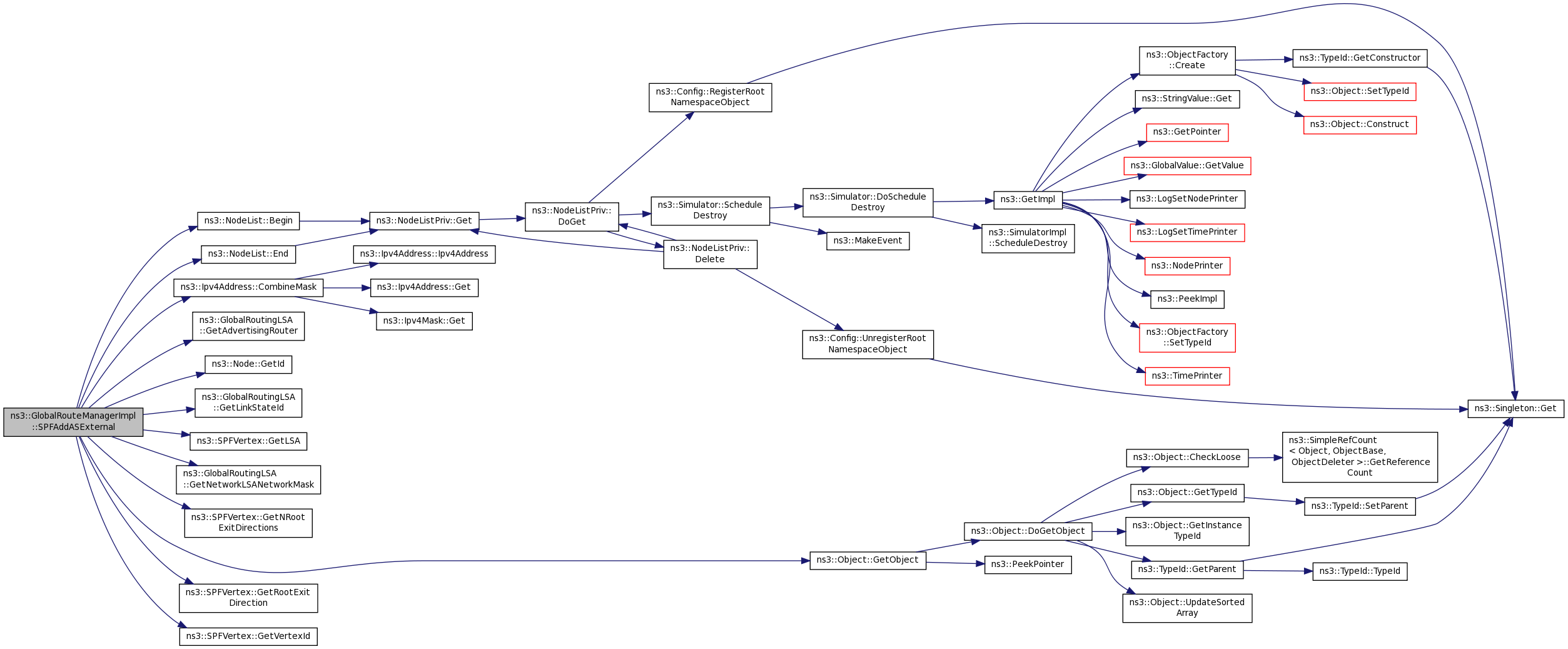

+ Here is the call graph for this function:

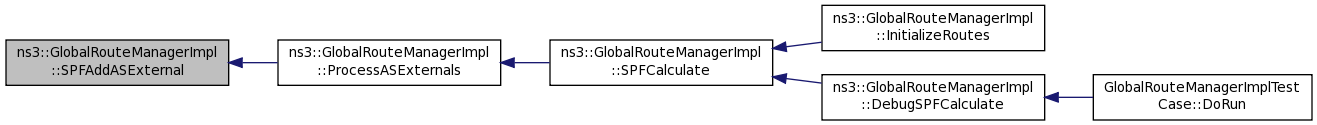

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFCalculate ( Ipv4Address  root)
private

Definition at line 1334 of file global-route-manager-impl.cc.

References CheckForStubNode(), ns3::SPFVertex::ClearVertexProcessed(), ns3::GlobalRouteManagerLSDB::GetExtLSA(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::GlobalRouteManagerLSDB::GetLSA(), ns3::NodeList::GetNNodes(), ns3::GlobalRouteManagerLSDB::GetNumExtLSAs(), ns3::GlobalRouteManagerLSDB::Initialize(), ns3::GlobalRoutingLSA::LSA_SPF_IN_SPFTREE, m_lsdb, m_spfroot, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::CandidateQueue::Pop(), ProcessASExternals(), ns3::SPFVertex::SetDistanceFromRoot(), ns3::CandidateQueue::Size(), SPFIntraAddRouter(), SPFIntraAddTransit(), SPFNext(), SPFProcessStubs(), SPFVertexAddParent(), ns3::SPFVertex::VertexNetwork, and ns3::SPFVertex::VertexRouter.

Referenced by DebugSPFCalculate(), and InitializeRoutes().

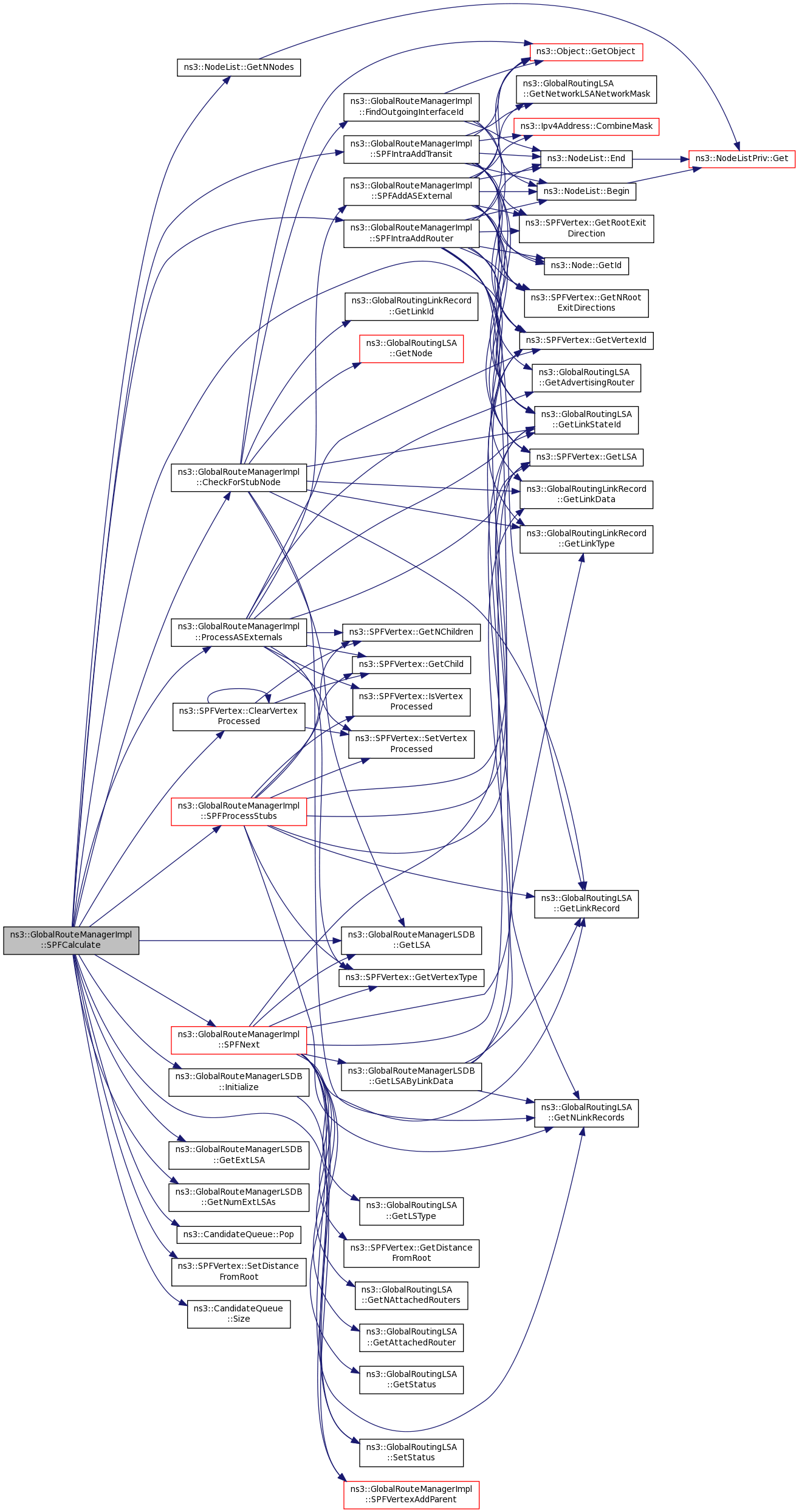

+ Here is the call graph for this function:

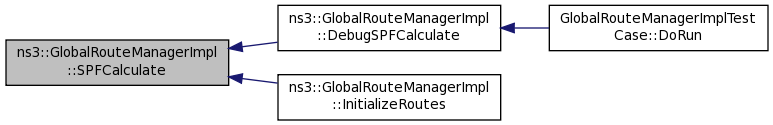

+ Here is the caller graph for this function:

GlobalRoutingLinkRecord * ns3::GlobalRouteManagerImpl::SPFGetNextLink ( SPFVertex *  v,
SPFVertex *  w,
GlobalRoutingLinkRecord *  prev_link
)
private

Definition at line 1161 of file global-route-manager-impl.cc.

References ns3::GlobalRoutingLinkRecord::GetLinkData(), ns3::GlobalRoutingLinkRecord::GetLinkId(), ns3::GlobalRoutingLSA::GetLinkRecord(), ns3::SPFVertex::GetLSA(), ns3::GlobalRoutingLSA::GetNLinkRecords(), ns3::SPFVertex::GetVertexId(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by SPFNexthopCalculation().

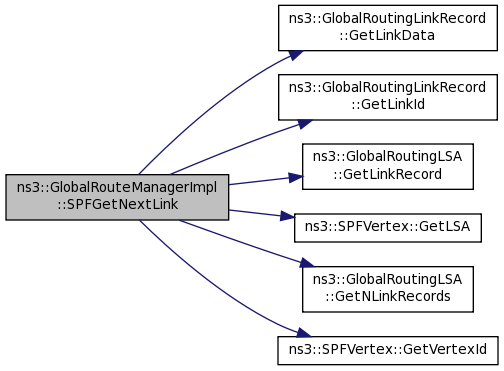

+ Here is the call graph for this function:

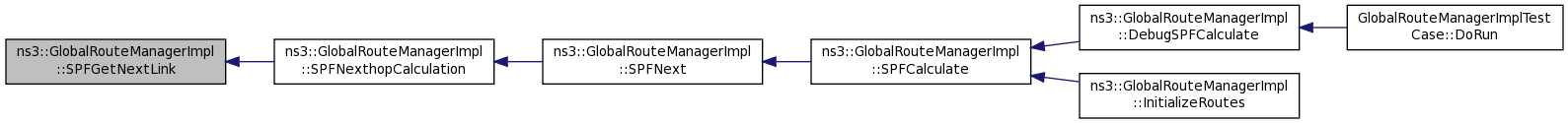

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFIntraAddRouter ( SPFVertex *  v)
private

Definition at line 1922 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetId(), ns3::GlobalRoutingLinkRecord::GetLinkData(), ns3::GlobalRoutingLSA::GetLinkRecord(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::GlobalRoutingLinkRecord::GetLinkType(), ns3::SPFVertex::GetLSA(), ns3::GlobalRoutingLSA::GetNLinkRecords(), ns3::SPFVertex::GetNRootExitDirections(), ns3::Object::GetObject(), ns3::SPFVertex::GetRootExitDirection(), ns3::SPFVertex::GetVertexId(), m_spfroot, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::GlobalRoutingLinkRecord::PointToPoint.

Referenced by SPFCalculate().

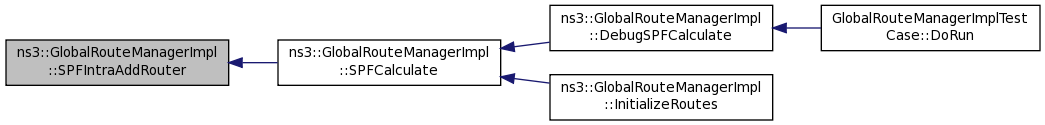

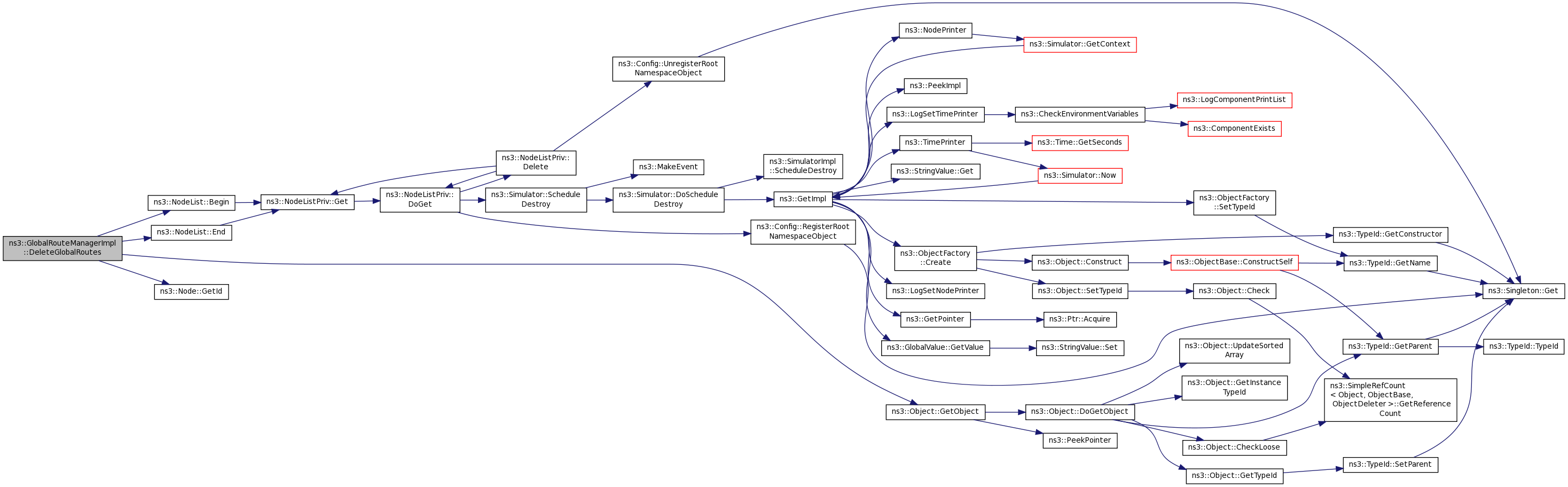

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFIntraAddStub ( GlobalRoutingLinkRecord *  l,
SPFVertex *  v
)
private

Definition at line 1695 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::Ipv4Address::CombineMask(), ns3::NodeList::End(), ns3::Ipv4Address::Get(), ns3::Node::GetId(), ns3::GlobalRoutingLinkRecord::GetLinkData(), ns3::GlobalRoutingLinkRecord::GetLinkId(), ns3::SPFVertex::GetLSA(), ns3::SPFVertex::GetNRootExitDirections(), ns3::Object::GetObject(), ns3::SPFVertex::GetRootExitDirection(), ns3::SPFVertex::GetVertexId(), m_spfroot, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

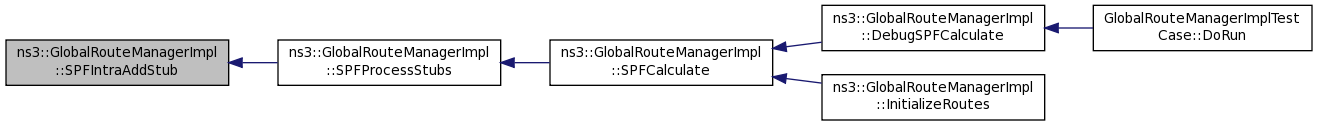

Referenced by SPFProcessStubs().

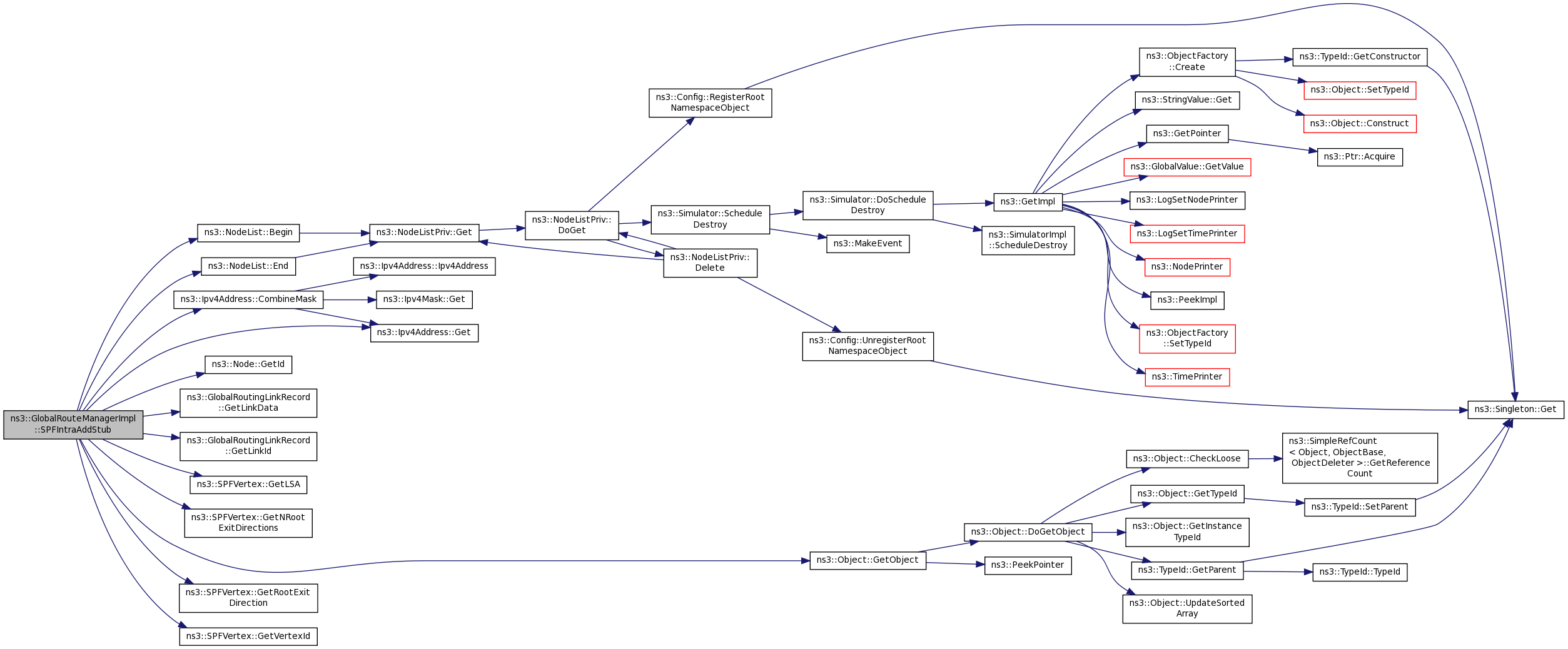

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFIntraAddTransit ( SPFVertex *  v)
private

Definition at line 2067 of file global-route-manager-impl.cc.

References ns3::NodeList::Begin(), ns3::Ipv4Address::CombineMask(), ns3::NodeList::End(), ns3::Node::GetId(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::SPFVertex::GetLSA(), ns3::GlobalRoutingLSA::GetNetworkLSANetworkMask(), ns3::SPFVertex::GetNRootExitDirections(), ns3::Object::GetObject(), ns3::SPFVertex::GetRootExitDirection(), ns3::SPFVertex::GetVertexId(), m_spfroot, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by SPFCalculate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFNext ( SPFVertex *  v,
CandidateQueue &  candidate
)
private

Definition at line 739 of file global-route-manager-impl.cc.

References ns3::CandidateQueue::Find(), ns3::GlobalRoutingLSA::GetAttachedRouter(), ns3::SPFVertex::GetDistanceFromRoot(), ns3::GlobalRoutingLSA::GetLinkRecord(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::SPFVertex::GetLSA(), ns3::GlobalRouteManagerLSDB::GetLSA(), ns3::GlobalRouteManagerLSDB::GetLSAByLinkData(), ns3::GlobalRoutingLSA::GetLSType(), ns3::GlobalRoutingLinkRecord::GetMetric(), ns3::GlobalRoutingLSA::GetNAttachedRouters(), ns3::GlobalRoutingLSA::GetNLinkRecords(), ns3::GlobalRoutingLSA::GetStatus(), ns3::SPFVertex::GetVertexId(), ns3::SPFVertex::GetVertexType(), ns3::GlobalRoutingLSA::LSA_SPF_CANDIDATE, ns3::GlobalRoutingLSA::LSA_SPF_IN_SPFTREE, ns3::GlobalRoutingLSA::LSA_SPF_NOT_EXPLORED, m_lsdb, ns3::SPFVertex::MergeParent(), ns3::SPFVertex::MergeRootExitDirections(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::GlobalRoutingLinkRecord::PointToPoint, ns3::CandidateQueue::Push(), ns3::CandidateQueue::Reorder(), ns3::GlobalRoutingLSA::RouterLSA, ns3::GlobalRoutingLSA::SetStatus(), SPFNexthopCalculation(), SPFVertexAddParent(), ns3::GlobalRoutingLinkRecord::StubNetwork, ns3::GlobalRoutingLinkRecord::TransitNetwork, ns3::SPFVertex::VertexNetwork, ns3::SPFVertex::VertexRouter, and visualizer.higcontainer::w.

Referenced by SPFCalculate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

int ns3::GlobalRouteManagerImpl::SPFNexthopCalculation ( SPFVertex *  v,
SPFVertex *  w,
GlobalRoutingLinkRecord *  l,
uint32_t  distance
)
private

Definition at line 973 of file global-route-manager-impl.cc.

References FindOutgoingInterfaceId(), ns3::GlobalRoutingLinkRecord::GetLinkData(), ns3::SPFVertex::GetLSA(), ns3::SPFVertex::GetParent(), ns3::SPFVertex::GetRootExitDirection(), ns3::SPFVertex::GetVertexId(), ns3::SPFVertex::GetVertexType(), ns3::Ipv4Address::GetZero(), ns3::SPFVertex::InheritAllRootExitDirections(), m_spfroot, ns3::GlobalRoutingLSA::NetworkLSA, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SPFVertex::SetDistanceFromRoot(), ns3::SPFVertex::SetParent(), ns3::SPFVertex::SetRootExitDirection(), SPFGetNextLink(), ns3::SPFVertex::VertexNetwork, and ns3::SPFVertex::VertexRouter.

Referenced by SPFNext().

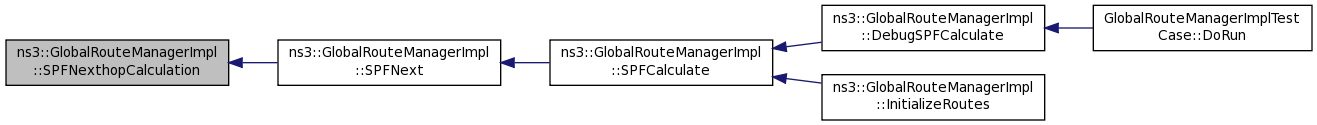

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFProcessStubs ( SPFVertex *  v)
private

Definition at line 1661 of file global-route-manager-impl.cc.

References ns3::SPFVertex::GetChild(), ns3::GlobalRoutingLSA::GetLinkRecord(), ns3::GlobalRoutingLSA::GetLinkStateId(), ns3::SPFVertex::GetLSA(), ns3::SPFVertex::GetNChildren(), ns3::GlobalRoutingLSA::GetNLinkRecords(), ns3::SPFVertex::GetVertexId(), ns3::SPFVertex::GetVertexType(), ns3::SPFVertex::IsVertexProcessed(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::SPFVertex::SetVertexProcessed(), SPFIntraAddStub(), ns3::GlobalRoutingLinkRecord::StubNetwork, and ns3::SPFVertex::VertexRouter.

Referenced by SPFCalculate().

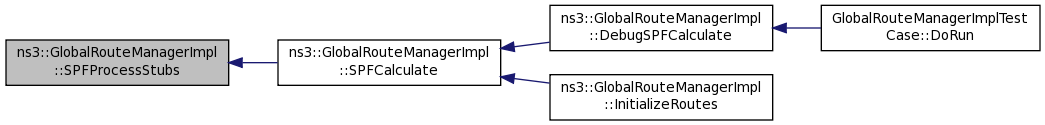

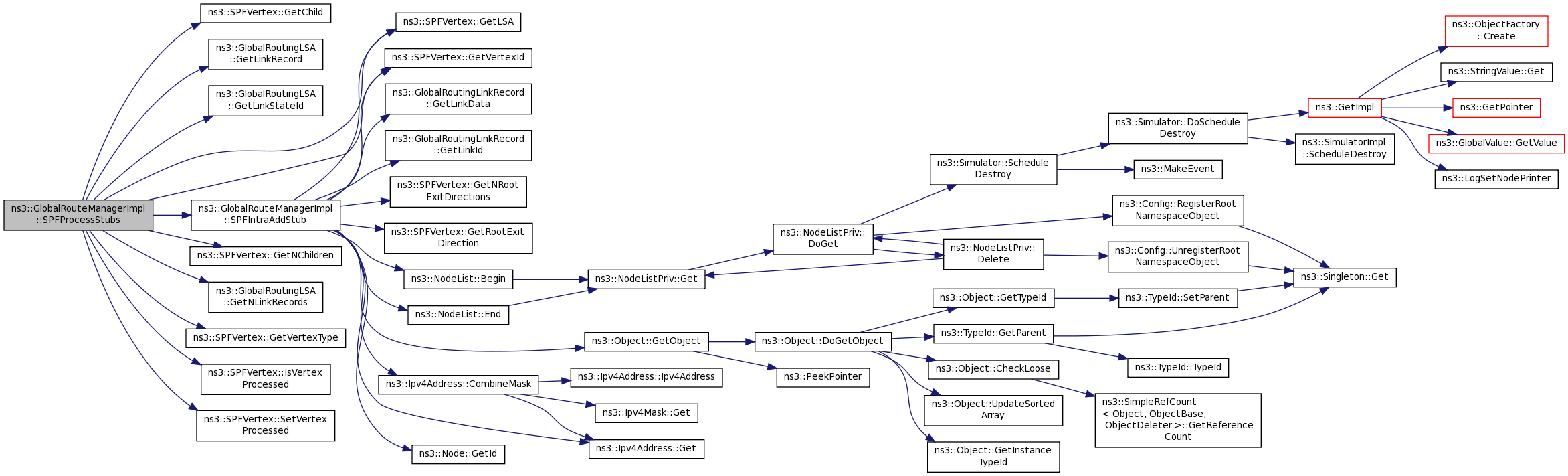

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::GlobalRouteManagerImpl::SPFVertexAddParent ( SPFVertex *  v)
private

Definition at line 2185 of file global-route-manager-impl.cc.

References ns3::SPFVertex::AddChild(), ns3::SPFVertex::GetParent(), and NS_LOG_FUNCTION.

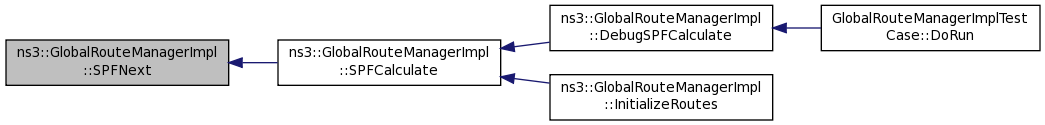

Referenced by SPFCalculate(), and SPFNext().

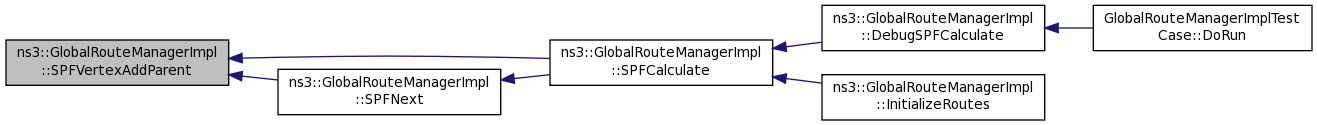

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

GlobalRouteManagerLSDB* ns3::GlobalRouteManagerImpl::m_lsdb
private

Definition at line 758 of file global-route-manager-impl.h.

Referenced by BuildGlobalRoutingDatabase(), CheckForStubNode(), DebugUseLsdb(), DeleteGlobalRoutes(), GlobalRouteManagerImpl(), SPFCalculate(), SPFNext(), and ~GlobalRouteManagerImpl().

SPFVertex* ns3::GlobalRouteManagerImpl::m_spfroot
private

Definition at line 757 of file global-route-manager-impl.h.

Referenced by FindOutgoingInterfaceId(), SPFAddASExternal(), SPFCalculate(), SPFIntraAddRouter(), SPFIntraAddStub(), SPFIntraAddTransit(), and SPFNexthopCalculation().
