a simple class to generate gnuplot-ready plotting commands from a set of datasets. More...

#include <gnuplot.h>

Collaboration diagram for ns3::Gnuplot:

Public Member Functions
	Gnuplot (const std::string &outputFilename="", const std::string &title="")

void	AddDataset (const GnuplotDataset &dataset)

void	AppendExtra (const std::string &extra)

void	GenerateOutput (std::ostream &os)
	Writes gnuplot commands and data values to a single output stream. More...

void	GenerateOutput (std::ostream &osControl, std::ostream &osData, std::string dataFileName)
	Writes gnuplot commands and data values to two different outputs streams. More...

void	SetDataFileDatasetIndex (unsigned int index)
	Sets the current data stream index in the data file. More...

void	SetExtra (const std::string &extra)

void	SetLegend (const std::string &xLegend, const std::string &yLegend)

void	SetOutputFilename (const std::string &outputFilename)

void	SetTerminal (const std::string &terminal)

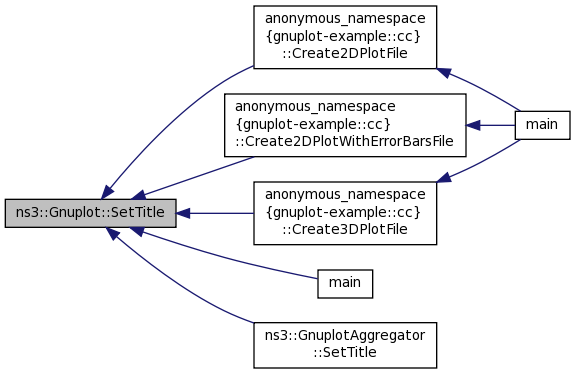

void	SetTitle (const std::string &title)

Static Public Member Functions
static std::string	DetectTerminal (const std::string &filename)

Private Types
typedef std::vector < GnuplotDataset >	Datasets

Private Attributes
unsigned int	m_dataFileDatasetIndex

Datasets	m_datasets

std::string	m_extra

bool	m_generateOneOutputFile

std::string	m_outputFilename

std::string	m_terminal

std::string	m_title

std::string	m_xLegend

std::string	m_yLegend

Detailed Description

a simple class to generate gnuplot-ready plotting commands from a set of datasets.

This class really represents a single graph on which multiple datasets can be plotted.

Definition at line 343 of file gnuplot.h.

Member Typedef Documentation

typedef std::vector<GnuplotDataset> ns3::Gnuplot::Datasets

private

Definition at line 434 of file gnuplot.h.

Constructor & Destructor Documentation

ns3::Gnuplot::Gnuplot	(	const std::string &	outputFilename = `""`,
		const std::string &	title = `""`
	)

Parameters

outputFilename	the name of the file where the rendering of the graph will be generated if you feed the command stream output by Gnuplot::GenerateOutput to the gnuplot program.
title	title line of the plot page

Definition at line 650 of file gnuplot.cc.

Member Function Documentation

void ns3::Gnuplot::AddDataset ( const GnuplotDataset & dataset )

Parameters

dataset add a dataset to the graph to be plotted.

Definition at line 712 of file gnuplot.cc.

References m_datasets.

Referenced by ns3::GnuplotAggregator::Add2dDataset(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), and main().

Here is the caller graph for this function:

void ns3::Gnuplot::AppendExtra ( const std::string & extra )

Parameters

extra append extra gnuplot directive for output.

Definition at line 705 of file gnuplot.cc.

References m_extra.

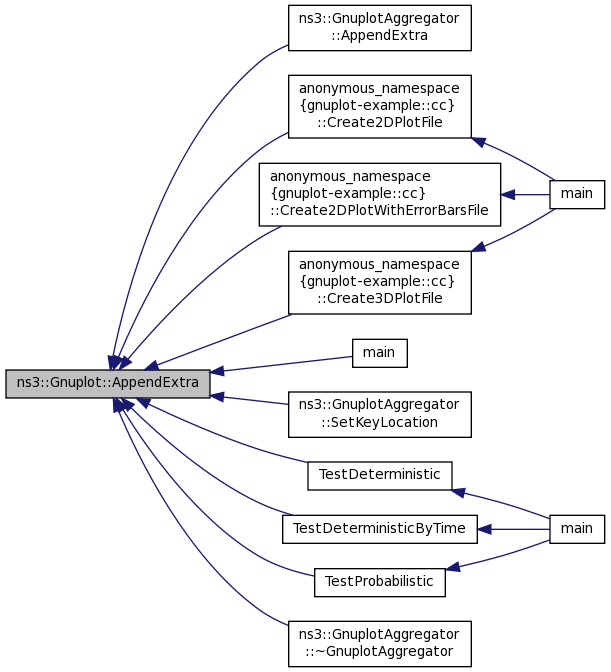

Referenced by ns3::GnuplotAggregator::AppendExtra(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), main(), ns3::GnuplotAggregator::SetKeyLocation(), TestDeterministic(), TestDeterministicByTime(), TestProbabilistic(), and ns3::GnuplotAggregator::~GnuplotAggregator().

Here is the caller graph for this function:

std::string ns3::Gnuplot::DetectTerminal ( const std::string & filename )

static

Crude attempt to auto-detect the correct terminal setting by inspecting the filename's extension.

Parameters

filename output file name

Definition at line 664 of file gnuplot.cc.

void ns3::Gnuplot::GenerateOutput ( std::ostream & os )

Writes gnuplot commands and data values to a single output stream.

Parameters

os	the output stream on which the relevant gnuplot commands should be generated. Including output file and terminal headers.

Definition at line 718 of file gnuplot.cc.

References m_generateOneOutputFile.

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), anonymous_namespace{gnuplot-example.cc}::Create3DPlotFile(), main(), and ns3::GnuplotAggregator::~GnuplotAggregator().

Here is the caller graph for this function:

void ns3::Gnuplot::GenerateOutput	(	std::ostream &	osControl,
		std::ostream &	osData,
		std::string	dataFileName
	)

Writes gnuplot commands and data values to two different outputs streams.

Parameters

osControl	the output stream on which the relevant gnuplot contol commands should be generated. Including output file and terminal headers.
osData	the output stream on which the relevant gnuplot data values should be generated.
dataFileName	the name for the data file that will be written.

Definition at line 729 of file gnuplot.cc.

References m_dataFileDatasetIndex, m_datasets, m_extra, m_generateOneOutputFile, m_outputFilename, m_terminal, m_title, m_xLegend, m_yLegend, and NS_ASSERT_MSG.

void ns3::Gnuplot::SetDataFileDatasetIndex ( unsigned int index )

Sets the current data stream index in the data file.

Parameters

index the index for the data stream in the data file.

Definition at line 804 of file gnuplot.cc.

References m_dataFileDatasetIndex.

void ns3::Gnuplot::SetExtra ( const std::string & extra )

Parameters

extra set extra gnuplot directive for output.

Definition at line 699 of file gnuplot.cc.

References m_extra.

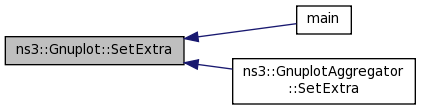

Referenced by main(), and ns3::GnuplotAggregator::SetExtra().

Here is the caller graph for this function:

void ns3::Gnuplot::SetLegend	(	const std::string &	xLegend,
		const std::string &	yLegend
	)

Parameters

xLegend	the legend for the x horizontal axis
yLegend	the legend for the y vertical axis

Definition at line 692 of file gnuplot.cc.

References m_xLegend, and m_yLegend.

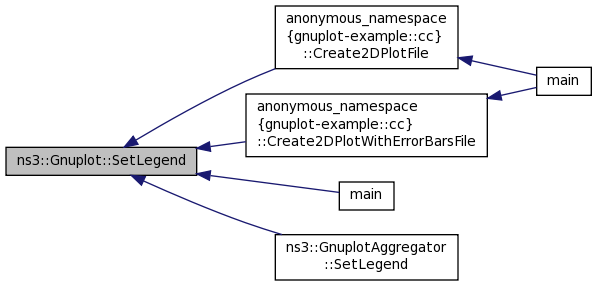

Referenced by anonymous_namespace{gnuplot-example.cc}::Create2DPlotFile(), anonymous_namespace{gnuplot-example.cc}::Create2DPlotWithErrorBarsFile(), main(), and ns3::GnuplotAggregator::SetLegend().

Here is the caller graph for this function:

void ns3::Gnuplot::SetOutputFilename ( const std::string & outputFilename )

Parameters

outputFilename the name of the file where the rendering of the graph will be generated if you feed the command stream output by Gnuplot::GenerateOutput to the gnuplot program.

Definition at line 659 of file gnuplot.cc.

References m_outputFilename.

Referenced by ns3::GnuplotAggregator::SetTerminal().

Here is the caller graph for this function:
