#include <icmpv4-l4-protocol.h>

Inheritance diagram for ns3::Icmpv4L4Protocol:

Collaboration diagram for ns3::Icmpv4L4Protocol:

Public Member Functions
	Icmpv4L4Protocol ()

virtual	~Icmpv4L4Protocol ()

virtual IpL4Protocol::DownTargetCallback	GetDownTarget (void) const

virtual IpL4Protocol::DownTargetCallback6	GetDownTarget6 (void) const

virtual int	GetProtocolNumber (void) const

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > incomingInterface)

virtual enum IpL4Protocol::RxStatus	Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)

void	SendDestUnreachFragNeeded (Ipv4Header header, Ptr< const Packet > orgData, uint16_t nextHopMtu)

void	SendDestUnreachPort (Ipv4Header header, Ptr< const Packet > orgData)

void	SendTimeExceededTtl (Ipv4Header header, Ptr< const Packet > orgData)

virtual void	SetDownTarget (IpL4Protocol::DownTargetCallback cb)

virtual void	SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)

void	SetNode (Ptr< Node > node)

Public Member Functions inherited from ns3::IpL4Protocol
virtual	~IpL4Protocol ()

virtual void	ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])

virtual void	ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static uint16_t	GetStaticProtocolNumber (void)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Static Public Attributes
static const uint8_t	PROT_NUMBER = 1

Protected Member Functions
virtual void	NotifyNewAggregate ()

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Member Functions
virtual void	DoDispose (void)

void	Forward (Ipv4Address source, Icmpv4Header icmp, uint32_t info, Ipv4Header ipHeader, const uint8_t payload[8])

void	HandleDestUnreach (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination)

void	HandleEcho (Ptr< Packet > p, Icmpv4Header header, Ipv4Address source, Ipv4Address destination)

void	HandleTimeExceeded (Ptr< Packet > p, Icmpv4Header icmp, Ipv4Address source, Ipv4Address destination)

void	SendDestUnreach (Ipv4Header header, Ptr< const Packet > orgData, uint8_t code, uint16_t nextHopMtu)

void	SendMessage (Ptr< Packet > packet, Ipv4Address dest, uint8_t type, uint8_t code)

void	SendMessage (Ptr< Packet > packet, Ipv4Address source, Ipv4Address dest, uint8_t type, uint8_t code, Ptr< Ipv4Route > route)

Private Attributes
IpL4Protocol::DownTargetCallback	m_downTarget

Ptr< Node >	m_node

Additional Inherited Members
Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr < Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr < Ipv4Route > >	DownTargetCallback

typedef Callback< void, Ptr < Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr < Ipv6Route > >	DownTargetCallback6

enum	RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }

Detailed Description

Config Paths

ns3::Icmpv4L4Protocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::Icmpv4L4Protocol

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 14 of file icmpv4-l4-protocol.h.

Constructor & Destructor Documentation

ns3::Icmpv4L4Protocol::Icmpv4L4Protocol ( )

Definition at line 31 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

ns3::Icmpv4L4Protocol::~Icmpv4L4Protocol ( )

virtual

Definition at line 36 of file icmpv4-l4-protocol.cc.

References m_node, NS_ASSERT, and NS_LOG_FUNCTION.

Member Function Documentation

void ns3::Icmpv4L4Protocol::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 266 of file icmpv4-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_node, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::Forward	(	Ipv4Address	source,
		Icmpv4Header	icmp,
		uint32_t	info,
		Ipv4Header	ipHeader,
		const uint8_t	payload[8]
	)

private

Definition at line 186 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4Header::GetCode(), ns3::Ipv4Header::GetDestination(), ns3::Object::GetObject(), ns3::Ipv4Header::GetProtocol(), ns3::Ipv4Header::GetSource(), ns3::Ipv4Header::GetTtl(), ns3::Icmpv4Header::GetType(), m_node, and NS_LOG_FUNCTION.

Referenced by HandleDestUnreach(), and HandleTimeExceeded().

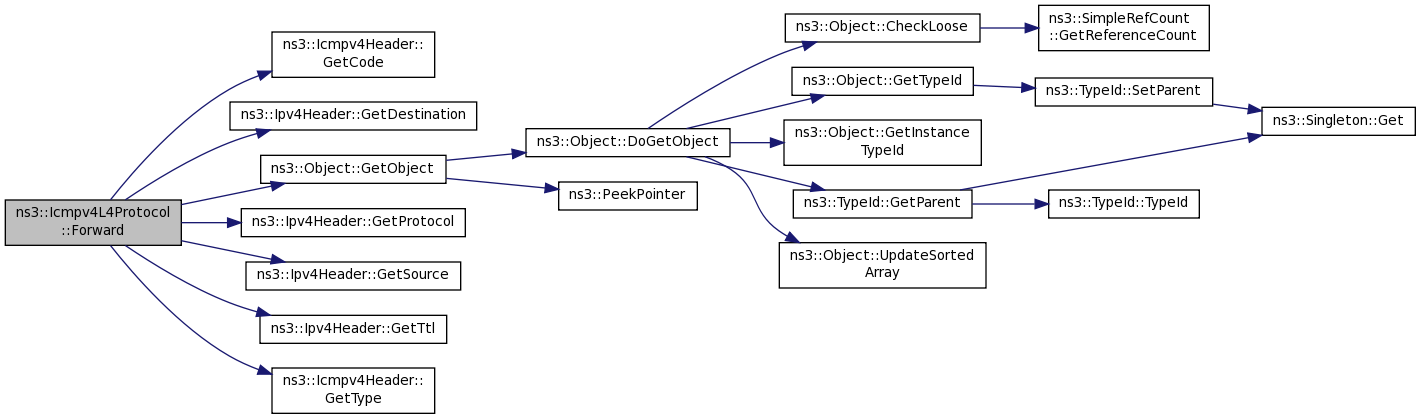

Here is the call graph for this function:

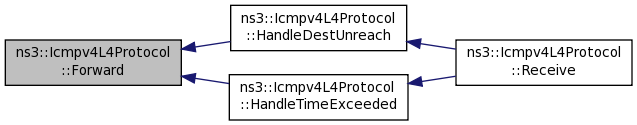

Here is the caller graph for this function:

IpL4Protocol::DownTargetCallback ns3::Icmpv4L4Protocol::GetDownTarget ( void ) const

virtual

This method allows a caller to get the current down target callback set for this L4 protocol, for

Returns: current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 288 of file icmpv4-l4-protocol.cc.

References m_downTarget, and NS_LOG_FUNCTION.

IpL4Protocol::DownTargetCallback6 ns3::Icmpv4L4Protocol::GetDownTarget6 ( void ) const

virtual

Implements ns3::IpL4Protocol.

Definition at line 295 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION.

int ns3::Icmpv4L4Protocol::GetProtocolNumber ( void ) const

virtual

Returns: the protocol number of this protocol.

Implements ns3::IpL4Protocol.

Definition at line 85 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION, and PROT_NUMBER.

uint16_t ns3::Icmpv4L4Protocol::GetStaticProtocolNumber ( void )

static

Definition at line 78 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION_NOARGS, and PROT_NUMBER.

Referenced by ns3::Ipv4L3Protocol::GetIcmp().

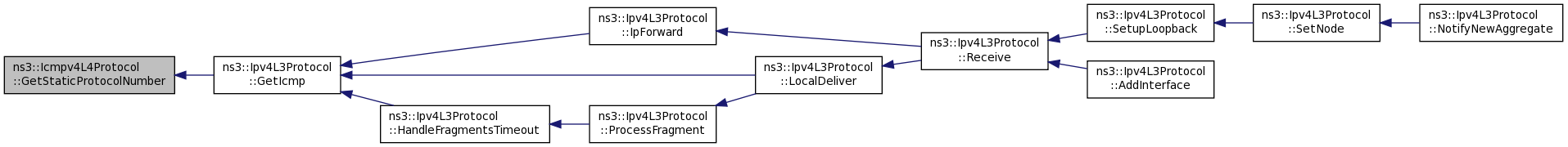

Here is the caller graph for this function:

TypeId ns3::Icmpv4L4Protocol::GetTypeId ( void )

static

Definition at line 22 of file icmpv4-l4-protocol.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::HandleDestUnreach	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Definition at line 201 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4DestinationUnreachable::GetData(), ns3::Icmpv4DestinationUnreachable::GetHeader(), ns3::Icmpv4DestinationUnreachable::GetNextHopMtu(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

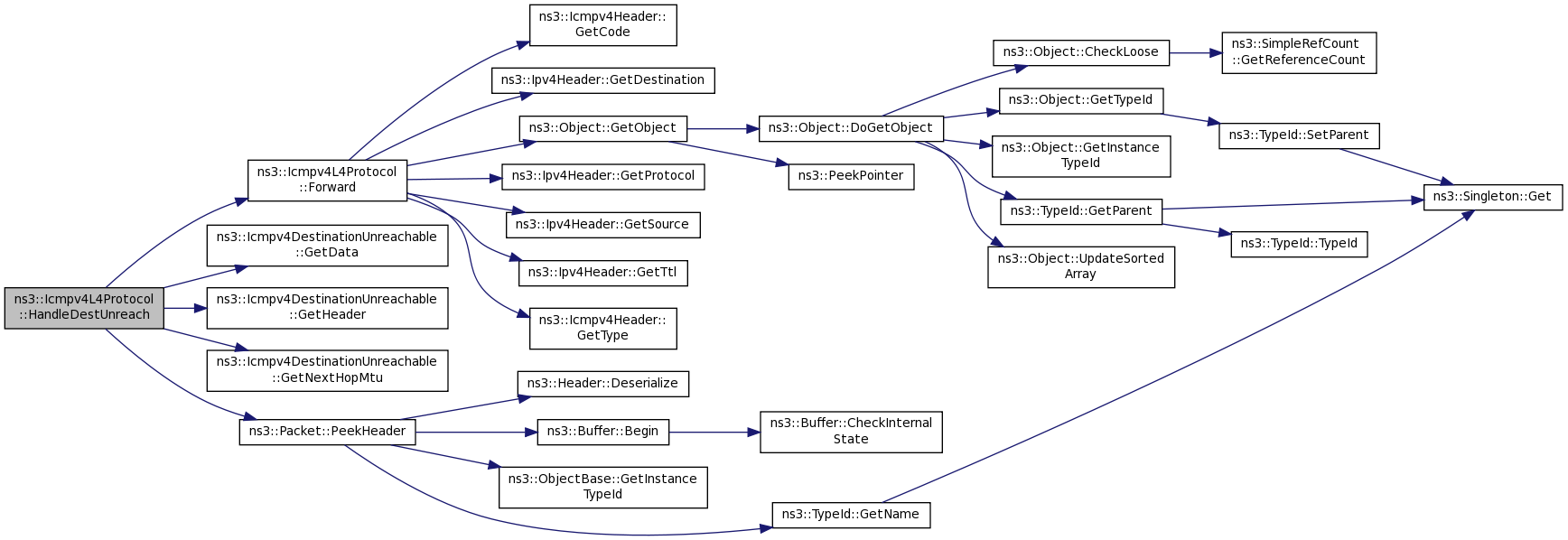

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::HandleEcho	(	Ptr< Packet >	p,
		Icmpv4Header	header,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Definition at line 172 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::ECHO_REPLY, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), and SendMessage().

Referenced by Receive().

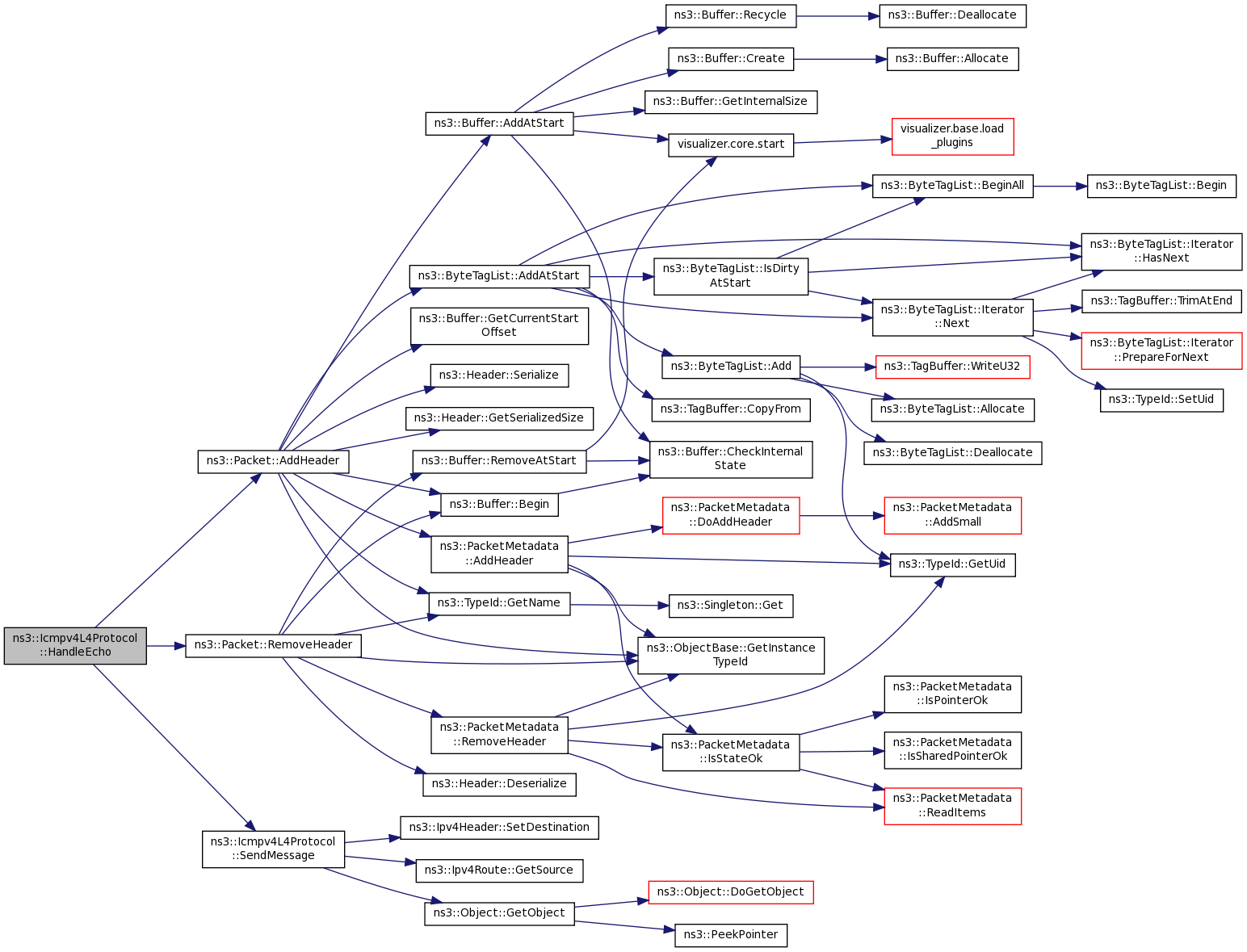

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::HandleTimeExceeded	(	Ptr< Packet >	p,
		Icmpv4Header	icmp,
		Ipv4Address	source,
		Ipv4Address	destination
	)

private

Definition at line 216 of file icmpv4-l4-protocol.cc.

References Forward(), ns3::Icmpv4TimeExceeded::GetData(), ns3::Icmpv4TimeExceeded::GetHeader(), NS_LOG_FUNCTION, and ns3::Packet::PeekHeader().

Referenced by Receive().

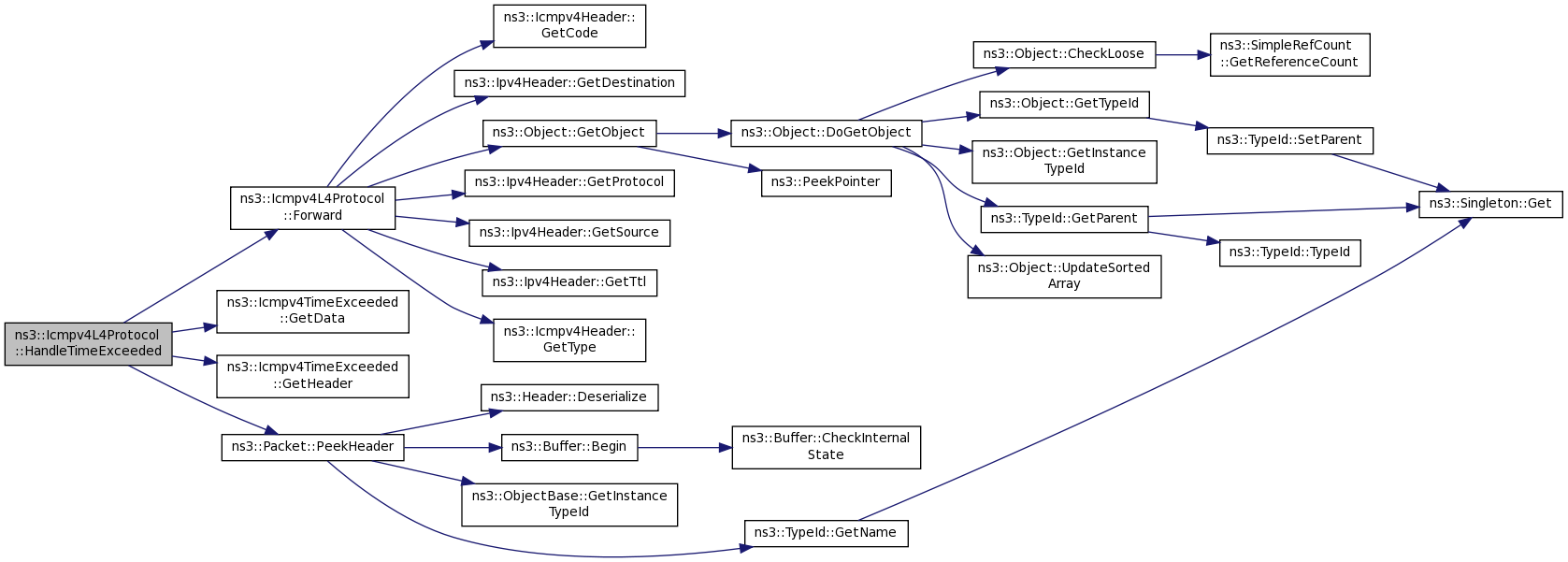

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::NotifyNewAggregate ( void )

protectedvirtual

This method is invoked whenever two sets of objects are aggregated together. It is invoked exactly once for each object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate method. It is safe to call GetObject and AggregateObject from within this method.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

Reimplemented from ns3::Object.

Definition at line 55 of file icmpv4-l4-protocol.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, ns3::Ipv4::Send(), SetDownTarget(), and SetNode().

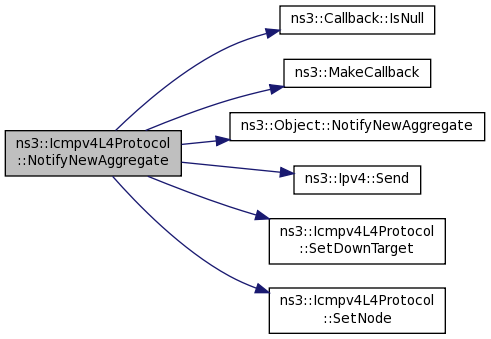

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv4Header const &	header,
		Ptr< Ipv4Interface >	incomingInterface
	)

virtual

Parameters

p	packet to forward up
header	IPv4 Header information
incomingInterface	the Ipv4Interface on which the packet arrived

Called from lower-level layers to send the packet up in the stack.

Implements ns3::IpL4Protocol.

Definition at line 233 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4Header::DEST_UNREACH, ns3::Icmpv4Header::ECHO, ns3::Ipv4Header::GetDestination(), ns3::Ipv4Header::GetSource(), ns3::Icmpv4Header::GetType(), HandleDestUnreach(), HandleEcho(), HandleTimeExceeded(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Packet::RemoveHeader(), ns3::IpL4Protocol::RX_OK, and ns3::Icmpv4Header::TIME_EXCEEDED.

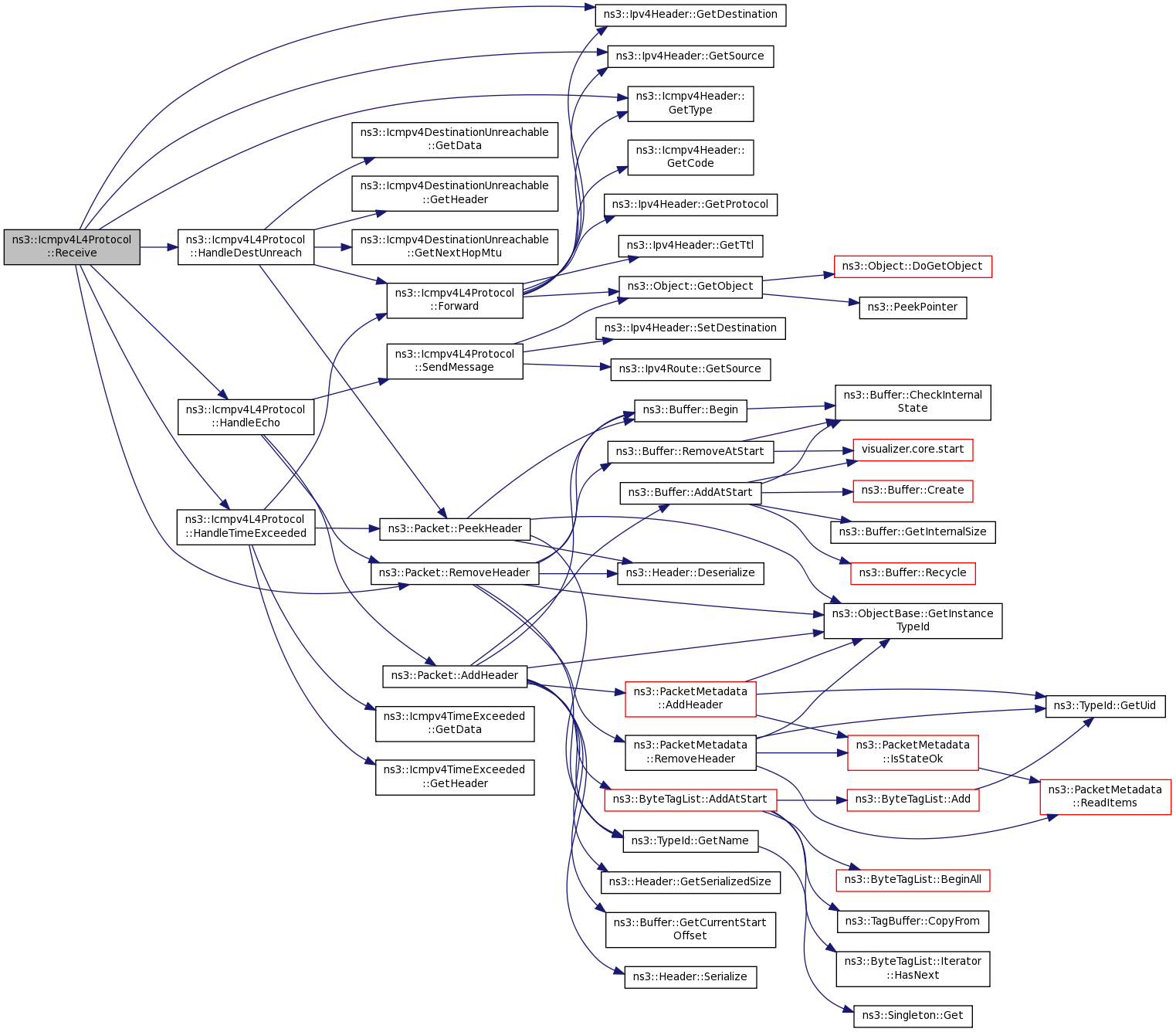

Here is the call graph for this function:

enum IpL4Protocol::RxStatus ns3::Icmpv4L4Protocol::Receive	(	Ptr< Packet >	p,
		Ipv6Header const &	header,
		Ptr< Ipv6Interface >	incomingInterface
	)

virtual

Implements ns3::IpL4Protocol.

Definition at line 258 of file icmpv4-l4-protocol.cc.

References ns3::Ipv6Header::GetDestinationAddress(), ns3::Ipv6Header::GetSourceAddress(), NS_LOG_FUNCTION, and ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

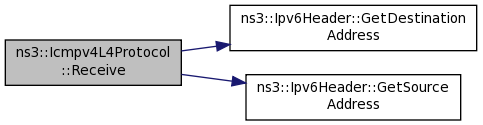

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::SendDestUnreach	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint8_t	code,
		uint16_t	nextHopMtu
	)

private

Definition at line 146 of file icmpv4-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Icmpv4Header::DEST_UNREACH, ns3::Ipv4Header::GetSource(), NS_LOG_FUNCTION, SendMessage(), and ns3::Icmpv4DestinationUnreachable::SetNextHopMtu().

Referenced by SendDestUnreachFragNeeded(), and SendDestUnreachPort().

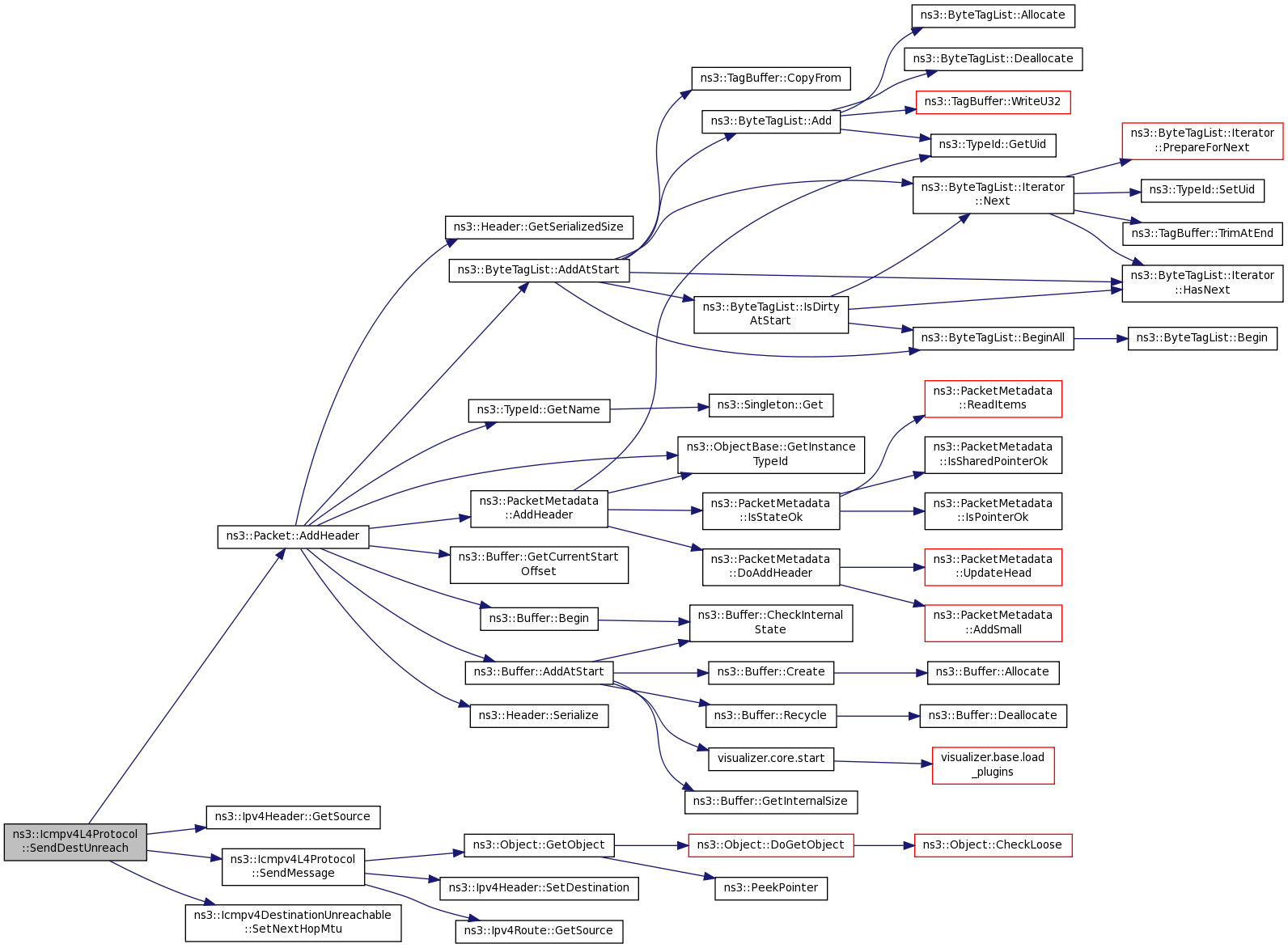

Here is the call graph for this function:

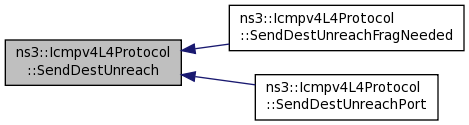

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::SendDestUnreachFragNeeded	(	Ipv4Header	header,
		Ptr< const Packet >	orgData,
		uint16_t	nextHopMtu
	)

Definition at line 131 of file icmpv4-l4-protocol.cc.

References ns3::Icmpv4DestinationUnreachable::FRAG_NEEDED, NS_LOG_FUNCTION, and SendDestUnreach().

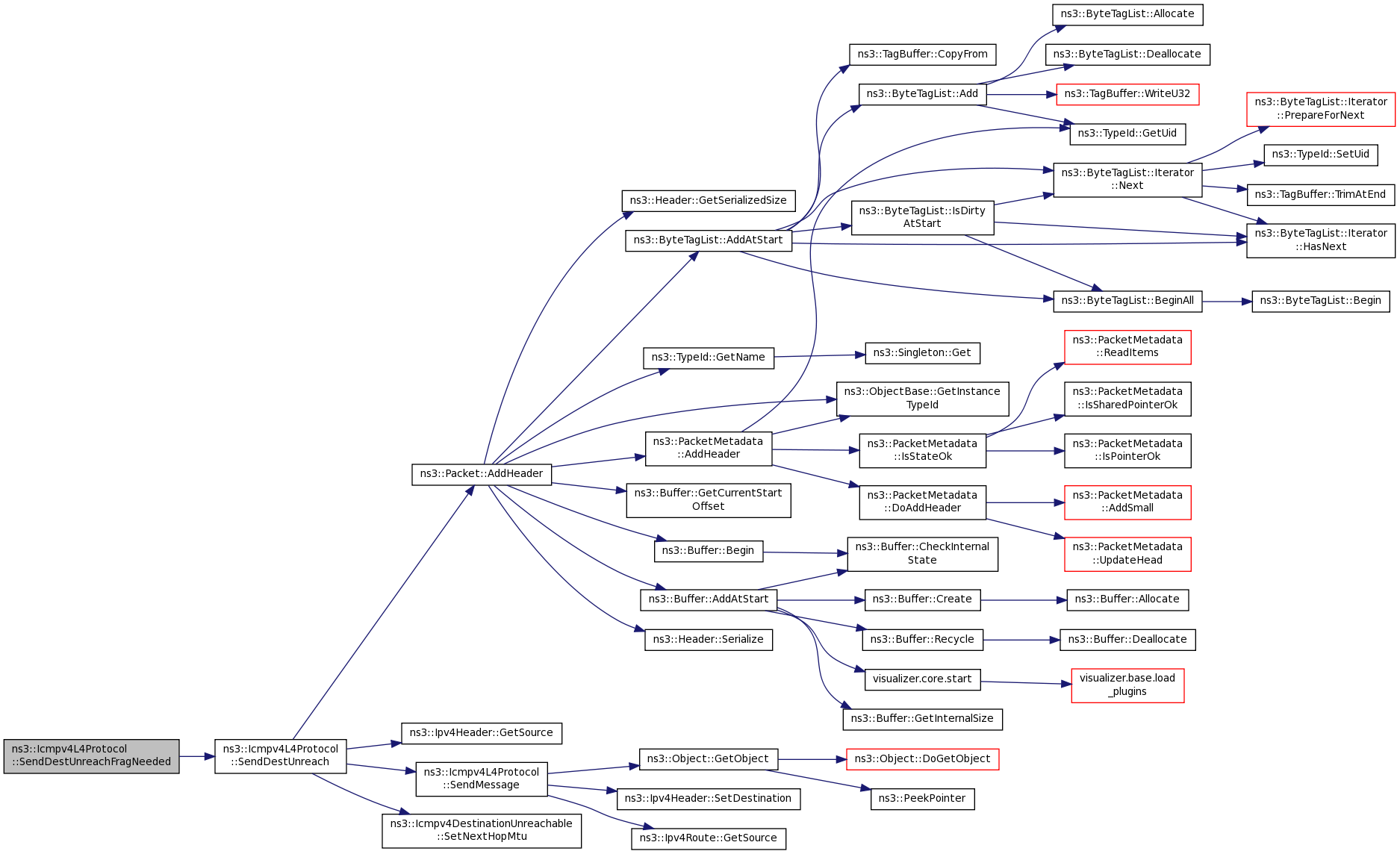

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::SendDestUnreachPort	(	Ipv4Header	header,
		Ptr< const Packet >	orgData
	)

Definition at line 139 of file icmpv4-l4-protocol.cc.

References NS_LOG_FUNCTION, ns3::Icmpv4DestinationUnreachable::PORT_UNREACHABLE, and SendDestUnreach().

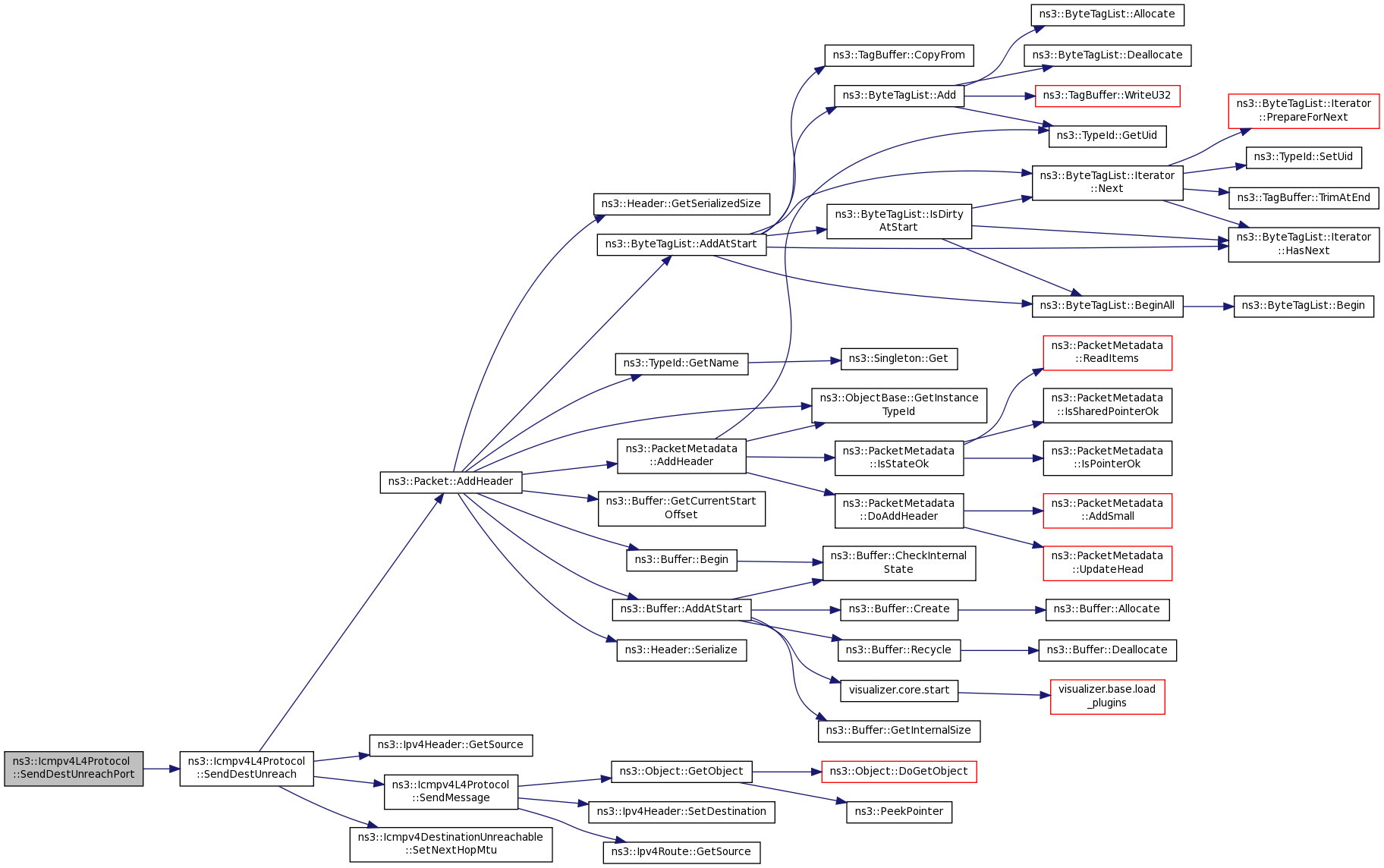

Here is the call graph for this function:

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code
	)

private

Definition at line 91 of file icmpv4-l4-protocol.cc.

References ns3::Object::GetObject(), ns3::Ipv4Route::GetSource(), m_node, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, PROT_NUMBER, and ns3::Ipv4Header::SetDestination().

Referenced by HandleEcho(), SendDestUnreach(), and SendTimeExceededTtl().

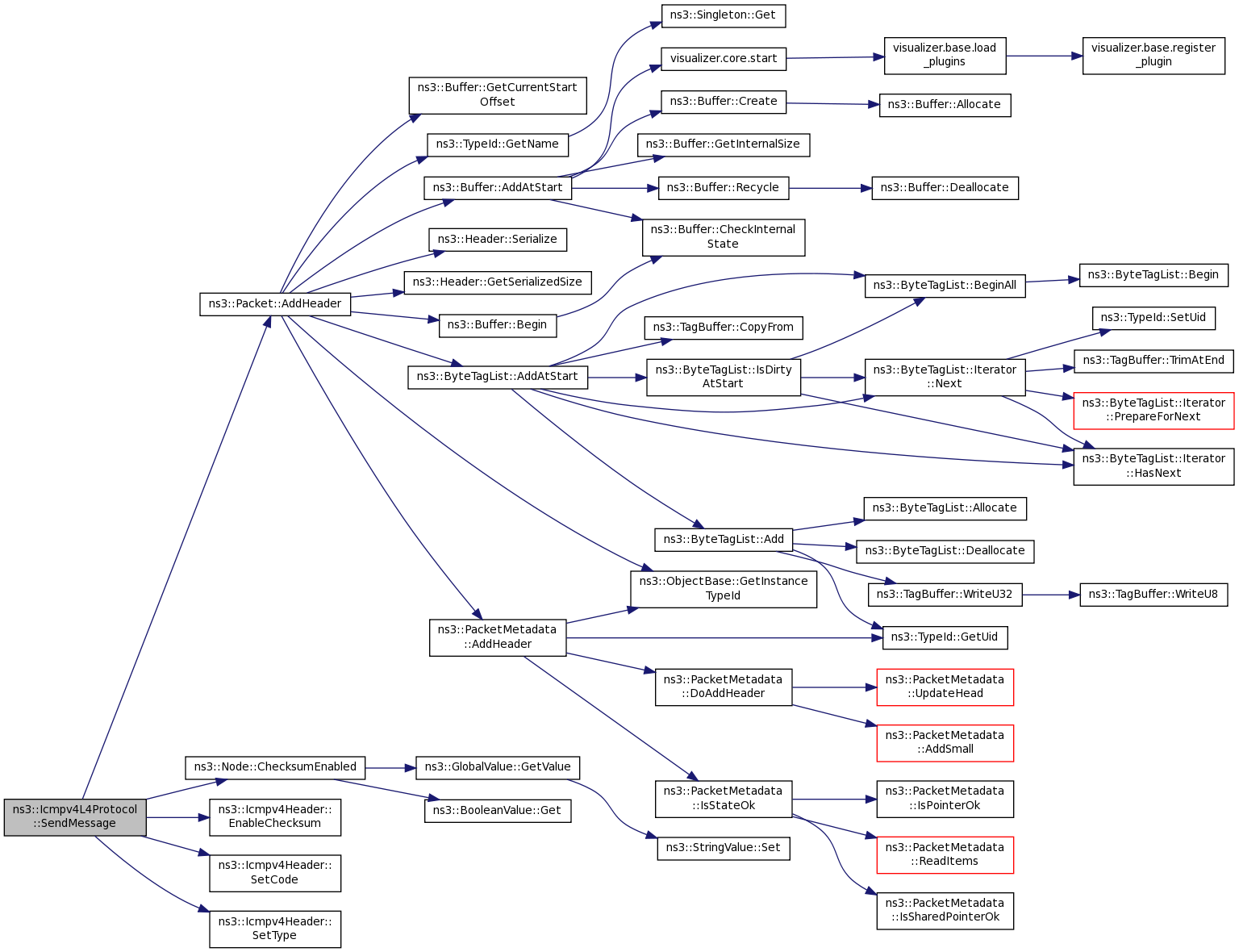

Here is the call graph for this function:

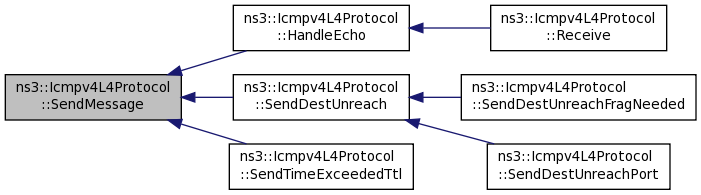

Here is the caller graph for this function:

void ns3::Icmpv4L4Protocol::SendMessage	(	Ptr< Packet >	packet,
		Ipv4Address	source,
		Ipv4Address	dest,
		uint8_t	type,
		uint8_t	code,
		Ptr< Ipv4Route >	route
	)
