#include <icmpv4.h>

Inheritance diagram for ns3::Icmpv4TimeExceeded:

Collaboration diagram for ns3::Icmpv4TimeExceeded:

Public Types
enum	{ TIME_TO_LIVE = 0, FRAGMENT_REASSEMBLY = 1 }

Public Member Functions
	Icmpv4TimeExceeded ()

virtual	~Icmpv4TimeExceeded ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

void	GetData (uint8_t payload[8]) const

Ipv4Header	GetHeader (void) const

virtual TypeId	GetInstanceTypeId (void) const

virtual uint32_t	GetSerializedSize (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetData (Ptr< const Packet > data)

void	SetHeader (Ipv4Header header)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
uint8_t	m_data [8]

Ipv4Header	m_header

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 129 of file icmpv4.h.

Member Enumeration Documentation

anonymous enum

Enumerator
TIME_TO_LIVE
FRAGMENT_REASSEMBLY

Definition at line 132 of file icmpv4.h.

Constructor & Destructor Documentation

ns3::Icmpv4TimeExceeded::Icmpv4TimeExceeded ( )

Definition at line 407 of file icmpv4.cc.

References m_data, and NS_LOG_FUNCTION.

ns3::Icmpv4TimeExceeded::~Icmpv4TimeExceeded ( )

virtual

Definition at line 445 of file icmpv4.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv4TimeExceeded::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 473 of file icmpv4.cc.

References ns3::Ipv4Header::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_data, m_header, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

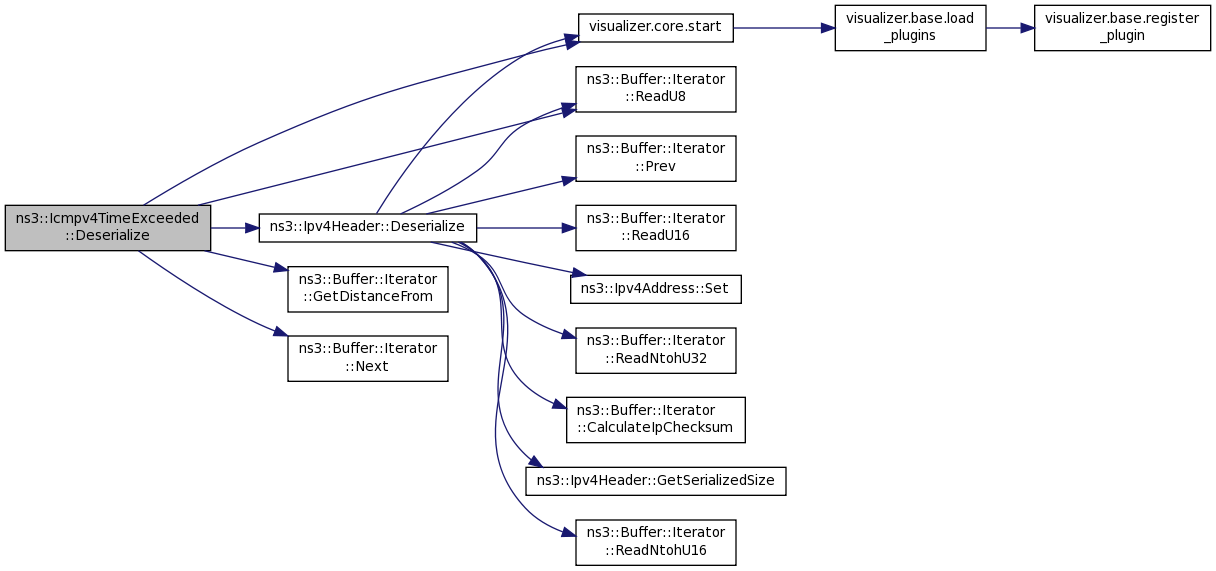

Here is the call graph for this function:

void ns3::Icmpv4TimeExceeded::GetData ( uint8_t payload[8] ) const

Definition at line 432 of file icmpv4.cc.

References m_data, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::HandleTimeExceeded().

Here is the caller graph for this function:

Ipv4Header ns3::Icmpv4TimeExceeded::GetHeader ( void ) const

Definition at line 438 of file icmpv4.cc.

References m_header, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::HandleTimeExceeded().

Here is the caller graph for this function:

TypeId ns3::Icmpv4TimeExceeded::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 450 of file icmpv4.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::Icmpv4TimeExceeded::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 456 of file icmpv4.cc.

References ns3::Ipv4Header::GetSerializedSize(), m_header, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId ns3::Icmpv4TimeExceeded::GetTypeId ( void )

static

Definition at line 399 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv4TimeExceeded::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 487 of file icmpv4.cc.

References m_data, m_header, NS_LOG_FUNCTION, and ns3::Ipv4Header::Print().

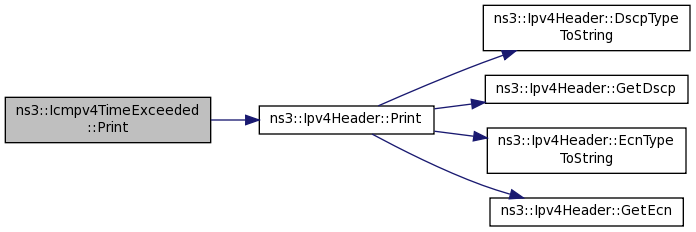

Here is the call graph for this function:

void ns3::Icmpv4TimeExceeded::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 462 of file icmpv4.cc.

References ns3::Ipv4Header::GetSerializedSize(), m_data, m_header, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Ipv4Header::Serialize(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU32().

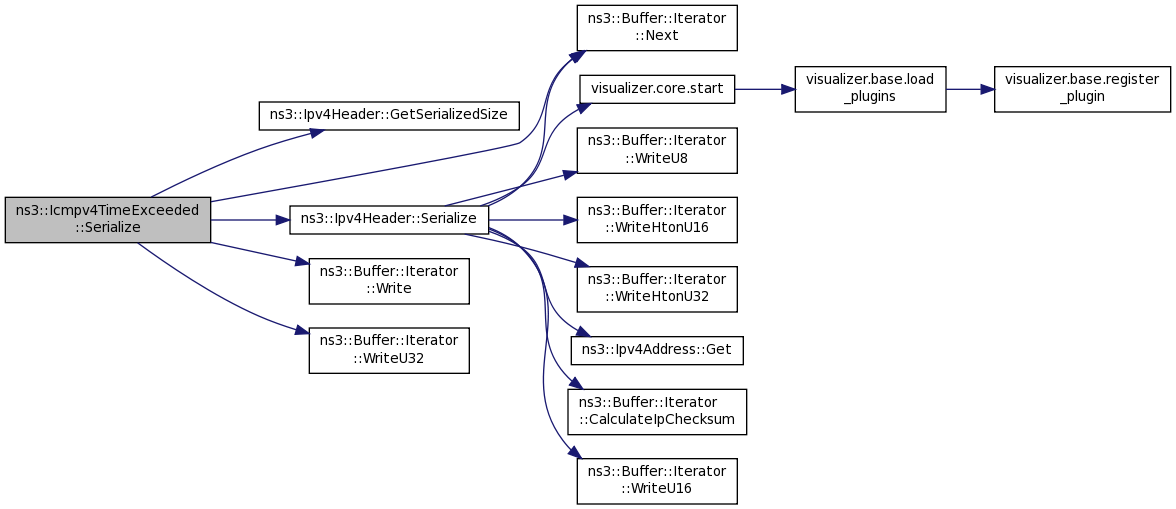

Here is the call graph for this function:
