Demultiplexes packets to various transport layer endpoints. More...

#include <ipv4-end-point-demux.h>

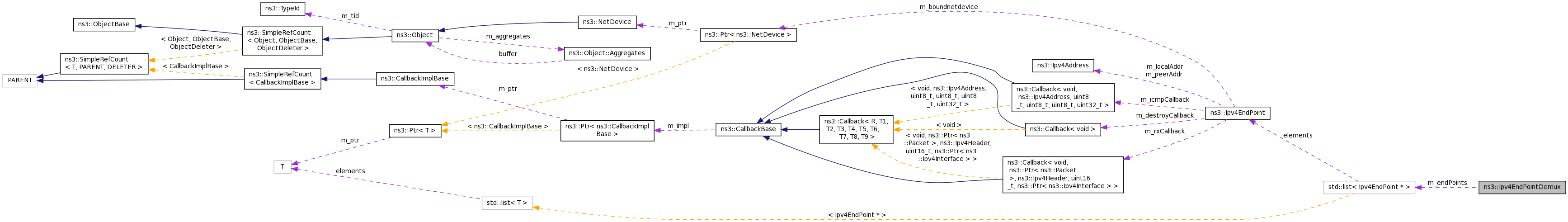

Collaboration diagram for ns3::Ipv4EndPointDemux:

Public Types
typedef std::list< Ipv4EndPoint * >	EndPoints

typedef std::list < Ipv4EndPoint * >::iterator	EndPointsI

Public Member Functions
	Ipv4EndPointDemux ()

	~Ipv4EndPointDemux ()

Ipv4EndPoint *	Allocate (void)

Ipv4EndPoint *	Allocate (Ipv4Address address)

Ipv4EndPoint *	Allocate (uint16_t port)

Ipv4EndPoint *	Allocate (Ipv4Address address, uint16_t port)

Ipv4EndPoint *	Allocate (Ipv4Address localAddress, uint16_t localPort, Ipv4Address peerAddress, uint16_t peerPort)

void	DeAllocate (Ipv4EndPoint *endPoint)

EndPoints	GetAllEndPoints (void)

EndPoints	Lookup (Ipv4Address daddr, uint16_t dport, Ipv4Address saddr, uint16_t sport, Ptr< Ipv4Interface > incomingInterface)

bool	LookupLocal (Ipv4Address addr, uint16_t port)

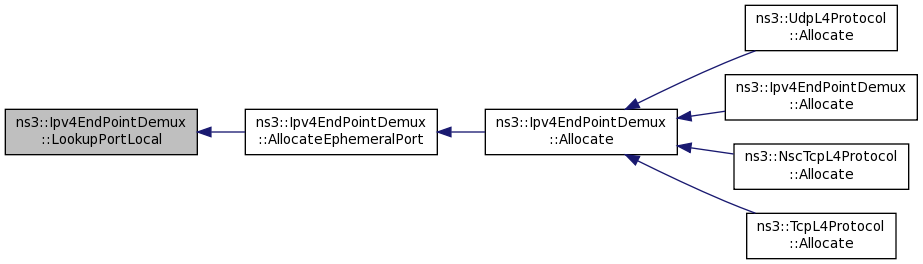

bool	LookupPortLocal (uint16_t port)

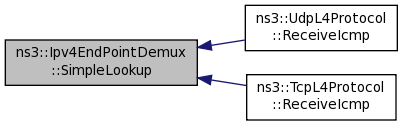

Ipv4EndPoint *	SimpleLookup (Ipv4Address daddr, uint16_t dport, Ipv4Address saddr, uint16_t sport)

Private Member Functions
uint16_t	AllocateEphemeralPort (void)

Private Attributes
EndPoints	m_endPoints

uint16_t	m_ephemeral

uint16_t	m_portFirst

uint16_t	m_portLast

Detailed Description

Demultiplexes packets to various transport layer endpoints.

This class serves as a lookup table to match partial or full information about a four-tuple to an ns3::Ipv4EndPoint. It internally contains a list of endpoints, and has APIs to add and find endpoints in this demux. This code is shared in common to TCP and UDP protocols in ns3. This demux sits between ns3's layer four and the socket layer

Definition at line 43 of file ipv4-end-point-demux.h.

Member Typedef Documentation

typedef std::list<Ipv4EndPoint *> ns3::Ipv4EndPointDemux::EndPoints

Definition at line 45 of file ipv4-end-point-demux.h.

typedef std::list<Ipv4EndPoint *>::iterator ns3::Ipv4EndPointDemux::EndPointsI

Definition at line 46 of file ipv4-end-point-demux.h.

Constructor & Destructor Documentation

ns3::Ipv4EndPointDemux::Ipv4EndPointDemux ( )

Definition at line 29 of file ipv4-end-point-demux.cc.

References NS_LOG_FUNCTION.

ns3::Ipv4EndPointDemux::~Ipv4EndPointDemux ( )

Definition at line 35 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

Member Function Documentation

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate ( void )

Definition at line 76 of file ipv4-end-point-demux.cc.

References AllocateEphemeralPort(), ns3::Ipv4Address::GetAny(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and port.

Referenced by ns3::UdpL4Protocol::Allocate(), Allocate(), ns3::NscTcpL4Protocol::Allocate(), and ns3::TcpL4Protocol::Allocate().

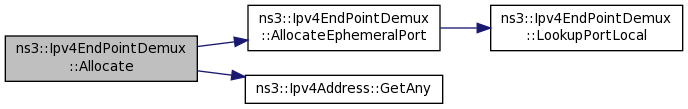

Here is the call graph for this function:

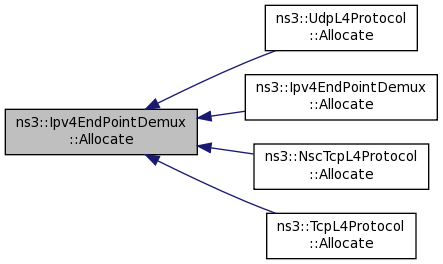

Here is the caller graph for this function:

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate ( Ipv4Address address )

Definition at line 92 of file ipv4-end-point-demux.cc.

References AllocateEphemeralPort(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and port.

Here is the call graph for this function:

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate ( uint16_t port )

Definition at line 108 of file ipv4-end-point-demux.cc.

References Allocate(), ns3::Ipv4Address::GetAny(), and NS_LOG_FUNCTION.

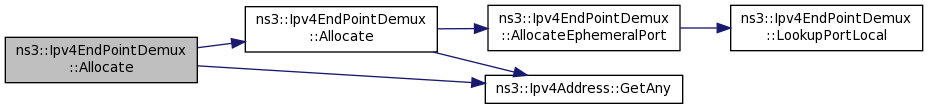

Here is the call graph for this function:

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate	(	Ipv4Address	address,
		uint16_t	port
	)

Definition at line 116 of file ipv4-end-point-demux.cc.

References LookupLocal(), m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, and NS_LOG_WARN.

Here is the call graph for this function:

Ipv4EndPoint * ns3::Ipv4EndPointDemux::Allocate	(	Ipv4Address	localAddress,
		uint16_t	localPort,
		Ipv4Address	peerAddress,
		uint16_t	peerPort
	)

Definition at line 131 of file ipv4-end-point-demux.cc.

References m_endPoints, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_WARN, and ns3::Ipv4EndPoint::SetPeer().

Here is the call graph for this function:

uint16_t ns3::Ipv4EndPointDemux::AllocateEphemeralPort ( void )

private

Definition at line 353 of file ipv4-end-point-demux.cc.

References LookupPortLocal(), m_ephemeral, m_portFirst, m_portLast, NS_LOG_FUNCTION, and port.

Referenced by Allocate().

Here is the call graph for this function:

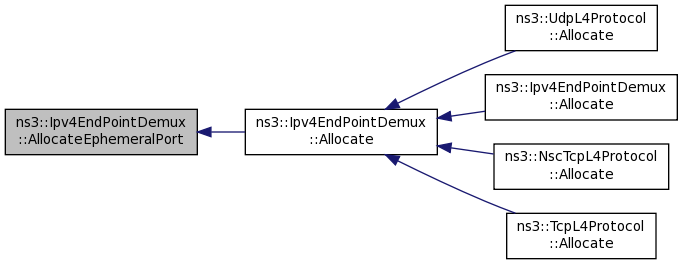

Here is the caller graph for this function:

void ns3::Ipv4EndPointDemux::DeAllocate ( Ipv4EndPoint * endPoint )

Definition at line 157 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

Referenced by ns3::UdpL4Protocol::DeAllocate(), and ns3::TcpL4Protocol::DeAllocate().

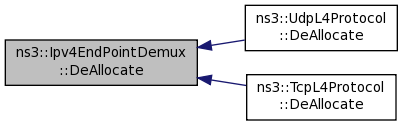

Here is the caller graph for this function:

Ipv4EndPointDemux::EndPoints ns3::Ipv4EndPointDemux::GetAllEndPoints ( void )

Definition at line 175 of file ipv4-end-point-demux.cc.

References m_endPoints, and NS_LOG_FUNCTION.

Referenced by ns3::NscTcpL4Protocol::wakeup().

Here is the caller graph for this function:

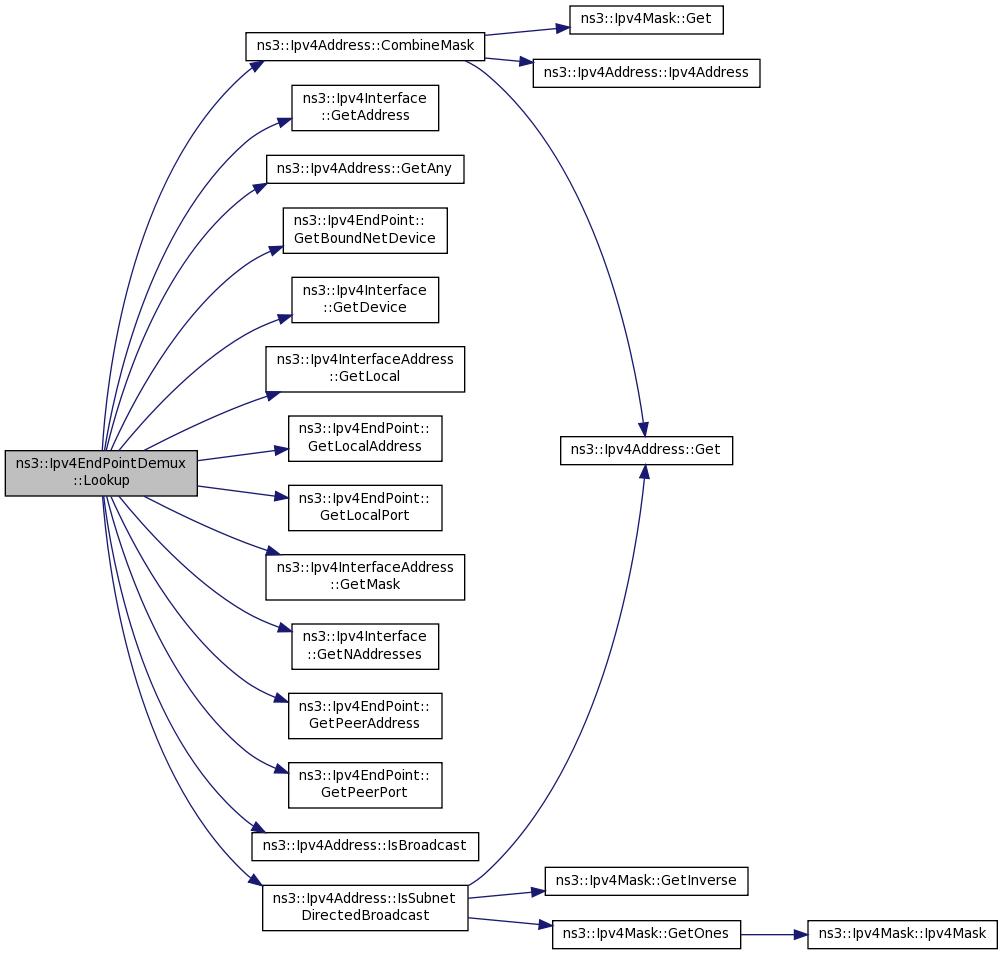

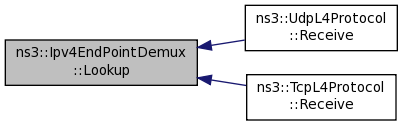

Ipv4EndPointDemux::EndPoints ns3::Ipv4EndPointDemux::Lookup	(	Ipv4Address	daddr,
		uint16_t	dport,
		Ipv4Address	saddr,
		uint16_t	sport,
		Ptr< Ipv4Interface >	incomingInterface
	)
