#include <itu-r-1238-propagation-loss-model.h>

Inheritance diagram for ns3::ItuR1238PropagationLossModel:

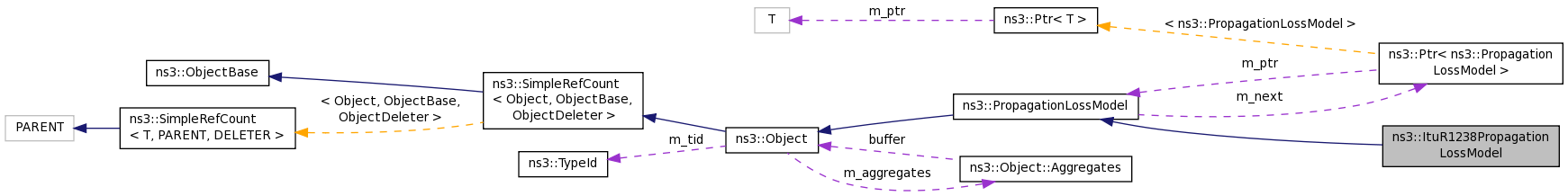

Collaboration diagram for ns3::ItuR1238PropagationLossModel:

Public Member Functions
double	GetLoss (Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const

Private Attributes
double	m_frequency
	frequency in MHz More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

This class implements the ITU-R 1238 propagation loss model.

Config Paths

ns3::ItuR1238PropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1238PropagationLossModel
/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1238PropagationLossModel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ItuR1238PropagationLossModel

Attributes

Frequency: The Frequency (default is 2.106 GHz).
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 2.16e+09
- Flags: construct write read
