ns3::LteEnbRrcSapProvider Class Reference

#include <lte-rrc-sap.h>

Inheritance diagram for ns3::LteEnbRrcSapProvider:

Collaboration diagram for ns3::LteEnbRrcSapProvider:

Classes
struct	CompleteSetupUeParameters

Public Member Functions
virtual void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params)=0
virtual void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg)=0
virtual void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg)=0
virtual void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg)=0
virtual void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg)=0
virtual void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg)=0
virtual void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg)=0
Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }
Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 255

Detailed Description

Service Access Point (SAP) used to let the eNB RRC receive a message from a UE RRC. Each method defined in this class correspond to the reception of a message that is defined in section 6.2.2 of TS 36.331.

Definition at line 653 of file lte-rrc-sap.h.

Member Function Documentation

virtual void ns3::LteEnbRrcSapProvider::CompleteSetupUe ( uint16_t  rnti, CompleteSetupUeParameters  params  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoSetupUe().

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvMeasurementReport ( uint16_t  rnti, MeasurementReport  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendMeasurementReport().

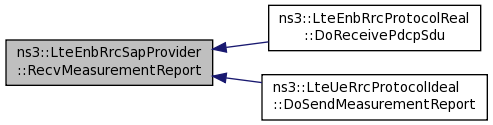

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted ( uint16_t  rnti, RrcConnectionReconfigurationCompleted  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted().

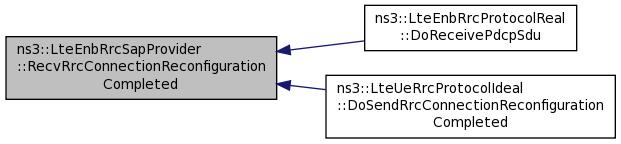

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete ( uint16_t  rnti, RrcConnectionReestablishmentComplete  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentComplete().

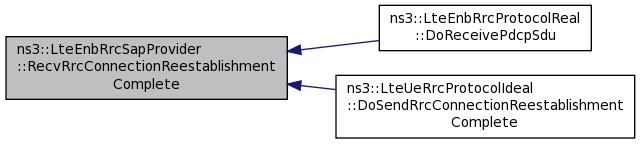

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest ( uint16_t  rnti, RrcConnectionReestablishmentRequest  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReestablishmentRequest().

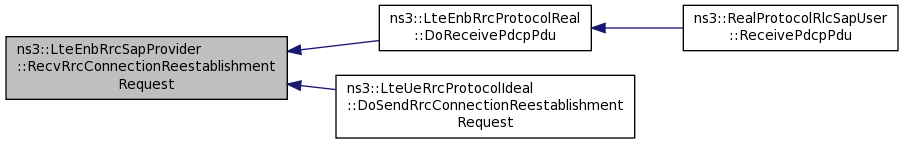

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionRequest ( uint16_t  rnti, RrcConnectionRequest  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest().

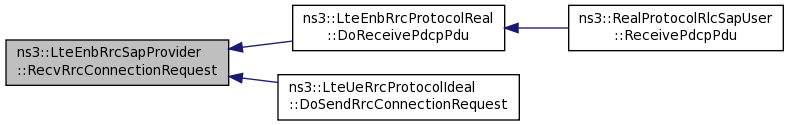

Here is the caller graph for this function:

virtual void ns3::LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted ( uint16_t  rnti, RrcConnectionSetupCompleted  msg  )

pure virtual

Implemented in ns3::MemberLteEnbRrcSapProvider< C >.

Referenced by ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu(), and ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionSetupCompleted().

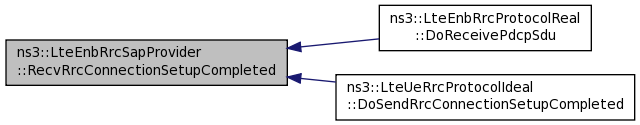

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rrc-sap.h
