ns3::LteSimpleHelper Class Reference

#include <lte-simple-helper.h>

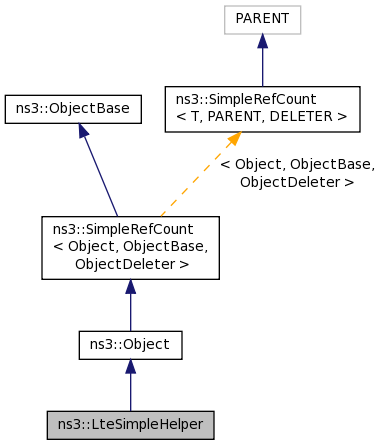

+ Inheritance diagram for ns3::LteSimpleHelper:

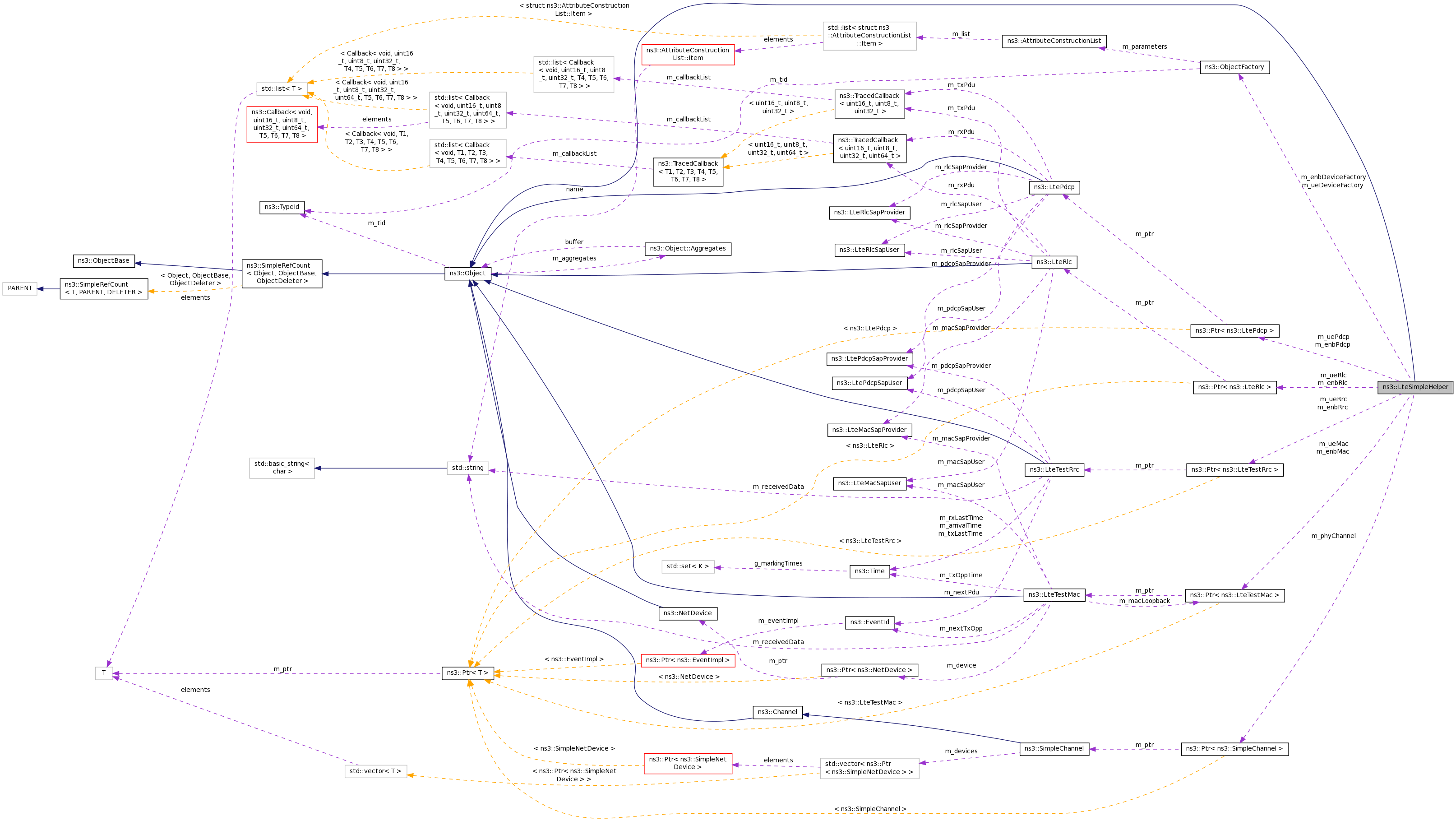

+ Collaboration diagram for ns3::LteSimpleHelper:

Public Member Functions

 LteSimpleHelper (void)

virtual ~LteSimpleHelper (void)

virtual void DoDispose (void)

void EnableDlPdcpTraces (void)

void EnableDlRlcTraces (void)

void EnableLogComponents (void)

void EnablePdcpTraces (void)

void EnableRlcTraces (void)

void EnableTraces (void)

void EnableUlPdcpTraces (void)

void EnableUlRlcTraces (void)

NetDeviceContainer InstallEnbDevice (NodeContainer c)

NetDeviceContainer InstallUeDevice (NodeContainer c)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Public Attributes

Ptr< LteTestMac > m_enbMac

Ptr< LteTestRrc > m_enbRrc

Ptr< LteTestMac > m_ueMac

Ptr< LteTestRrc > m_ueRrc


Protected Member Functions

virtual void DoInitialize (void)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Private Types

enum  LteRlcEntityType_t { RLC_UM = 1, RLC_AM = 2 }


Private Member Functions

Ptr< NetDevice > InstallSingleEnbDevice (Ptr< Node > n)

Ptr< NetDevice > InstallSingleUeDevice (Ptr< Node > n)


Private Attributes

ObjectFactory m_enbDeviceFactory

Ptr< LtePdcp > m_enbPdcp

Ptr< LteRlc > m_enbRlc

enum
ns3::LteSimpleHelper::LteRlcEntityType_t 		m_lteRlcEntityType

Ptr< SimpleChannel > m_phyChannel

ObjectFactory m_ueDeviceFactory

Ptr< LtePdcp > m_uePdcp

Ptr< LteRlc > m_ueRlc


Detailed Description

Creation and configuration of LTE entities

Definition at line 43 of file lte-simple-helper.h.

Member Enumeration Documentation

enum ns3::LteSimpleHelper::LteRlcEntityType_t
private
Enumerator
RLC_UM
RLC_AM

Definition at line 145 of file lte-simple-helper.h.

Constructor & Destructor Documentation

ns3::LteSimpleHelper::LteSimpleHelper ( void  )

Definition at line 40 of file lte-simple-helper.cc.

References ns3::LteSimpleNetDevice::GetTypeId(), m_enbDeviceFactory, m_ueDeviceFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

+ Here is the call graph for this function:

ns3::LteSimpleHelper::~LteSimpleHelper ( void  )
virtual

Definition at line 57 of file lte-simple-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteSimpleHelper::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 80 of file lte-simple-helper.cc.

References ns3::Object::DoDispose(), m_enbMac, m_phyChannel, m_ueMac, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteSimpleHelper::DoInitialize ( void  )
protectedvirtual

This method is called only once by Object::Initialize. If the user calls Object::Initialize multiple times, DoInitialize is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject and AggregateObject from within this method.

Reimplemented from ns3::Object.

Definition at line 48 of file lte-simple-helper.cc.

References ns3::Object::DoInitialize(), m_phyChannel, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::LteSimpleHelper::EnableDlPdcpTraces ( void  )

Enable trace sinks for DL PDCP layer

Definition at line 320 of file lte-simple-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by EnablePdcpTraces().

+ Here is the caller graph for this function:

void ns3::LteSimpleHelper::EnableDlRlcTraces ( void  )

Enable trace sinks for DL RLC layer

Definition at line 269 of file lte-simple-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by EnableRlcTraces().

+ Here is the caller graph for this function:

void ns3::LteSimpleHelper::EnableLogComponents ( void  )

Enables logging for all components of the LENA architecture

Definition at line 216 of file lte-simple-helper.cc.

References ns3::LOG_LEVEL_ALL, ns3::LOG_PREFIX_FUNC, ns3::LOG_PREFIX_NODE, ns3::LOG_PREFIX_TIME, and ns3::LogComponentEnable().

+ Here is the call graph for this function:

void ns3::LteSimpleHelper::EnablePdcpTraces ( void  )

Enable trace sinks for PDCP layer

Definition at line 313 of file lte-simple-helper.cc.

References EnableDlPdcpTraces(), and EnableUlPdcpTraces().

Referenced by EnableTraces().

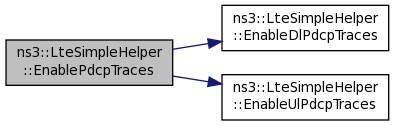

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSimpleHelper::EnableRlcTraces ( void  )

Enable trace sinks for RLC layer

Definition at line 241 of file lte-simple-helper.cc.

References EnableDlRlcTraces(), and EnableUlRlcTraces().

Referenced by EnableTraces().

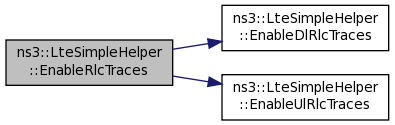

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteSimpleHelper::EnableTraces ( void  )

Enables trace sinks for MAC, RLC and PDCP

Definition at line 233 of file lte-simple-helper.cc.

References EnablePdcpTraces(), and EnableRlcTraces().

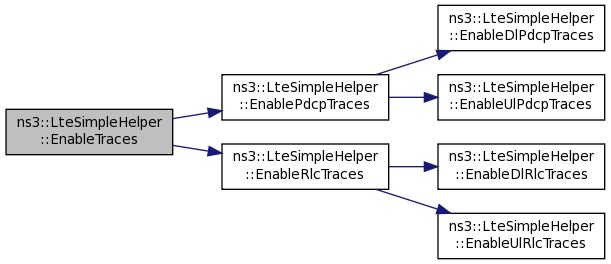

+ Here is the call graph for this function:

void ns3::LteSimpleHelper::EnableUlPdcpTraces ( void  )

Enable trace sinks for UL PDCP layer

Definition at line 331 of file lte-simple-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by EnablePdcpTraces().

+ Here is the caller graph for this function:

void ns3::LteSimpleHelper::EnableUlRlcTraces ( void  )

Enable trace sinks for UL RLC layer

Definition at line 301 of file lte-simple-helper.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by EnableRlcTraces().

+ Here is the caller graph for this function:

TypeId ns3::LteSimpleHelper::GetTypeId ( void  )
static

Definition at line 62 of file lte-simple-helper.cc.

References m_lteRlcEntityType, ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), RLC_AM, RLC_UM, and ns3::TypeId::SetParent().

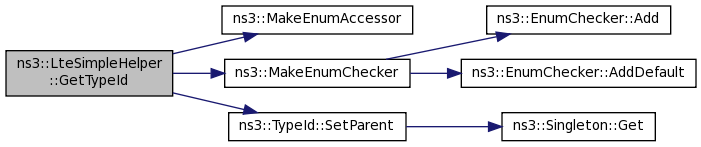

+ Here is the call graph for this function:

NetDeviceContainer ns3::LteSimpleHelper::InstallEnbDevice ( NodeContainer  c)

create a set of eNB devices

Parameters
cthe node container where the devices are to be installed
Returns
the NetDeviceContainer with the newly created devices

Definition at line 95 of file lte-simple-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), ns3::Object::Initialize(), InstallSingleEnbDevice(), and NS_LOG_FUNCTION.

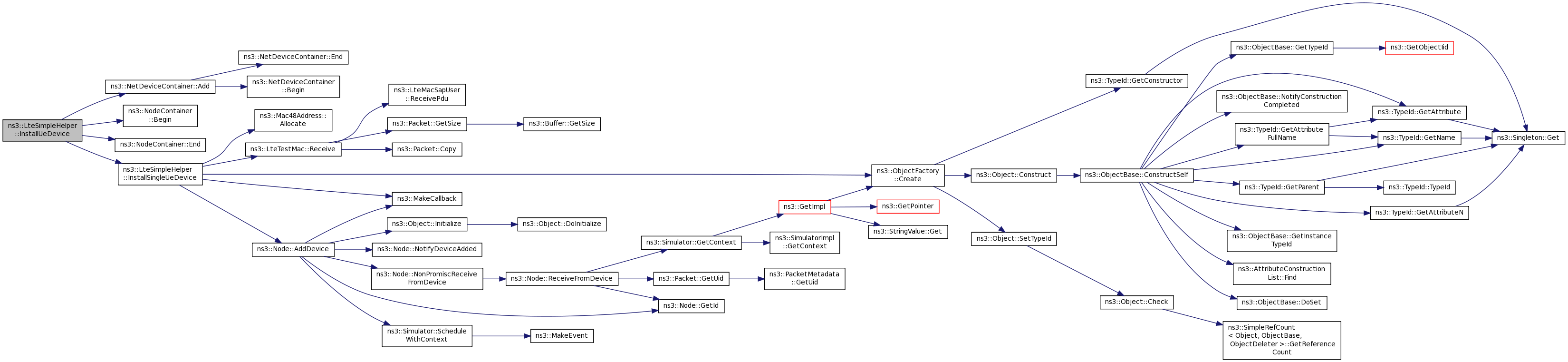

+ Here is the call graph for this function:

Ptr< NetDevice > ns3::LteSimpleHelper::InstallSingleEnbDevice ( Ptr< Node >  n)
private

Definition at line 125 of file lte-simple-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::ObjectFactory::Create(), m_enbDeviceFactory, m_enbMac, m_enbPdcp, m_enbRlc, m_enbRrc, m_lteRlcEntityType, m_phyChannel, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::LteTestMac::Receive(), and RLC_UM.

Referenced by InstallEnbDevice().

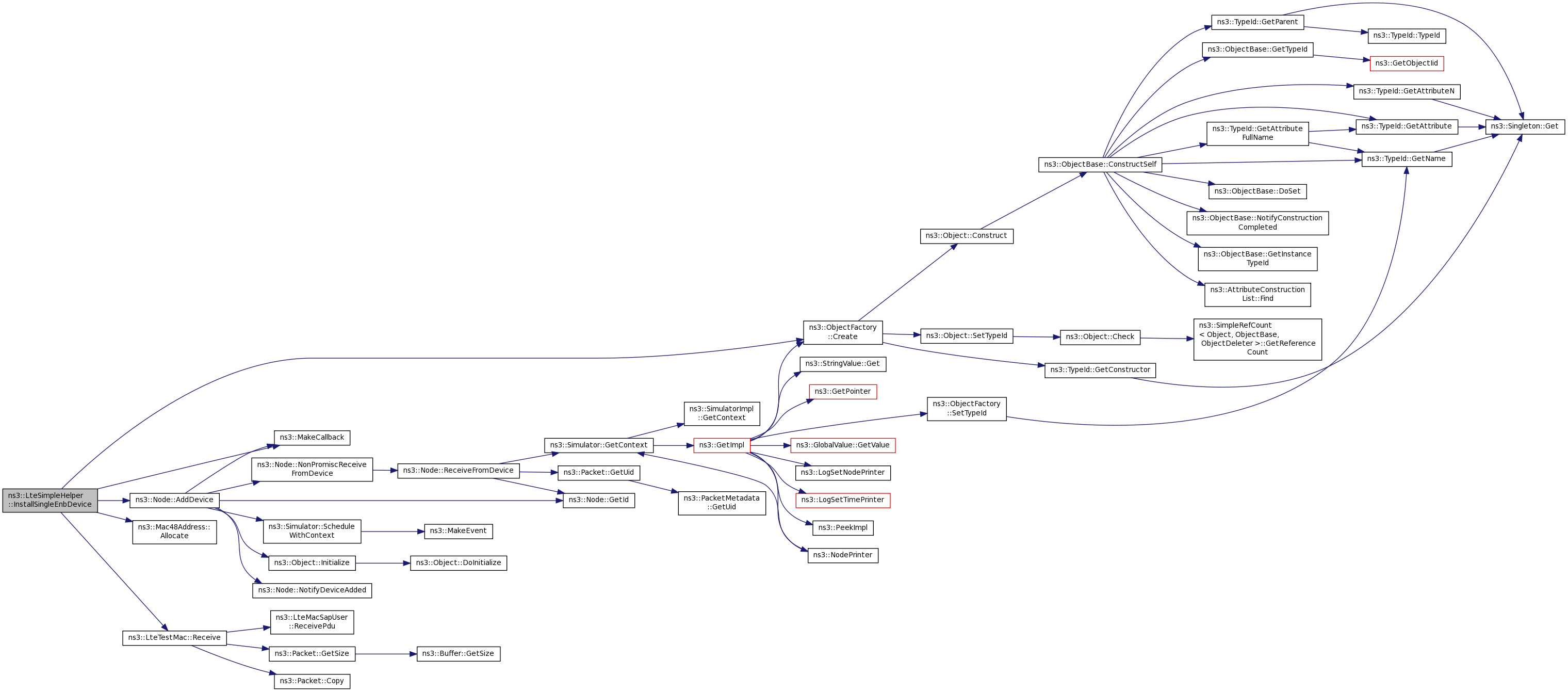

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< NetDevice > ns3::LteSimpleHelper::InstallSingleUeDevice ( Ptr< Node >  n)
private

Definition at line 170 of file lte-simple-helper.cc.

References ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::ObjectFactory::Create(), m_lteRlcEntityType, m_phyChannel, m_ueDeviceFactory, m_ueMac, m_uePdcp, m_ueRlc, m_ueRrc, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::LteTestMac::Receive(), and RLC_UM.

Referenced by InstallUeDevice().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

NetDeviceContainer ns3::LteSimpleHelper::InstallUeDevice ( NodeContainer  c)

create a set of UE devices

Parameters
cthe node container where the devices are to be installed
Returns
the NetDeviceContainer with the newly created devices

Definition at line 110 of file lte-simple-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), InstallSingleUeDevice(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Member Data Documentation

ObjectFactory ns3::LteSimpleHelper::m_enbDeviceFactory
private

Definition at line 142 of file lte-simple-helper.h.

Referenced by InstallSingleEnbDevice(), and LteSimpleHelper().

Ptr<LteTestMac> ns3::LteSimpleHelper::m_enbMac

Definition at line 131 of file lte-simple-helper.h.

Referenced by DoDispose(), and InstallSingleEnbDevice().

Ptr<LtePdcp> ns3::LteSimpleHelper::m_enbPdcp
private

Definition at line 136 of file lte-simple-helper.h.

Referenced by InstallSingleEnbDevice().

Ptr<LteRlc> ns3::LteSimpleHelper::m_enbRlc
private

Definition at line 137 of file lte-simple-helper.h.

Referenced by InstallSingleEnbDevice().

Ptr<LteTestRrc> ns3::LteSimpleHelper::m_enbRrc

Definition at line 128 of file lte-simple-helper.h.

Referenced by InstallSingleEnbDevice().

enum ns3::LteSimpleHelper::LteRlcEntityType_t ns3::LteSimpleHelper::m_lteRlcEntityType
private

Referenced by GetTypeId(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

Ptr<SimpleChannel> ns3::LteSimpleHelper::m_phyChannel
private

Definition at line 124 of file lte-simple-helper.h.

Referenced by DoDispose(), DoInitialize(), InstallSingleEnbDevice(), and InstallSingleUeDevice().

ObjectFactory ns3::LteSimpleHelper::m_ueDeviceFactory
private

Definition at line 143 of file lte-simple-helper.h.

Referenced by InstallSingleUeDevice(), and LteSimpleHelper().

Ptr<LteTestMac> ns3::LteSimpleHelper::m_ueMac

Definition at line 132 of file lte-simple-helper.h.

Referenced by DoDispose(), and InstallSingleUeDevice().

Ptr<LtePdcp> ns3::LteSimpleHelper::m_uePdcp
private

Definition at line 139 of file lte-simple-helper.h.

Referenced by InstallSingleUeDevice().

Ptr<LteRlc> ns3::LteSimpleHelper::m_ueRlc
private

Definition at line 140 of file lte-simple-helper.h.

Referenced by InstallSingleUeDevice().

Ptr<LteTestRrc> ns3::LteSimpleHelper::m_ueRrc

Definition at line 129 of file lte-simple-helper.h.

Referenced by InstallSingleUeDevice().

The documentation for this class was generated from the following files:
