ns3::LteUeCphySapProvider Class Reference

#include <lte-ue-cphy-sap.h>

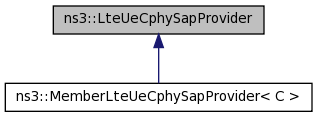

Inheritance diagram for ns3::LteUeCphySapProvider:

Public Member Functions
virtual	~LteUeCphySapProvider ()
virtual void	ConfigureUplink (uint16_t ulEarfcn, uint8_t ulBandwidth)=0
virtual void	Reset ()=0
virtual void	SetDlBandwidth (uint8_t dlBandwidth)=0
virtual void	SetRnti (uint16_t rnti)=0
virtual void	SetSrsConfigurationIndex (uint16_t srcCi)=0
virtual void	SetTransmissionMode (uint8_t txMode)=0
virtual void	SyncronizeWithEnb (uint16_t cellId, uint16_t dlEarfcn)=0

Detailed Description

Service Access Point (SAP) offered by the UE PHY to the UE RRC for control purposes

This is the PHY SAP Provider, i.e., the part of the SAP that contains the PHY methods called by the MAC

Definition at line 41 of file lte-ue-cphy-sap.h.

Constructor & Destructor Documentation

ns3::LteUeCphySapProvider::~LteUeCphySapProvider ( )

virtual

destructor

Definition at line 25 of file lte-ue-cphy-sap.cc.

Member Function Documentation

virtual void ns3::LteUeCphySapProvider::ConfigureUplink ( uint16_t  ulEarfcn, uint8_t  ulBandwidth  )

pure virtual

Configure uplink (normally done after reception of SIB2)

Parameters

ulEarfcn	the carrier frequency (EARFCN) in uplink
ulBandwidth	the UL bandwidth in PRBs

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), and ns3::LteUeRrc::DoRecvSystemInformation().

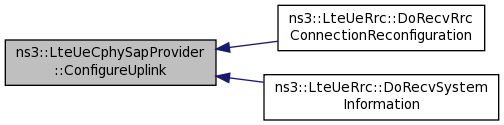

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::Reset ( )

pure virtual

reset the PHY

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::SetDlBandwidth ( uint8_t  dlBandwidth )

pure virtual

Parameters

dlBandwidth

the DL bandwidth in PRBs

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::DoRecvMasterInformationBlock(), and ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::SetRnti ( uint16_t  rnti )

pure virtual

Parameters

rnti	the cell-specific UE identifier

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), and ns3::LteUeRrc::DoSetTemporaryCellRnti().

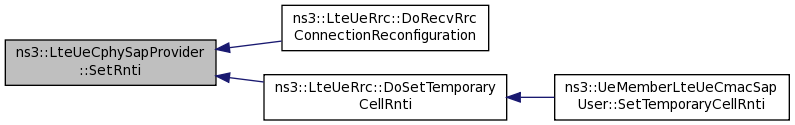

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::SetSrsConfigurationIndex ( uint16_t  srcCi )

pure virtual

Parameters

txMode

the transmissionMode of the user

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated().

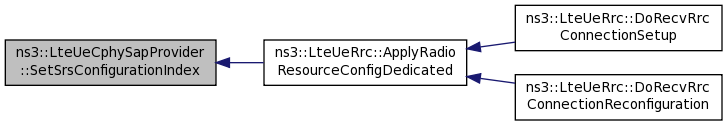

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::SetTransmissionMode ( uint8_t  txMode )

pure virtual

Parameters

txMode

the transmissionMode of the user

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated().

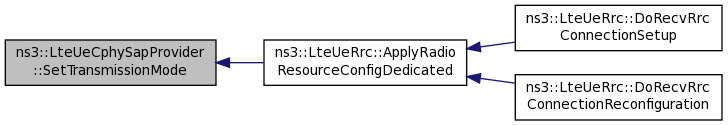

Here is the caller graph for this function:

virtual void ns3::LteUeCphySapProvider::SyncronizeWithEnb ( uint16_t  cellId, uint16_t  dlEarfcn  )

pure virtual

tell the PHY to synchronize with a given eNB for communication purposes

Parameters

cellId	the ID of the eNB
dlEarfcn	the carrier frequency (EARFCN) in downlink

Implemented in ns3::MemberLteUeCphySapProvider< C >.

Referenced by ns3::LteUeRrc::DoForceCampedOnEnb(), and ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

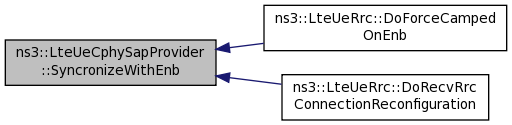

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-ue-cphy-sap.h
• src/lte/model/lte-ue-cphy-sap.cc
