#include <mgt-headers.h>

Inheritance diagram for ns3::MgtDelBaHeader:

Collaboration diagram for ns3::MgtDelBaHeader:

Public Member Functions
	MgtDelBaHeader ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

virtual uint32_t	GetSerializedSize (void) const

uint8_t	GetTid (void) const

bool	IsByOriginator (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetByOriginator (void)

void	SetByRecipient (void)

void	SetTid (uint8_t)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
uint16_t	GetParameterSet (void) const

void	SetParameterSet (uint16_t params)

Private Attributes
uint16_t	m_initiator

uint16_t	m_reasonCode

uint16_t	m_tid

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Implement the header for management frames of type del block ack.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 368 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtDelBaHeader::MgtDelBaHeader ( )

Definition at line 980 of file mgt-headers.cc.

Member Function Documentation

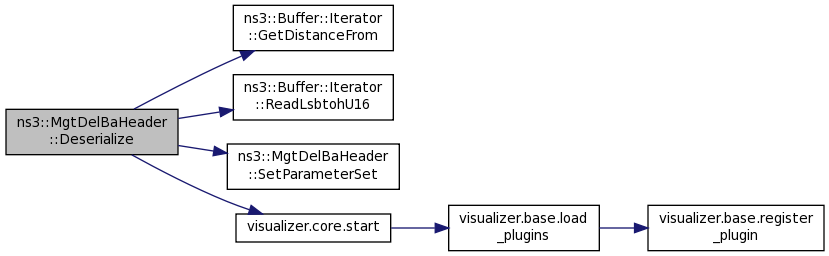

uint32_t ns3::MgtDelBaHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 1024 of file mgt-headers.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_reasonCode, ns3::Buffer::Iterator::ReadLsbtohU16(), SetParameterSet(), and visualizer.core::start().

Here is the call graph for this function:

TypeId ns3::MgtDelBaHeader::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 996 of file mgt-headers.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::MgtDelBaHeader::GetParameterSet ( void ) const

private

Definition at line 1066 of file mgt-headers.cc.

References m_initiator, and m_tid.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::MgtDelBaHeader::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 1007 of file mgt-headers.cc.

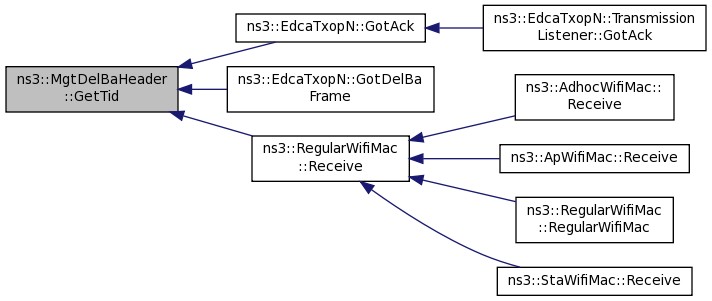

uint8_t ns3::MgtDelBaHeader::GetTid ( void ) const

Definition at line 1039 of file mgt-headers.cc.

References m_tid, and NS_ASSERT.

Referenced by ns3::EdcaTxopN::GotAck(), ns3::EdcaTxopN::GotDelBaFrame(), and ns3::RegularWifiMac::Receive().

Here is the caller graph for this function:

TypeId ns3::MgtDelBaHeader::GetTypeId ( void )

static

Definition at line 986 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

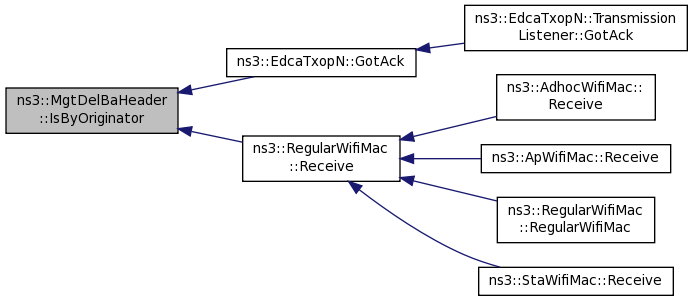

bool ns3::MgtDelBaHeader::IsByOriginator ( void ) const

Definition at line 1033 of file mgt-headers.cc.

References m_initiator.

Referenced by ns3::EdcaTxopN::GotAck(), and ns3::RegularWifiMac::Receive().

Here is the caller graph for this function:

void ns3::MgtDelBaHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 1002 of file mgt-headers.cc.

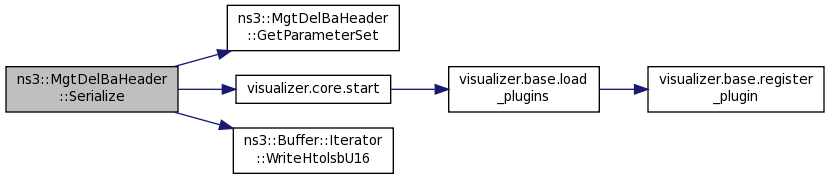

void ns3::MgtDelBaHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 1016 of file mgt-headers.cc.

References GetParameterSet(), m_reasonCode, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

Here is the call graph for this function:
