mobility buildings information (to be used by mobility models) More...

#include <mobility-building-info.h>

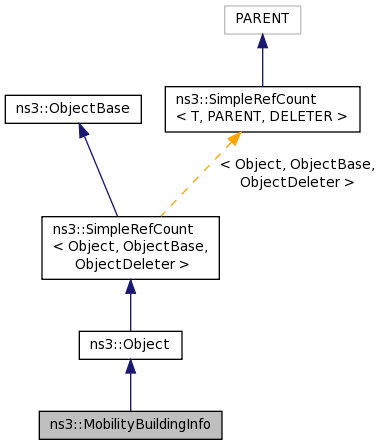

Inheritance diagram for ns3::MobilityBuildingInfo:

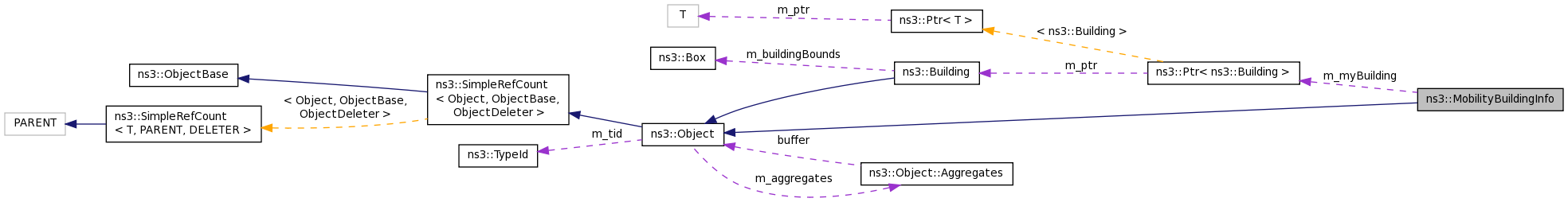

Collaboration diagram for ns3::MobilityBuildingInfo:

Public Member Functions
	MobilityBuildingInfo ()

	MobilityBuildingInfo (Ptr< Building > building)

Ptr< Building >	GetBuilding ()

uint8_t	GetFloorNumber (void)

uint8_t	GetRoomNumberX (void)

uint8_t	GetRoomNumberY (void)

bool	IsIndoor (void)

bool	IsOutdoor (void)

void	SetIndoor (Ptr< Building > building, uint8_t nfloor, uint8_t nroomx, uint8_t nroomy)

void	SetIndoor (uint8_t nfloor, uint8_t nroomx, uint8_t nroomy)

void	SetOutdoor ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
bool	m_indoor

Ptr< Building >	m_myBuilding

uint8_t	m_nFloor

uint8_t	m_roomX

uint8_t	m_roomY

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

mobility buildings information (to be used by mobility models)

This model implements the managment of scenarios where users might be either indoor (e.g., houses, offices, etc.) and outdoor.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 47 of file mobility-building-info.h.

Constructor & Destructor Documentation

ns3::MobilityBuildingInfo::MobilityBuildingInfo ( )

Definition at line 47 of file mobility-building-info.cc.

References m_indoor, m_nFloor, m_roomX, m_roomY, and NS_LOG_FUNCTION.

ns3::MobilityBuildingInfo::MobilityBuildingInfo ( Ptr< Building > building )

Definition at line 57 of file mobility-building-info.cc.

References m_indoor, m_nFloor, m_roomX, m_roomY, and NS_LOG_FUNCTION.

Member Function Documentation

Ptr< Building > ns3::MobilityBuildingInfo::GetBuilding ( )

Returns

Definition at line 152 of file mobility-building-info.cc.

References m_myBuilding, and NS_LOG_FUNCTION.

uint8_t ns3::MobilityBuildingInfo::GetFloorNumber ( void )

Returns

Definition at line 130 of file mobility-building-info.cc.

References m_nFloor, and NS_LOG_FUNCTION.

uint8_t ns3::MobilityBuildingInfo::GetRoomNumberX ( void )

Returns

Definition at line 137 of file mobility-building-info.cc.

References m_roomX, and NS_LOG_FUNCTION.

uint8_t ns3::MobilityBuildingInfo::GetRoomNumberY ( void )

Returns

Definition at line 144 of file mobility-building-info.cc.

References m_roomY, and NS_LOG_FUNCTION.

TypeId ns3::MobilityBuildingInfo::GetTypeId ( void )

static

Definition at line 36 of file mobility-building-info.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::MobilityBuildingInfo::IsIndoor ( void )

Returns: true if the MobilityBuildingInfo instance is indoor, false otherwise

Definition at line 68 of file mobility-building-info.cc.

References m_indoor, and NS_LOG_FUNCTION.

bool ns3::MobilityBuildingInfo::IsOutdoor ( void )

Returns: true if the MobilityBuildingInfo instance is outdoor, false otherwise

Definition at line 75 of file mobility-building-info.cc.

References m_indoor, and NS_LOG_FUNCTION.

void ns3::MobilityBuildingInfo::SetIndoor	(	Ptr< Building >	building,
		uint8_t	nfloor,
		uint8_t	nroomx,
		uint8_t	nroomy
	)

Mark this MobilityBuildingInfo instance as indoor

Parameters

building	the building into which the MobilityBuildingInfo instance is located
nfloor	the floor number 1...nFloors at which the MobilityBuildingInfo instance is located
nroomx	the X room number 1...nRoomsX at which the MobilityBuildingInfo instance is located
nroomy	the Y room number 1...nRoomsY at which the MobilityBuildingInfo instance is located
