socket factory implementation for creating instances of NSC TCP More...

#include <nsc-tcp-socket-factory-impl.h>

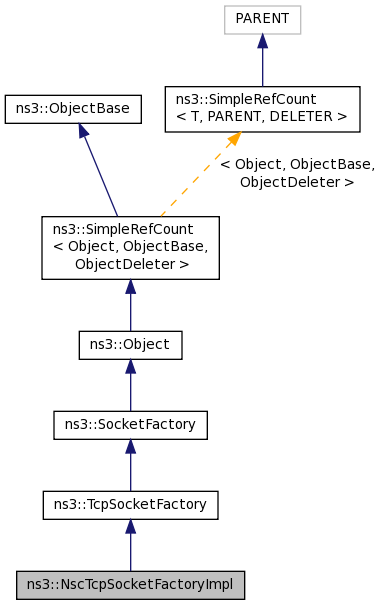

Inheritance diagram for ns3::NscTcpSocketFactoryImpl:

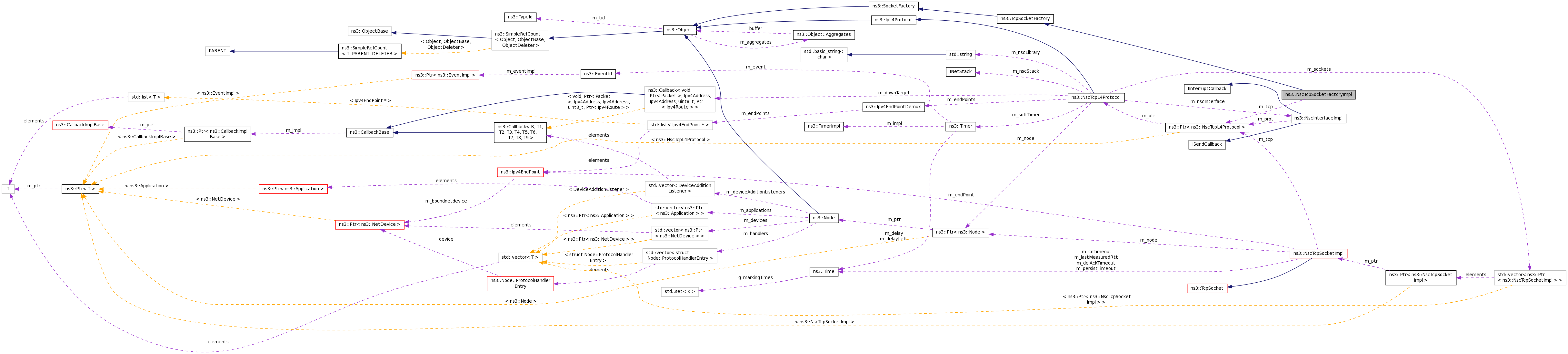

Collaboration diagram for ns3::NscTcpSocketFactoryImpl:

Public Member Functions
	NscTcpSocketFactoryImpl ()

virtual	~NscTcpSocketFactoryImpl ()

virtual Ptr< Socket >	CreateSocket (void)

void	SetTcp (Ptr< NscTcpL4Protocol > tcp)

Public Member Functions inherited from ns3::SocketFactory
	SocketFactory ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
virtual void	DoDispose (void)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Attributes
Ptr< NscTcpL4Protocol >	m_tcp

Additional Inherited Members
Static Public Member Functions inherited from ns3::TcpSocketFactory
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SocketFactory
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Detailed Description

socket factory implementation for creating instances of NSC TCP

Definition at line 44 of file nsc-tcp-socket-factory-impl.h.

Constructor & Destructor Documentation

ns3::NscTcpSocketFactoryImpl::NscTcpSocketFactoryImpl ( )

Definition at line 23 of file nsc-tcp-socket-factory-impl.cc.

ns3::NscTcpSocketFactoryImpl::~NscTcpSocketFactoryImpl ( )

virtual

Definition at line 27 of file nsc-tcp-socket-factory-impl.cc.

References m_tcp, and NS_ASSERT.

Member Function Documentation

Ptr< Socket > ns3::NscTcpSocketFactoryImpl::CreateSocket ( void )

virtual

Returns: smart pointer to Socket

Base class method for creating socket instances.

Implements ns3::SocketFactory.

Definition at line 39 of file nsc-tcp-socket-factory-impl.cc.

References m_tcp.

void ns3::NscTcpSocketFactoryImpl::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 45 of file nsc-tcp-socket-factory-impl.cc.

References ns3::Object::DoDispose(), and m_tcp.

Here is the call graph for this function:
