#include <rem-spectrum-phy.h>

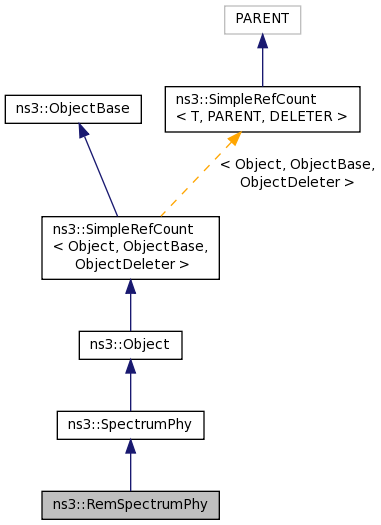

Inheritance diagram for ns3::RemSpectrumPhy:

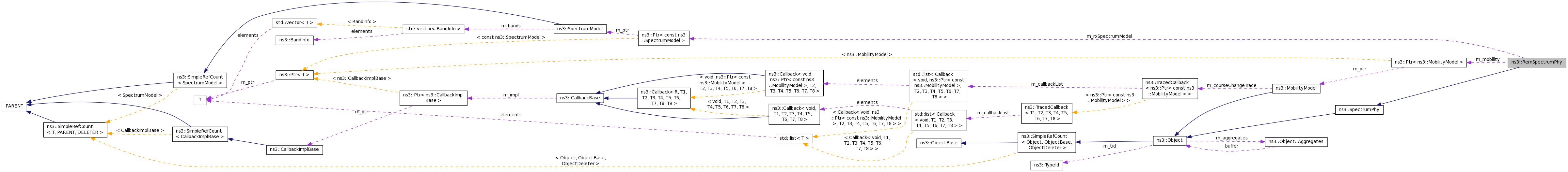

Collaboration diagram for ns3::RemSpectrumPhy:

Public Member Functions
	RemSpectrumPhy ()

virtual	~RemSpectrumPhy ()

void	Deactivate ()

void	DoDispose ()

Ptr< NetDevice >	GetDevice ()

Ptr< MobilityModel >	GetMobility ()

Ptr< AntennaModel >	GetRxAntenna ()

Ptr< const SpectrumModel >	GetRxSpectrumModel () const

double	GetSinr (double noisePower)

bool	IsActive ()

void	Reset ()

void	SetChannel (Ptr< SpectrumChannel > c)

void	SetDevice (Ptr< NetDevice > d)

void	SetMobility (Ptr< MobilityModel > m)

void	SetRxSpectrumModel (Ptr< const SpectrumModel > m)

void	StartRx (Ptr< SpectrumSignalParameters > params)

Public Member Functions inherited from ns3::SpectrumPhy
	SpectrumPhy ()

virtual	~SpectrumPhy ()

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SpectrumPhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
bool	m_active

Ptr< MobilityModel >	m_mobility

double	m_referenceSignalPower

Ptr< const SpectrumModel >	m_rxSpectrumModel

double	m_sumPower

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

This minimal SpectrumPhy implemetation calculates the SINR with respect to the strongest signal for a given point. The original purpose of this class is to be used to generate a Radio Environment Map (REM) by locating several instances in a grid fashion, and connecting them to the channel only for a very short amount of time.

The assumption on which this class works is that the system being considered is an infrastructured radio access network using FDD, hence all signals will be transmitted simultaneously.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 51 of file rem-spectrum-phy.h.

Constructor & Destructor Documentation

ns3::RemSpectrumPhy::RemSpectrumPhy ( )

Definition at line 40 of file rem-spectrum-phy.cc.

References NS_LOG_FUNCTION.

ns3::RemSpectrumPhy::~RemSpectrumPhy ( )

virtual

Definition at line 51 of file rem-spectrum-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RemSpectrumPhy::Deactivate ( )

make StartRx a no-op from now on, and mark instance as inactive

Definition at line 156 of file rem-spectrum-phy.cc.

References m_active.

void ns3::RemSpectrumPhy::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 57 of file rem-spectrum-phy.cc.

References ns3::Object::DoDispose(), m_mobility, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< NetDevice > ns3::RemSpectrumPhy::GetDevice ( )

virtual

get the associated NetDevice instance

Returns: a Ptr to the associated NetDevice instance

Implements ns3::SpectrumPhy.

Definition at line 103 of file rem-spectrum-phy.cc.

Ptr< MobilityModel > ns3::RemSpectrumPhy::GetMobility ( )

virtual

get the associated MobilityModel instance

Returns: a Ptr to the associated MobilityModel instance

Implements ns3::SpectrumPhy.

Definition at line 97 of file rem-spectrum-phy.cc.

References m_mobility.

Ptr< AntennaModel > ns3::RemSpectrumPhy::GetRxAntenna ( )

virtual

get the AntennaModel used by the NetDevice for reception

Returns: a Ptr to the AntennaModel used by the NetDevice for reception

Implements ns3::SpectrumPhy.

Definition at line 115 of file rem-spectrum-phy.cc.

Ptr< const SpectrumModel > ns3::RemSpectrumPhy::GetRxSpectrumModel ( ) const

virtual

Returns: returns the SpectrumModel that this SpectrumPhy expects to be used for all SpectrumValues that are passed to StartRx. If 0 is returned, it means that any model will be accepted.

Implements ns3::SpectrumPhy.

Definition at line 109 of file rem-spectrum-phy.cc.

References m_rxSpectrumModel.

double ns3::RemSpectrumPhy::GetSinr ( double noisePower )
