this class manages a list of SSrecord More...

#include <ss-manager.h>

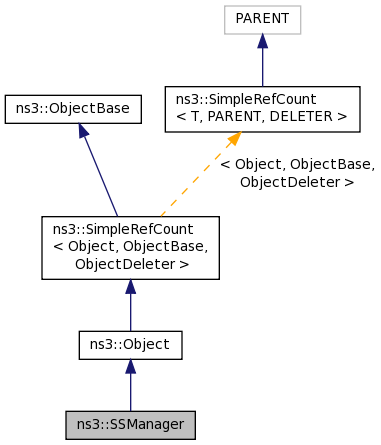

Inheritance diagram for ns3::SSManager:

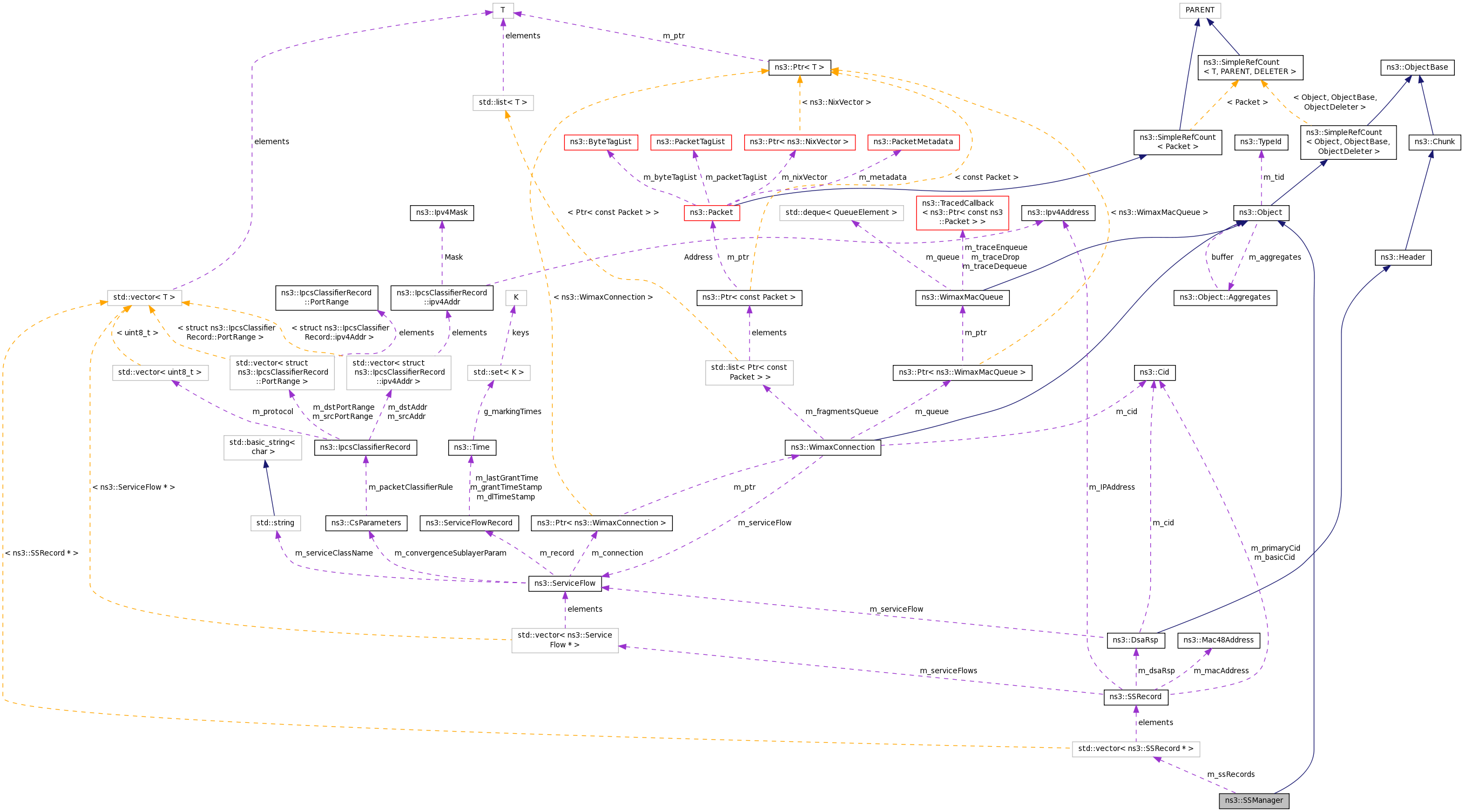

Collaboration diagram for ns3::SSManager:

Public Member Functions
	SSManager (void)

	~SSManager (void)

SSRecord *	CreateSSRecord (const Mac48Address &macAddress)

void	DeleteSSRecord (Cid cid)

Mac48Address	GetMacAddress (Cid cid) const

uint32_t	GetNRegisteredSSs (void) const

uint32_t	GetNSSs (void) const

SSRecord *	GetSSRecord (const Mac48Address &macAddress) const

SSRecord *	GetSSRecord (Cid cid) const
	returns the ssrecord which has been assigned this cid. Since different types of cids (basic, primary, transport) are assigned different values, all cids (basic, primary and transport) of the ssrecord are matched. More...

std::vector< SSRecord * > *	GetSSRecords (void) const

bool	IsInRecord (const Mac48Address &macAddress) const

bool	IsRegistered (const Mac48Address &macAddress) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
std::vector< SSRecord * > *	m_ssRecords

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

this class manages a list of SSrecord

See also: SSrecord

Config Paths

ns3::SSManager is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/SSManager
/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/SSManager

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 37 of file ss-manager.h.

Constructor & Destructor Documentation

ns3::SSManager::SSManager ( void )

Definition at line 40 of file ss-manager.cc.

References m_ssRecords.

ns3::SSManager::~SSManager ( void )

Definition at line 45 of file ss-manager.cc.

References m_ssRecords.

Member Function Documentation

SSRecord * ns3::SSManager::CreateSSRecord ( const Mac48Address & macAddress )

Definition at line 56 of file ss-manager.cc.

References m_ssRecords.

void ns3::SSManager::DeleteSSRecord ( Cid cid )

Definition at line 132 of file ss-manager.cc.

References ns3::SSRecord::GetBasicCid(), ns3::SSRecord::GetPrimaryCid(), ns3::SSRecord::GetServiceFlows(), m_ssRecords, and ns3::ServiceFlow::SF_TYPE_ALL.

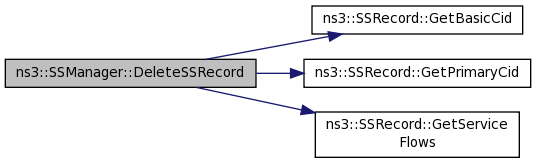

Here is the call graph for this function:

Mac48Address ns3::SSManager::GetMacAddress ( Cid cid ) const

Definition at line 158 of file ss-manager.cc.

References ns3::SSRecord::GetMacAddress(), and GetSSRecord().

Here is the call graph for this function:

uint32_t ns3::SSManager::GetNRegisteredSSs ( void ) const

Definition at line 170 of file ss-manager.cc.

References m_ssRecords, and ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS.

uint32_t ns3::SSManager::GetNSSs ( void ) const

Definition at line 164 of file ss-manager.cc.

References m_ssRecords.

SSRecord * ns3::SSManager::GetSSRecord ( const Mac48Address & macAddress ) const

Definition at line 64 of file ss-manager.cc.

References m_ssRecords, and NS_LOG_DEBUG.

Referenced by GetMacAddress(), and IsRegistered().

Here is the caller graph for this function:

SSRecord * ns3::SSManager::GetSSRecord ( Cid cid ) const

returns the ssrecord which has been assigned this cid. Since different types of cids (basic, primary, transport) are assigned different values, all cids (basic, primary and transport) of the ssrecord are matched.

Parameters
