ALOHA MAC Protocol. More...

#include <uan-mac-aloha.h>

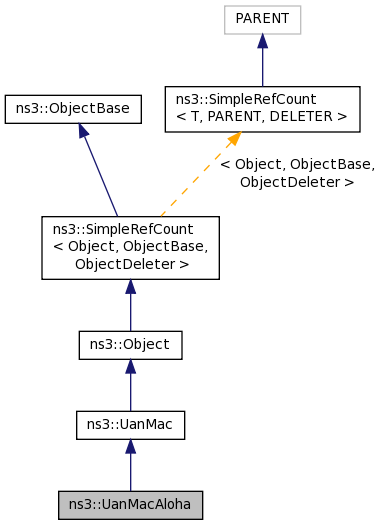

Inheritance diagram for ns3::UanMacAloha:

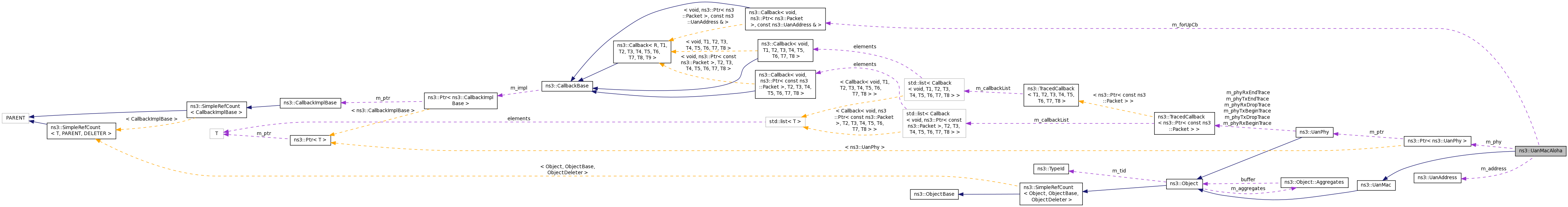

Collaboration diagram for ns3::UanMacAloha:

Public Member Functions
	UanMacAloha ()

virtual	~UanMacAloha ()

int64_t	AssignStreams (int64_t stream)

virtual void	AttachPhy (Ptr< UanPhy > phy)

virtual void	Clear (void)

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)

Address	GetAddress (void)

virtual Address	GetBroadcast (void) const

virtual void	SetAddress (UanAddress addr)

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose ()

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Member Functions
void	RxPacketError (Ptr< Packet > pkt, double sinr)
	Packet received at lower layer in error. More...

void	RxPacketGood (Ptr< Packet > pkt, double sinr, UanTxMode txMode)
	Receive packet from lower layer (passed to PHY as callback) More...

Private Attributes
UanAddress	m_address

bool	m_cleared

Callback< void, Ptr< Packet > , const UanAddress & >	m_forUpCb

Ptr< UanPhy >	m_phy

Detailed Description

ALOHA MAC Protocol.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

The simplest MAC protocol for wireless networks. Packets enqueued are immediately transmitted. This MAC attaches a UanHeaderCommon to outgoing packets for address information. (The type field is not used)

Definition at line 42 of file uan-mac-aloha.h.

Constructor & Destructor Documentation

ns3::UanMacAloha::UanMacAloha ( )

Definition at line 37 of file uan-mac-aloha.cc.

ns3::UanMacAloha::~UanMacAloha ( )

virtual

Definition at line 43 of file uan-mac-aloha.cc.

Member Function Documentation

int64_t ns3::UanMacAloha::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::UanMac.

Definition at line 154 of file uan-mac-aloha.cc.

References NS_LOG_FUNCTION.

void ns3::UanMacAloha::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC. Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC

Implements ns3::UanMac.

Definition at line 119 of file uan-mac-aloha.cc.

References m_phy, ns3::MakeCallback(), RxPacketError(), and RxPacketGood().

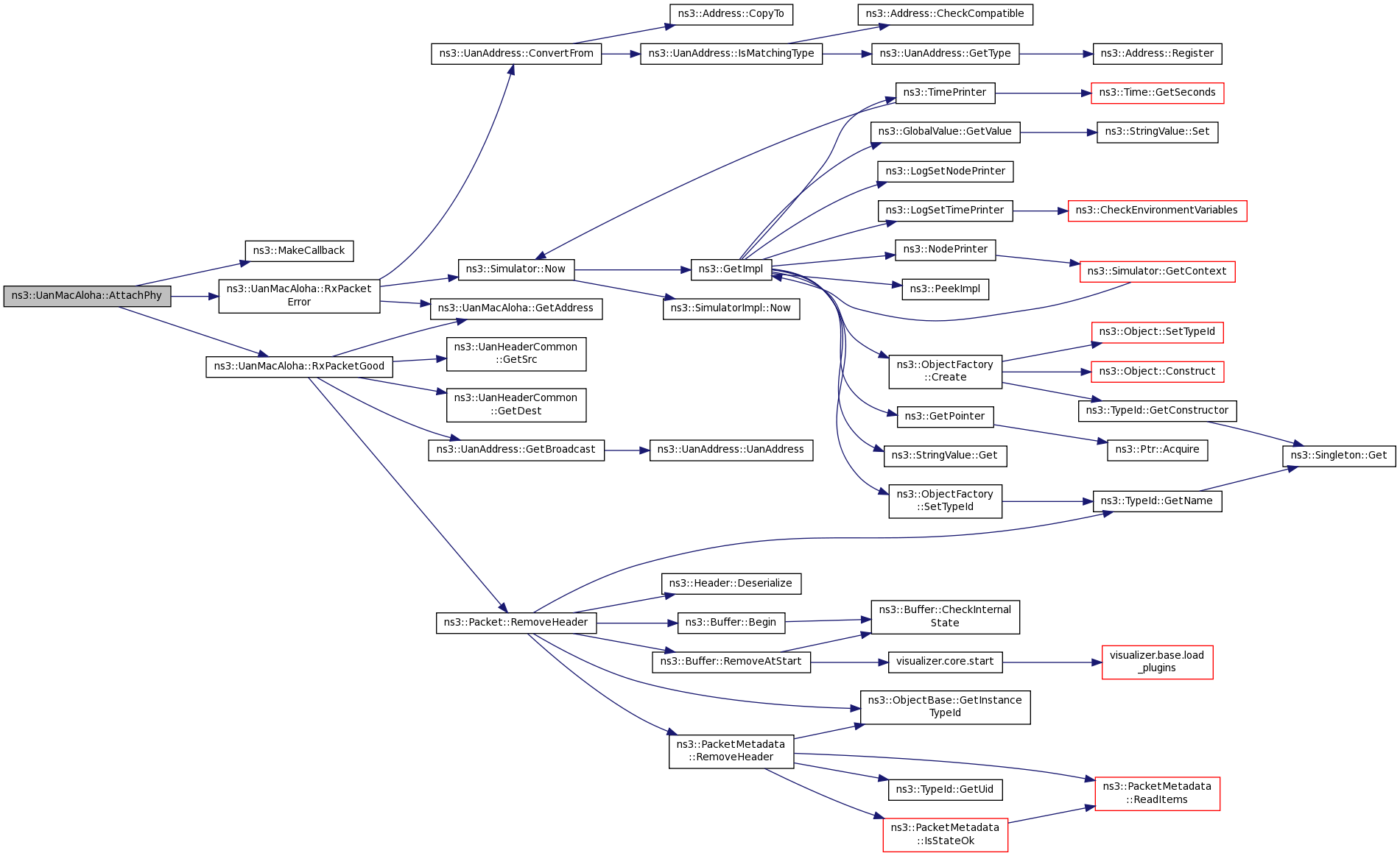

Here is the call graph for this function:

void ns3::UanMacAloha::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanMac.

Definition at line 48 of file uan-mac-aloha.cc.

References m_cleared, and m_phy.

Referenced by DoDispose().

Here is the caller graph for this function:

void ns3::UanMacAloha::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 63 of file uan-mac-aloha.cc.

References Clear(), and ns3::Object::DoDispose().

Here is the call graph for this function:
