(abstract) base class of all UdpSockets More...

#include <udp-socket.h>

Inheritance diagram for ns3::UdpSocket:

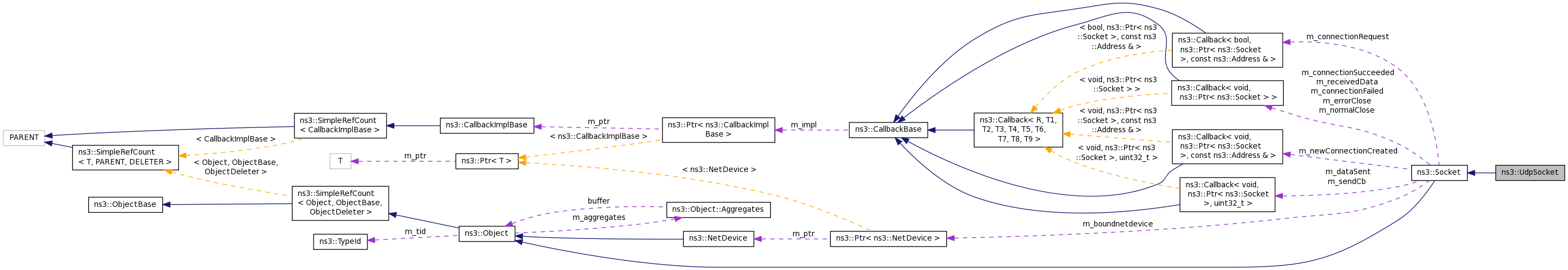

Collaboration diagram for ns3::UdpSocket:

Public Member Functions
	UdpSocket (void)

virtual	~UdpSocket (void)

virtual int	MulticastJoinGroup (uint32_t interface, const Address &groupAddress)=0
	Corresponds to socket option MCAST_JOIN_GROUP. More...

virtual int	MulticastLeaveGroup (uint32_t interface, const Address &groupAddress)=0
	Corresponds to socket option MCAST_LEAVE_GROUP. More...

Public Member Functions inherited from ns3::Socket
	Socket (void)

virtual	~Socket (void)

virtual int	Bind (const Address &address)=0
	Allocate a local endpoint for this socket. More...

virtual int	Bind ()=0
	Allocate a local IPv4 endpoint for this socket. More...

virtual int	Bind6 ()=0
	Allocate a local IPv6 endpoint for this socket. More...

virtual void	BindToNetDevice (Ptr< NetDevice > netdevice)
	Bind a socket to specific device. More...

virtual int	Close (void)=0
	Close a socket. More...

virtual int	Connect (const Address &address)=0
	Initiate a connection to a remote host. More...

virtual bool	GetAllowBroadcast () const =0
	Query whether broadcast datagram transmissions are allowed. More...

Ptr< NetDevice >	GetBoundNetDevice ()
	Returns socket's bound netdevice, if any. More...

virtual enum Socket::SocketErrno	GetErrno (void) const =0

uint8_t	GetIpTos (void) const

virtual uint8_t	GetIpTtl (void) const

virtual uint8_t	GetIpv6HopLimit (void) const

uint8_t	GetIpv6Tclass (void) const

virtual Ptr< Node >	GetNode (void) const =0

virtual uint32_t	GetRxAvailable (void) const =0

virtual enum Socket::SocketType	GetSocketType (void) const =0

virtual int	GetSockName (Address &address) const =0

virtual uint32_t	GetTxAvailable (void) const =0
	Returns the number of bytes which can be sent in a single call to Send. More...

bool	IsIpRecvTos (void) const
	Ask if the socket is currently passing information about IP Type of Service up the stack. More...

bool	IsIpRecvTtl (void) const
	Ask if the socket is currently passing information about IP_TTL up the stack. More...

bool	IsIpv6RecvHopLimit (void) const
	Ask if the socket is currently passing information about IPv6 Hop Limit up the stack. More...

bool	IsIpv6RecvTclass (void) const
	Ask if the socket is currently passing information about IPv6 Traffic Class up the stack. More...

bool	IsRecvPktInfo () const
	Get status indicating whether enable/disable packet information to socket. More...

virtual int	Listen (void)=0
	Listen for incoming connections. More...

virtual Ptr< Packet >	Recv (uint32_t maxSize, uint32_t flags)=0
	Read data from the socket. More...

Ptr< Packet >	Recv (void)
	Read a single packet from the socket. More...

int	Recv (uint8_t *buf, uint32_t size, uint32_t flags)
	Recv data (or dummy data) from the remote host. More...

virtual Ptr< Packet >	RecvFrom (uint32_t maxSize, uint32_t flags, Address &fromAddress)=0
	Read a single packet from the socket and retrieve the sender address. More...

Ptr< Packet >	RecvFrom (Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

int	RecvFrom (uint8_t *buf, uint32_t size, uint32_t flags, Address &fromAddress)
	Read a single packet from the socket and retrieve the sender address. More...

virtual int	Send (Ptr< Packet > p, uint32_t flags)=0
	Send data (or dummy data) to the remote host. More...

int	Send (Ptr< Packet > p)
	Send data (or dummy data) to the remote host. More...

int	Send (const uint8_t *buf, uint32_t size, uint32_t flags)
	Send data (or dummy data) to the remote host. More...

virtual int	SendTo (Ptr< Packet > p, uint32_t flags, const Address &toAddress)=0
	Send data to a specified peer. More...

int	SendTo (const uint8_t *buf, uint32_t size, uint32_t flags, const Address &address)
	Send data to a specified peer. More...

void	SetAcceptCallback (Callback< bool, Ptr< Socket >, const Address & > connectionRequest, Callback< void, Ptr< Socket >, const Address & > newConnectionCreated)
	Accept connection requests from remote hosts. More...

virtual bool	SetAllowBroadcast (bool allowBroadcast)=0
	Configure whether broadcast datagram transmissions are allowed. More...

void	SetCloseCallbacks (Callback< void, Ptr< Socket > > normalClose, Callback< void, Ptr< Socket > > errorClose)
	Detect socket recv() events such as graceful shutdown or error. More...

void	SetConnectCallback (Callback< void, Ptr< Socket > > connectionSucceeded, Callback< void, Ptr< Socket > > connectionFailed)
	Specify callbacks to allow the caller to determine if the connection succeeds of fails. More...

void	SetDataSentCallback (Callback< void, Ptr< Socket >, uint32_t > dataSent)
	Notify application when a packet has been sent from transport protocol (non-standard socket call) More...

void	SetIpRecvTos (bool ipv4RecvTos)
	Tells a socket to pass information about IP Type of Service up the stack. More...

void	SetIpRecvTtl (bool ipv4RecvTtl)
	Tells a socket to pass information about IP_TTL up the stack. More...

void	SetIpTos (uint8_t ipTos)

virtual void	SetIpTtl (uint8_t ipTtl)

virtual void	SetIpv6HopLimit (uint8_t ipHopLimit)

void	SetIpv6RecvHopLimit (bool ipv6RecvHopLimit)
	Tells a socket to pass information about IPv6 Hop Limit up the stack. More...

void	SetIpv6RecvTclass (bool ipv6RecvTclass)
	Tells a socket to pass information about IPv6 Traffic Class up the stack. More...

void	SetIpv6Tclass (int ipTclass)

void	SetRecvCallback (Callback< void, Ptr< Socket > >)
	Notify application when new data is available to be read. More...

void	SetRecvPktInfo (bool flag)
	Enable/Disable receive packet information to socket. More...

void	SetSendCallback (Callback< void, Ptr< Socket >, uint32_t > sendCb)
	Notify application when space in transmit buffer is added. More...

virtual int	ShutdownRecv (void)=0

virtual int	ShutdownSend (void)=0

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

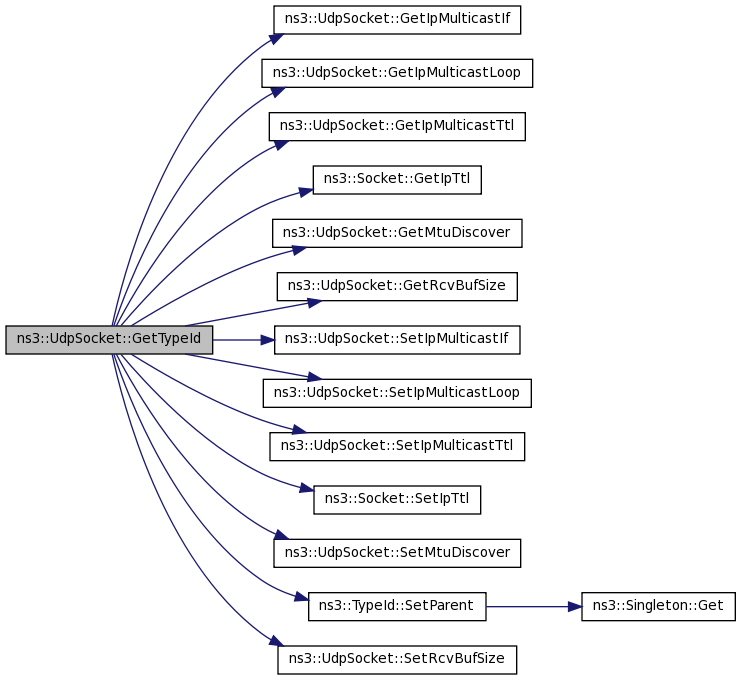

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Socket
static Ptr< Socket >	CreateSocket (Ptr< Node > node, TypeId tid)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
virtual int32_t	GetIpMulticastIf (void) const =0

virtual bool	GetIpMulticastLoop (void) const =0

virtual uint8_t	GetIpMulticastTtl (void) const =0

virtual bool	GetMtuDiscover (void) const =0

virtual uint32_t	GetRcvBufSize (void) const =0

virtual void	SetIpMulticastIf (int32_t ipIf)=0

virtual void	SetIpMulticastLoop (bool loop)=0

virtual void	SetIpMulticastTtl (uint8_t ipTtl)=0

virtual void	SetMtuDiscover (bool discover)=0

virtual void	SetRcvBufSize (uint32_t size)=0

Additional Inherited Members
Public Types inherited from ns3::Socket
enum	SocketErrno { ERROR_NOTERROR, ERROR_ISCONN, ERROR_NOTCONN, ERROR_MSGSIZE, ERROR_AGAIN, ERROR_SHUTDOWN, ERROR_OPNOTSUPP, ERROR_AFNOSUPPORT, ERROR_INVAL, ERROR_BADF, ERROR_NOROUTETOHOST, ERROR_NODEV, ERROR_ADDRNOTAVAIL, ERROR_ADDRINUSE, SOCKET_ERRNO_LAST }

enum	SocketType { NS3_SOCK_STREAM, NS3_SOCK_SEQPACKET, NS3_SOCK_DGRAM, NS3_SOCK_RAW }

Protected Member Functions inherited from ns3::Socket
virtual void	DoDispose (void)

bool	IsManualIpTos (void) const

bool	IsManualIpTtl (void) const

bool	IsManualIpv6HopLimit (void) const

bool	IsManualIpv6Tclass (void) const

void	NotifyConnectionFailed (void)

bool	NotifyConnectionRequest (const Address &from)

void	NotifyConnectionSucceeded (void)

void	NotifyDataRecv (void)

void	NotifyDataSent (uint32_t size)

void	NotifyErrorClose (void)

void	NotifyNewConnectionCreated (Ptr< Socket > socket, const Address &from)

void	NotifyNormalClose (void)

void	NotifySend (uint32_t spaceAvailable)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes inherited from ns3::Socket
Ptr< NetDevice >	m_boundnetdevice

bool	m_recvPktInfo

Detailed Description

(abstract) base class of all UdpSockets

This class exists solely for hosting UdpSocket attributes that can be reused across different implementations, and for declaring UDP-specific multicast API.

Doxygen introspection did not find any typical Config paths.

Attributes

RcvBufSize: UdpSocket maximum receive buffer size (bytes)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 131072
- Flags: construct write read
IpTtl: socket-specific TTL for unicast IP packets (if non-zero)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
IpMulticastTtl: socket-specific TTL for multicast IP packets (if non-zero)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read
IpMulticastIf: interface index for outgoing multicast on this socket; -1 indicates to use default interface
- Set with class: ns3::IntegerValue
- Underlying type: int32_t -2147483648:2147483647
- Initial value: -1
- Flags: construct write read
IpMulticastLoop: whether outgoing multicast sent also to loopback interface
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
MtuDiscover: If enabled, every outgoing ip packet will have the DF flag set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 46 of file udp-socket.h.

Constructor & Destructor Documentation

ns3::UdpSocket::UdpSocket ( void )

Definition at line 79 of file udp-socket.cc.

References NS_LOG_FUNCTION_NOARGS.

ns3::UdpSocket::~UdpSocket ( void )

virtual

Definition at line 84 of file udp-socket.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

virtual int32_t ns3::UdpSocket::GetIpMulticastIf ( void ) const

privatepure virtual

Implemented in ns3::UdpSocketImpl.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual bool ns3::UdpSocket::GetIpMulticastLoop ( void ) const

privatepure virtual

Implemented in ns3::UdpSocketImpl.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual uint8_t ns3::UdpSocket::GetIpMulticastTtl ( void ) const

privatepure virtual

Implemented in ns3::UdpSocketImpl.

Referenced by GetTypeId().

Here is the caller graph for this function:

virtual bool ns3::UdpSocket::GetMtuDiscover ( void ) const

privatepure virtual

Implemented in ns3::UdpSocketImpl.

Referenced by GetTypeId(), and ns3::Ipv4::GetTypeId().

Here is the caller graph for this function:

virtual uint32_t ns3::UdpSocket::GetRcvBufSize ( void ) const

privatepure virtual

Implemented in ns3::UdpSocketImpl.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::UdpSocket::GetTypeId ( void )

static

Definition at line 36 of file udp-socket.cc.

References GetIpMulticastIf(), GetIpMulticastLoop(), GetIpMulticastTtl(), ns3::Socket::GetIpTtl(), GetMtuDiscover(), GetRcvBufSize(), SetIpMulticastIf(), SetIpMulticastLoop(), SetIpMulticastTtl(), ns3::Socket::SetIpTtl(), SetMtuDiscover(), ns3::TypeId::SetParent(), and SetRcvBufSize().

Here is the call graph for this function:

virtual int ns3::UdpSocket::MulticastJoinGroup	(	uint32_t	interface,
		const Address &	groupAddress
	)

pure virtual

Corresponds to socket option MCAST_JOIN_GROUP.

Parameters

interface	interface number, or 0
groupAddress	multicast group address

Returns: on success, zero is returned. On error, -1 is returned, and errno is set appropriately

Enable reception of multicast datagrams for this socket on the interface number specified. If zero is specified as the interface, then a single local interface is chosen by system. In the future, this function will generate trigger IGMP joins as necessary when IGMP is implemented, but for now, this just enables multicast datagram reception in the system if not already enabled for this interface/groupAddress combination.

Attention: IGMP is not yet implemented in ns-3

This function may be called repeatedly on a given socket but each join must be for a different multicast address, or for the same multicast address but on a different interface from previous joins. This enables host multihoming, and the ability to join the same group on different interfaces.

Implemented in ns3::UdpSocketImpl.

Referenced by Ipv4FragmentationTest::StartServer().

Here is the caller graph for this function:

virtual int ns3::UdpSocket::MulticastLeaveGroup	(	uint32_t	interface,
		const Address &	groupAddress
	)

pure virtual

Corresponds to socket option MCAST_LEAVE_GROUP.

Parameters

interface	interface number, or 0
groupAddress	multicast group address

Returns: on success, zero is returned. On error, -1 is returned, and errno is set appropriately

Disable reception of multicast datagrams for this socket on the interface number specified. If zero is specified as the interfaceIndex, then a single local interface is chosen by system. In the future, this function will generate trigger IGMP leaves as necessary when IGMP is implemented, but for now, this just disables multicast datagram reception in the system if this socket is the last for this interface/groupAddress combination.
