Wifi Channel interface specificationThis class works in tandem with the ns3::WifiPhy class. If you want to provide a new Wifi PHY layer, you have to subclass both ns3::WifiChannel and ns3::WifiPhy. More...

#include <wifi-channel.h>

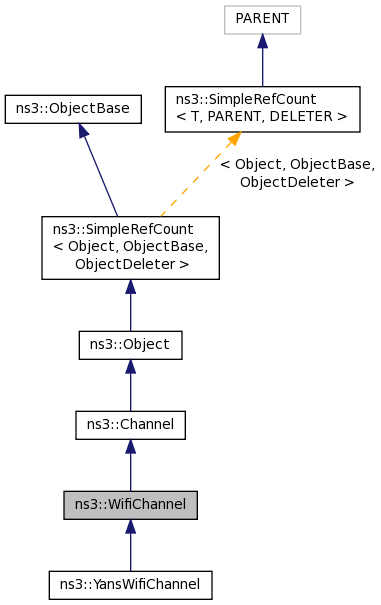

Inheritance diagram for ns3::WifiChannel:

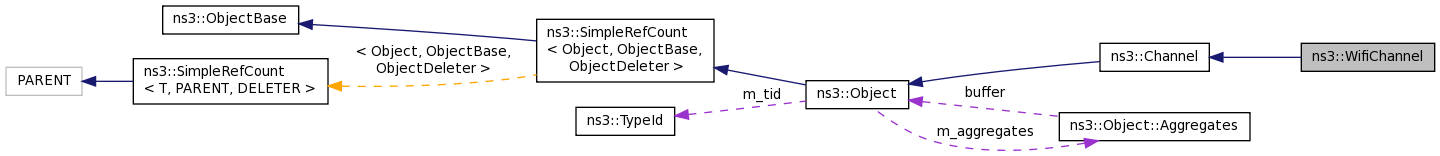

Collaboration diagram for ns3::WifiChannel:

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Additional Inherited Members
Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

virtual Ptr< NetDevice >	GetDevice (uint32_t i) const =0

uint32_t	GetId (void) const

virtual uint32_t	GetNDevices (void) const =0

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Wifi Channel interface specification

This class works in tandem with the ns3::WifiPhy class. If you want to provide a new Wifi PHY layer, you have to subclass both ns3::WifiChannel and ns3::WifiPhy.

Typically, MyWifiChannel will define a Send method whose job is to distribute packets from a MyWifiPhy source to a set of MyWifiPhy destinations. MyWifiPhy also typically defines a Receive method which is invoked by MyWifiPhy.

Config Paths

ns3::WifiChannel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 42 of file wifi-channel.h.

Member Function Documentation

TypeId ns3::WifiChannel::GetTypeId ( void )

static

Definition at line 41 of file wifi-channel.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/wifi/model/wifi-channel.h
src/wifi/model/wifi-channel.cc
