Information element, as defined in 802.11-2007 standardThe IEEE 802.11 standard includes the notion of Information Elements, which are encodings of management information to be communicated between STAs in the payload of various frames of type Management. Information Elements (IEs) have a common format, each starting with a single octet - the Element ID, which indicates the specific type of IE (a type to represent the options here is defined as WifiInformationElementId). The next octet is a length field and encodes the number of octets in the third and final field, which is the IE Information field. More...

#include <wifi-information-element.h>

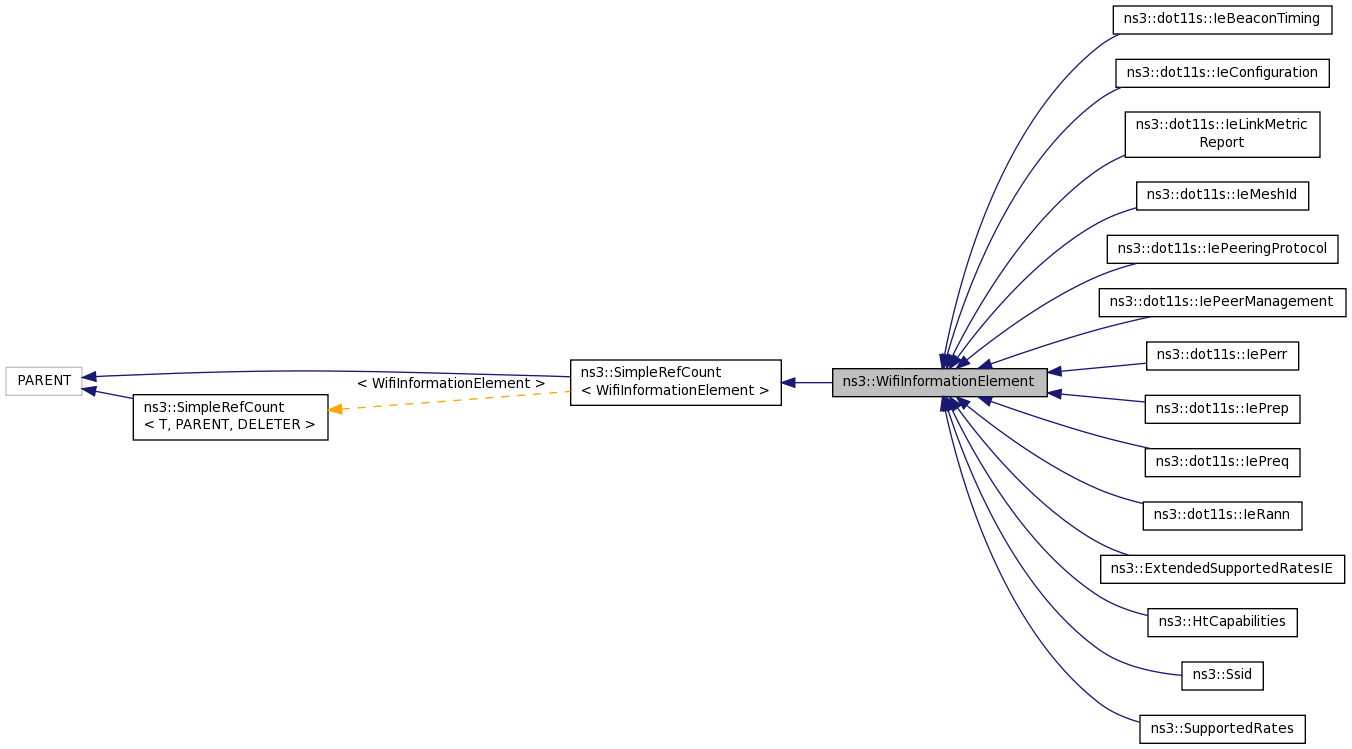

Inheritance diagram for ns3::WifiInformationElement:

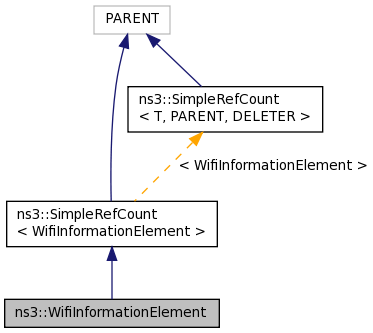

Collaboration diagram for ns3::WifiInformationElement:

Public Member Functions
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)

uint16_t	GetSerializedSize () const

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Each subclass must implement
virtual WifiInformationElementId	ElementId () const =0
	Own unique Element ID. More...

virtual uint8_t	GetInformationFieldSize () const =0

virtual void	SerializeInformationField (Buffer::Iterator start) const =0

virtual uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)=0


virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following... More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

virtual bool	operator== (WifiInformationElement const &a) const

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)

Detailed Description

Information element, as defined in 802.11-2007 standard

The IEEE 802.11 standard includes the notion of Information Elements, which are encodings of management information to be communicated between STAs in the payload of various frames of type Management. Information Elements (IEs) have a common format, each starting with a single octet - the Element ID, which indicates the specific type of IE (a type to represent the options here is defined as WifiInformationElementId). The next octet is a length field and encodes the number of octets in the third and final field, which is the IE Information field.

The class ns3::WifiInformationElement provides a base for classes which represent specific Information Elements. This class defines pure virtual methods for serialisation (ns3::WifiInformationElement::SerializeInformationField) and deserialisation (ns3::WifiInformationElement::DeserializeInformationField) of IEs, from or to data members or other objects that simulation objects use to maintain the relevant state.

This class also provides an implementation of the equality operator, which operates by comparing the serialised versions of the two WifiInformationElement objects concerned.

Elements are defined to have a common general format consisting of a 1 octet Element ID field, a 1 octet length field, and a variable-length element-specific information field. Each element is assigned a unique Element ID as defined in this standard. The Length field specifies the number of octets in the Information field.

This class is pure virtual and acts as base for classes which know how to serialize specific IEs.

Definition at line 130 of file wifi-information-element.h.

Constructor & Destructor Documentation

ns3::WifiInformationElement::~WifiInformationElement ( )

virtual

Definition at line 25 of file wifi-information-element.cc.

Member Function Documentation

Buffer::Iterator ns3::WifiInformationElement::Deserialize ( Buffer::Iterator i )

Deserialize entire IE, which must be present. The iterator passed in must be pointing at the Element ID (i.e., the very first octet) of the correct type of information element, otherwise this method will generate a fatal error.

Definition at line 51 of file wifi-information-element.cc.

References DeserializeIfPresent(), ns3::Buffer::Iterator::GetDistanceFrom(), NS_ASSERT, and visualizer.core::start().

Referenced by ns3::MgtAssocRequestHeader::Deserialize(), ns3::dot11s::PeerLinkFrameStart::Deserialize(), ns3::MgtAssocResponseHeader::Deserialize(), ns3::MgtProbeRequestHeader::Deserialize(), and ns3::MgtProbeResponseHeader::Deserialize().

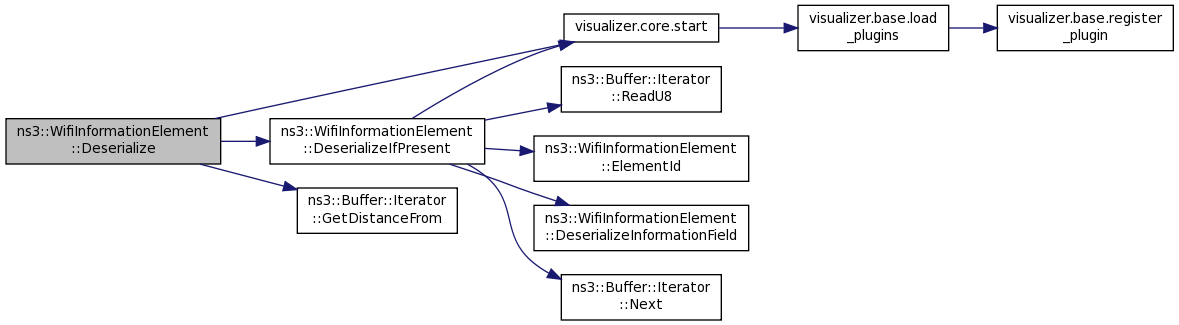

Here is the call graph for this function:

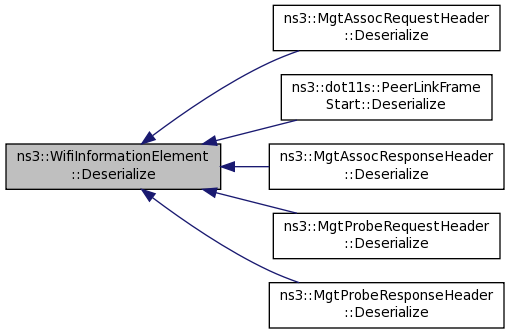

Here is the caller graph for this function:

Buffer::Iterator ns3::WifiInformationElement::DeserializeIfPresent ( Buffer::Iterator i )

Deserialize entire IE if it is present. The iterator passed in must be pointing at the Element ID of an information element. If the Element ID is not the one that the given class is interested in then it will return the same iterator.

Definition at line 62 of file wifi-information-element.cc.

References DeserializeInformationField(), ElementId(), ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by ns3::MgtAssocRequestHeader::Deserialize(), ns3::dot11s::PeerLinkFrameStart::Deserialize(), ns3::MgtAssocResponseHeader::Deserialize(), ns3::MgtProbeRequestHeader::Deserialize(), Deserialize(), and ns3::MgtProbeResponseHeader::Deserialize().

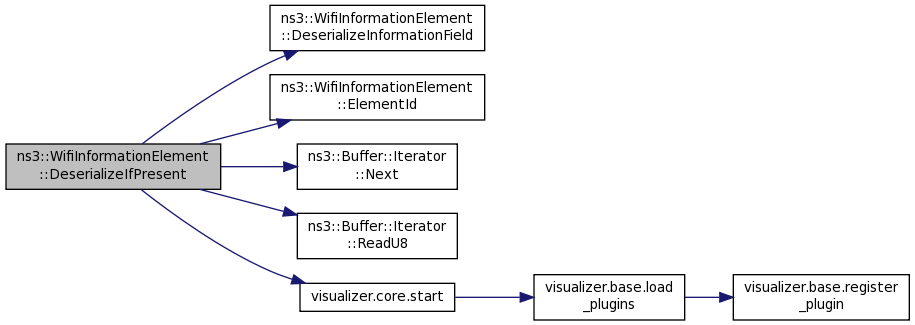

Here is the call graph for this function:

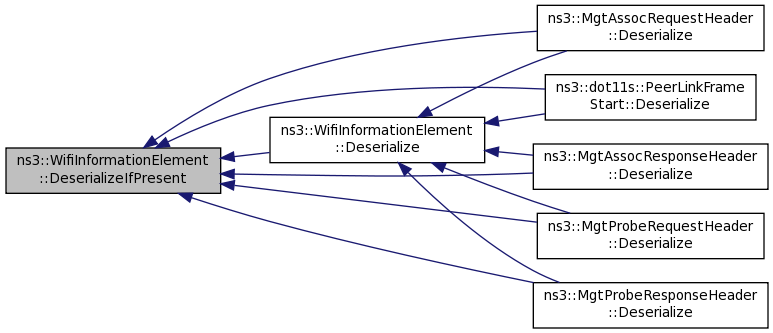

Here is the caller graph for this function:

virtual uint8_t ns3::WifiInformationElement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

pure virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Implemented in ns3::dot11s::IePreq, ns3::dot11s::IeConfiguration, ns3::SupportedRates, ns3::dot11s::IeBeaconTiming, ns3::dot11s::IePeerManagement, ns3::HtCapabilities, ns3::dot11s::IePrep, ns3::ExtendedSupportedRatesIE, ns3::dot11s::IeRann, ns3::dot11s::IeMeshId, ns3::dot11s::IePerr, ns3::Ssid, ns3::dot11s::IeLinkMetricReport, and ns3::dot11s::IePeeringProtocol.

Referenced by DeserializeIfPresent(), and ns3::MeshInformationElementVector::DeserializeSingleIe().

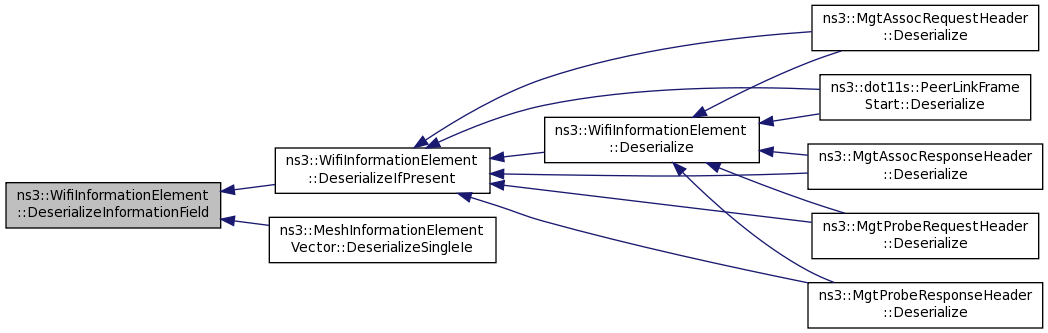

Here is the caller graph for this function:

virtual WifiInformationElementId ns3::WifiInformationElement::ElementId ( ) const

pure virtual

Own unique Element ID.

Implemented in ns3::dot11s::IePreq, ns3::dot11s::IeConfiguration, ns3::SupportedRates, ns3::dot11s::IeBeaconTiming, ns3::dot11s::IePeerManagement, ns3::HtCapabilities, ns3::dot11s::IePrep, ns3::ExtendedSupportedRatesIE, ns3::dot11s::IeRann, ns3::dot11s::IeMeshId, ns3::dot11s::IePerr, ns3::Ssid, ns3::dot11s::IeLinkMetricReport, and ns3::dot11s::IePeeringProtocol.

Referenced by DeserializeIfPresent(), operator<(), operator==(), and Serialize().

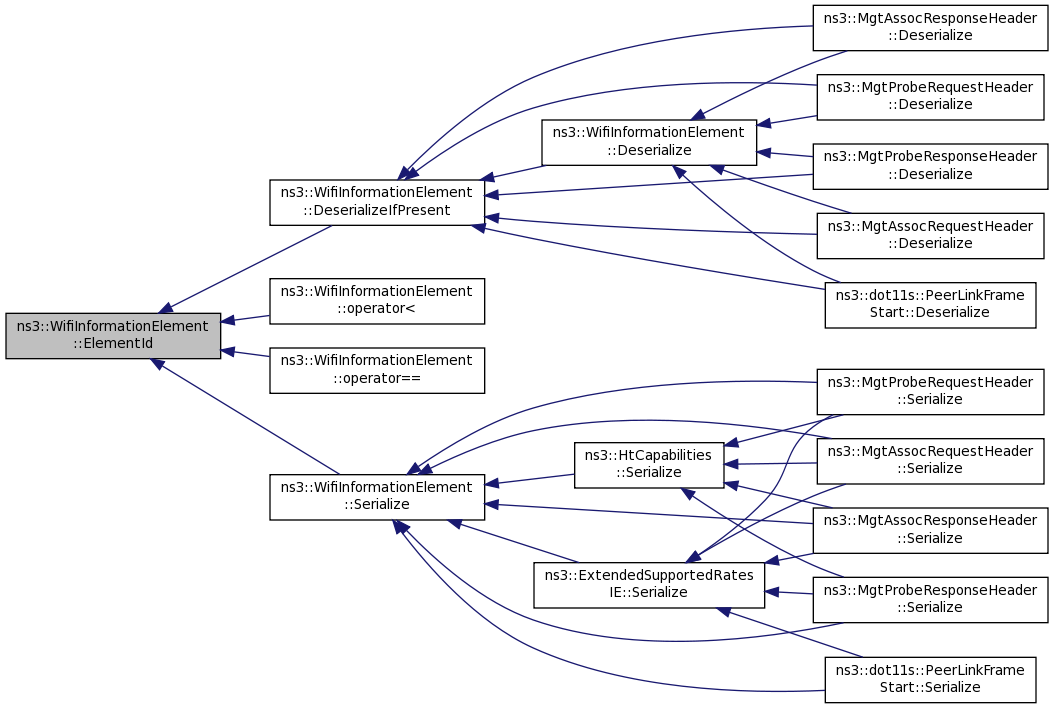

Here is the caller graph for this function:

virtual uint8_t ns3::WifiInformationElement::GetInformationFieldSize ( ) const

pure virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. This is the value that will appear in the second octet of the entire IE - the length field)

Implemented in ns3::dot11s::IePreq, ns3::dot11s::IeConfiguration, ns3::SupportedRates, ns3::dot11s::IeBeaconTiming, ns3::dot11s::IePeerManagement, ns3::HtCapabilities, ns3::dot11s::IePrep, ns3::dot11s::IeRann, ns3::ExtendedSupportedRatesIE, ns3::dot11s::IeMeshId, ns3::dot11s::IePerr, ns3::dot11s::IeLinkMetricReport, ns3::Ssid, and ns3::dot11s::IePeeringProtocol.
