BatteryLifetimeTest Class Reference

Test case of update remaining energy for RvBatteryModel and WifiRadioEnergyModel. More...

Inheritance diagram for BatteryLifetimeTest:

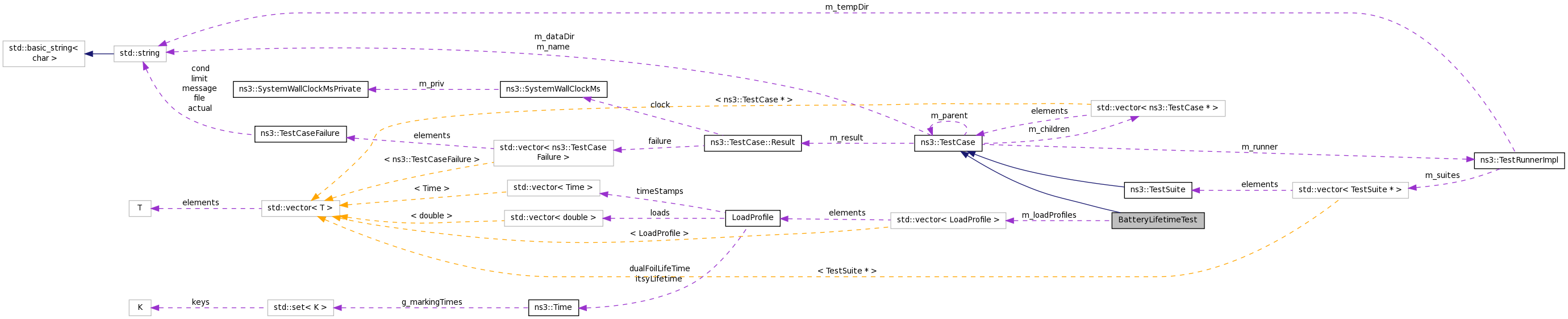

Collaboration diagram for BatteryLifetimeTest:

Public Member Functions
	BatteryLifetimeTest ()
virtual	~BatteryLifetimeTest ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Private Member Functions
bool	ConstantLoadTest (double load, Time expLifetime)
void	CreateLoadProfiles (void)
	Creates load profiles according to "Battery Lifetime Prediction for Energy- Aware Computing" paper. More...
void	DoRun (void)
bool	VariableLoadTest (std::vector< double > loads, std::vector< Time > timeStamps, Time expLifetime)

Private Attributes
double	m_alpha
double	m_beta
std::vector< LoadProfile >	m_loadProfiles

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
std::string	CreateDataDirFilename (std::string filename)
std::string	CreateTempDirFilename (std::string filename)
bool	GetErrorStatus (void) const NS_DEPRECATED
std::string	GetName (void) const
bool	IsStatusFailure (void) const
bool	IsStatusSuccess (void) const
bool	MustAssertOnFailure (void) const
bool	MustContinueOnFailure (void) const
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
void	SetDataDir (std::string directory)

Detailed Description

Test case of update remaining energy for RvBatteryModel and WifiRadioEnergyModel.

Definition at line 46 of file rv-battery-model-test.cc.

Constructor & Destructor Documentation

BatteryLifetimeTest::BatteryLifetimeTest

(

)

Definition at line 104 of file rv-battery-model-test.cc.

References m_alpha, and m_beta.

BatteryLifetimeTest::~BatteryLifetimeTest ( )

virtual

Definition at line 112 of file rv-battery-model-test.cc.

Member Function Documentation

bool BatteryLifetimeTest::ConstantLoadTest ( double  load, Time  expLifetime  )

private

Parameters

load	Load value, in Amperes (A).
expLifetime	Expected lifetime.

Returns

False if no error occurs.

Runs simulation with constant load and checks the battery lifetime with known results.

Definition at line 693 of file rv-battery-model-test.cc.

References ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), first::devices, ns3::EnergySourceContainer::Get(), ns3::RvBatteryModel::GetLifetime(), ns3::Time::GetSeconds(), ns3::EnergySourceHelper::Install(), ns3::DeviceEnergyModelHelper::Install(), ns3::WifiHelper::Install(), m_alpha, m_beta, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ_RETURNS_BOOL, ns3::RvBatteryModelHelper::Set(), ns3::WifiRadioEnergyModelHelper::Set(), ns3::YansWifiPhyHelper::Set(), ns3::YansWifiPhyHelper::SetChannel(), ns3::Config::SetDefault(), ns3::YansWifiPhyHelper::SetPcapDataLinkType(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::WifiHelper::SetRemoteStationManager(), ns3::WifiHelper::SetStandard(), ns3::NqosWifiMacHelper::SetType(), and ns3::WIFI_PHY_STANDARD_80211b.

Referenced by DoRun().

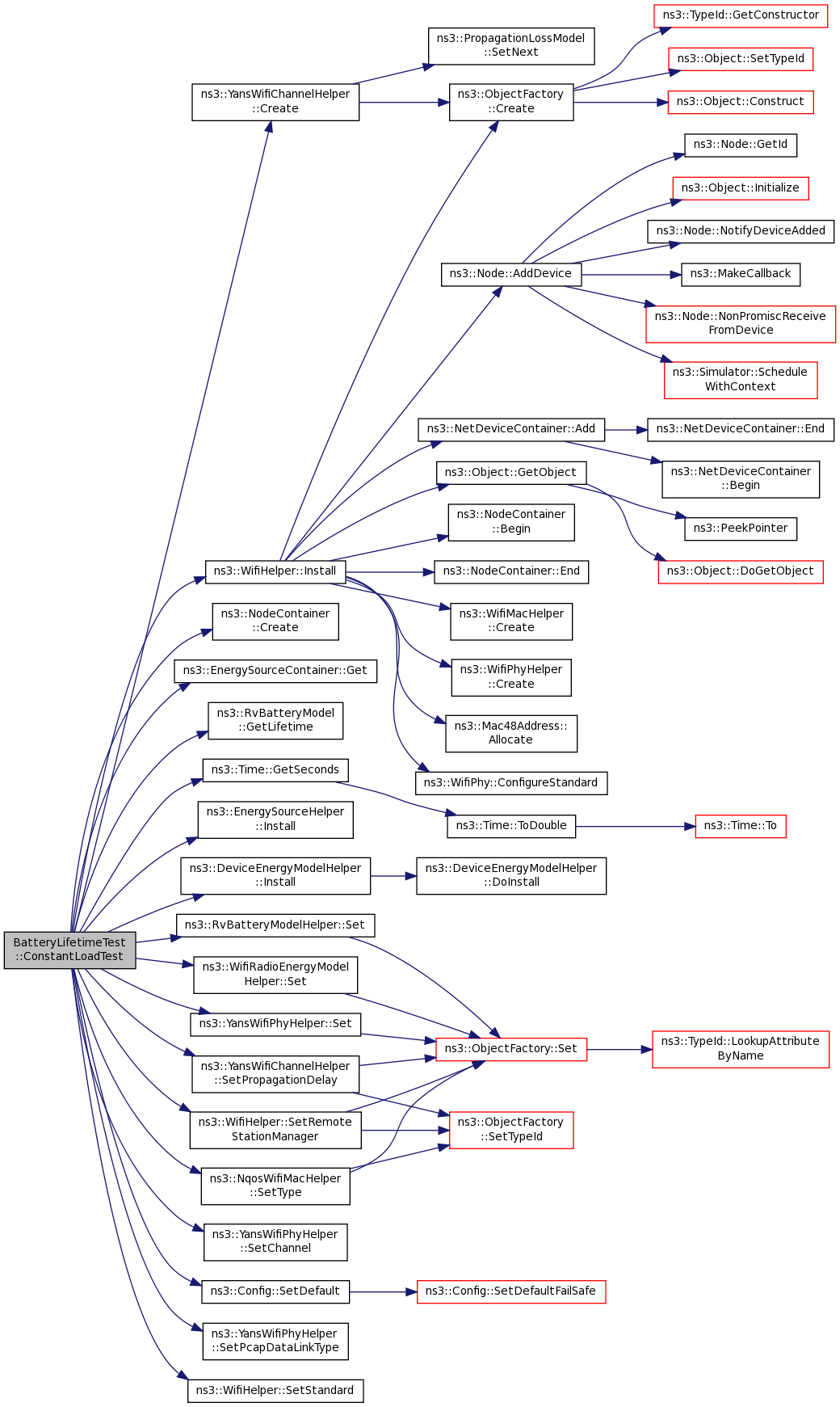

Here is the call graph for this function:

Here is the caller graph for this function:

void BatteryLifetimeTest::CreateLoadProfiles ( void  )

private

Creates load profiles according to "Battery Lifetime Prediction for Energy- Aware Computing" paper.

Definition at line 117 of file rv-battery-model-test.cc.

References LoadProfile::dualFoilLifeTime, LoadProfile::itsyLifetime, LoadProfile::loads, m_loadProfiles, and LoadProfile::timeStamps.

Referenced by DoRun().

Here is the caller graph for this function:

void BatteryLifetimeTest::DoRun ( void  )

privatevirtual

Returns

False if no error occurs.

Runs test.

Implements ns3::TestCase.

Definition at line 641 of file rv-battery-model-test.cc.

References ConstantLoadTest(), CreateLoadProfiles(), m_alpha, m_beta, m_loadProfiles, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ, and VariableLoadTest().

Here is the call graph for this function:

bool BatteryLifetimeTest::VariableLoadTest ( std::vector< double >  loads, std::vector< Time >  timeStamps, Time  expLifetime  )

private

Parameters

loads	Load profile.
timeStamps	Time stamps.
expLifetime	Expected lifetime.

Returns

False if no error occurs.

Runs simulation with variable load and checks the battery lifetime with known results.

Definition at line 776 of file rv-battery-model-test.cc.

References ns3::YansWifiChannelHelper::Create(), ns3::NodeContainer::Create(), first::devices, ns3::DeviceEnergyModelContainer::Get(), ns3::EnergySourceContainer::Get(), ns3::RvBatteryModel::GetLifetime(), ns3::Time::GetSeconds(), ns3::EnergySourceHelper::Install(), ns3::DeviceEnergyModelHelper::Install(), ns3::WifiHelper::Install(), m_alpha, m_beta, NS_ASSERT, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ_TOL_RETURNS_BOOL, ns3::RvBatteryModelHelper::Set(), ns3::WifiRadioEnergyModelHelper::Set(), ns3::YansWifiPhyHelper::Set(), ns3::YansWifiPhyHelper::SetChannel(), ns3::Config::SetDefault(), ns3::YansWifiPhyHelper::SetPcapDataLinkType(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::WifiHelper::SetRemoteStationManager(), ns3::WifiHelper::SetStandard(), ns3::NqosWifiMacHelper::SetType(), and ns3::WIFI_PHY_STANDARD_80211b.

Referenced by DoRun().

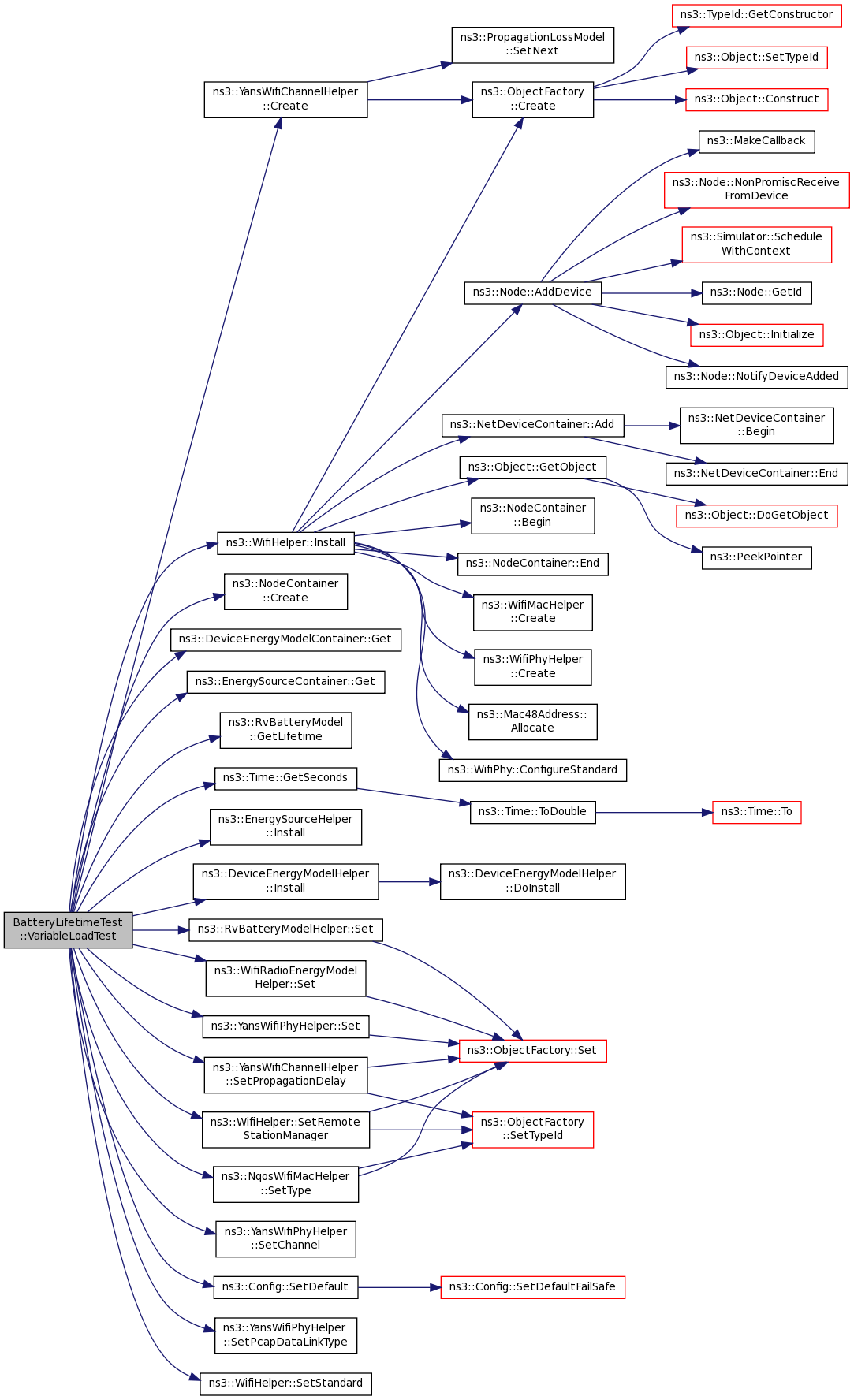

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

double BatteryLifetimeTest::m_alpha

private

Definition at line 100 of file rv-battery-model-test.cc.

Referenced by BatteryLifetimeTest(), ConstantLoadTest(), DoRun(), and VariableLoadTest().

double BatteryLifetimeTest::m_beta

private

Definition at line 101 of file rv-battery-model-test.cc.

Referenced by BatteryLifetimeTest(), ConstantLoadTest(), DoRun(), and VariableLoadTest().

std::vector<LoadProfile> BatteryLifetimeTest::m_loadProfiles

private

Definition at line 99 of file rv-battery-model-test.cc.

Referenced by CreateLoadProfiles(), and DoRun().

---

The documentation for this class was generated from the following file:

• src/energy/test/rv-battery-model-test.cc
