FLAME protocol regression test of three stations: More...

#include <flame-regression.h>

Inheritance diagram for FlameRegressionTest:

Collaboration diagram for FlameRegressionTest:

Public Member Functions
	FlameRegressionTest ()

virtual	~FlameRegressionTest ()

void	CheckResults ()

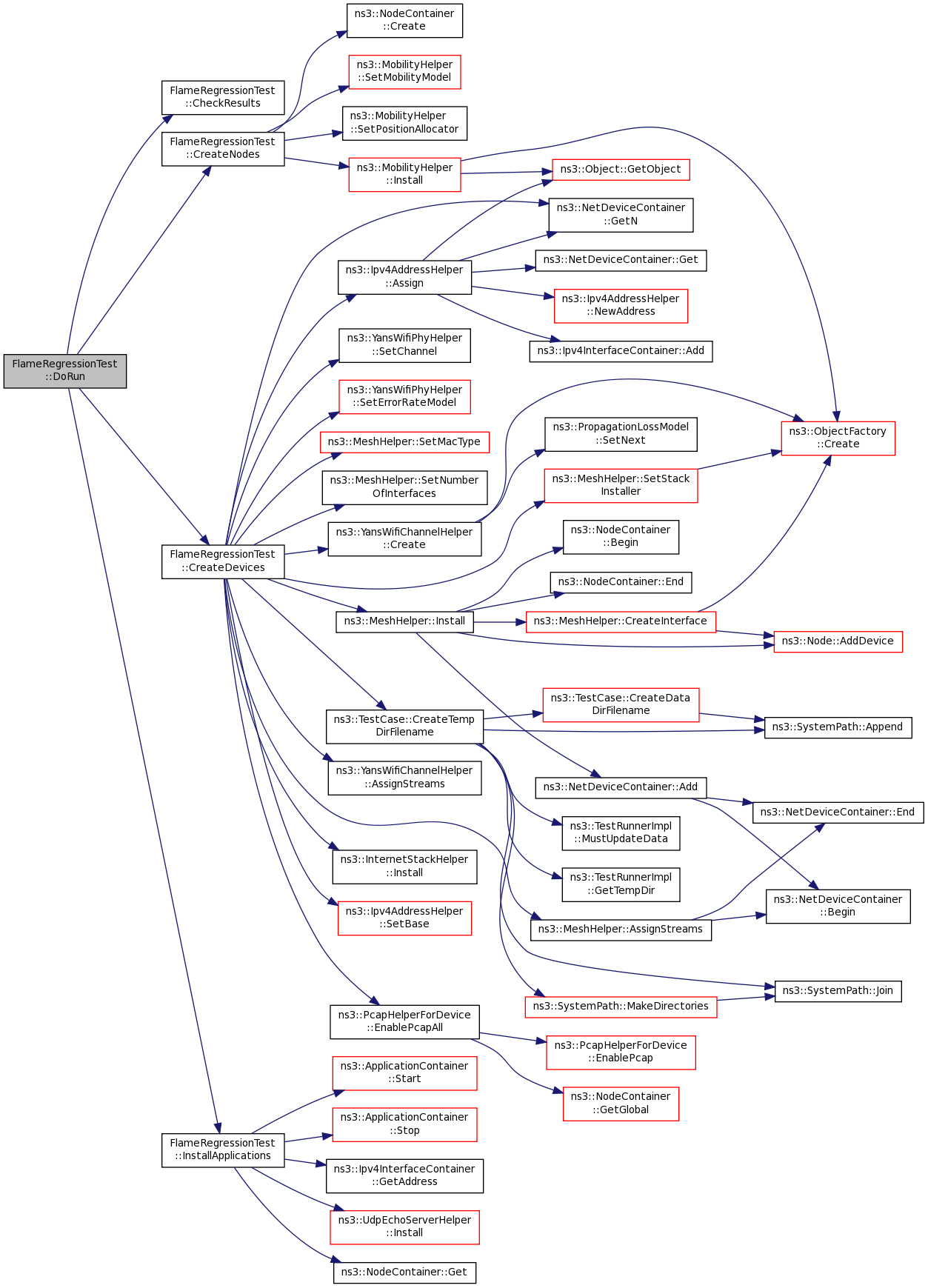

virtual void	DoRun ()
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Private Member Functions

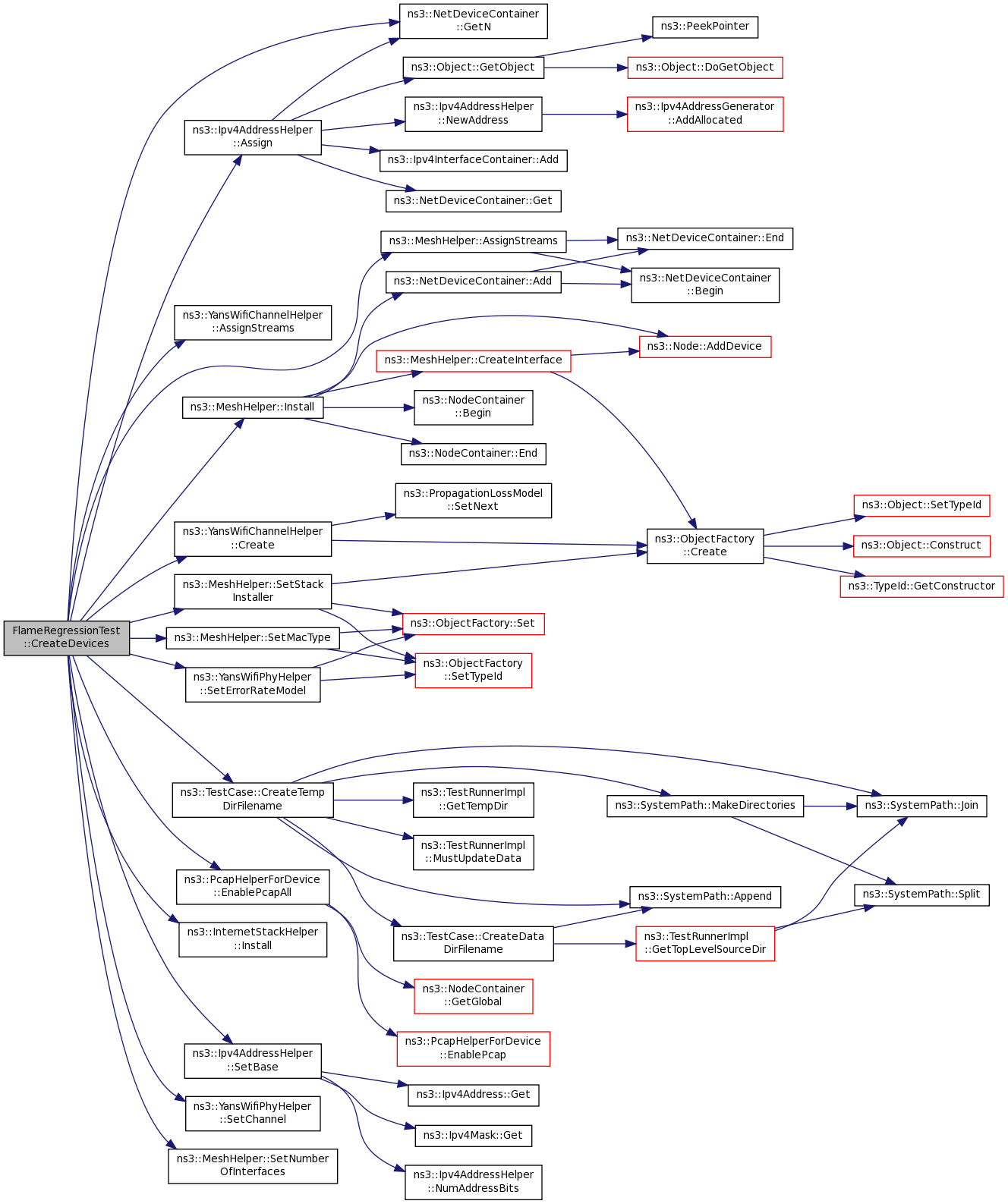

void	CreateDevices ()

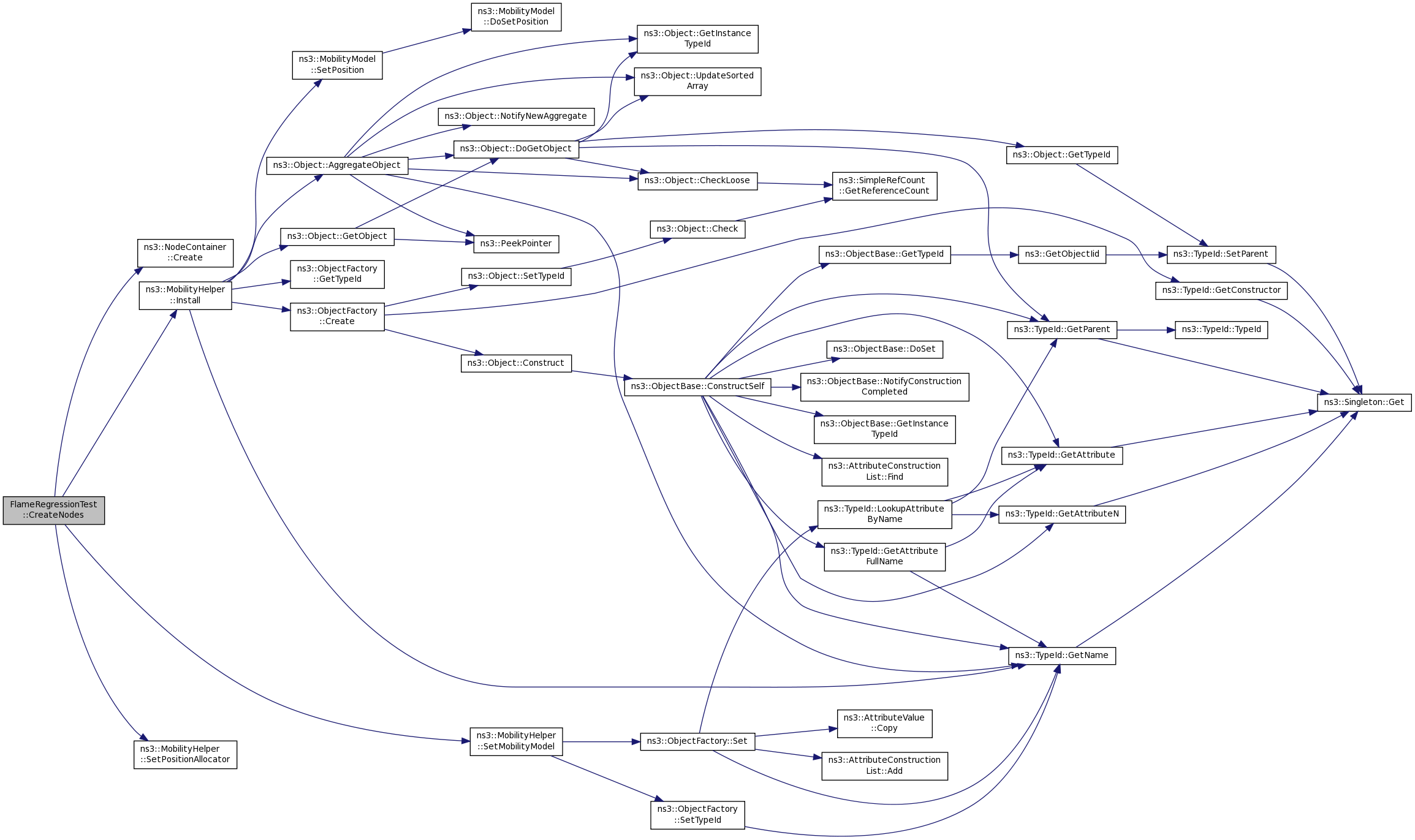

void	CreateNodes ()

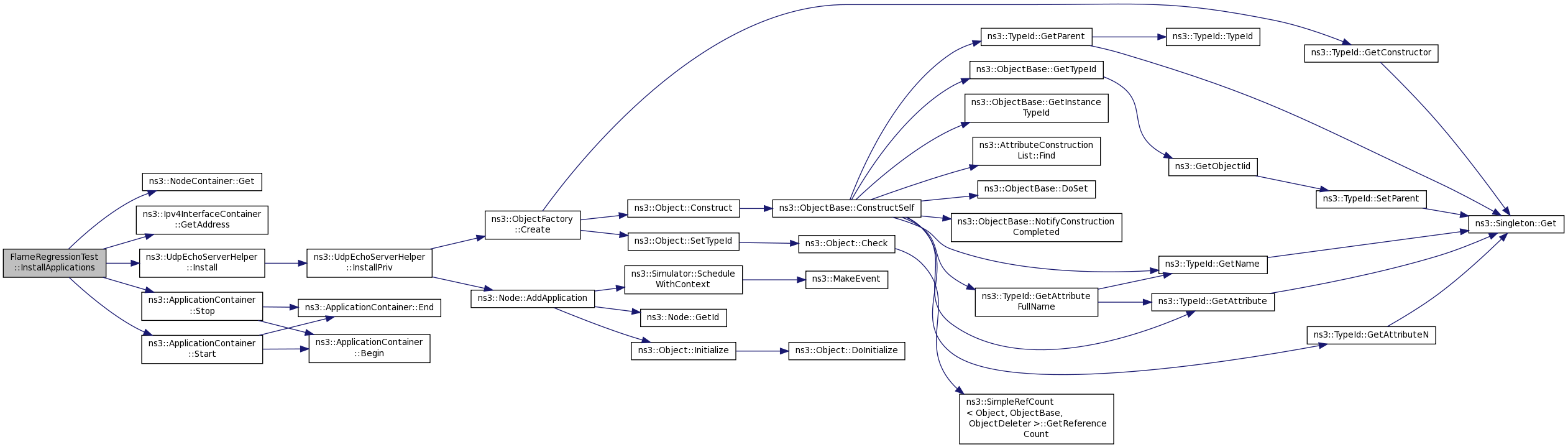

void	InstallApplications ()

Private Attributes
Ipv4InterfaceContainer	m_interfaces
	Needed to install applications. More...

NodeContainer *	m_nodes

Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

bool	GetErrorStatus (void) const NS_DEPRECATED

std::string	GetName (void) const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void	SetDataDir (std::string directory)

Detailed Description

FLAME protocol regression test of three stations:

* <-----------|----------->   Broadcast frame
*             |----------->|  Unicast frame
*           Source                   Destination
* <-----------|----------->|            |             ARP request
*             |<-----------|----------->|             ARP request
*             |            |<-----------|             ARP reply
*             |<-----------|            |             ARP reply
*             |----------->|            |             Data
*             |            |----------->|             Data
*             |            |<-----------|-----------> PATH_UPDATE (no broadcast was sent)
*             |<-----------|----------->|             PATH_UPDATE
* <-----------|----------->|            |             PATH_UPDATE
*             |            |<-----------|-----------> ARP request
*             |<-----------|----------->|             ARP request
* <-----------|----------->|            |             ARP request
*             |----------->|            |             ARP reply
*             |            |----------->|             ARP reply
*             |            |<-----------|             Data
*             |<-----------|            |             Data
*             |............|............|
*             After five seconds data is transmitted again as
*             broadcast, and PATH_UPDATE is sent
*

Definition at line 56 of file flame-regression.h.
