Peering Management & HWM Protocol regression test Initiate scenario with 2 stations. More...

#include <hwmp-simplest-regression.h>

Inheritance diagram for HwmpSimplestRegressionTest:

Collaboration diagram for HwmpSimplestRegressionTest:

Public Member Functions
	HwmpSimplestRegressionTest ()

virtual	~HwmpSimplestRegressionTest ()

void	CheckResults ()

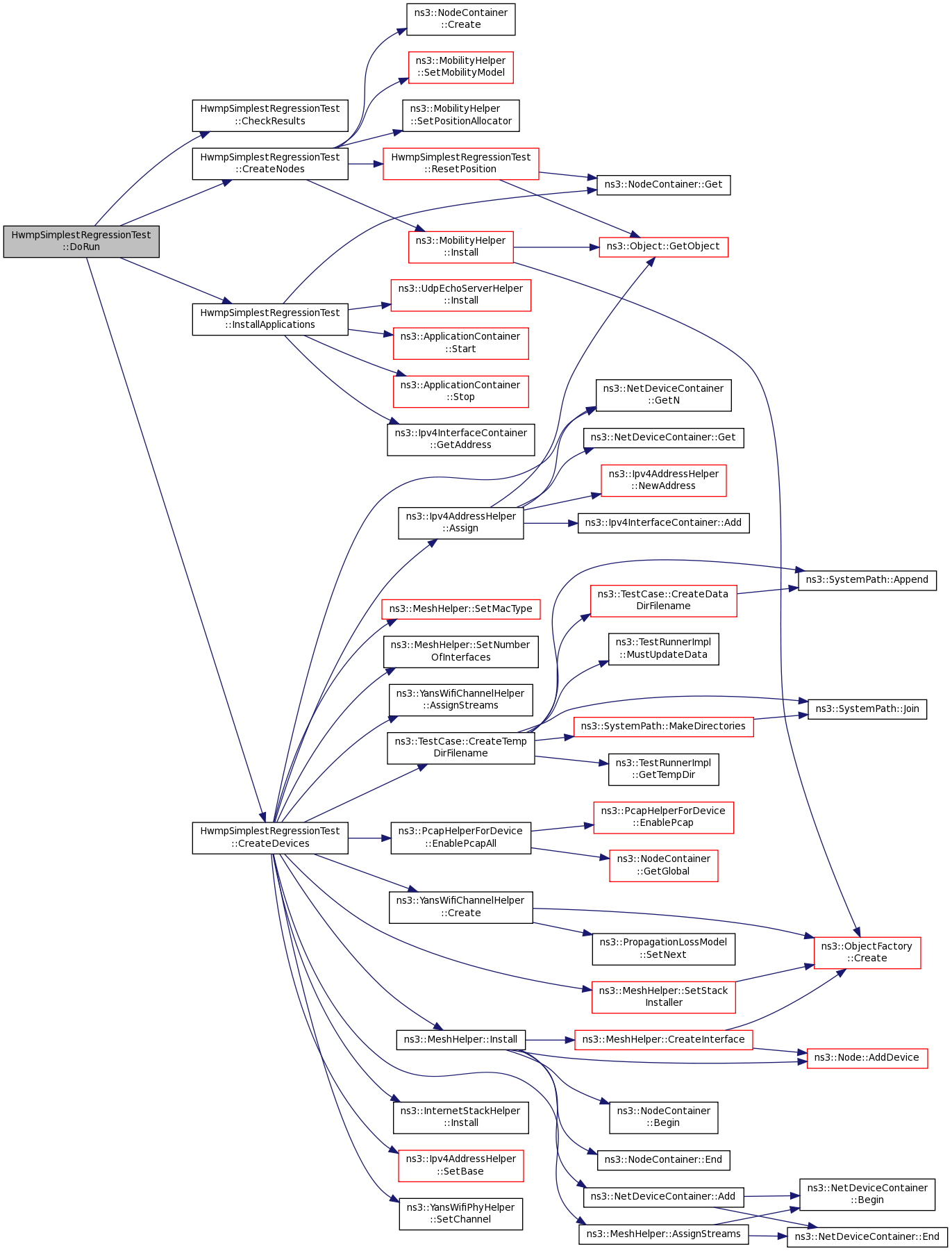

virtual void	DoRun ()
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Private Member Functions

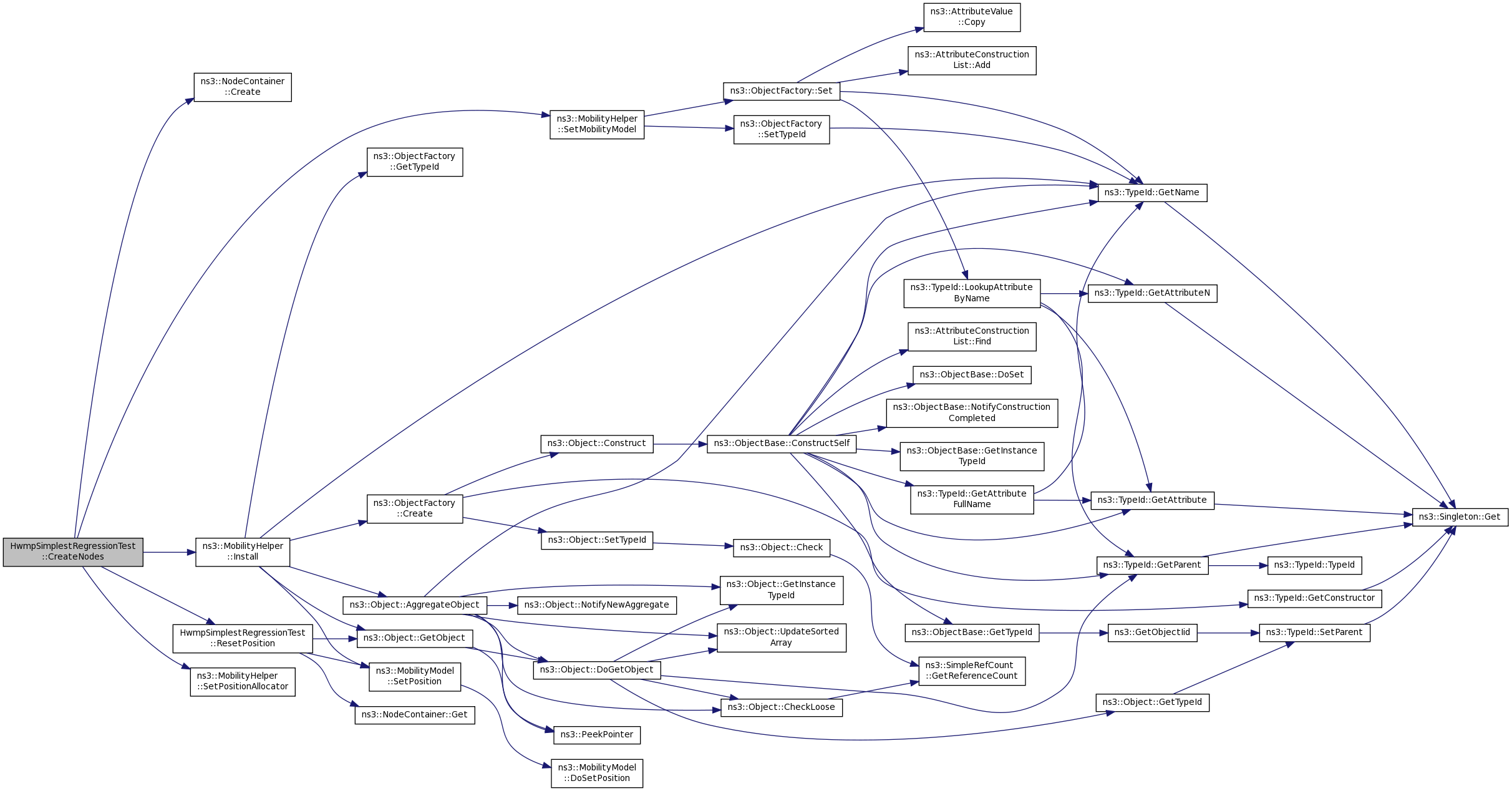

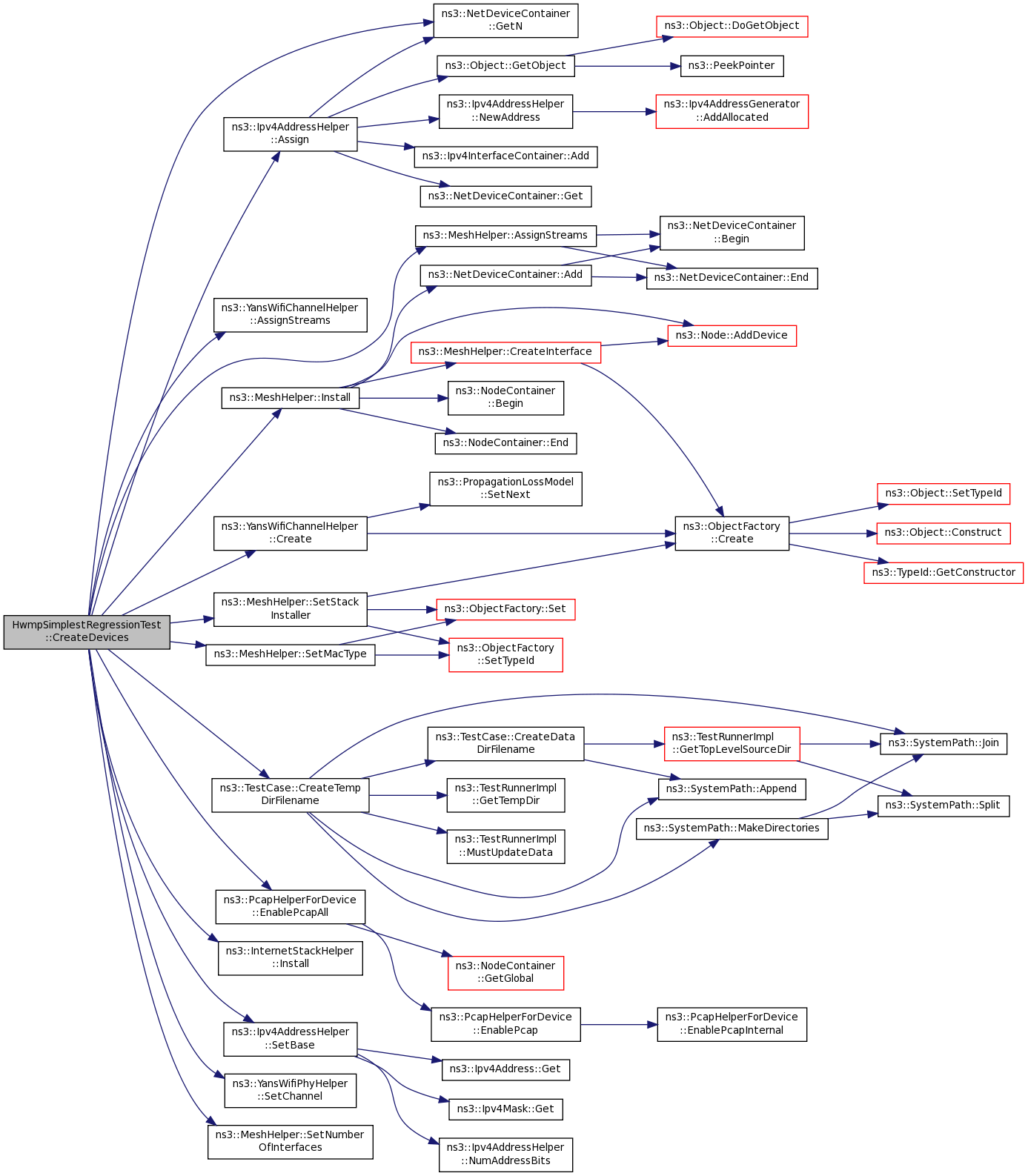

void	CreateDevices ()

void	CreateNodes ()

void	InstallApplications ()

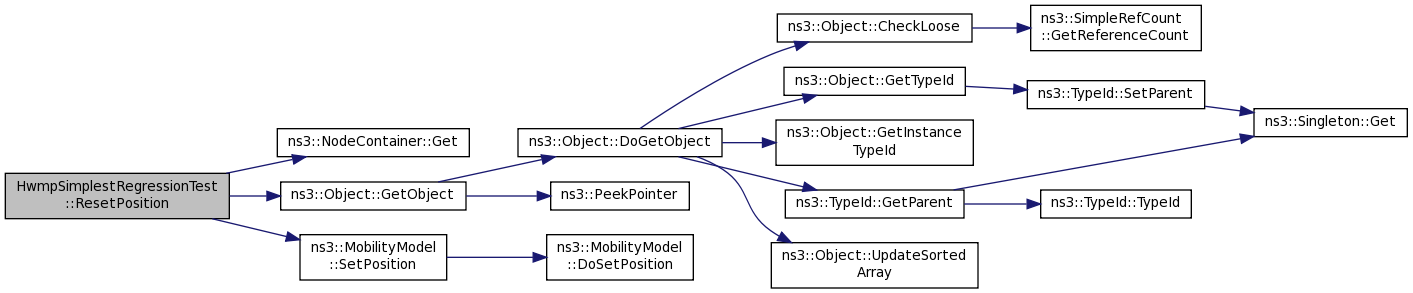

void	ResetPosition ()

Private Attributes
Ipv4InterfaceContainer	m_interfaces

NodeContainer *	m_nodes

Time	m_time
	Simulation time. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

bool	GetErrorStatus (void) const NS_DEPRECATED

std::string	GetName (void) const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void	SetDataDir (std::string directory)

Detailed Description

Peering Management & HWM Protocol regression test Initiate scenario with 2 stations.

Procedure of opening peer link is the following:

* <-----------|----------->   Broadcast frame
*             |----------->|  Unicast frame
*
*                                        !!! PMP routines:
* <-----------|----------->|             Beacon
*             |<-----------|             Peer Link Open frame
*             |----------->|             Peer Link Open frame
*             |----------->|             Peer Link Confirm frame
*             |<-----------|             Peer Link Confirm frame
*             |............|             !!! Data started:
*             |<-----------|-----------> Arp Request
* <-----------|----------->|             Arp Request (fwd)
* <-----------|----------->|             PREQ
*             |<-----------|             PREP
*             |----------->|             ARP reply
*             |<-----------|             Data
*             |----------->|             Data
*             |............|             Some other beacons
*             |<-----------|             Data
*             |----------->|             Data
*             |............|             !!! Route expiration routines:
*             |<-----------|-----------> PREQ (route expired)
*             |----------->|             PREP
*             |<-----------|             Data
*             |----------->|             Data
*             |............|
*

At 10 seconds stations become unreachable, so UDP client tries to close peer link due to TX-fail, and UDP-srver tries to close link due to beacon loss

Definition at line 68 of file hwmp-simplest-regression.h.
