Gather aggregation and configuration path information from registered types. More...

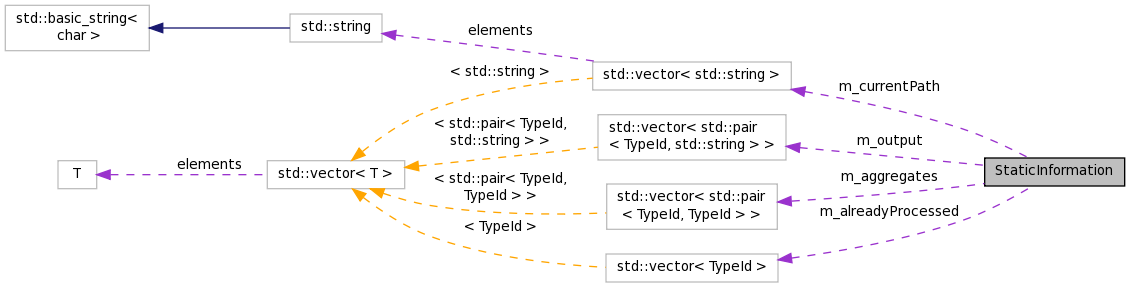

Collaboration diagram for StaticInformation:

Public Member Functions
void	Gather (TypeId tid)
	Gather aggregation and configuration path information for tid. More...

std::vector< std::string >	Get (TypeId tid)

void	Print (void) const
	Print output in "a -> b" form on std::cout. More...

void	RecordAggregationInfo (std::string a, std::string b)
	Record the a -> b aggregation relation. More...

Private Member Functions
void	DoGather (TypeId tid)
	Gather attribute, configuration path information for tid. More...

void	find_and_replace (std::string &source, const std::string find, std::string replace)
	(Inplace) find and replace all instances of string More...

std::string	GetCurrentPath (void) const

bool	HasAlreadyBeenProcessed (TypeId tid) const

void	RecordOutput (TypeId tid)
	Record the current config path for tid. More...

Private Attributes
std::vector< std::pair< TypeId, TypeId > >	m_aggregates
	List of aggregation relationships. More...

std::vector< TypeId >	m_alreadyProcessed
	List of TypeIds we've already processed. More...

std::vector< std::string >	m_currentPath
	Current configuration path. More...

std::vector< std::pair< TypeId, std::string > >	m_output
	Configuration path for each TypeId. More...

Detailed Description

Gather aggregation and configuration path information from registered types.

Definition at line 118 of file print-introspected-doxygen.cc.

Member Function Documentation

void StaticInformation::DoGather ( TypeId tid )

private

Gather attribute, configuration path information for tid.

Parameters

tid	[in] the TypeId to gather information from

Note: for the Doxygen version only, we insert a % in the path below to ensure that doxygen does not attempt to resolve the typeid names included in the string. if the name contains ::, using the % sign will remove that sign resulting for instance in $ns3MobilityModel instead of $ns3::MobilityModel hence the output must be in the form $ns3::MobilityModel in order to show correctly $ns3::MobilityModel We add at the beginning of the name $% and we replace all the :: in the string by ::%.

Definition at line 267 of file print-introspected-doxygen.cc.

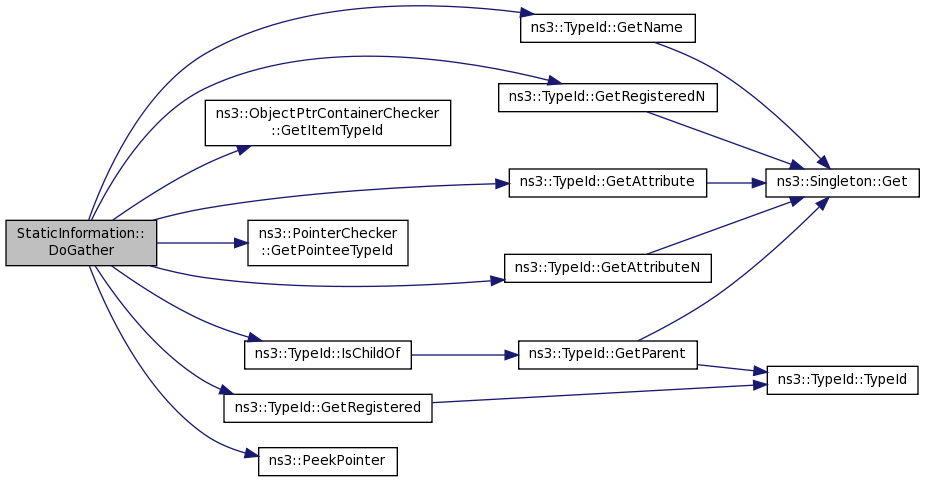

References ns3::TypeId::AttributeInformation::checker, ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::ObjectPtrContainerChecker::GetItemTypeId(), ns3::TypeId::GetName(), ns3::PointerChecker::GetPointeeTypeId(), ns3::TypeId::GetRegistered(), ns3::TypeId::GetRegisteredN(), ns3::TypeId::IsChildOf(), ns3::TypeId::AttributeInformation::name, NS_LOG_FUNCTION, ns3::PeekPointer(), and anonymous_namespace{print-introspected-doxygen.cc}::temporaryCharacter.
