ns3::BlockAckAgreement Class Reference

Maintains information for a block ack agreement. More...

#include <block-ack-agreement.h>

Inheritance diagram for ns3::BlockAckAgreement:

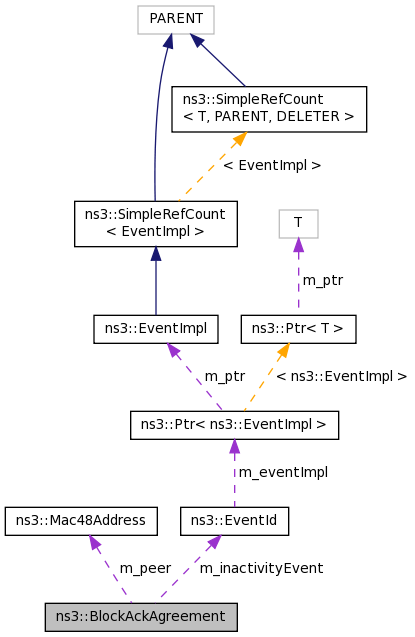

Collaboration diagram for ns3::BlockAckAgreement:

Public Member Functions
	BlockAckAgreement ()
	BlockAckAgreement (Mac48Address peer, uint8_t tid)
	Constructor for BlockAckAgreement with given peer and TID. More...
	~BlockAckAgreement ()
uint16_t	GetBufferSize (void) const
	Return the buffer size. More...
Mac48Address	GetPeer (void) const
	Return the peer address. More...
uint16_t	GetStartingSequence (void) const
	Return the starting squence number. More...
uint16_t	GetStartingSequenceControl (void) const
	Return the starting squence control. More...
uint8_t	GetTid (void) const
	Return the Traffic ID (TID). More...
uint16_t	GetTimeout (void) const
	Return the timeout. More...
bool	IsAmsduSupported (void) const
	Check whether A-MSDU is supported. More...
bool	IsImmediateBlockAck (void) const
	Check whether the current ACK policy is immediate block ACK. More...
void	SetAmsduSupport (bool supported)
	Enable or disable A-MSDU support. More...
void	SetBufferSize (uint16_t bufferSize)
	Set buffer size. More...
void	SetDelayedBlockAck (void)
	Set Block ACK policy to delayed ACK. More...
void	SetImmediateBlockAck (void)
	Set Block ACK policy to immediate ACK. More...
void	SetStartingSequence (uint16_t seq)
	Set starting sequence number. More...
void	SetTimeout (uint16_t timeout)
	Set timeout. More...

Protected Attributes
uint8_t	m_amsduSupported
uint8_t	m_blockAckPolicy
uint16_t	m_bufferSize
EventId	m_inactivityEvent
Mac48Address	m_peer
uint16_t	m_startingSeq
uint8_t	m_tid
uint16_t	m_timeout

Friends
class	MacLow

Detailed Description

Maintains information for a block ack agreement.

Definition at line 31 of file block-ack-agreement.h.

Constructor & Destructor Documentation

ns3::BlockAckAgreement::BlockAckAgreement

(

)

Definition at line 27 of file block-ack-agreement.cc.

References NS_LOG_FUNCTION.

ns3::BlockAckAgreement::BlockAckAgreement	(	Mac48Address	peer,
		uint8_t	tid
	)

Constructor for BlockAckAgreement with given peer and TID.

Parameters

peer
tid

Definition at line 35 of file block-ack-agreement.cc.

References m_peer, m_tid, and NS_LOG_FUNCTION.

ns3::BlockAckAgreement::~BlockAckAgreement

(

)

Definition at line 45 of file block-ack-agreement.cc.

References ns3::EventId::Cancel(), m_inactivityEvent, and NS_LOG_FUNCTION.

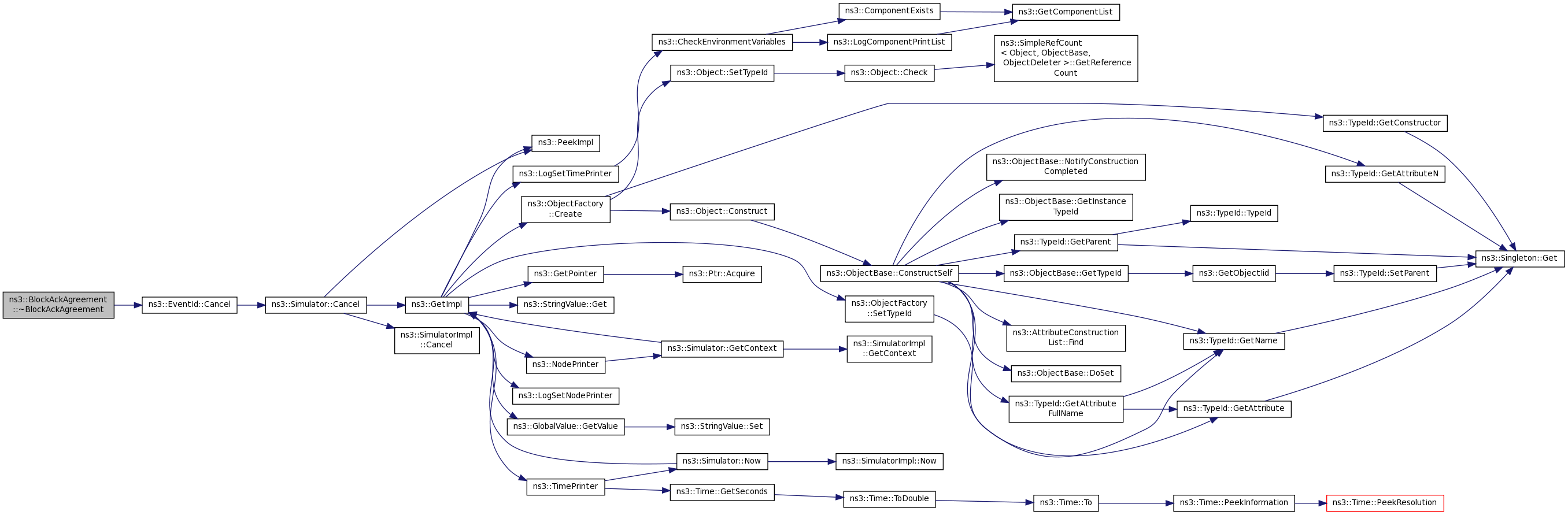

Here is the call graph for this function:

Member Function Documentation

uint16_t ns3::BlockAckAgreement::GetBufferSize

(

void

)

const

Return the buffer size.

Returns

buffer size

Definition at line 104 of file block-ack-agreement.cc.

References m_bufferSize, and NS_LOG_FUNCTION.

Mac48Address ns3::BlockAckAgreement::GetPeer

(

void

)

const

Return the peer address.

Returns

Mac48Address

Definition at line 98 of file block-ack-agreement.cc.

References m_peer, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded().

Here is the caller graph for this function:

uint16_t ns3::BlockAckAgreement::GetStartingSequence

(

void

)

const

Return the starting squence number.

Returns

starting sequence number

Definition at line 116 of file block-ack-agreement.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::ScheduleBlockAckReqIfNeeded().

Here is the caller graph for this function:

uint16_t ns3::BlockAckAgreement::GetStartingSequenceControl

(

void

)

const

Return the starting squence control.

Returns

starting sequence control

Definition at line 122 of file block-ack-agreement.cc.

References m_startingSeq, and NS_LOG_FUNCTION.

uint8_t ns3::BlockAckAgreement::GetTid

(

void

)

const

Return the Traffic ID (TID).

Returns

TID

Definition at line 92 of file block-ack-agreement.cc.

References m_tid, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), and ns3::BlockAckManager::ScheduleBlockAckReqIfNeeded().

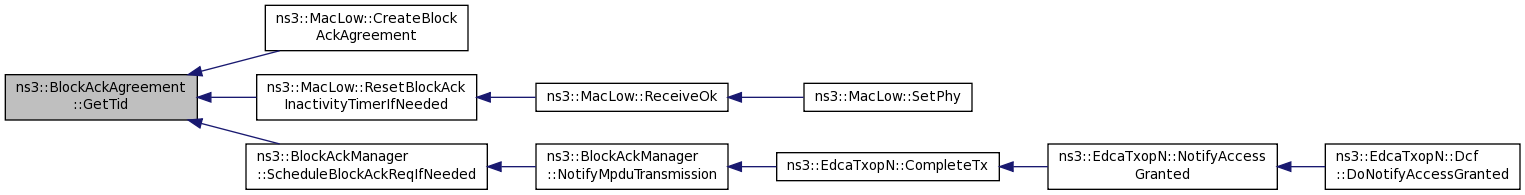

Here is the caller graph for this function:

uint16_t ns3::BlockAckAgreement::GetTimeout

(

void

)

const

Return the timeout.

Returns

timeout

Definition at line 110 of file block-ack-agreement.cc.

References m_timeout, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), and ns3::BlockAckManager::UpdateAgreement().

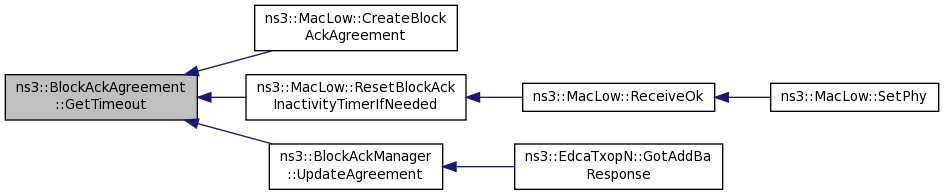

Here is the caller graph for this function:

bool ns3::BlockAckAgreement::IsAmsduSupported

(

void

)

const

Check whether A-MSDU is supported.

Returns

true if A-MSDU is supported, false otherwise

Definition at line 135 of file block-ack-agreement.cc.

References m_amsduSupported, and NS_LOG_FUNCTION.

bool ns3::BlockAckAgreement::IsImmediateBlockAck

(

void

)

const

Check whether the current ACK policy is immediate block ACK.

Returns

true if the current ACK policy is immediate block ACK, false otherwise

Definition at line 129 of file block-ack-agreement.cc.

References m_blockAckPolicy, and NS_LOG_FUNCTION.

void ns3::BlockAckAgreement::SetAmsduSupport

(

bool

supported

)

Enable or disable A-MSDU support.

Parameters

supported

enable or disable A-MSDU support

Definition at line 85 of file block-ack-agreement.cc.

References m_amsduSupported, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

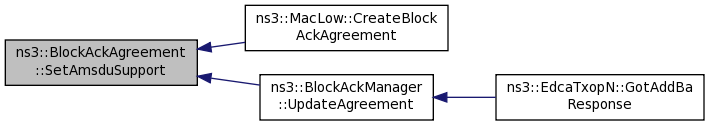

Here is the caller graph for this function:

void ns3::BlockAckAgreement::SetBufferSize

(

uint16_t

bufferSize

)

Set buffer size.

Parameters

bufferSize

Definition at line 52 of file block-ack-agreement.cc.

References m_bufferSize, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

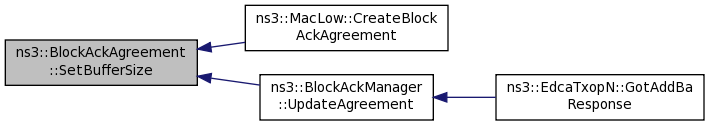

Here is the caller graph for this function:

void ns3::BlockAckAgreement::SetDelayedBlockAck

(

void

)

Set Block ACK policy to delayed ACK.

Definition at line 79 of file block-ack-agreement.cc.

References m_blockAckPolicy, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

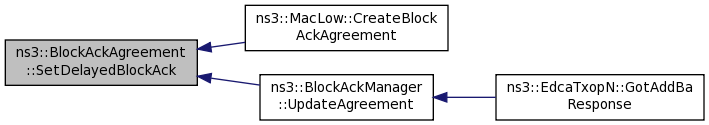

Here is the caller graph for this function:

void ns3::BlockAckAgreement::SetImmediateBlockAck

(

void

)

Set Block ACK policy to immediate ACK.

Definition at line 73 of file block-ack-agreement.cc.

References m_blockAckPolicy, and NS_LOG_FUNCTION.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

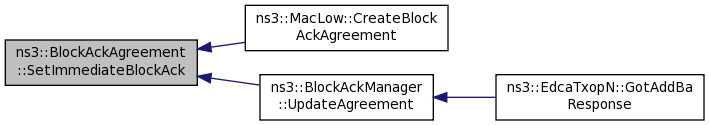

Here is the caller graph for this function:

void ns3::BlockAckAgreement::SetStartingSequence

(

uint16_t

seq

)

Set starting sequence number.

Parameters

seq	the starting sequence number

Definition at line 66 of file block-ack-agreement.cc.

References m_startingSeq, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::BlockAckManager::CreateAgreement(), and ns3::MacLow::CreateBlockAckAgreement().

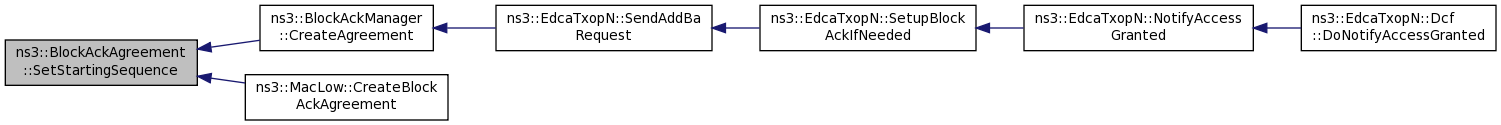

Here is the caller graph for this function:

void ns3::BlockAckAgreement::SetTimeout

(

uint16_t

timeout

)

Set timeout.

Parameters

timeout

Definition at line 60 of file block-ack-agreement.cc.

References m_timeout, NS_LOG_FUNCTION, and timeout.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), and ns3::BlockAckManager::UpdateAgreement().

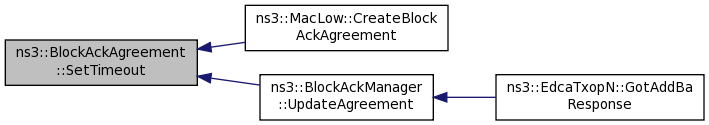

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MacLow

friend

Definition at line 33 of file block-ack-agreement.h.

Member Data Documentation

uint8_t ns3::BlockAckAgreement::m_amsduSupported

protected

Definition at line 130 of file block-ack-agreement.h.

Referenced by IsAmsduSupported(), and SetAmsduSupport().

uint8_t ns3::BlockAckAgreement::m_blockAckPolicy

protected

Definition at line 131 of file block-ack-agreement.h.

Referenced by IsImmediateBlockAck(), SetDelayedBlockAck(), and SetImmediateBlockAck().

uint16_t ns3::BlockAckAgreement::m_bufferSize

protected

Definition at line 133 of file block-ack-agreement.h.

Referenced by GetBufferSize(), ns3::OriginatorBlockAckAgreement::NotifyMpduTransmission(), and SetBufferSize().

EventId ns3::BlockAckAgreement::m_inactivityEvent

protected

Definition at line 137 of file block-ack-agreement.h.

Referenced by ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), ns3::BlockAckManager::UpdateAgreement(), and ~BlockAckAgreement().

Mac48Address ns3::BlockAckAgreement::m_peer

protected

Definition at line 129 of file block-ack-agreement.h.

Referenced by BlockAckAgreement(), and GetPeer().

uint16_t ns3::BlockAckAgreement::m_startingSeq

protected

Definition at line 135 of file block-ack-agreement.h.

Referenced by GetStartingSequence(), GetStartingSequenceControl(), ns3::OriginatorBlockAckAgreement::NotifyMpduTransmission(), and SetStartingSequence().

uint8_t ns3::BlockAckAgreement::m_tid

protected

Definition at line 132 of file block-ack-agreement.h.

Referenced by BlockAckAgreement(), and GetTid().

uint16_t ns3::BlockAckAgreement::m_timeout

protected

Definition at line 134 of file block-ack-agreement.h.

Referenced by GetTimeout(), and SetTimeout().

---

The documentation for this class was generated from the following files:

• src/wifi/model/block-ack-agreement.h
• src/wifi/model/block-ack-agreement.cc
