ns3::ByteTagList::Iterator Class Reference

#include <byte-tag-list.h>

Classes
struct	Item

Public Member Functions
uint32_t	GetOffsetStart (void) const
bool	HasNext (void) const
struct ByteTagList::Iterator::Item	Next (void)

Private Member Functions
	Iterator (uint8_t *start, uint8_t *end, int32_t offsetStart, int32_t offsetEnd)
void	PrepareForNext (void)

Private Attributes
uint8_t *	m_current
uint8_t *	m_end
int32_t	m_nextEnd
uint32_t	m_nextSize
int32_t	m_nextStart
uint32_t	m_nextTid
int32_t	m_offsetEnd
int32_t	m_offsetStart

Friends
class	ByteTagList

Detailed Description

Definition at line 77 of file byte-tag-list.h.

Constructor & Destructor Documentation

ns3::ByteTagList::Iterator::Iterator ( uint8_t *  start, uint8_t *  end, int32_t  offsetStart, int32_t  offsetEnd  )

private

Definition at line 107 of file byte-tag-list.cc.

References NS_LOG_FUNCTION, and PrepareForNext().

Here is the call graph for this function:

Member Function Documentation

uint32_t ns3::ByteTagList::Iterator::GetOffsetStart

(

void

)

const

Definition at line 118 of file byte-tag-list.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::ByteTagIterator::Next().

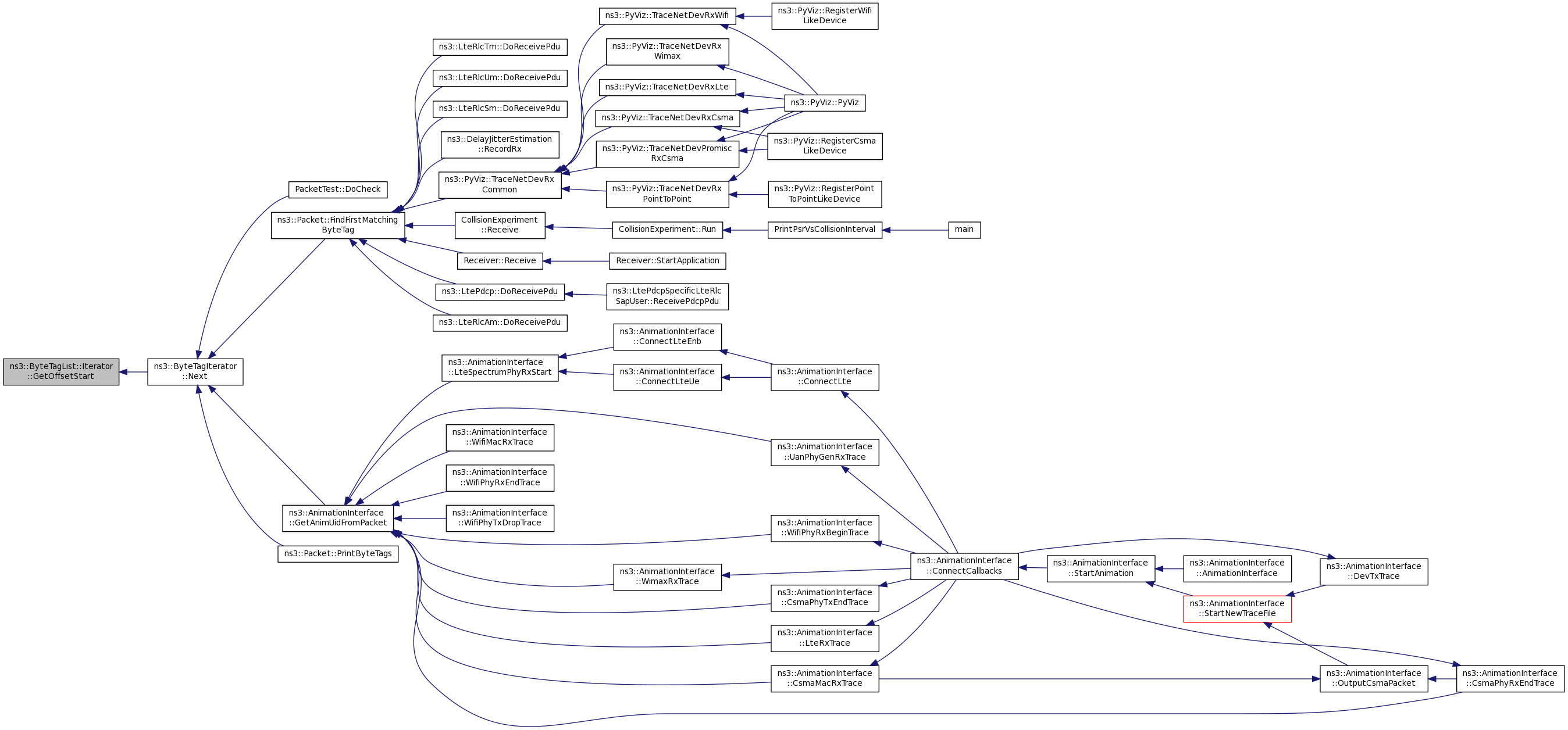

Here is the caller graph for this function:

bool ns3::ByteTagList::Iterator::HasNext

(

void

)

const

Definition at line 67 of file byte-tag-list.cc.

References m_current, m_end, and NS_LOG_FUNCTION.

Referenced by ns3::ByteTagList::Add(), ns3::ByteTagList::AddAtEnd(), ns3::ByteTagList::AddAtStart(), ns3::ByteTagIterator::HasNext(), ns3::ByteTagList::IsDirtyAtEnd(), ns3::ByteTagList::IsDirtyAtStart(), and Next().

Here is the caller graph for this function:

struct ByteTagList::Iterator::Item ns3::ByteTagList::Iterator::Next

(

void

)

Definition at line 73 of file byte-tag-list.cc.

References ns3::ByteTagList::Iterator::Item::buf, ns3::ByteTagList::Iterator::Item::end, HasNext(), m_current, m_end, m_nextEnd, m_nextSize, m_nextStart, m_nextTid, m_offsetEnd, m_offsetStart, NS_ASSERT, PrepareForNext(), ns3::TypeId::SetUid(), ns3::ByteTagList::Iterator::Item::size, ns3::ByteTagList::Iterator::Item::start, ns3::ByteTagList::Iterator::Item::tid, and ns3::TagBuffer::TrimAtEnd().

Referenced by ns3::ByteTagList::Add(), ns3::ByteTagList::AddAtEnd(), ns3::ByteTagList::AddAtStart(), ns3::ByteTagList::IsDirtyAtEnd(), ns3::ByteTagList::IsDirtyAtStart(), and ns3::ByteTagIterator::Next().

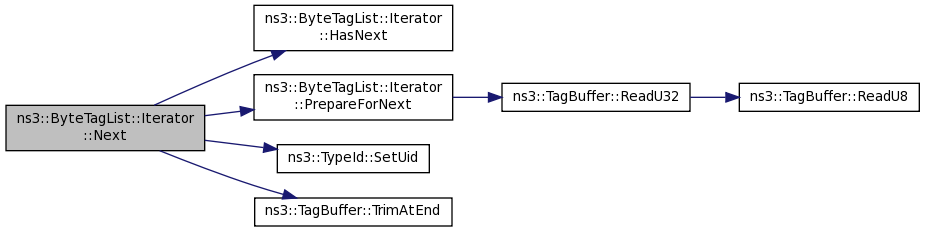

Here is the call graph for this function:

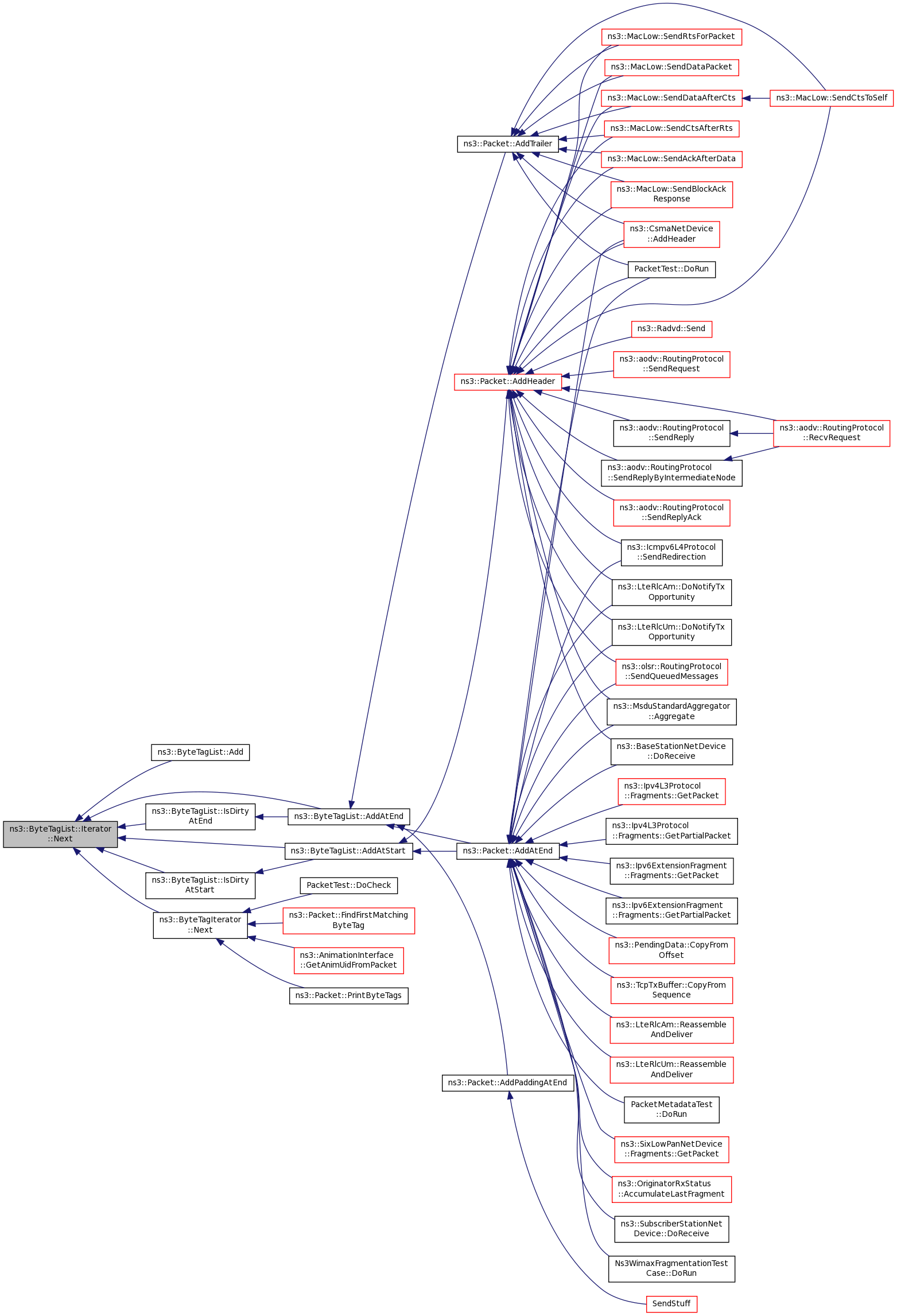

Here is the caller graph for this function:

void ns3::ByteTagList::Iterator::PrepareForNext ( void  )

private

Definition at line 87 of file byte-tag-list.cc.

References m_current, m_end, m_nextEnd, m_nextSize, m_nextStart, m_nextTid, m_offsetEnd, m_offsetStart, NS_LOG_FUNCTION, and ns3::TagBuffer::ReadU32().

Referenced by Iterator(), and Next().

Here is the call graph for this function:

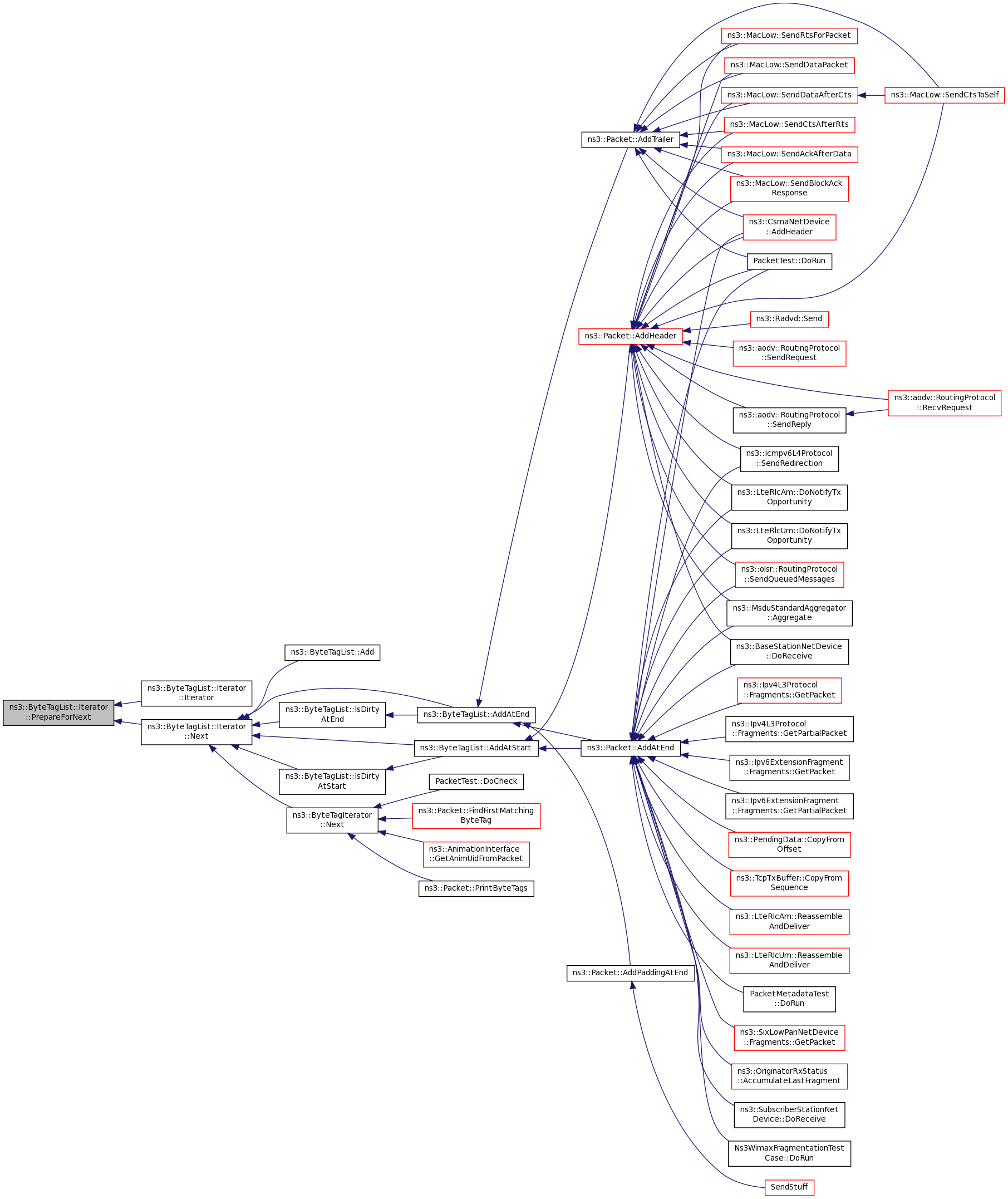

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ByteTagList

friend

Definition at line 120 of file byte-tag-list.h.

Member Data Documentation

uint8_t* ns3::ByteTagList::Iterator::m_current

private

Definition at line 123 of file byte-tag-list.h.

Referenced by HasNext(), Next(), and PrepareForNext().

uint8_t* ns3::ByteTagList::Iterator::m_end

private

Definition at line 124 of file byte-tag-list.h.

Referenced by HasNext(), Next(), and PrepareForNext().

int32_t ns3::ByteTagList::Iterator::m_nextEnd

private

Definition at line 130 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

uint32_t ns3::ByteTagList::Iterator::m_nextSize

private

Definition at line 128 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

int32_t ns3::ByteTagList::Iterator::m_nextStart

private

Definition at line 129 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

uint32_t ns3::ByteTagList::Iterator::m_nextTid

private

Definition at line 127 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

int32_t ns3::ByteTagList::Iterator::m_offsetEnd

private

Definition at line 126 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

int32_t ns3::ByteTagList::Iterator::m_offsetStart

private

Definition at line 125 of file byte-tag-list.h.

Referenced by Next(), and PrepareForNext().

---

The documentation for this class was generated from the following files:

• src/network/model/byte-tag-list.h
• src/network/model/byte-tag-list.cc
