Inheritance diagram for ns3::EdcaTxopN::Dcf:

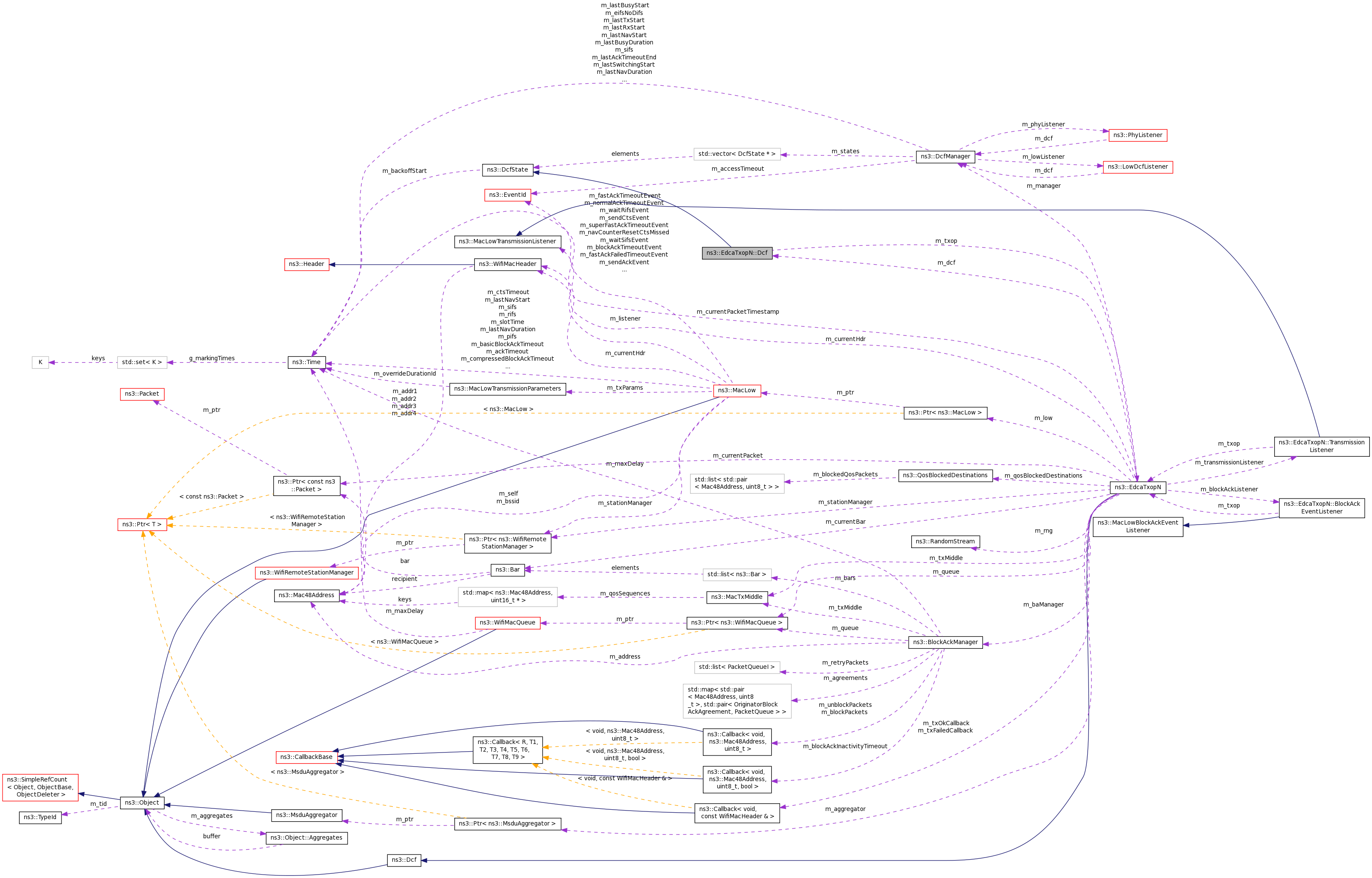

Collaboration diagram for ns3::EdcaTxopN::Dcf:

Public Member Functions
	Dcf (EdcaTxopN *txop)

Public Member Functions inherited from ns3::DcfState
	DcfState ()

virtual	~DcfState ()

uint32_t	GetAifsn (void) const
	Return the number of slots that make up an AIFS. More...

uint32_t	GetCw (void) const

uint32_t	GetCwMax (void) const
	Return the maximum congestion window size. More...

uint32_t	GetCwMin (void) const
	Return the minimum congestion window size. More...

bool	IsAccessRequested (void) const

void	ResetCw (void)
	Update the value of the CW variable to take into account a transmission success or a transmission abort (stop transmission of a packet after the maximum number of retransmissions has been reached). More...

void	SetAifsn (uint32_t aifsn)

void	SetCwMax (uint32_t maxCw)
	Set the maximum congestion window size. More...

void	SetCwMin (uint32_t minCw)
	Set the minimum congestion window size. More...

void	StartBackoffNow (uint32_t nSlots)

void	UpdateFailedCw (void)
	Update the value of the CW variable to take into account a transmission failure. More...

Private Member Functions
virtual void	DoNotifyAccessGranted (void)
	Called by DcfManager to notify a DcfState subclass that access to the medium is granted and can start immediately. More...

virtual void	DoNotifyChannelSwitching (void)
	Called by DcfManager to notify a DcfState subclass that a channel switching occured. More...

virtual void	DoNotifyCollision (void)
	Called by DcfManager to notify a DcfState subclass that a normal collision occured, that is, that the medium was busy when access was requested. More...

virtual void	DoNotifyInternalCollision (void)
	Called by DcfManager to notify a DcfState subclass that an 'internal' collision occured, that is, that the backoff timer of a higher priority DcfState expired at the same time and that access was granted to this higher priority DcfState. More...

Private Attributes
EdcaTxopN *	m_txop

Detailed Description

Definition at line 45 of file edca-txop-n.cc.

Constructor & Destructor Documentation

ns3::EdcaTxopN::Dcf::Dcf ( EdcaTxopN * txop )

inline

Definition at line 48 of file edca-txop-n.cc.

Member Function Documentation

virtual void ns3::EdcaTxopN::Dcf::DoNotifyAccessGranted ( void )

inlineprivatevirtual

Called by DcfManager to notify a DcfState subclass that access to the medium is granted and can start immediately.

Implements ns3::DcfState.

Definition at line 53 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::NotifyAccessGranted().

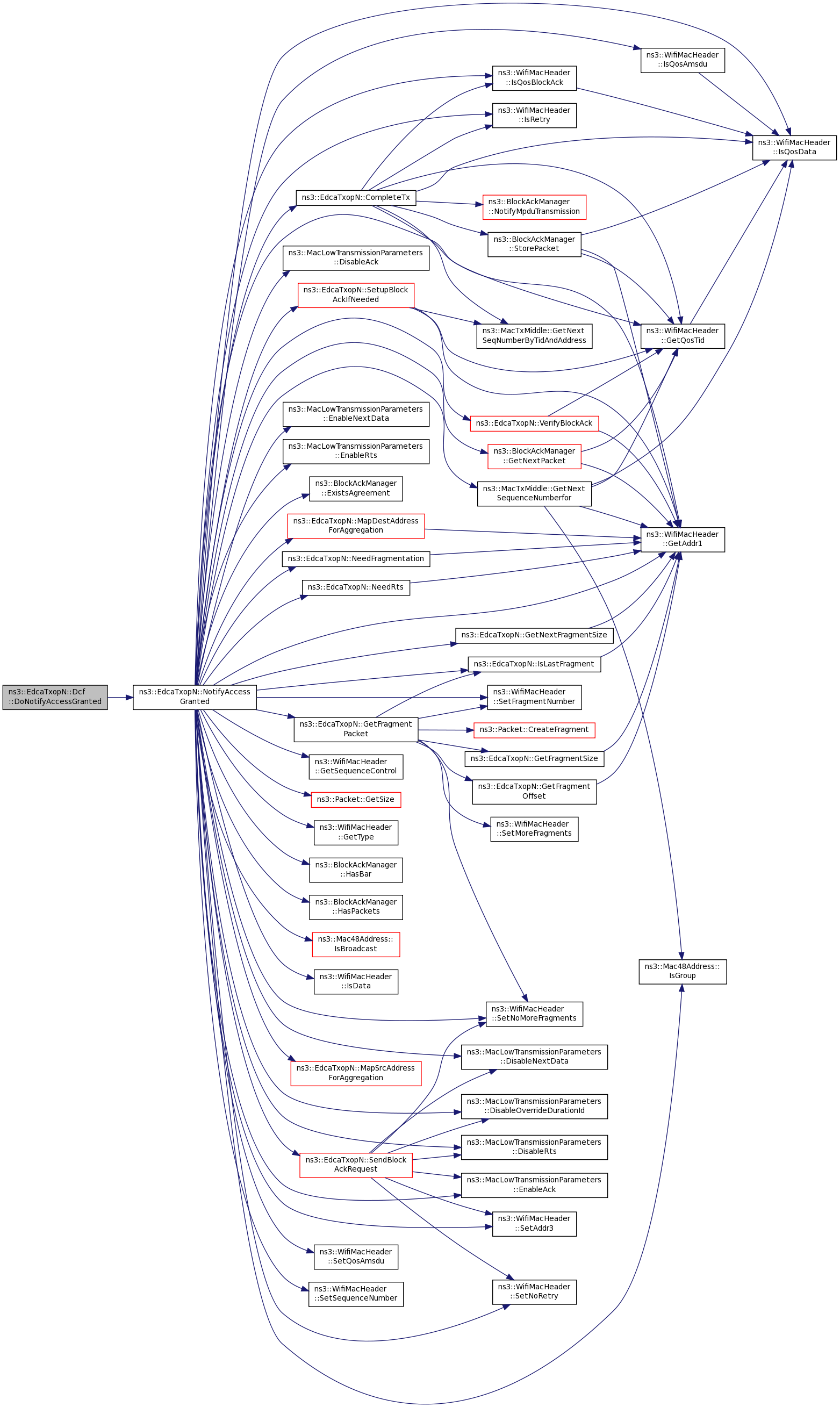

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::Dcf::DoNotifyChannelSwitching ( void )

inlineprivatevirtual

Called by DcfManager to notify a DcfState subclass that a channel switching occured.

The subclass is expected to flush the queue of packets.

Implements ns3::DcfState.

Definition at line 65 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::NotifyChannelSwitching().

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::Dcf::DoNotifyCollision ( void )

inlineprivatevirtual

Called by DcfManager to notify a DcfState subclass that a normal collision occured, that is, that the medium was busy when access was requested.

The subclass is expected to start a new backoff by calling DcfState::StartBackoffNow and DcfManager::RequestAccess is access is still needed.

Implements ns3::DcfState.

Definition at line 61 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::NotifyCollision().

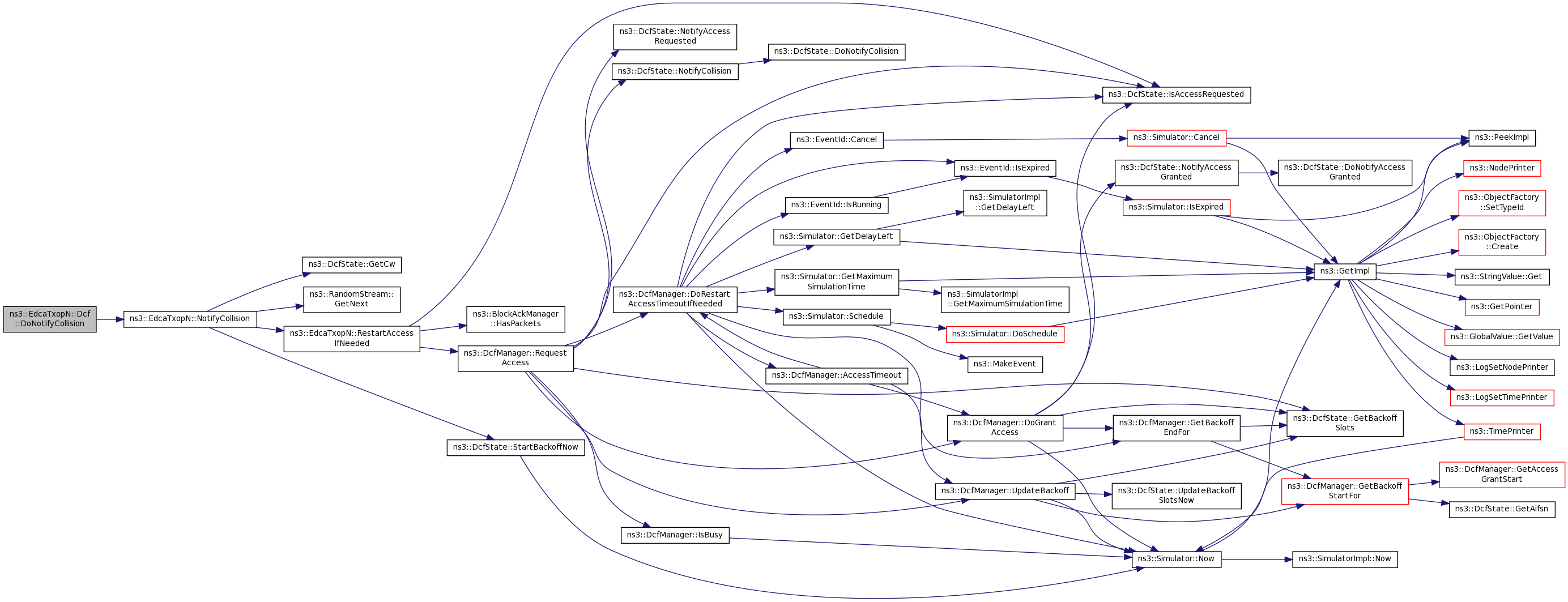

Here is the call graph for this function:

virtual void ns3::EdcaTxopN::Dcf::DoNotifyInternalCollision ( void )

inlineprivatevirtual

Called by DcfManager to notify a DcfState subclass that an 'internal' collision occured, that is, that the backoff timer of a higher priority DcfState expired at the same time and that access was granted to this higher priority DcfState.

The subclass is expected to start a new backoff by calling DcfState::StartBackoffNow and DcfManager::RequestAccess is access is still needed.

Implements ns3::DcfState.

Definition at line 57 of file edca-txop-n.cc.

References m_txop, and ns3::EdcaTxopN::NotifyInternalCollision().

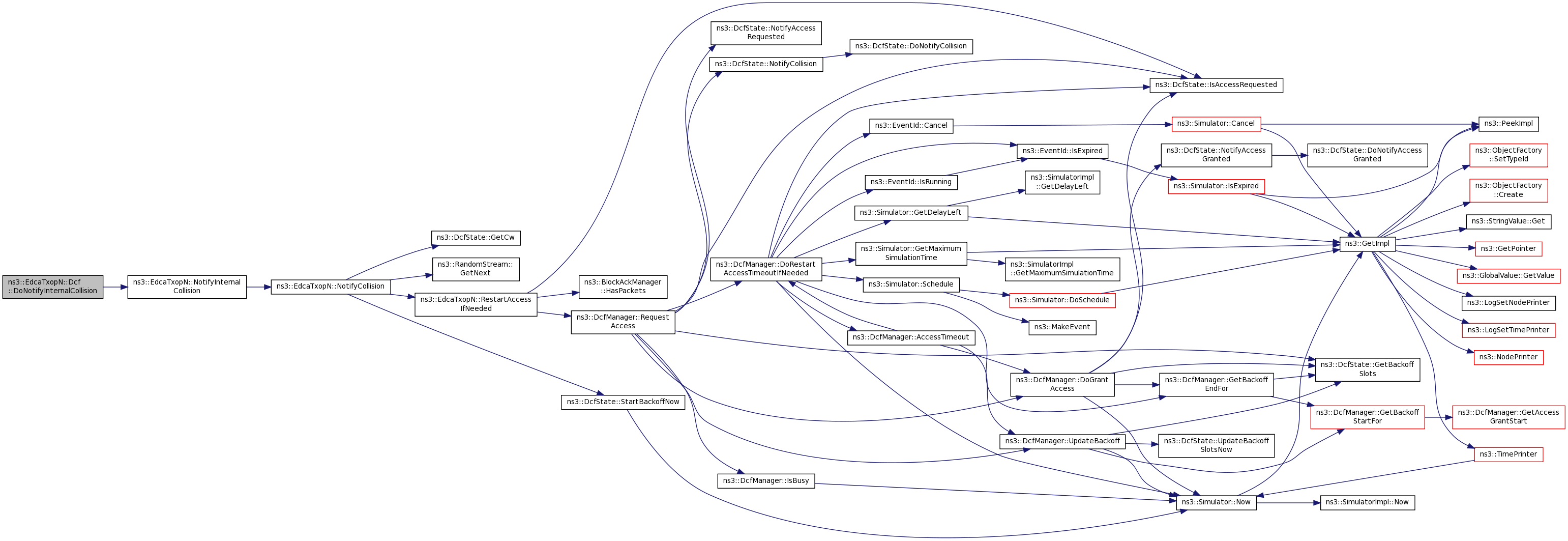

Here is the call graph for this function:
