ns3::EnbRrcMemberLteEnbCmacSapUser Class Reference

Class for forwarding CMAC SAP User functions. More...

Inheritance diagram for ns3::EnbRrcMemberLteEnbCmacSapUser:

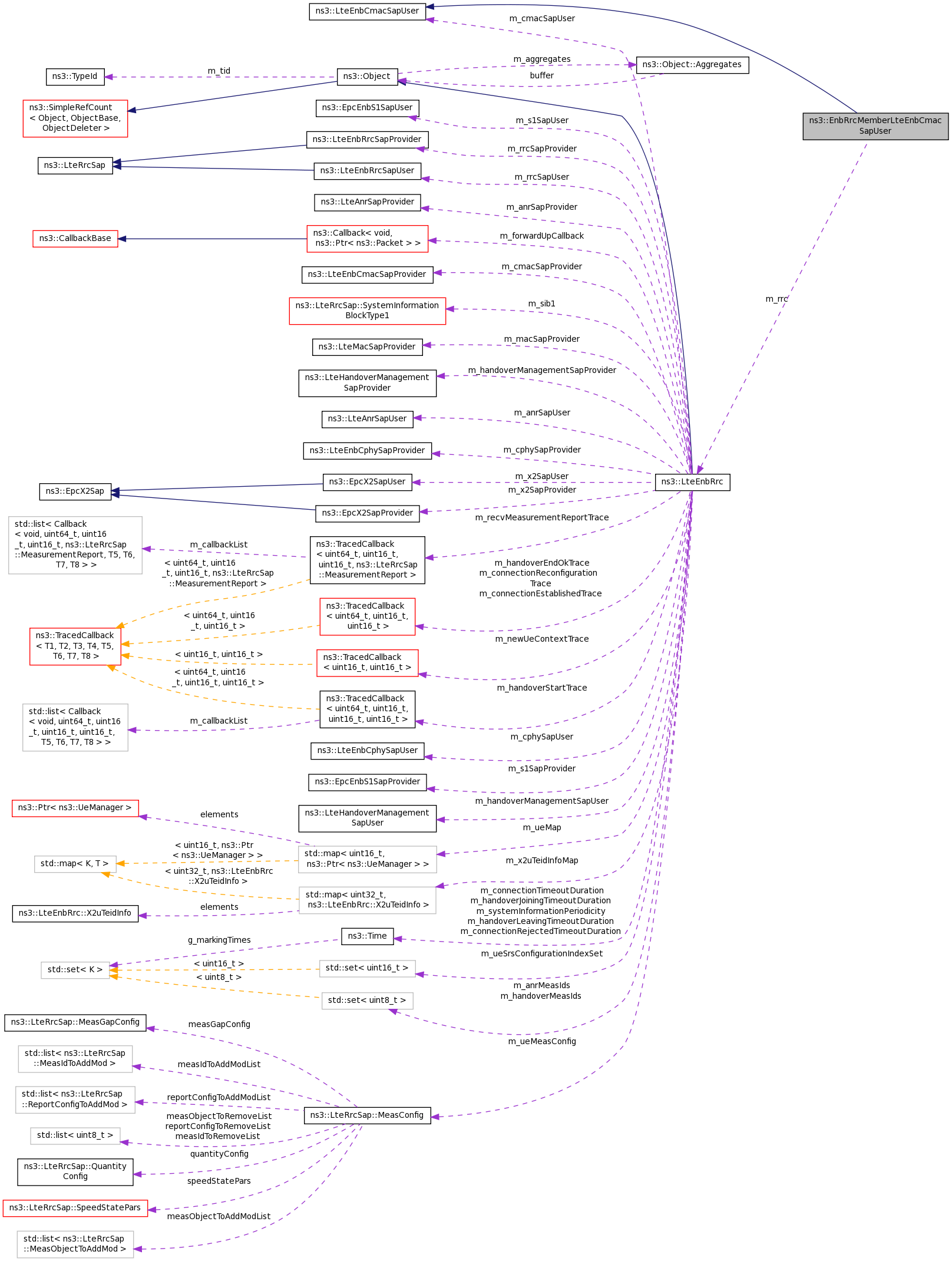

Collaboration diagram for ns3::EnbRrcMemberLteEnbCmacSapUser:

Public Member Functions
	EnbRrcMemberLteEnbCmacSapUser (LteEnbRrc *rrc)
virtual uint16_t	AllocateTemporaryCellRnti ()
	request the allocation of a Temporary C-RNTI More...
virtual void	NotifyLcConfigResult (uint16_t rnti, uint8_t lcid, bool success)
	notify the result of the last LC config operation More...
virtual void	RrcConfigurationUpdateInd (UeConfig params)
	Notify the RRC of a UE config updated requested by the MAC (normally, by the scheduler) More...
Public Member Functions inherited from ns3::LteEnbCmacSapUser
virtual	~LteEnbCmacSapUser ()

Private Attributes
LteEnbRrc *	m_rrc

Detailed Description

Class for forwarding CMAC SAP User functions.

Definition at line 60 of file lte-enb-rrc.cc.

Constructor & Destructor Documentation

ns3::EnbRrcMemberLteEnbCmacSapUser::EnbRrcMemberLteEnbCmacSapUser

(

LteEnbRrc *

rrc

)

Definition at line 73 of file lte-enb-rrc.cc.

Member Function Documentation

uint16_t ns3::EnbRrcMemberLteEnbCmacSapUser::AllocateTemporaryCellRnti ( )

virtual

request the allocation of a Temporary C-RNTI

Returns

the T-C-RNTI

Implements ns3::LteEnbCmacSapUser.

Definition at line 79 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoAllocateTemporaryCellRnti(), and m_rrc.

Here is the call graph for this function:

void ns3::EnbRrcMemberLteEnbCmacSapUser::NotifyLcConfigResult ( uint16_t  rnti, uint8_t  lcid, bool  success  )

virtual

notify the result of the last LC config operation

Parameters

rnti	the rnti of the user
lcid	the logical channel id
success	true if the operation was successful, false otherwise

Implements ns3::LteEnbCmacSapUser.

Definition at line 85 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoNotifyLcConfigResult(), and m_rrc.

Here is the call graph for this function:

void ns3::EnbRrcMemberLteEnbCmacSapUser::RrcConfigurationUpdateInd ( UeConfig  params )

virtual

Notify the RRC of a UE config updated requested by the MAC (normally, by the scheduler)

Parameters

params

Implements ns3::LteEnbCmacSapUser.

Definition at line 91 of file lte-enb-rrc.cc.

References ns3::LteEnbRrc::DoRrcConfigurationUpdateInd(), and m_rrc.

Here is the call graph for this function:

Member Data Documentation

LteEnbRrc* ns3::EnbRrcMemberLteEnbCmacSapUser::m_rrc

private

Definition at line 70 of file lte-enb-rrc.cc.

Referenced by AllocateTemporaryCellRnti(), NotifyLcConfigResult(), and RrcConfigurationUpdateInd().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-enb-rrc.cc
