ns3::LenaFdBetFfMacSchedulerTestCase1 Class Reference

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include <lte-test-fdbet-ff-mac-scheduler.h>

+ Inheritance diagram for ns3::LenaFdBetFfMacSchedulerTestCase1:

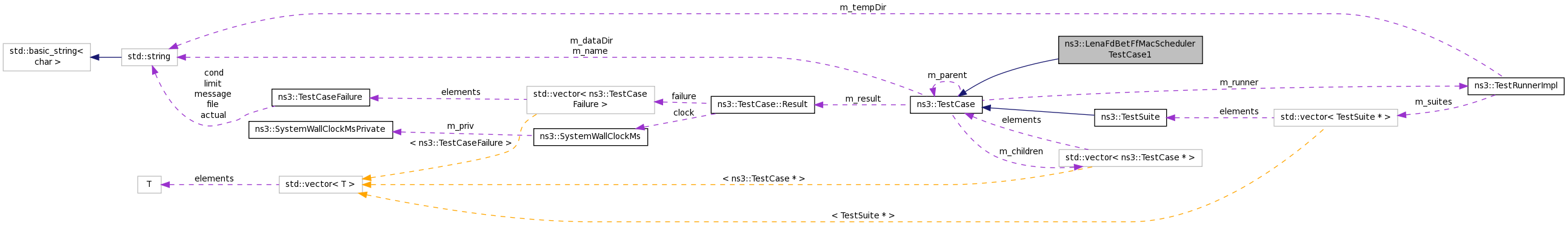

+ Collaboration diagram for ns3::LenaFdBetFfMacSchedulerTestCase1:

Public Member Functions

 LenaFdBetFfMacSchedulerTestCase1 (uint16_t nUser, uint16_t dist, double thrRefDl, double thrRefUl, bool errorModelEnabled)

virtual ~LenaFdBetFfMacSchedulerTestCase1 ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Static Private Member Functions

static std::string BuildNameString (uint16_t nUser, uint16_t dist)


Private Attributes

uint16_t m_dist

bool m_errorModelEnabled

uint16_t m_nUser

double m_thrRefDl

double m_thrRefUl


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)

bool GetErrorStatus (void) const NS_DEPRECATED

std::string GetName (void) const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void SetDataDir (std::string directory)


Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on checking that the obtained throughput performance is equal among users is consistent with the definition of blind equal throughput scheduling

Definition at line 42 of file lte-test-fdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::LenaFdBetFfMacSchedulerTestCase1::LenaFdBetFfMacSchedulerTestCase1 ( uint16_t  nUser,
uint16_t  dist,
double  thrRefDl,
double  thrRefUl,
bool  errorModelEnabled
)

Definition at line 185 of file lte-test-fdbet-ff-mac-scheduler.cc.

ns3::LenaFdBetFfMacSchedulerTestCase1::~LenaFdBetFfMacSchedulerTestCase1 ( )
virtual

Definition at line 195 of file lte-test-fdbet-ff-mac-scheduler.cc.

Member Function Documentation

std::string ns3::LenaFdBetFfMacSchedulerTestCase1::BuildNameString ( uint16_t  nUser,
uint16_t  dist
)
staticprivate

Definition at line 178 of file lte-test-fdbet-ff-mac-scheduler.cc.

void ns3::LenaFdBetFfMacSchedulerTestCase1::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the downlink assignation is done in a "FD blind equal throughput" manner

Check that the assignation is done in a "FD blind equal throughput" manner among users with equal SINRs: the bandwidth should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI

Check that the uplink assignation is done in a "FD blind equal throughput" manner

Check that the assignation is done in a "FD blind equal throughput" manner among users with equal SINRs: the bandwidht should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI

Implements ns3::TestCase.

Definition at line 200 of file lte-test-fdbet-ff-mac-scheduler.cc.

References ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::MobilityHelper::Install(), m_dist, m_errorModelEnabled, m_nUser, m_thrRefDl, m_thrRefUl, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Simulator::Run(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), and ns3::Simulator::Stop().

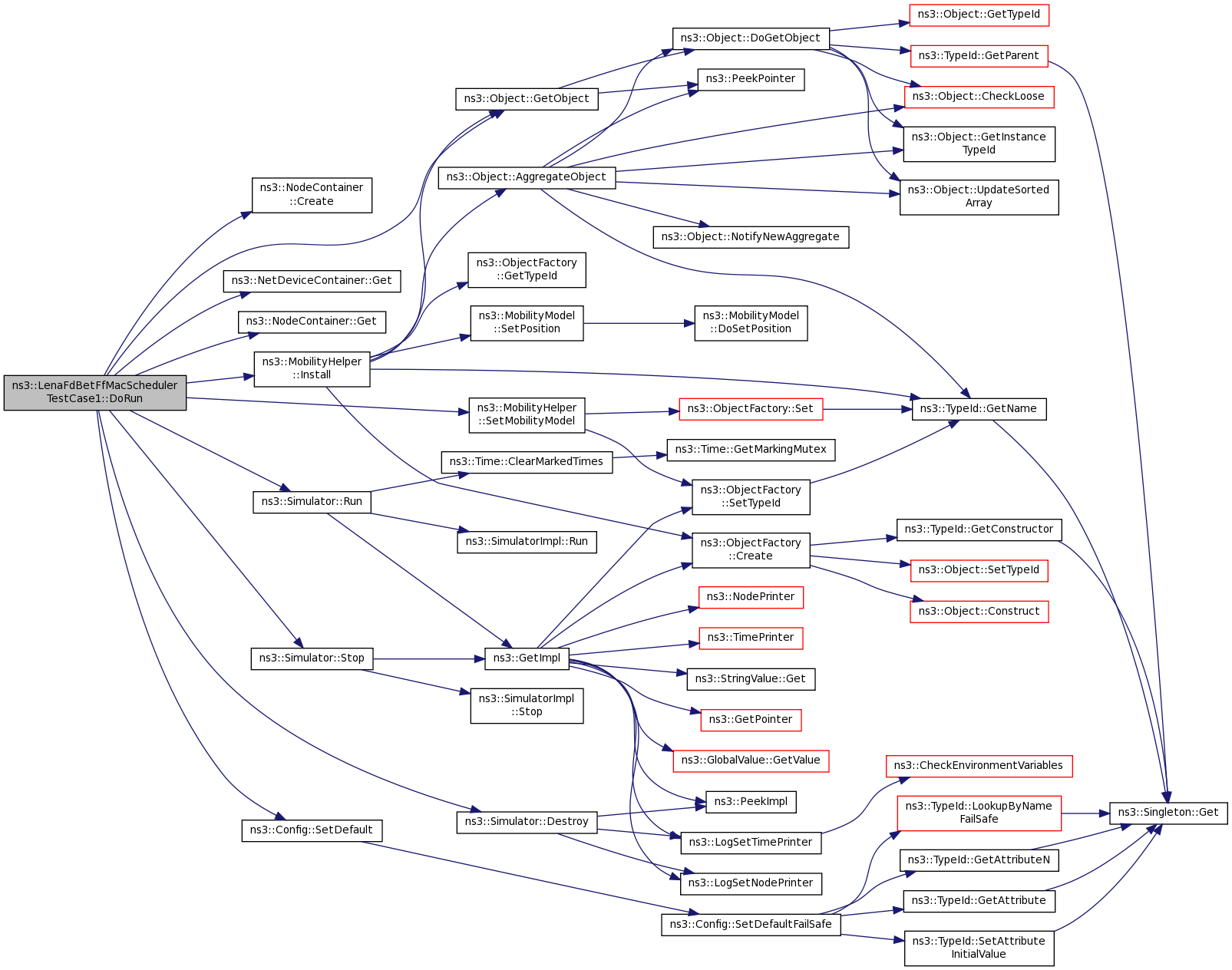

+ Here is the call graph for this function:

Member Data Documentation

uint16_t ns3::LenaFdBetFfMacSchedulerTestCase1::m_dist
private

Definition at line 52 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

bool ns3::LenaFdBetFfMacSchedulerTestCase1::m_errorModelEnabled
private

Definition at line 55 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

uint16_t ns3::LenaFdBetFfMacSchedulerTestCase1::m_nUser
private

Definition at line 51 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

double ns3::LenaFdBetFfMacSchedulerTestCase1::m_thrRefDl
private

Definition at line 53 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

double ns3::LenaFdBetFfMacSchedulerTestCase1::m_thrRefUl
private

Definition at line 54 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
