ns3::LenaFdBetFfMacSchedulerTestCase2 Class Reference

#include <lte-test-fdbet-ff-mac-scheduler.h>

+ Inheritance diagram for ns3::LenaFdBetFfMacSchedulerTestCase2:

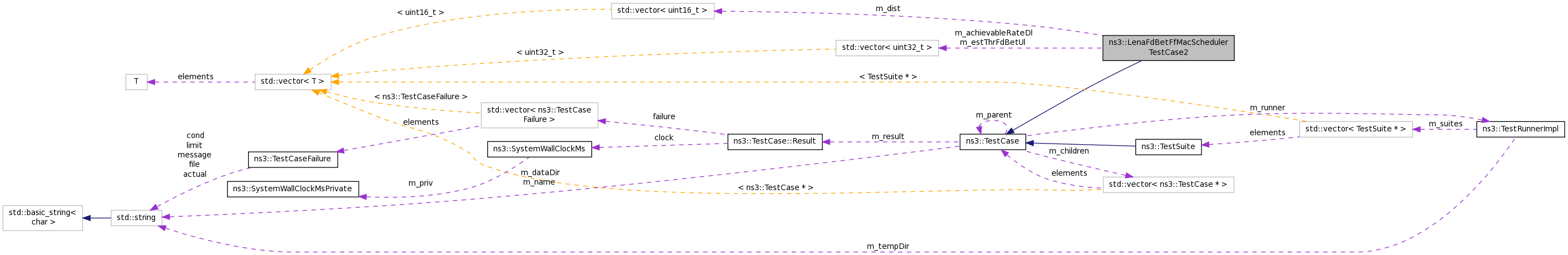

+ Collaboration diagram for ns3::LenaFdBetFfMacSchedulerTestCase2:

Public Member Functions

 LenaFdBetFfMacSchedulerTestCase2 (std::vector< uint16_t > dist, std::vector< uint32_t > m_achievableRateDl, std::vector< uint32_t > estThrFdBetUl, bool m_errorModelEnabled)

virtual ~LenaFdBetFfMacSchedulerTestCase2 ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...


Private Member Functions

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...


Static Private Member Functions

static std::string BuildNameString (uint16_t nUser, std::vector< uint16_t > dist)


Private Attributes

std::vector< uint32_t > m_achievableRateDl

std::vector< uint16_t > m_dist

bool m_errorModelEnabled

std::vector< uint32_t > m_estThrFdBetUl

uint16_t m_nUser


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)

bool GetErrorStatus (void) const NS_DEPRECATED

std::string GetName (void) const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void SetDataDir (std::string directory)


Detailed Description

Definition at line 59 of file lte-test-fdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::LenaFdBetFfMacSchedulerTestCase2::LenaFdBetFfMacSchedulerTestCase2 ( std::vector< uint16_t >  dist,
std::vector< uint32_t >  m_achievableRateDl,
std::vector< uint32_t >  estThrFdBetUl,
bool  m_errorModelEnabled
)

Definition at line 347 of file lte-test-fdbet-ff-mac-scheduler.cc.

ns3::LenaFdBetFfMacSchedulerTestCase2::~LenaFdBetFfMacSchedulerTestCase2 ( )
virtual

Definition at line 357 of file lte-test-fdbet-ff-mac-scheduler.cc.

Member Function Documentation

std::string ns3::LenaFdBetFfMacSchedulerTestCase2::BuildNameString ( uint16_t  nUser,
std::vector< uint16_t >  dist
)
staticprivate

Definition at line 334 of file lte-test-fdbet-ff-mac-scheduler.cc.

void ns3::LenaFdBetFfMacSchedulerTestCase2::DoRun ( void  )
privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignation is done in a "FD blind equal throughput" manner among users with different SINRs: the bandwidth should be distributed equally in long term

Check that the assignation in uplink is done in a round robin manner.

Implements ns3::TestCase.

Definition at line 362 of file lte-test-fdbet-ff-mac-scheduler.cc.

References ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), ns3::EpsBearer::GBR_CONV_VOICE, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::MobilityHelper::Install(), m_achievableRateDl, m_dist, m_errorModelEnabled, m_estThrFdBetUl, m_nUser, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Simulator::Run(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), and ns3::Simulator::Stop().

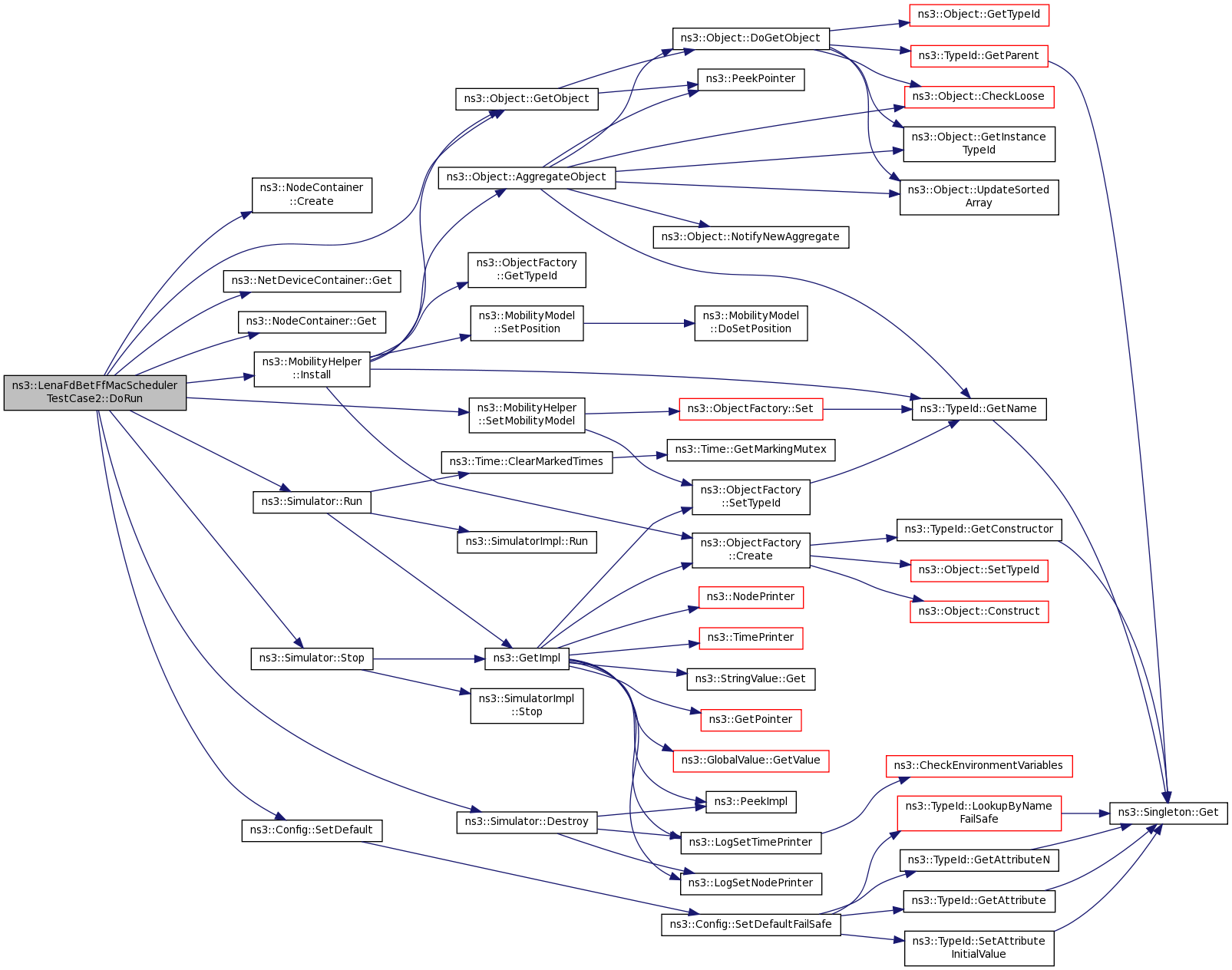

+ Here is the call graph for this function:

Member Data Documentation

std::vector<uint32_t> ns3::LenaFdBetFfMacSchedulerTestCase2::m_achievableRateDl
private

Definition at line 70 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

std::vector<uint16_t> ns3::LenaFdBetFfMacSchedulerTestCase2::m_dist
private

Definition at line 69 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

bool ns3::LenaFdBetFfMacSchedulerTestCase2::m_errorModelEnabled
private

Definition at line 72 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

std::vector<uint32_t> ns3::LenaFdBetFfMacSchedulerTestCase2::m_estThrFdBetUl
private

Definition at line 71 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().

uint16_t ns3::LenaFdBetFfMacSchedulerTestCase2::m_nUser
private

Definition at line 68 of file lte-test-fdbet-ff-mac-scheduler.h.

Referenced by DoRun().


The documentation for this class was generated from the following files:
