ns3::LteControlMessage Class Reference

The LteControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs. More...

#include <lte-control-messages.h>

Inheritance diagram for ns3::LteControlMessage:

Collaboration diagram for ns3::LteControlMessage:

Public Types
enum	MessageType {   DL_DCI, UL_DCI, DL_CQI, UL_CQI,   BSR, DL_HARQ, RACH_PREAMBLE, RAR,   MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Public Member Functions
	LteControlMessage (void)
virtual	~LteControlMessage (void)
MessageType	GetMessageType (void)
	Get the type of the message. More...
void	SetMessageType (MessageType type)
	Set the type of the message. More...
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
MessageType	m_type

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The LteControlMessage provides a basic implementations for control messages (such as PDCCH allocation map, CQI feedbacks) that are exchanged among eNodeB and UEs.

Definition at line 43 of file lte-control-messages.h.

Member Enumeration Documentation

enum ns3::LteControlMessage::MessageType

The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages.

When new messaged have to been added, consider to update the switch statement implementing teh filtering.

Enumerator
DL_DCI
UL_DCI
DL_CQI
UL_CQI
BSR
DL_HARQ
RACH_PREAMBLE
RAR
MIB
SIB1

Definition at line 54 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::LteControlMessage::LteControlMessage

(

void

)

Definition at line 34 of file lte-control-messages.cc.

ns3::LteControlMessage::~LteControlMessage ( void  )

virtual

Definition at line 39 of file lte-control-messages.cc.

Member Function Documentation

LteControlMessage::MessageType ns3::LteControlMessage::GetMessageType

(

void

)

Get the type of the message.

Returns

the type of the message

Definition at line 52 of file lte-control-messages.cc.

References m_type.

void ns3::LteControlMessage::SetMessageType

(

LteControlMessage::MessageType

type

)

Set the type of the message.

Parameters

type	the type of the message

Definition at line 45 of file lte-control-messages.cc.

References m_type.

Referenced by ns3::BsrLteControlMessage::BsrLteControlMessage(), ns3::DlCqiLteControlMessage::DlCqiLteControlMessage(), ns3::DlDciLteControlMessage::DlDciLteControlMessage(), ns3::DlHarqFeedbackLteControlMessage::DlHarqFeedbackLteControlMessage(), ns3::MibLteControlMessage::MibLteControlMessage(), ns3::RachPreambleLteControlMessage::RachPreambleLteControlMessage(), ns3::RarLteControlMessage::RarLteControlMessage(), ns3::Sib1LteControlMessage::Sib1LteControlMessage(), and ns3::UlDciLteControlMessage::UlDciLteControlMessage().

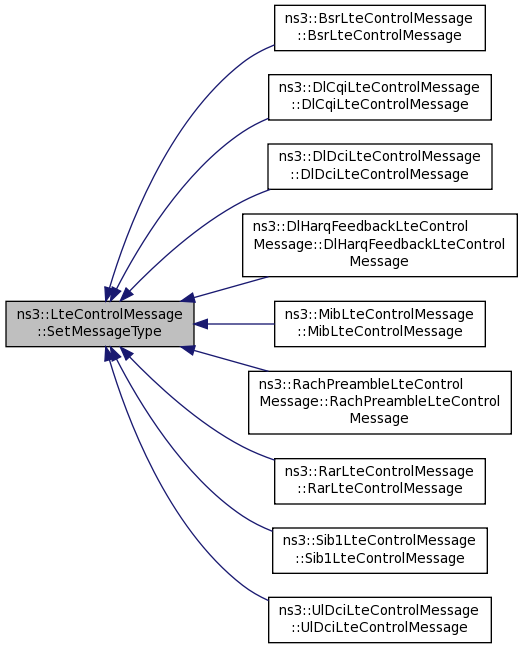

Here is the caller graph for this function:

Member Data Documentation

MessageType ns3::LteControlMessage::m_type

private

Definition at line 81 of file lte-control-messages.h.

Referenced by GetMessageType(), and SetMessageType().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-control-messages.h
• src/lte/model/lte-control-messages.cc
