ns3::LteUeCmacSapProvider Class Reference

Service Access Point (SAP) offered by the UE MAC to the UE RRC. More...

#include <lte-ue-cmac-sap.h>

Inheritance diagram for ns3::LteUeCmacSapProvider:

Classes
struct	LogicalChannelConfig
struct	RachConfig

Public Member Functions
virtual	~LteUeCmacSapProvider ()
virtual void	AddLc (uint8_t lcId, LogicalChannelConfig lcConfig, LteMacSapUser *msu)=0
	add a new Logical Channel (LC) More...
virtual void	ConfigureRach (RachConfig rc)=0
virtual void	RemoveLc (uint8_t lcId)=0
	remove an existing LC More...
virtual void	Reset ()=0
	reset the MAC More...
virtual void	StartContentionBasedRandomAccessProcedure ()=0
	tell the MAC to start a contention-based random access procedure, e.g., to perform RRC connection establishment More...
virtual void	StartNonContentionBasedRandomAccessProcedure (uint16_t rnti, uint8_t rapId, uint8_t prachMask)=0
	tell the MAC to start a non-contention-based random access procedure, e.g., as a consequence of handover More...

Detailed Description

Service Access Point (SAP) offered by the UE MAC to the UE RRC.

This is the MAC SAP Provider, i.e., the part of the SAP that contains the MAC methods called by the RRC

Definition at line 40 of file lte-ue-cmac-sap.h.

Constructor & Destructor Documentation

ns3::LteUeCmacSapProvider::~LteUeCmacSapProvider ( )

virtual

Definition at line 28 of file lte-ue-cmac-sap.cc.

Member Function Documentation

virtual void ns3::LteUeCmacSapProvider::AddLc ( uint8_t  lcId, LogicalChannelConfig  lcConfig, LteMacSapUser *  msu  )

pure virtual

add a new Logical Channel (LC)

Parameters

lcId	the ID of the LC
lcConfig	the LC configuration provided by the RRC
msu	the corresponding LteMacSapUser

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::LteUeRrc::DoInitialize().

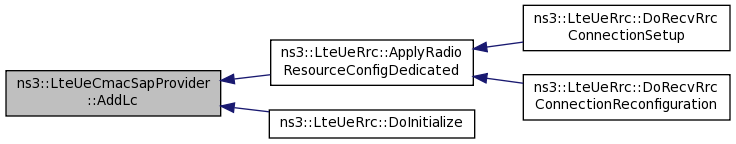

Here is the caller graph for this function:

virtual void ns3::LteUeCmacSapProvider::ConfigureRach ( RachConfig  rc )

pure virtual

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::DoRecvSystemInformation().

Here is the caller graph for this function:

virtual void ns3::LteUeCmacSapProvider::RemoveLc ( uint8_t  lcId )

pure virtual

remove an existing LC

Parameters

lcId

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::LeaveConnectedMode().

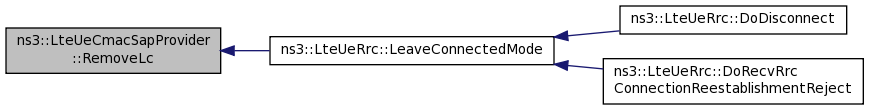

Here is the caller graph for this function:

virtual void ns3::LteUeCmacSapProvider::Reset ( )

pure virtual

reset the MAC

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration(), and ns3::LteUeRrc::DoRecvRrcConnectionReject().

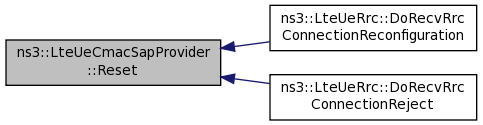

Here is the caller graph for this function:

virtual void ns3::LteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure ( )

pure virtual

tell the MAC to start a contention-based random access procedure, e.g., to perform RRC connection establishment

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::StartConnection().

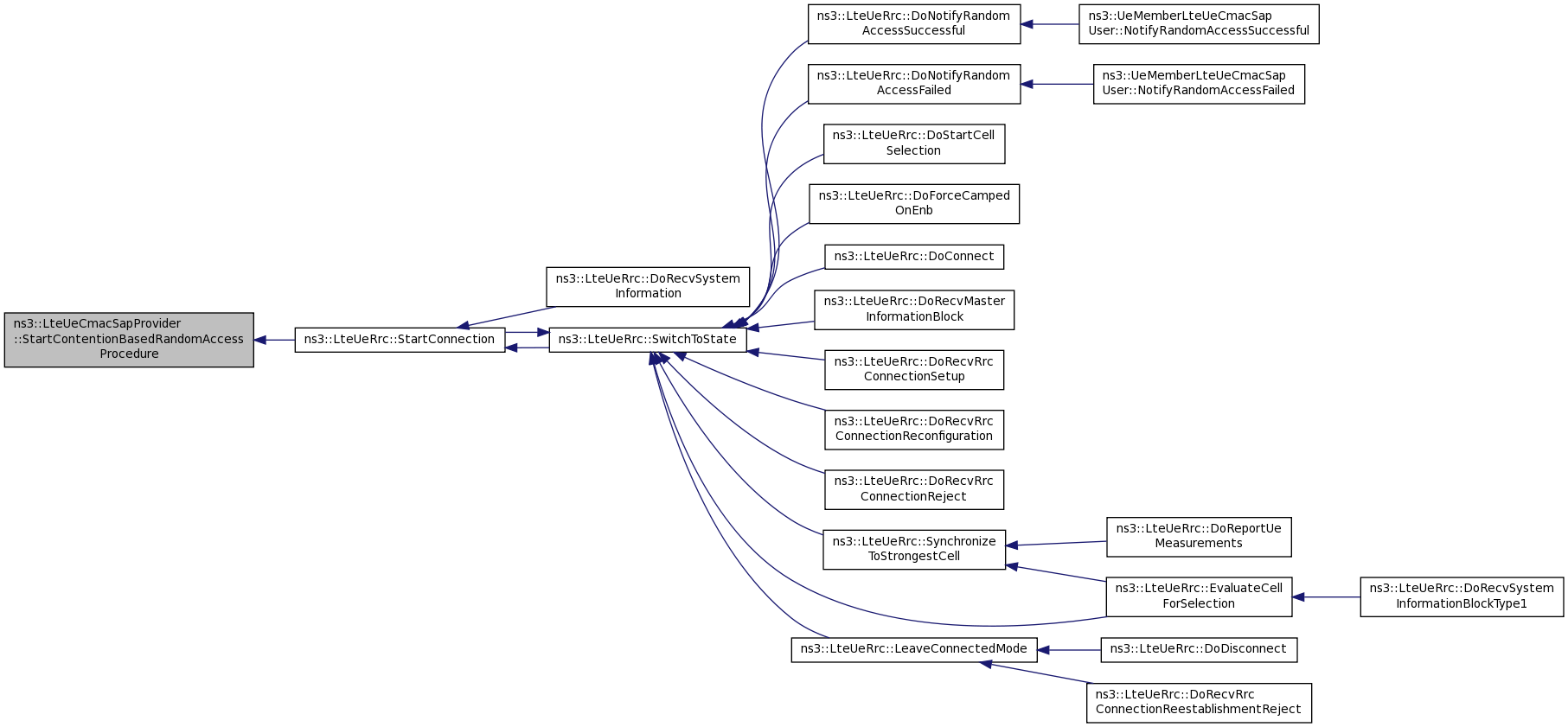

Here is the caller graph for this function:

virtual void ns3::LteUeCmacSapProvider::StartNonContentionBasedRandomAccessProcedure ( uint16_t  rnti, uint8_t  rapId, uint8_t  prachMask  )

pure virtual

tell the MAC to start a non-contention-based random access procedure, e.g., as a consequence of handover

Parameters

rnti
rapId	Random Access Preamble Identifier
prachMask

Implemented in ns3::UeMemberLteUeCmacSapProvider.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-ue-cmac-sap.h
• src/lte/model/lte-ue-cmac-sap.cc
