Testing UE measurements in LTE with simulation of 2 eNodeB and 1 UE in a handover configuration. More...

#include <lte-test-ue-measurements.h>

Inheritance diagram for ns3::LteUeMeasurementsHandoverTestCase:

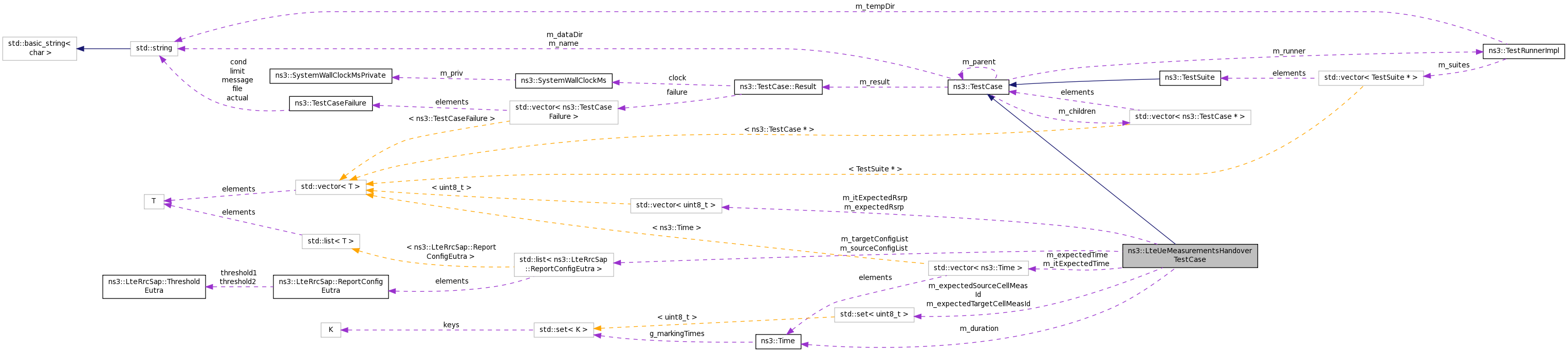

Collaboration diagram for ns3::LteUeMeasurementsHandoverTestCase:

Public Member Functions
	LteUeMeasurementsHandoverTestCase (std::string name, std::list< LteRrcSap::ReportConfigEutra > sourceConfigList, std::list< LteRrcSap::ReportConfigEutra > targetConfigList, std::vector< Time > expectedTime, std::vector< uint8_t > expectedRsrp, Time duration)

virtual	~LteUeMeasurementsHandoverTestCase ()

void	RecvMeasurementReportCallback (std::string context, uint64_t imsi, uint16_t cellId, uint16_t rnti, LteRrcSap::MeasurementReport report)
	Triggers when either one of the eNodeBs receives measurement report from UE, then perform verification on it. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

Private Member Functions
virtual void	DoRun ()
	Setup the simulation with the intended UE measurement reporting configuration, run it, and connect the `RecvMeasurementReportCallback` function to the `LteUeRrc::RecvMeasurementReport` trace source. More...

virtual void	DoTeardown ()
	Runs at the end of the simulation, verifying that all expected measurement reports have been examined. More...

Private Attributes
Time	m_duration
	Duration of simulation. More...

std::vector< uint8_t >	m_expectedRsrp
	The list of expected values of RSRP (in 3GPP range unit) from the measurement reports received. More...

std::set< uint8_t >	m_expectedSourceCellMeasId
	The list of measurement identities being tested in the source cell. More...

std::set< uint8_t >	m_expectedTargetCellMeasId
	The list of measurement identities being tested in the target cell. More...

std::vector< Time >	m_expectedTime
	The list of expected time when measurement reports are received by eNodeB. More...

std::vector< uint8_t >::iterator	m_itExpectedRsrp
	Pointer to the element of `m_expectedRsrp` which is expected to occur next in the simulation. More...

std::vector< Time >::iterator	m_itExpectedTime
	Pointer to the element of `m_expectedTime` which is expected to occur next in the simulation. More...

std::list < LteRrcSap::ReportConfigEutra >	m_sourceConfigList
	The list of active report triggering configuration for the source eNodeB. More...

std::list < LteRrcSap::ReportConfigEutra >	m_targetConfigList
	The list of active report triggering configuration for the target eNodeB. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)

void	AddTestCase (TestCase *testCase) NS_DEPRECATED
	Add an individual child TestCase case to this TestCase. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

std::string	CreateDataDirFilename (std::string filename)

std::string	CreateTempDirFilename (std::string filename)

bool	GetErrorStatus (void) const NS_DEPRECATED

std::string	GetName (void) const

bool	IsStatusFailure (void) const

bool	IsStatusSuccess (void) const

bool	MustAssertOnFailure (void) const

bool	MustContinueOnFailure (void) const

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void	SetDataDir (std::string directory)

Detailed Description

Testing UE measurements in LTE with simulation of 2 eNodeB and 1 UE in a handover configuration.

The simulation will run for the specified duration, while the handover command will be issued exactly at the middle of simulation.

Definition at line 308 of file lte-test-ue-measurements.h.

Constructor & Destructor Documentation

ns3::LteUeMeasurementsHandoverTestCase::LteUeMeasurementsHandoverTestCase	(	std::string	name,
		std::list< LteRrcSap::ReportConfigEutra >	sourceConfigList,
		std::list< LteRrcSap::ReportConfigEutra >	targetConfigList,
		std::vector< Time >	expectedTime,
		std::vector< uint8_t >	expectedRsrp,
		Time	duration
	)

Definition at line 1665 of file lte-test-ue-measurements.cc.

References m_expectedRsrp, m_expectedTime, m_itExpectedRsrp, m_itExpectedTime, NS_FATAL_ERROR, and NS_LOG_INFO.

ns3::LteUeMeasurementsHandoverTestCase::~LteUeMeasurementsHandoverTestCase ( )

virtual

Definition at line 1692 of file lte-test-ue-measurements.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUeMeasurementsHandoverTestCase::DoRun ( void )

privatevirtual

Setup the simulation with the intended UE measurement reporting configuration, run it, and connect the RecvMeasurementReportCallback function to the LteUeRrc::RecvMeasurementReport trace source.

Implements ns3::TestCase.

Definition at line 1698 of file lte-test-ue-measurements.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::Simulator::Destroy(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Time::GetMilliSeconds(), ns3::NodeContainer::GetN(), ns3::TestCase::GetName(), ns3::Object::GetObject(), ns3::Ipv4StaticRoutingHelper::GetStaticRouting(), ns3::PointToPointHelper::Install(), ns3::InternetStackHelper::Install(), ns3::MobilityHelper::Install(), m_duration, m_expectedSourceCellMeasId, m_expectedTargetCellMeasId, m_sourceConfigList, m_targetConfigList, ns3::MakeCallback(), NS_LOG_INFO, RecvMeasurementReportCallback(), ns3::Simulator::Run(), ns3::Ipv4AddressHelper::SetBase(), ns3::PointToPointHelper::SetChannelAttribute(), ns3::Config::SetDefault(), ns3::PointToPointHelper::SetDeviceAttribute(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), and ns3::Simulator::Stop().

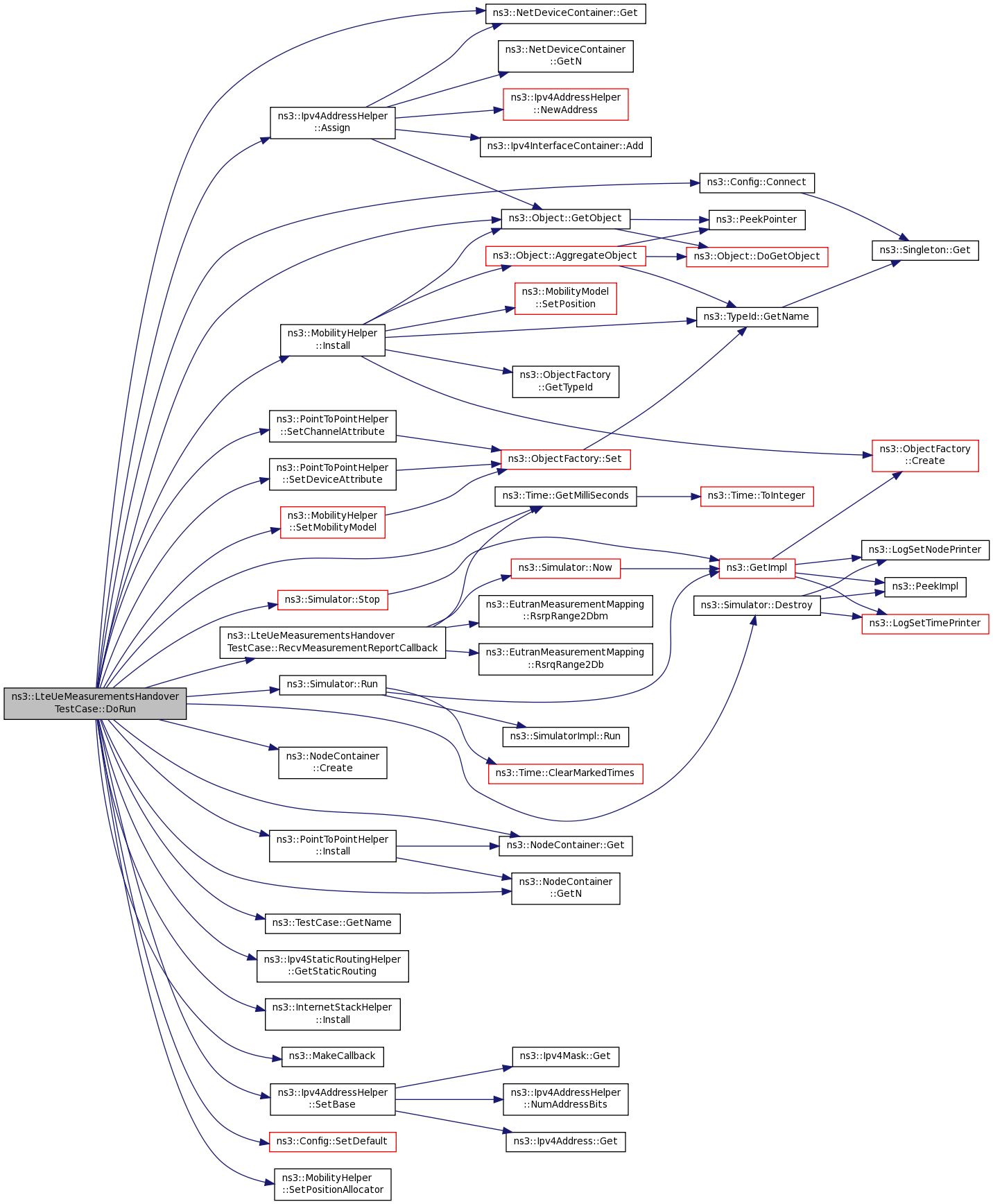

Here is the call graph for this function:

void ns3::LteUeMeasurementsHandoverTestCase::DoTeardown ( void )

privatevirtual

Runs at the end of the simulation, verifying that all expected measurement reports have been examined.

Reimplemented from ns3::TestCase.

Definition at line 1835 of file lte-test-ue-measurements.cc.

References m_expectedRsrp, m_expectedTime, m_itExpectedRsrp, m_itExpectedTime, NS_ASSERT, NS_LOG_FUNCTION, and NS_TEST_ASSERT_MSG_EQ.

void ns3::LteUeMeasurementsHandoverTestCase::RecvMeasurementReportCallback	(	std::string	context,
		uint64_t	imsi,
		uint16_t	cellId,
		uint16_t	rnti,
		LteRrcSap::MeasurementReport	report
	)

Triggers when either one of the eNodeBs receives measurement report from UE, then perform verification on it.

The trigger is set up beforehand by connecting to the LteUeRrc::RecvMeasurementReport trace source.

Verification consists of checking whether the report carries the right value of RSRP or not, and whether it occurs at the expected time or not.

Definition at line 1846 of file lte-test-ue-measurements.cc.

References ns3::Time::GetMilliSeconds(), ns3::LteRrcSap::MeasResults::haveMeasResultNeighCells, m_expectedRsrp, m_expectedSourceCellMeasId, m_expectedTargetCellMeasId, m_expectedTime, m_itExpectedRsrp, m_itExpectedTime, ns3::LteRrcSap::MeasResults::measId, ns3::LteRrcSap::MeasResults::measResultListEutra, ns3::LteRrcSap::MeasurementReport::measResults, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_TEST_ASSERT_MSG_EQ, ns3::EutranMeasurementMapping::RsrpRange2Dbm(), ns3::LteRrcSap::MeasResults::rsrpResult, ns3::EutranMeasurementMapping::RsrqRange2Db(), and ns3::LteRrcSap::MeasResults::rsrqResult.

Referenced by DoRun().

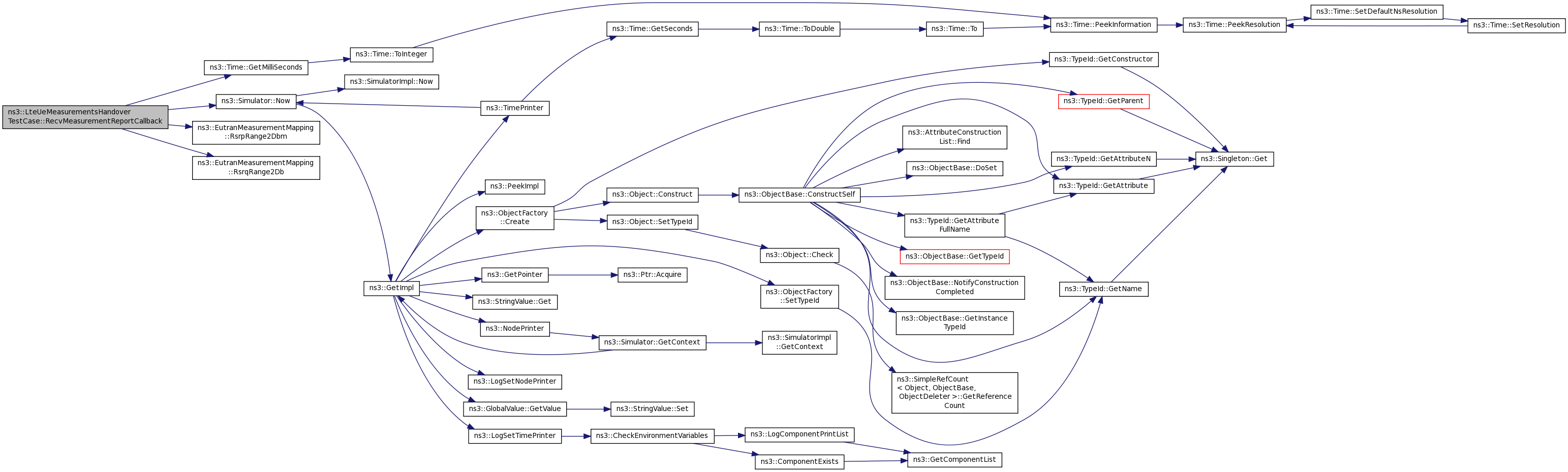

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Time ns3::LteUeMeasurementsHandoverTestCase::m_duration

private

Duration of simulation.

Definition at line 388 of file lte-test-ue-measurements.h.

Referenced by DoRun().

std::vector<uint8_t> ns3::LteUeMeasurementsHandoverTestCase::m_expectedRsrp

private

The list of expected values of RSRP (in 3GPP range unit) from the measurement reports received.

Definition at line 371 of file lte-test-ue-measurements.h.

Referenced by DoTeardown(), LteUeMeasurementsHandoverTestCase(), and RecvMeasurementReportCallback().

std::set<uint8_t> ns3::LteUeMeasurementsHandoverTestCase::m_expectedSourceCellMeasId

private

The list of measurement identities being tested in the source cell.

Measurement reports with different measurement identity (e.g. from handover algorithm and ANR) will be ignored.

Definition at line 395 of file lte-test-ue-measurements.h.

Referenced by DoRun(), and RecvMeasurementReportCallback().

std::set<uint8_t> ns3::LteUeMeasurementsHandoverTestCase::m_expectedTargetCellMeasId

private

The list of measurement identities being tested in the target cell.

Measurement reports with different measurement identity (e.g. from handover algorithm and ANR) will be ignored.

Definition at line 402 of file lte-test-ue-measurements.h.

Referenced by DoRun(), and RecvMeasurementReportCallback().

std::vector<Time> ns3::LteUeMeasurementsHandoverTestCase::m_expectedTime

private

The list of expected time when measurement reports are received by eNodeB.

Definition at line 365 of file lte-test-ue-measurements.h.

Referenced by DoTeardown(), LteUeMeasurementsHandoverTestCase(), and RecvMeasurementReportCallback().

std::vector<uint8_t>::iterator ns3::LteUeMeasurementsHandoverTestCase::m_itExpectedRsrp

private

Pointer to the element of m_expectedRsrp which is expected to occur next in the simulation.

Definition at line 383 of file lte-test-ue-measurements.h.

Referenced by DoTeardown(), LteUeMeasurementsHandoverTestCase(), and RecvMeasurementReportCallback().

std::vector<Time>::iterator ns3::LteUeMeasurementsHandoverTestCase::m_itExpectedTime

private

Pointer to the element of m_expectedTime which is expected to occur next in the simulation.

Definition at line 377 of file lte-test-ue-measurements.h.

Referenced by DoTeardown(), LteUeMeasurementsHandoverTestCase(), and RecvMeasurementReportCallback().

std::list<LteRrcSap::ReportConfigEutra> ns3::LteUeMeasurementsHandoverTestCase::m_sourceConfigList

private

The list of active report triggering configuration for the source eNodeB.

Definition at line 353 of file lte-test-ue-measurements.h.

Referenced by DoRun().

std::list<LteRrcSap::ReportConfigEutra> ns3::LteUeMeasurementsHandoverTestCase::m_targetConfigList

private

The list of active report triggering configuration for the target eNodeB.

Definition at line 359 of file lte-test-ue-measurements.h.

Referenced by DoRun().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-ue-measurements.h
src/lte/test/lte-test-ue-measurements.cc
