ns3::LteUeRrcSapUser Class Reference

Part of the RRC protocol. More...

#include <lte-rrc-sap.h>

Inheritance diagram for ns3::LteUeRrcSapUser:

Collaboration diagram for ns3::LteUeRrcSapUser:

Classes
struct	SetupParameters

Public Member Functions
virtual void	SendMeasurementReport (MeasurementReport msg)=0
	Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...
virtual void	SendRrcConnectionReconfigurationCompleted (RrcConnectionReconfigurationCompleted msg)=0
	Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...
virtual void	SendRrcConnectionReestablishmentComplete (RrcConnectionReestablishmentComplete msg)=0
	Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...
virtual void	SendRrcConnectionReestablishmentRequest (RrcConnectionReestablishmentRequest msg)=0
	Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...
virtual void	SendRrcConnectionRequest (RrcConnectionRequest msg)=0
	Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...
virtual void	SendRrcConnectionSetupCompleted (RrcConnectionSetupCompleted msg)=0
	Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...
virtual void	Setup (SetupParameters params)=0
Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }
Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 255

Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used by the UE RRC to send messages to the eNB. Each method defined in this class corresponds to the transmission of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 608 of file lte-rrc-sap.h.

Member Function Documentation

virtual void ns3::LteUeRrcSapUser::SendMeasurementReport ( MeasurementReport  msg )

pure virtual

Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::SendMeasurementReport().

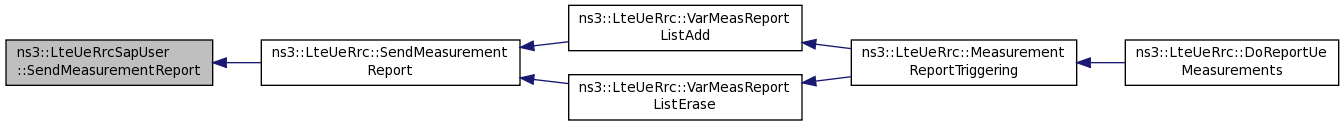

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted ( RrcConnectionReconfigurationCompleted  msg )

pure virtual

Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

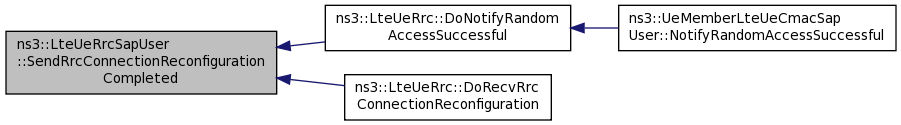

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentComplete ( RrcConnectionReestablishmentComplete  msg )

pure virtual

Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentRequest ( RrcConnectionReestablishmentRequest  msg )

pure virtual

Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionRequest ( RrcConnectionRequest  msg )

pure virtual

Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful().

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionSetupCompleted ( RrcConnectionSetupCompleted  msg )

pure virtual

Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionSetup().

Here is the caller graph for this function:

virtual void ns3::LteUeRrcSapUser::Setup ( SetupParameters  params )

pure virtual

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::LteUeRrc::DoInitialize().

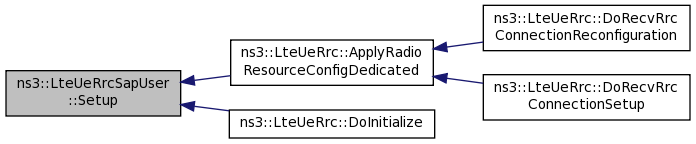

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rrc-sap.h
