ns3::Mac16Address Class Reference

This class can contain 16 bit addresses. More...

#include <mac16-address.h>

Public Member Functions
	Mac16Address ()
	Mac16Address (const char *str)
void	CopyFrom (const uint8_t buffer[2])
void	CopyTo (uint8_t buffer[2]) const
	operator Address () const

Static Public Member Functions
static Mac16Address	Allocate (void)
	Allocate a new Mac16Address. More...
static Mac16Address	ConvertFrom (const Address &address)
static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
uint8_t	m_address [2]

Friends
bool	operator!= (const Mac16Address &a, const Mac16Address &b)
bool	operator< (const Mac16Address &a, const Mac16Address &b)
bool	operator== (const Mac16Address &a, const Mac16Address &b)
	Macro to make help make class an ns-3 attribute. More...
std::istream &	operator>> (std::istream &is, Mac16Address &address)

Detailed Description

This class can contain 16 bit addresses.

Definition at line 39 of file mac16-address.h.

Constructor & Destructor Documentation

ns3::Mac16Address::Mac16Address

(

)

Definition at line 55 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

ns3::Mac16Address::Mac16Address

(

const char *

str

)

Parameters

str	a string representing the new Mac16Address

Definition at line 61 of file mac16-address.cc.

References ASCII_a, ASCII_COLON, ASCII_ZERO, ns3::AsciiToLowCase(), m_address, NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Mac16Address ns3::Mac16Address::Allocate ( void  )

static

Allocate a new Mac16Address.

Returns

newly allocated mac16Address

Definition at line 135 of file mac16-address.cc.

References first::address, m_address, and NS_LOG_FUNCTION_NOARGS.

Mac16Address ns3::Mac16Address::ConvertFrom ( const Address &  address )

static

Parameters

address

a polymorphic address

Returns

a new Mac16Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Mac16Address.

Definition at line 119 of file mac16-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), GetType(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::Ipv6Interface::DoSetup(), ns3::SixLowPanNetDevice::MakeGlobalAddressFromMac(), ns3::SixLowPanNetDevice::MakeLinkLocalAddressFromMac(), ns3::Ipv6AddressHelper::NewAddress(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

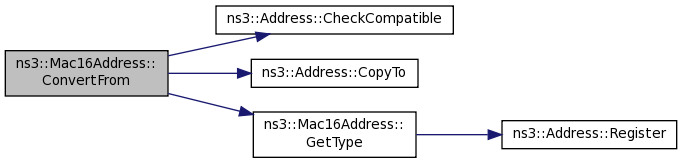

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::Mac16Address::ConvertTo ( void  ) const

private

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 128 of file mac16-address.cc.

References GetType(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::Mac16Address::CopyFrom

(

const uint8_t

buffer[2]

)

Parameters

buffer

address in network order

Copy the input address to our internal buffer.

Definition at line 94 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::ReadFrom().

Here is the caller graph for this function:

void ns3::Mac16Address::CopyTo

(

uint8_t

buffer[2]

)

const

Parameters

buffer

address in network order

Copy the internal address to the input buffer.

Definition at line 100 of file mac16-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6Address::MakeAutoconfiguredAddress(), ns3::Ipv6Address::MakeAutoconfiguredLinkLocalAddress(), ns3::operator<<(), and ns3::WriteTo().

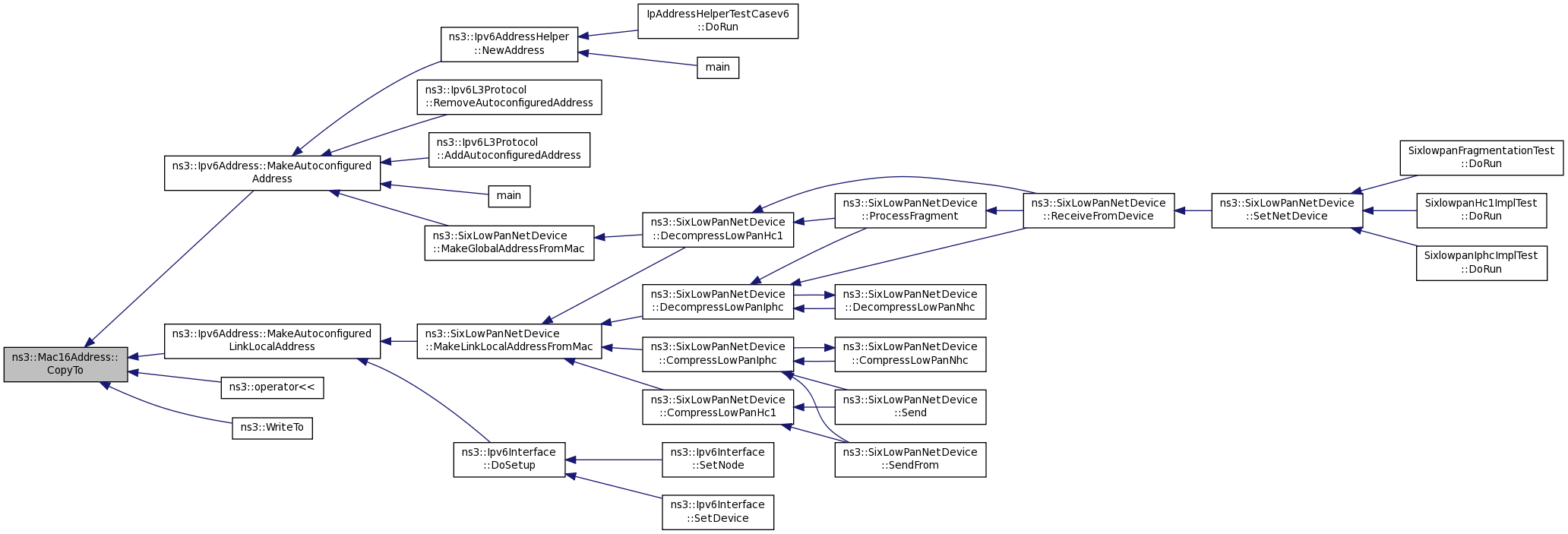

Here is the caller graph for this function:

uint8_t ns3::Mac16Address::GetType ( void  )

staticprivate

Definition at line 147 of file mac16-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

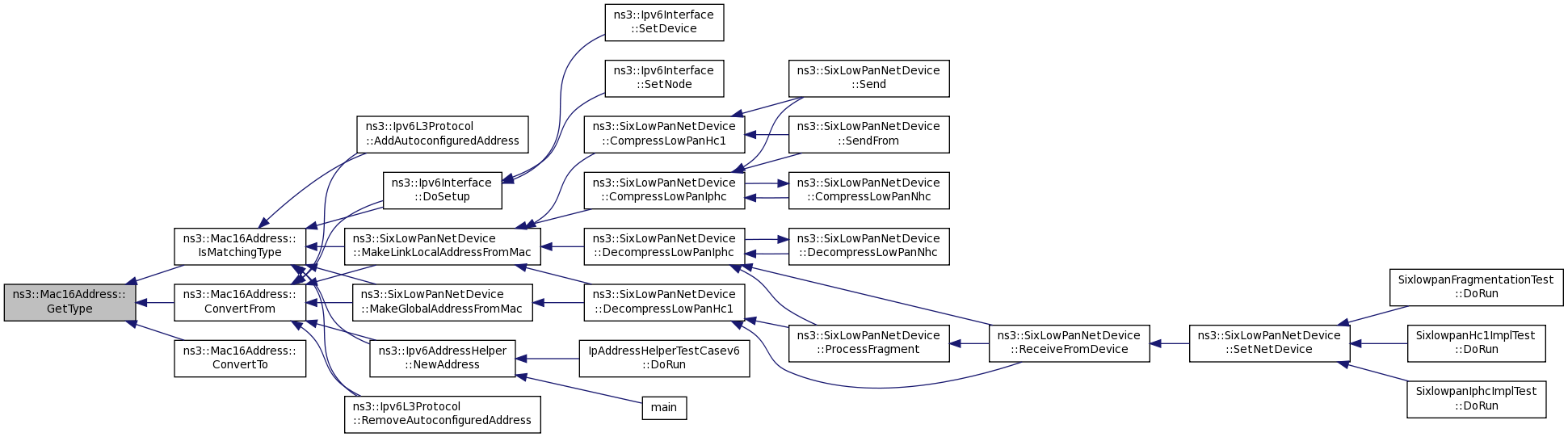

Here is the caller graph for this function:

bool ns3::Mac16Address::IsMatchingType ( const Address &  address )

static

Parameters

address

address to test

Returns

true if the address matches, false otherwise.

Definition at line 107 of file mac16-address.cc.

References ns3::Address::CheckCompatible(), GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6L3Protocol::AddAutoconfiguredAddress(), ns3::Ipv6Interface::DoSetup(), ns3::SixLowPanNetDevice::MakeGlobalAddressFromMac(), ns3::SixLowPanNetDevice::MakeLinkLocalAddressFromMac(), ns3::Ipv6AddressHelper::NewAddress(), and ns3::Ipv6L3Protocol::RemoveAutoconfiguredAddress().

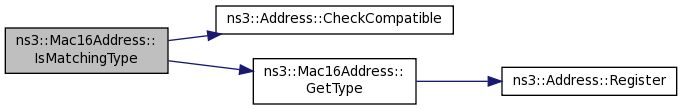

Here is the call graph for this function:

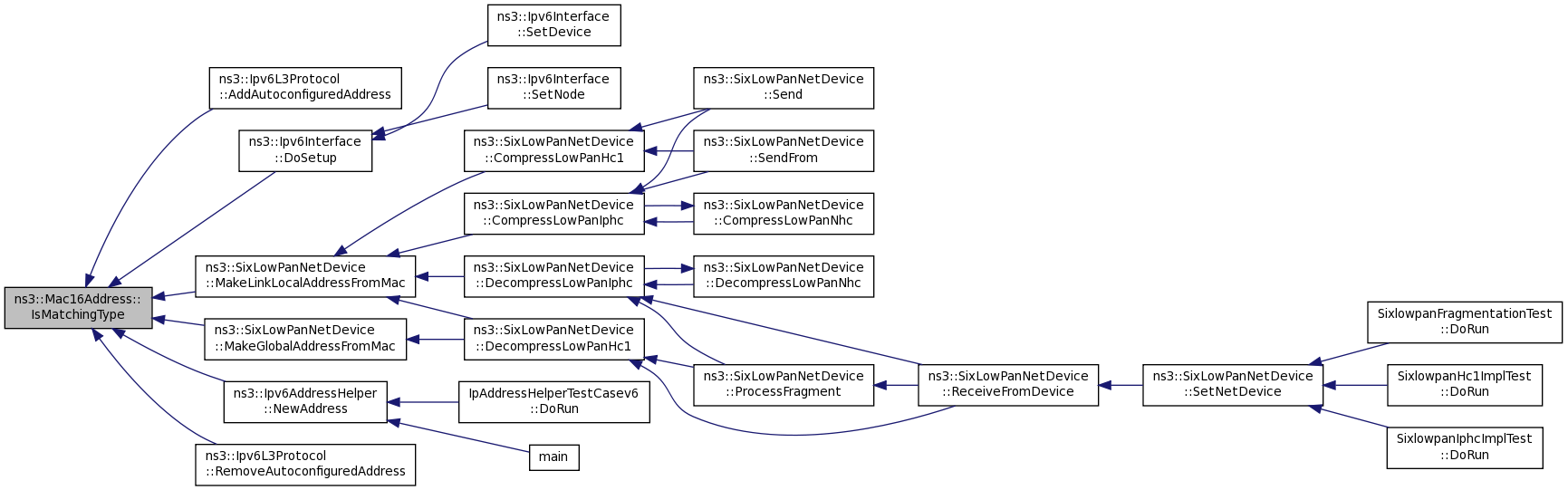

Here is the caller graph for this function:

ns3::Mac16Address::operator Address

(

)

const

Returns

a new Address instance

Convert an instance of this class to a polymorphic Address instance.

Definition at line 113 of file mac16-address.cc.

Friends And Related Function Documentation

bool operator!= ( const Mac16Address &  a, const Mac16Address &  b  )

friend

Definition at line 114 of file mac16-address.h.

bool operator< ( const Mac16Address &  a, const Mac16Address &  b  )

friend

Definition at line 118 of file mac16-address.h.

bool operator== ( const Mac16Address &  a, const Mac16Address &  b  )

friend

Macro to make help make class an ns-3 attribute.

Definition at line 110 of file mac16-address.h.

std::istream& operator>> ( std::istream &  is, Mac16Address &  address  )

friend

Definition at line 183 of file mac16-address.cc.

Member Data Documentation

uint8_t ns3::Mac16Address::m_address[2]

private

Definition at line 100 of file mac16-address.h.

Referenced by Allocate(), ConvertTo(), CopyFrom(), CopyTo(), Mac16Address(), ns3::operator!=(), ns3::operator<(), ns3::operator==(), and ns3::operator>>().

---

The documentation for this class was generated from the following files:

• src/network/utils/mac16-address.h
• src/network/utils/mac16-address.cc
