control how a packet is transmitted. More...

#include <mac-low.h>

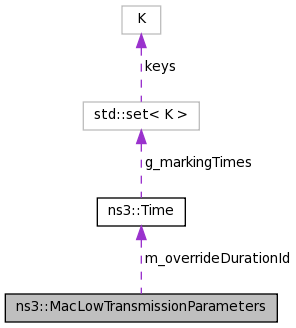

Collaboration diagram for ns3::MacLowTransmissionParameters:

Public Member Functions
	MacLowTransmissionParameters ()

void	DisableAck (void)
	Do not wait for Ack after data transmission. More...

void	DisableNextData (void)
	Do not attempt to send data burst after current transmission. More...

void	DisableOverrideDurationId (void)
	Do not force the duration/id field of the packet: its value is automatically calculated by the MacLow before calling WifiPhy::Send. More...

void	DisableRts (void)
	Do not send rts and wait for cts before sending data. More...

void	EnableAck (void)
	Wait ACKTimeout for an ACK. More...

void	EnableBasicBlockAck (void)
	Wait BASICBLOCKACKTimeout for a Basic Block Ack Response frame. More...

void	EnableCompressedBlockAck (void)
	Wait COMPRESSEDBLOCKACKTimeout for a Compressed Block Ack Response frame. More...

void	EnableFastAck (void)

void	EnableMultiTidBlockAck (void)
	NOT IMPLEMENTED FOR NOW. More...

void	EnableNextData (uint32_t size)

void	EnableOverrideDurationId (Time durationId)

void	EnableRts (void)
	Send a RTS, and wait CTSTimeout for a CTS. More...

void	EnableSuperFastAck (void)

Time	GetDurationId (void) const

uint32_t	GetNextPacketSize (void) const

bool	HasDurationId (void) const

bool	HasNextPacket (void) const

bool	MustSendRts (void) const

bool	MustWaitAck (void) const

bool	MustWaitBasicBlockAck (void) const

bool	MustWaitCompressedBlockAck (void) const

bool	MustWaitFastAck (void) const

bool	MustWaitMultiTidBlockAck (void) const

bool	MustWaitNormalAck (void) const

bool	MustWaitSuperFastAck (void) const

Private Types
enum	{ ACK_NONE, ACK_NORMAL, ACK_FAST, ACK_SUPER_FAST, BLOCK_ACK_BASIC, BLOCK_ACK_COMPRESSED, BLOCK_ACK_MULTI_TID }

Private Attributes
uint32_t	m_nextSize

Time	m_overrideDurationId

bool	m_sendRts

enum ns3::MacLowTransmissionParameters:: { ... }	m_waitAck

Friends
std::ostream &	operator<< (std::ostream &os, const MacLowTransmissionParameters &params)
	Serialize MacLowTransmissionParameters to ostream in a human-readable form. More...

Detailed Description

control how a packet is transmitted.

The ns3::MacLow::StartTransmission method expects an instance of this class to describe how the packet should be transmitted.

Definition at line 218 of file mac-low.h.

Member Enumeration Documentation

anonymous enum

private

Enumerator
ACK_NONE
ACK_NORMAL
ACK_FAST
ACK_SUPER_FAST
BLOCK_ACK_BASIC
BLOCK_ACK_COMPRESSED
BLOCK_ACK_MULTI_TID

Definition at line 383 of file mac-low.h.

Constructor & Destructor Documentation

ns3::MacLowTransmissionParameters::MacLowTransmissionParameters ( )

Definition at line 75 of file mac-low.cc.

Member Function Documentation

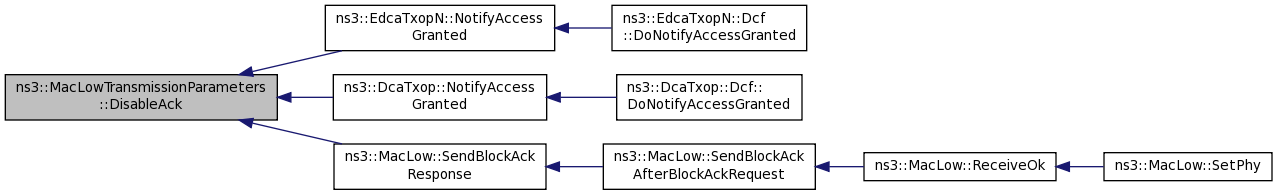

void ns3::MacLowTransmissionParameters::DisableAck ( void )

Do not wait for Ack after data transmission.

Typically used for Broadcast and multicast frames.

Definition at line 133 of file mac-low.cc.

References ACK_NONE, and m_waitAck.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), and ns3::MacLow::SendBlockAckResponse().

Here is the caller graph for this function:

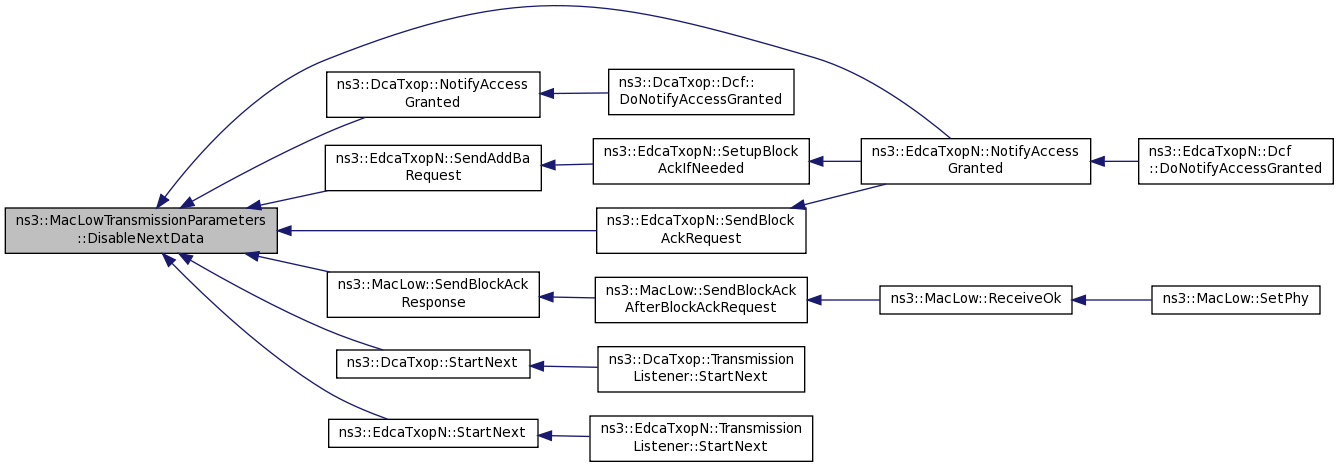

void ns3::MacLowTransmissionParameters::DisableNextData ( void )

Do not attempt to send data burst after current transmission.

Definition at line 88 of file mac-low.cc.

References m_nextSize.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::DcaTxop::StartNext(), and ns3::EdcaTxopN::StartNext().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::DisableOverrideDurationId ( void )

Do not force the duration/id field of the packet: its value is automatically calculated by the MacLow before calling WifiPhy::Send.

Definition at line 98 of file mac-low.cc.

References m_overrideDurationId.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::DcaTxop::StartNext(), and ns3::EdcaTxopN::StartNext().

Here is the caller graph for this function:

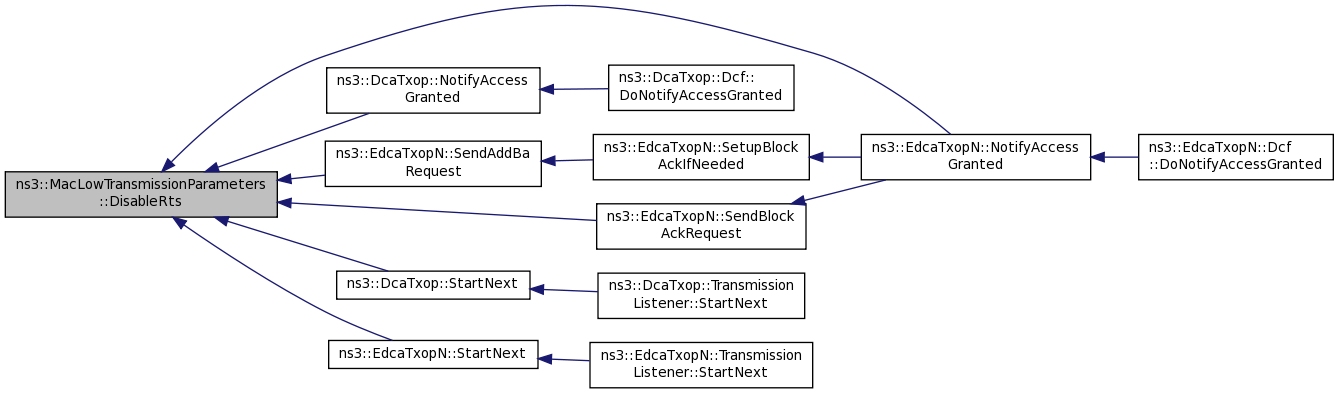

void ns3::MacLowTransmissionParameters::DisableRts ( void )

Do not send rts and wait for cts before sending data.

Definition at line 143 of file mac-low.cc.

References m_sendRts.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::DcaTxop::StartNext(), and ns3::EdcaTxopN::StartNext().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableAck ( void )

Wait ACKTimeout for an ACK.

If we get an ACK on time, call MacLowTransmissionListener::GotAck. Call MacLowTransmissionListener::MissedAck otherwise.

Definition at line 128 of file mac-low.cc.

References ACK_NORMAL, and m_waitAck.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::EdcaTxopN::SendAddBaRequest(), ns3::EdcaTxopN::SendBlockAckRequest(), ns3::MacLow::SendBlockAckResponse(), ns3::DcaTxop::StartNext(), and ns3::EdcaTxopN::StartNext().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableBasicBlockAck ( void )

Wait BASICBLOCKACKTimeout for a Basic Block Ack Response frame.

Definition at line 108 of file mac-low.cc.

References BLOCK_ACK_BASIC, and m_waitAck.

Referenced by ns3::EdcaTxopN::SendBlockAckRequest().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableCompressedBlockAck ( void )

Wait COMPRESSEDBLOCKACKTimeout for a Compressed Block Ack Response frame.

Definition at line 113 of file mac-low.cc.

References BLOCK_ACK_COMPRESSED, and m_waitAck.

Referenced by ns3::EdcaTxopN::SendBlockAckRequest().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableFastAck ( void )

wait PIFS after end-of-tx. If idle, call MacLowTransmissionListener::MissedAck.
if busy at end-of-tx+PIFS, wait end-of-rx
if Ack ok at end-of-rx, call MacLowTransmissionListener::GotAck.
if Ack not ok at end-of-rx, report call MacLowTransmissionListener::MissedAck at end-of-rx+SIFS.

This is really complicated but it is needed for proper HCCA support.

Definition at line 123 of file mac-low.cc.

References ACK_FAST, and m_waitAck.

void ns3::MacLowTransmissionParameters::EnableMultiTidBlockAck ( void )

NOT IMPLEMENTED FOR NOW.

Definition at line 118 of file mac-low.cc.

References BLOCK_ACK_MULTI_TID, and m_waitAck.

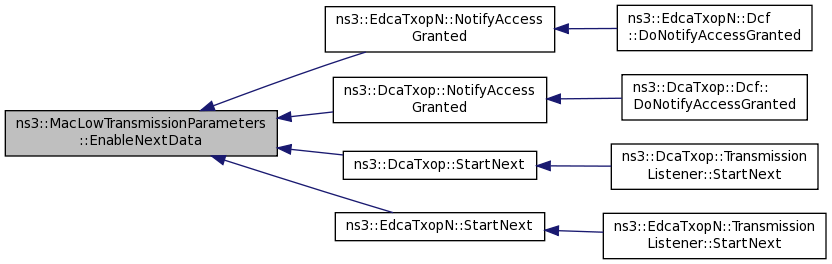

void ns3::MacLowTransmissionParameters::EnableNextData ( uint32_t size )

Parameters

size	size of next data to send after current packet is sent.

Add the transmission duration of the next data to the durationId of the outgoing packet and call MacLowTransmissionListener::StartNext at the end of the current transmission + SIFS.

Definition at line 83 of file mac-low.cc.

References m_nextSize.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), ns3::DcaTxop::NotifyAccessGranted(), ns3::DcaTxop::StartNext(), and ns3::EdcaTxopN::StartNext().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableOverrideDurationId ( Time durationId )

Parameters

durationId the value to set in the duration/Id field of the outgoing packet.

Ignore all other durationId calculation and simply force the packet's durationId field to this value.

Definition at line 93 of file mac-low.cc.

References m_overrideDurationId.

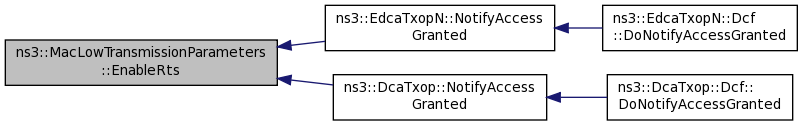

void ns3::MacLowTransmissionParameters::EnableRts ( void )

Send a RTS, and wait CTSTimeout for a CTS.

If we get a CTS on time, call MacLowTransmissionListener::GotCts and send data. Otherwise, call MacLowTransmissionListener::MissedCts and do not send data.

Definition at line 138 of file mac-low.cc.

References m_sendRts.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted(), and ns3::DcaTxop::NotifyAccessGranted().

Here is the caller graph for this function:

void ns3::MacLowTransmissionParameters::EnableSuperFastAck ( void )

if busy at end-of-tx+PIFS, call MacLowTransmissionListener::GotAck
if idle at end-of-tx+PIFS, call MacLowTransmissionListener::MissedAck

Definition at line 103 of file mac-low.cc.

References ACK_SUPER_FAST, and m_waitAck.

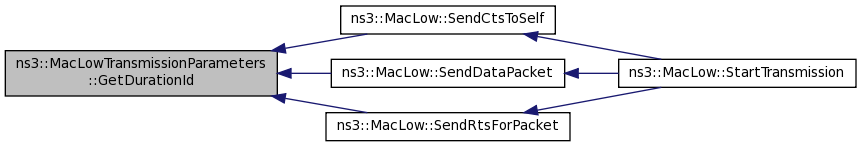

Time ns3::MacLowTransmissionParameters::GetDurationId ( void ) const

Returns: the duration/id forced by EnableOverrideDurationId

Definition at line 193 of file mac-low.cc.

References m_overrideDurationId, and NS_ASSERT.

Referenced by ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

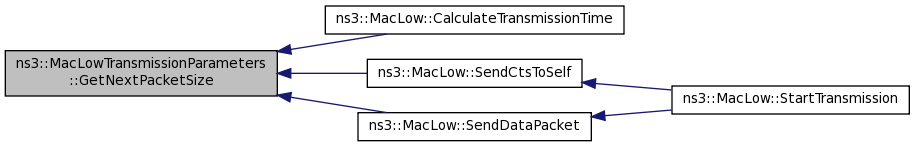

uint32_t ns3::MacLowTransmissionParameters::GetNextPacketSize ( void ) const

Returns: the size specified by EnableNextData.

Definition at line 204 of file mac-low.cc.

References HasNextPacket(), m_nextSize, and NS_ASSERT.

Referenced by ns3::MacLow::CalculateTransmissionTime(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendDataPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::MacLowTransmissionParameters::HasDurationId ( void ) const

Returns: true if a duration/id was forced with EnableOverrideDurationId, false otherwise.

Definition at line 188 of file mac-low.cc.

References m_overrideDurationId.

Referenced by ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::SendRtsForPacket().

Here is the caller graph for this function:

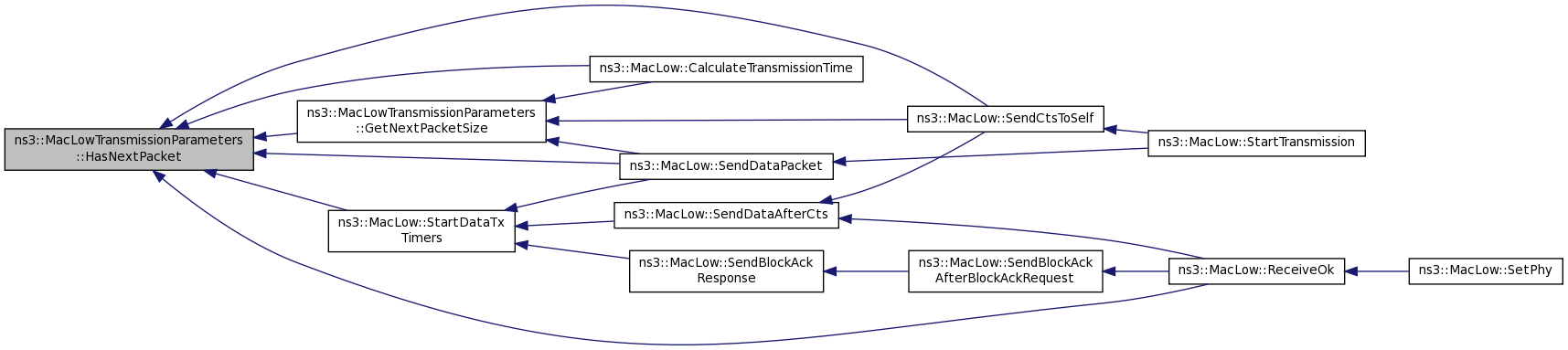

bool ns3::MacLowTransmissionParameters::HasNextPacket ( void ) const

Returns: true if EnableNextData was called, false otherwise.

Definition at line 199 of file mac-low.cc.

References m_nextSize.

Referenced by ns3::MacLow::CalculateTransmissionTime(), GetNextPacketSize(), ns3::MacLow::ReceiveOk(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

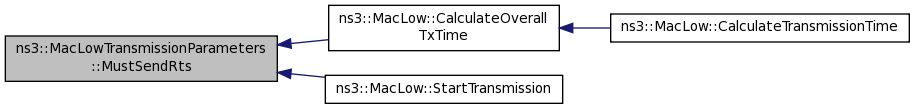

bool ns3::MacLowTransmissionParameters::MustSendRts ( void ) const

Returns: true if RTS should be sent and CTS waited for before sending data, false otherwise.

Definition at line 183 of file mac-low.cc.

References m_sendRts.

Referenced by ns3::MacLow::CalculateOverallTxTime(), and ns3::MacLow::StartTransmission().

Here is the caller graph for this function:

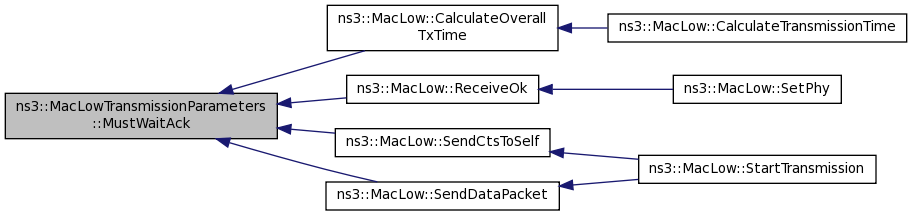

bool ns3::MacLowTransmissionParameters::MustWaitAck ( void ) const

Returns: true if must wait for ACK after data transmission, false otherwise.

This methods returns true when any of MustWaitNormalAck, MustWaitFastAck, or MustWaitSuperFastAck return true.

Definition at line 148 of file mac-low.cc.

References ACK_NONE, and m_waitAck.

Referenced by ns3::MacLow::CalculateOverallTxTime(), ns3::MacLow::ReceiveOk(), ns3::MacLow::SendCtsToSelf(), and ns3::MacLow::SendDataPacket().

Here is the caller graph for this function:

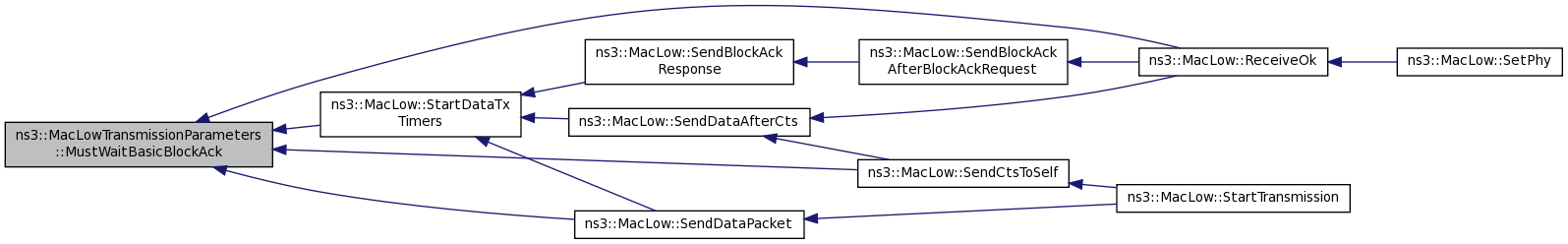

bool ns3::MacLowTransmissionParameters::MustWaitBasicBlockAck ( void ) const

Returns: true if block ack mechanism is used, false otherwise.

See also: EnableBlockAck

Definition at line 168 of file mac-low.cc.

References BLOCK_ACK_BASIC, and m_waitAck.

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

bool ns3::MacLowTransmissionParameters::MustWaitCompressedBlockAck ( void ) const

Returns: true if compressed block ack mechanism is used, false otherwise.

See also: EnableCompressedBlockAck

Definition at line 173 of file mac-low.cc.

References BLOCK_ACK_COMPRESSED, and m_waitAck.

Referenced by ns3::MacLow::ReceiveOk(), ns3::MacLow::SendCtsToSelf(), ns3::MacLow::SendDataPacket(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

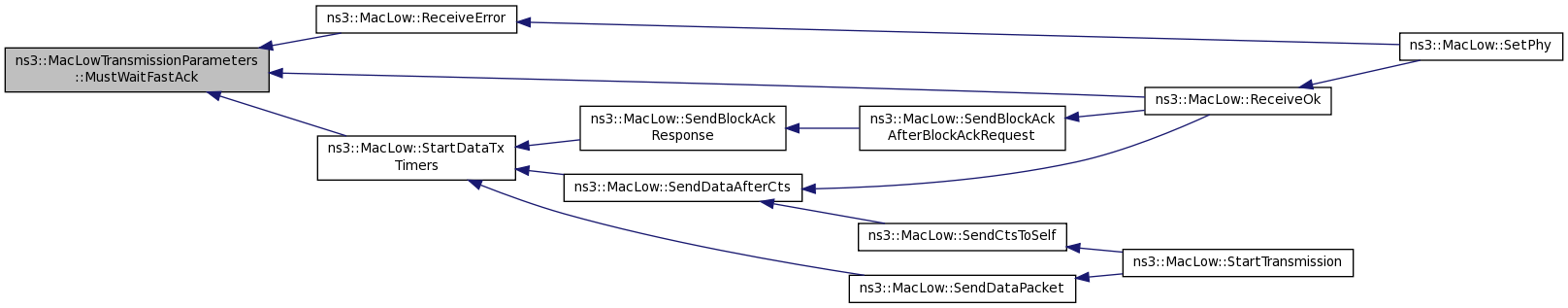

bool ns3::MacLowTransmissionParameters::MustWaitFastAck ( void ) const

Returns: true if fast ack protocol should be used, false otherwise.

See also: EnableFastAck

Definition at line 158 of file mac-low.cc.

References ACK_FAST, and m_waitAck.

Referenced by ns3::MacLow::ReceiveError(), ns3::MacLow::ReceiveOk(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

bool ns3::MacLowTransmissionParameters::MustWaitMultiTidBlockAck ( void ) const

Returns: true if multi-tid block ack mechanism is used, false otherwise.

See also: EnableMultiTidBlockAck

Definition at line 178 of file mac-low.cc.

References BLOCK_ACK_MULTI_TID, and m_waitAck.

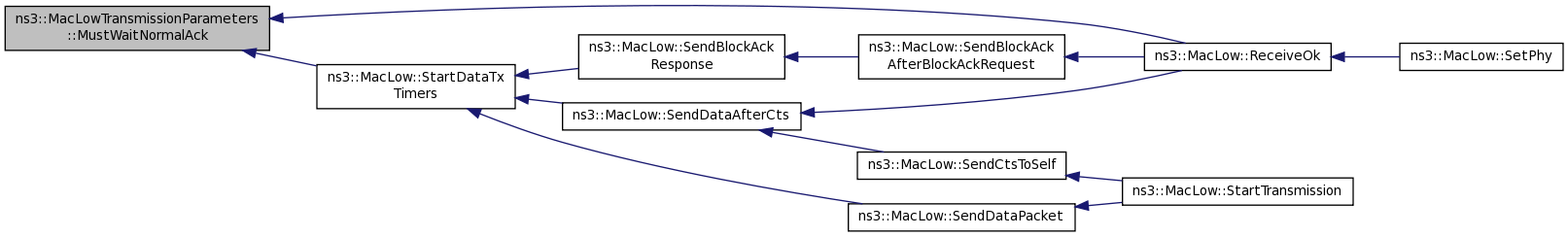

bool ns3::MacLowTransmissionParameters::MustWaitNormalAck ( void ) const

Returns: true if normal ACK protocol should be used, false otherwise.

See also: EnableAck

Definition at line 153 of file mac-low.cc.

References ACK_NORMAL, and m_waitAck.

Referenced by ns3::MacLow::ReceiveOk(), and ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

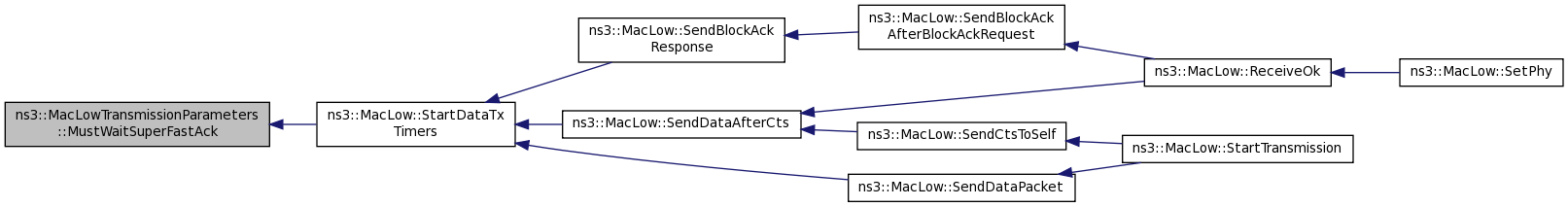

bool ns3::MacLowTransmissionParameters::MustWaitSuperFastAck ( void ) const

Returns: true if super fast ack protocol should be used, false otherwise.

See also: EnableSuperFastAck

Definition at line 163 of file mac-low.cc.

References ACK_SUPER_FAST, and m_waitAck.

Referenced by ns3::MacLow::StartDataTxTimers().

Here is the caller graph for this function:

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		const MacLowTransmissionParameters &	params
	)

friend

Serialize MacLowTransmissionParameters to ostream in a human-readable form.

Parameters

os	std::ostream
params	MacLowTransmissionParameters

Returns: std::ostream

Definition at line 210 of file mac-low.cc.

Member Data Documentation

uint32_t ns3::MacLowTransmissionParameters::m_nextSize

private

Definition at line 382 of file mac-low.h.

Referenced by DisableNextData(), EnableNextData(), GetNextPacketSize(), HasNextPacket(), and ns3::operator<<().

Time ns3::MacLowTransmissionParameters::m_overrideDurationId

private

Definition at line 394 of file mac-low.h.

Referenced by DisableOverrideDurationId(), EnableOverrideDurationId(), GetDurationId(), HasDurationId(), and ns3::operator<<().

bool ns3::MacLowTransmissionParameters::m_sendRts

private

Definition at line 393 of file mac-low.h.

Referenced by DisableRts(), EnableRts(), MustSendRts(), and ns3::operator<<().

enum { ... } ns3::MacLowTransmissionParameters::m_waitAck

Referenced by DisableAck(), EnableAck(), EnableBasicBlockAck(), EnableCompressedBlockAck(), EnableFastAck(), EnableMultiTidBlockAck(), EnableSuperFastAck(), MustWaitAck(), MustWaitBasicBlockAck(), MustWaitCompressedBlockAck(), MustWaitFastAck(), MustWaitMultiTidBlockAck(), MustWaitNormalAck(), MustWaitSuperFastAck(), and ns3::operator<<().

The documentation for this class was generated from the following files:

src/wifi/model/mac-low.h
src/wifi/model/mac-low.cc

Public Member Functions

Private Types

Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
