ns3::MemberLteEnbRrcSapProvider< C > Class Template Reference

Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include <lte-rrc-sap.h>

Inheritance diagram for ns3::MemberLteEnbRrcSapProvider< C >:

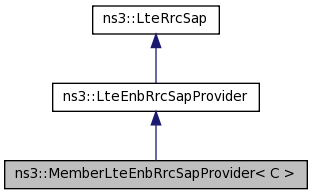

Collaboration diagram for ns3::MemberLteEnbRrcSapProvider< C >:

Public Member Functions
	MemberLteEnbRrcSapProvider (C *owner)
virtual void	CompleteSetupUe (uint16_t rnti, CompleteSetupUeParameters params)
virtual void	RecvMeasurementReport (uint16_t rnti, MeasurementReport msg)
	Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...
virtual void	RecvRrcConnectionReconfigurationCompleted (uint16_t rnti, RrcConnectionReconfigurationCompleted msg)
	Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...
virtual void	RecvRrcConnectionReestablishmentComplete (uint16_t rnti, RrcConnectionReestablishmentComplete msg)
	Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...
virtual void	RecvRrcConnectionReestablishmentRequest (uint16_t rnti, RrcConnectionReestablishmentRequest msg)
	Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...
virtual void	RecvRrcConnectionRequest (uint16_t rnti, RrcConnectionRequest msg)
	Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...
virtual void	RecvRrcConnectionSetupCompleted (uint16_t rnti, RrcConnectionSetupCompleted msg)
	Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...
Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteEnbRrcSapProvider ()

Private Attributes
C *	m_owner

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE, HANDOVER_FAILURE, OTHER_FAILURE }
Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 255

Detailed Description

template<class C>
class ns3::MemberLteEnbRrcSapProvider< C >

Template for the implementation of the LteEnbRrcSapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1242 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider

(

C *

owner

)

Definition at line 1263 of file lte-rrc-sap.h.

template<class C >

ns3::MemberLteEnbRrcSapProvider< C >::MemberLteEnbRrcSapProvider ( )

private

Definition at line 1269 of file lte-rrc-sap.h.

Member Function Documentation

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::CompleteSetupUe ( uint16_t  rnti, CompleteSetupUeParameters  params  )

virtual

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1275 of file lte-rrc-sap.h.

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvMeasurementReport ( uint16_t  rnti, MeasurementReport  msg  )

virtual

Receive a MeasurementReport message from a UE during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1317 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReconfigurationCompleted ( uint16_t  rnti, RrcConnectionReconfigurationCompleted  msg  )

virtual

Receive an RRCConnectionReconfigurationComplete message from a UE during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1296 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

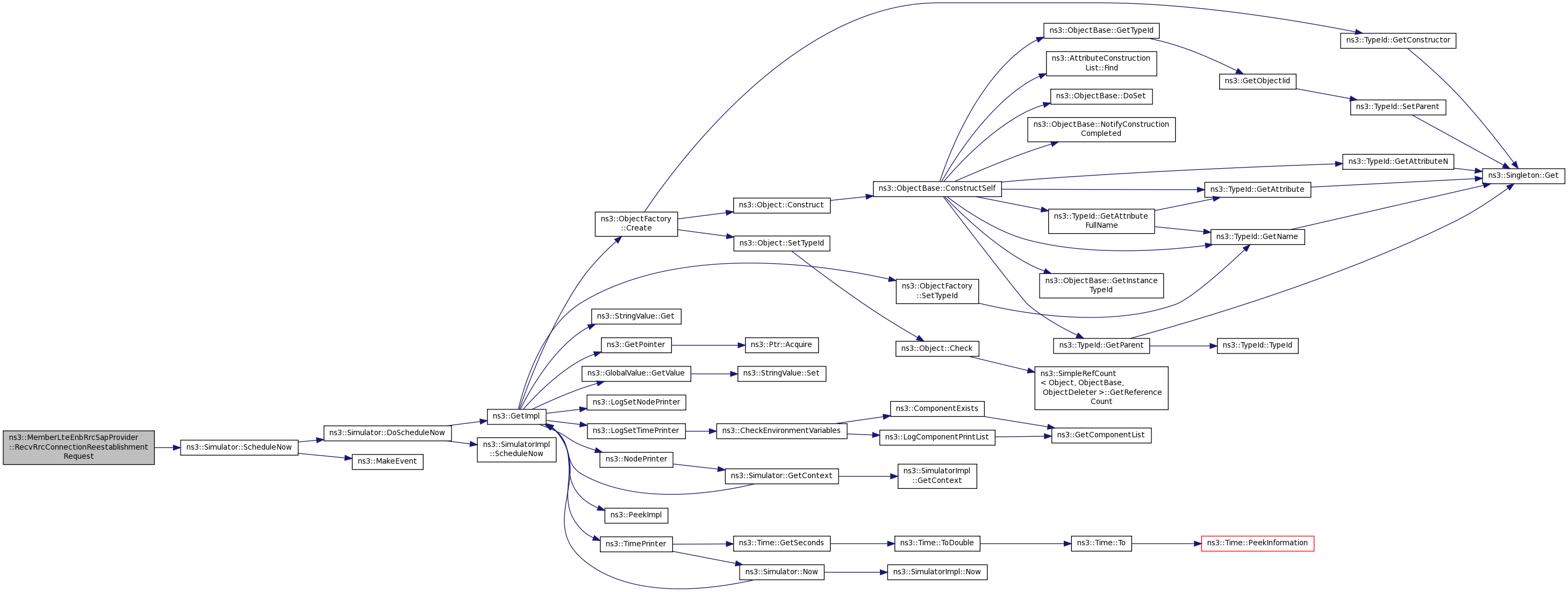

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentComplete ( uint16_t  rnti, RrcConnectionReestablishmentComplete  msg  )

virtual

Receive an RRCConnectionReestablishmentComplete message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1310 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionReestablishmentRequest ( uint16_t  rnti, RrcConnectionReestablishmentRequest  msg  )

virtual

Receive an RRCConnectionReestablishmentRequest message from a UE during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1303 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionRequest ( uint16_t  rnti, RrcConnectionRequest  msg  )

virtual

Receive an RRCConnectionRequest message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1282 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

template<class C >

void ns3::MemberLteEnbRrcSapProvider< C >::RecvRrcConnectionSetupCompleted ( uint16_t  rnti, RrcConnectionSetupCompleted  msg  )

virtual

Receive an RRCConnectionSetupComplete message from a UE during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

rnti	the RNTI of UE which sent the message
msg	the message

Implements ns3::LteEnbRrcSapProvider.

Definition at line 1289 of file lte-rrc-sap.h.

References ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

Member Data Documentation

template<class C>

C* ns3::MemberLteEnbRrcSapProvider< C >::m_owner

private

Definition at line 1259 of file lte-rrc-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rrc-sap.h
