the organization identifier is a public organizationally unique identifier assigned by the IEEE. More...
#include <vendor-specific-action.h>
Public Types | |
enum | OrganizationIdentifierType { OUI24 = 3, OUI36 = 5, Unknown = 0 } |
Public Member Functions | |
OrganizationIdentifier (void) | |
OrganizationIdentifier (const uint8_t *str, uint32_t length) | |
virtual | ~OrganizationIdentifier (void) |
uint32_t | Deserialize (Buffer::Iterator start) |
uint8_t | GetManagementId (void) const |
uint32_t | GetSerializedSize (void) const |
enum OrganizationIdentifierType | GetType () const |
bool | IsNull (void) const |
OrganizationIdentifier & | operator= (const OrganizationIdentifier &oi) |
void | Serialize (Buffer::Iterator start) const |
void | SetType (enum OrganizationIdentifierType type) |
Private Attributes | |
uint8_t | m_oi [5] |
enum OrganizationIdentifierType | m_type |
Friends | |
bool | operator!= (const OrganizationIdentifier &a, const OrganizationIdentifier &b) |
bool | operator< (const OrganizationIdentifier &a, const OrganizationIdentifier &b) |
std::ostream & | operator<< (std::ostream &os, const OrganizationIdentifier &oi) |
bool | operator== (const OrganizationIdentifier &a, const OrganizationIdentifier &b) |
std::istream & | operator>> (std::istream &is, const OrganizationIdentifier &oi) |
the organization identifier is a public organizationally unique identifier assigned by the IEEE.
Similar to protocol field of data packets that indicates which entity of higher layer should handle received packets, Organization Identifier field is used in Vendor Specific Action frames to indicate which entity or higher layer should handle vendor specific content. Normally the value is assigned by IEEE and the length of field is either 24 bits or 36 bits. For more, see IEEE802.11p-2010 section 7.3.1.31 and 7.4.5
Definition at line 49 of file vendor-specific-action.h.
Enumerator | |
---|---|
OUI24 | |
OUI36 | |
Unknown |
Definition at line 57 of file vendor-specific-action.h.
ns3::OrganizationIdentifier::OrganizationIdentifier | ( | void | ) |
Definition at line 34 of file vendor-specific-action.cc.
References m_oi, m_type, NS_LOG_FUNCTION, and Unknown.
ns3::OrganizationIdentifier::OrganizationIdentifier | ( | const uint8_t * | str, |
uint32_t | length | ||
) |
Definition at line 42 of file vendor-specific-action.cc.
References m_oi, m_type, NS_FATAL_ERROR, NS_LOG_FUNCTION, OUI24, OUI36, and Unknown.
|
virtual |
Definition at line 70 of file vendor-specific-action.cc.
References NS_LOG_FUNCTION.
uint32_t ns3::OrganizationIdentifier::Deserialize | ( | Buffer::Iterator | start | ) |
Definition at line 133 of file vendor-specific-action.cc.
References m_oi, m_type, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::OrganizationIdentifiers, OUI24, OUI36, and ns3::Buffer::Iterator::Read().
Referenced by ns3::VendorSpecificActionHeader::Deserialize().
uint8_t ns3::OrganizationIdentifier::GetManagementId | ( | void | ) | const |
Definition at line 76 of file vendor-specific-action.cc.
References m_oi, m_type, NS_ASSERT, NS_LOG_FUNCTION, and OUI36.

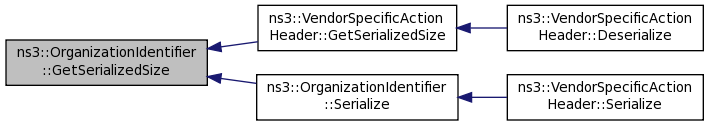

uint32_t ns3::OrganizationIdentifier::GetSerializedSize | ( | void | ) | const |
Definition at line 91 of file vendor-specific-action.cc.
References m_type, NS_FATAL_ERROR_NO_MSG, NS_LOG_FUNCTION, OUI24, OUI36, and Unknown.
Referenced by ns3::VendorSpecificActionHeader::GetSerializedSize(), and Serialize().
enum OrganizationIdentifier::OrganizationIdentifierType ns3::OrganizationIdentifier::GetType | ( | void | ) | const |
Definition at line 115 of file vendor-specific-action.cc.
References m_type, and NS_LOG_FUNCTION.
bool ns3::OrganizationIdentifier::IsNull | ( | void | ) | const |
Definition at line 84 of file vendor-specific-action.cc.
References m_type, NS_LOG_FUNCTION, and Unknown.
OrganizationIdentifier & ns3::OrganizationIdentifier::operator= | ( | const OrganizationIdentifier & | oi | ) |
Definition at line 63 of file vendor-specific-action.cc.

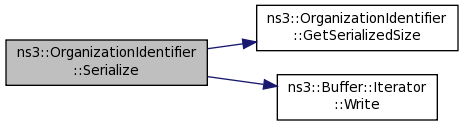

void ns3::OrganizationIdentifier::Serialize | ( | Buffer::Iterator | start | ) | const |
Definition at line 122 of file vendor-specific-action.cc.
References GetSerializedSize(), m_oi, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::Write().
Referenced by ns3::VendorSpecificActionHeader::Serialize().
void ns3::OrganizationIdentifier::SetType | ( | enum OrganizationIdentifierType | type | ) |
Definition at line 108 of file vendor-specific-action.cc.
References m_type, and NS_LOG_FUNCTION.
|
friend |
Definition at line 191 of file vendor-specific-action.cc.
|
friend |
Definition at line 196 of file vendor-specific-action.cc.
|
friend |
Definition at line 201 of file vendor-specific-action.cc.
|
friend |
Definition at line 170 of file vendor-specific-action.cc.
|
friend |
Definition at line 211 of file vendor-specific-action.cc.
|
private |
Definition at line 89 of file vendor-specific-action.h.
Referenced by Deserialize(), GetManagementId(), ns3::operator<(), ns3::operator<<(), operator=(), ns3::operator==(), OrganizationIdentifier(), and Serialize().
|
private |
Definition at line 88 of file vendor-specific-action.h.
Referenced by Deserialize(), GetManagementId(), GetSerializedSize(), GetType(), IsNull(), ns3::operator<(), ns3::operator<<(), operator=(), ns3::operator==(), OrganizationIdentifier(), and SetType().
