A packet or message TLV. More...

#include <packetbb.h>

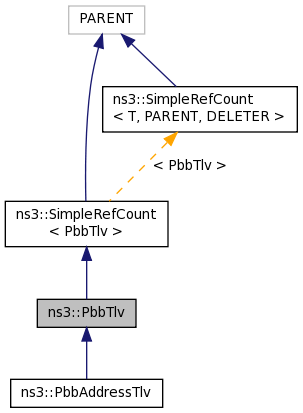

Inheritance diagram for ns3::PbbTlv:

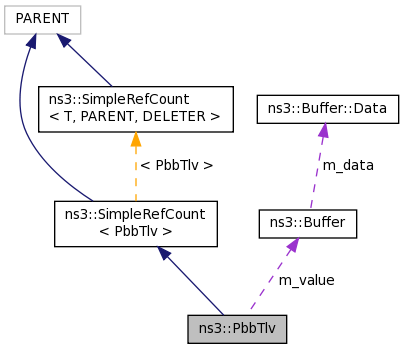

Collaboration diagram for ns3::PbbTlv:

Public Member Functions
	PbbTlv (void)

virtual	~PbbTlv (void)

void	Deserialize (Buffer::Iterator &start)
	Deserializes a TLV from the specified buffer. More...

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const

uint8_t	GetTypeExt (void) const

Buffer	GetValue (void) const

bool	HasTypeExt (void) const
	Tests whether or not this TLV has a type extension. More...

bool	HasValue (void) const
	Tests whether or not this TLV has a value. More...

bool	operator!= (const PbbTlv &other) const
	Inequality operator for PbbTlv. More...

bool	operator== (const PbbTlv &other) const
	Equality operator for PbbTlv. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this TLV. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this TLV, with specified indentation. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this TLV into the specified buffer. More...

void	SetType (uint8_t type)
	Sets the type of this TLV. More...

void	SetTypeExt (uint8_t type)
	Sets the type extension of this TLV. More...

void	SetValue (Buffer start)
	Sets the value of this message to the specified buffer. More...

void	SetValue (const uint8_t *buffer, uint32_t size)
	Sets the value of this message to a buffer with the specified data. More...

Public Member Functions inherited from ns3::SimpleRefCount< PbbTlv >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Protected Member Functions
uint8_t	GetIndexStart (void) const

uint8_t	GetIndexStop (void) const

bool	HasIndexStart (void) const

bool	HasIndexStop (void) const

bool	IsMultivalue (void) const

void	SetIndexStart (uint8_t index)

void	SetIndexStop (uint8_t index)

void	SetMultivalue (bool isMultivalue)

Private Attributes
bool	m_hasIndexStart

bool	m_hasIndexStop

bool	m_hasTypeExt

bool	m_hasValue

uint8_t	m_indexStart

uint8_t	m_indexStop

bool	m_isMultivalue

uint8_t	m_type

uint8_t	m_typeExt

Buffer	m_value

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< PbbTlv >
static void	Cleanup (void)
	Noop. More...

Detailed Description

A packet or message TLV.

Definition at line 1587 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbTlv::PbbTlv ( void )

Definition at line 2648 of file packetbb.cc.

References m_hasIndexStart, m_hasIndexStop, m_hasTypeExt, m_hasValue, m_isMultivalue, and NS_LOG_FUNCTION.

ns3::PbbTlv::~PbbTlv ( void )

virtual

Definition at line 2658 of file packetbb.cc.

References ns3::Buffer::GetSize(), m_value, NS_LOG_FUNCTION, and ns3::Buffer::RemoveAtEnd().

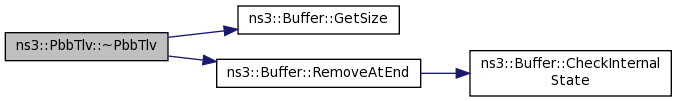

Here is the call graph for this function:

Member Function Documentation

void ns3::PbbTlv::Deserialize ( Buffer::Iterator & start )

Deserializes a TLV from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. TLVs will be deserialized by their containing blocks.

Definition at line 2889 of file packetbb.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), m_hasValue, m_value, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), SetIndexStart(), SetIndexStop(), SetType(), SetTypeExt(), visualizer.core::start(), THAS_EXT_LEN, THAS_MULTI_INDEX, THAS_SINGLE_INDEX, THAS_TYPE_EXT, THAS_VALUE, and ns3::Buffer::Iterator::Write().

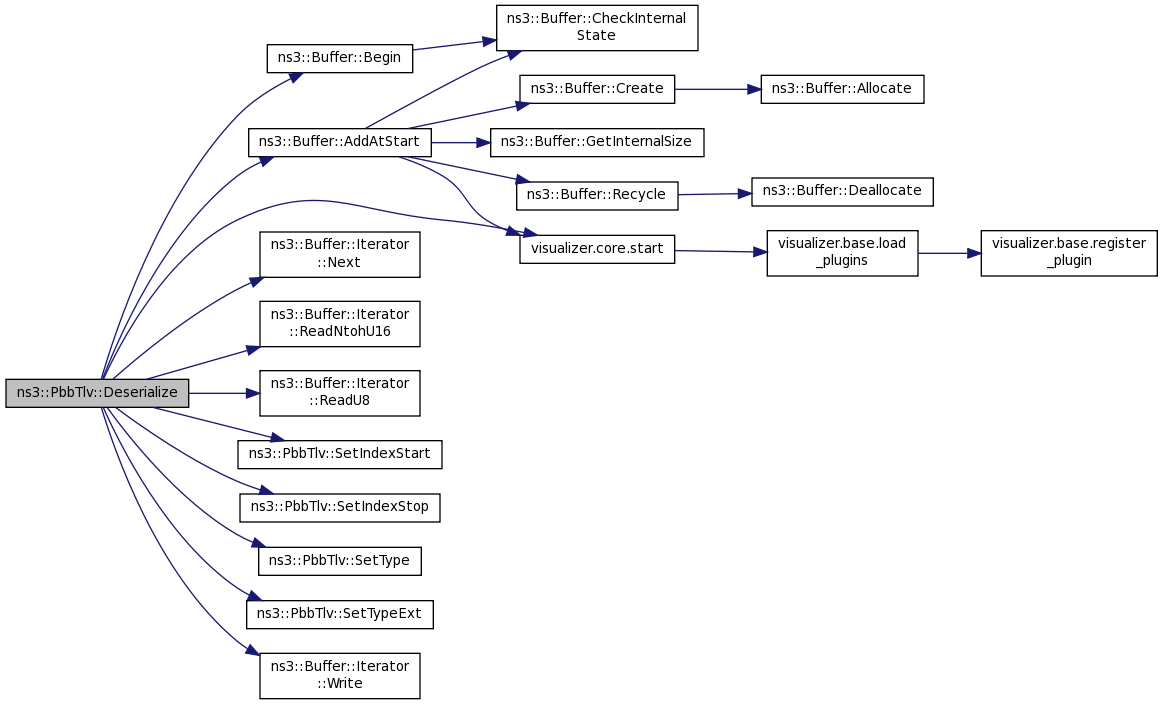

Here is the call graph for this function:

uint8_t ns3::PbbTlv::GetIndexStart ( void ) const

protected

Definition at line 2710 of file packetbb.cc.

References HasIndexStart(), m_indexStart, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::GetIndexStart(), Print(), and Serialize().

Here is the call graph for this function:

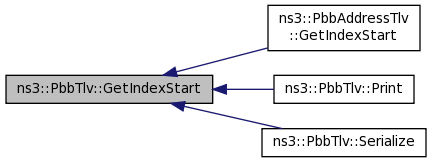

Here is the caller graph for this function:

uint8_t ns3::PbbTlv::GetIndexStop ( void ) const

protected

Definition at line 2733 of file packetbb.cc.

References HasIndexStop(), m_indexStop, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::GetIndexStop(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

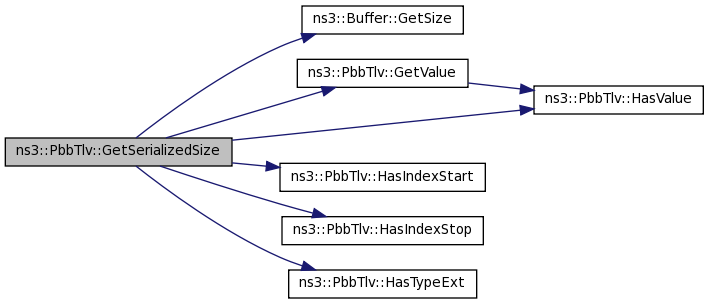

uint32_t ns3::PbbTlv::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this TLV.

Definition at line 2794 of file packetbb.cc.

References ns3::Buffer::GetSize(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::PbbTlv::GetType ( void ) const

Returns: the type of this TLV.

Definition at line 2672 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

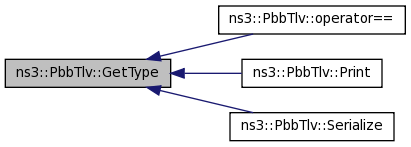

Here is the caller graph for this function:

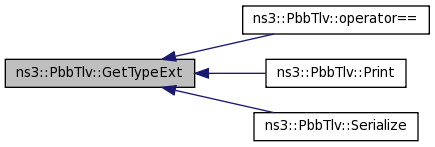

uint8_t ns3::PbbTlv::GetTypeExt ( void ) const

Returns: the type extension for this TLV.

Calling this while HasTypeExt is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 2687 of file packetbb.cc.

References HasTypeExt(), m_typeExt, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

Buffer ns3::PbbTlv::GetValue ( void ) const

Returns: a Buffer pointing to the value of this TLV.

Calling this while HasValue is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 2779 of file packetbb.cc.

References HasValue(), m_value, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the call graph for this function:

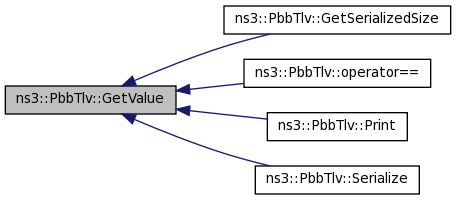

Here is the caller graph for this function:

bool ns3::PbbTlv::HasIndexStart ( void ) const

protected

Definition at line 2718 of file packetbb.cc.

References m_hasIndexStart, and NS_LOG_FUNCTION.

Referenced by GetIndexStart(), GetSerializedSize(), ns3::PbbAddressTlv::HasIndexStart(), Print(), and Serialize().

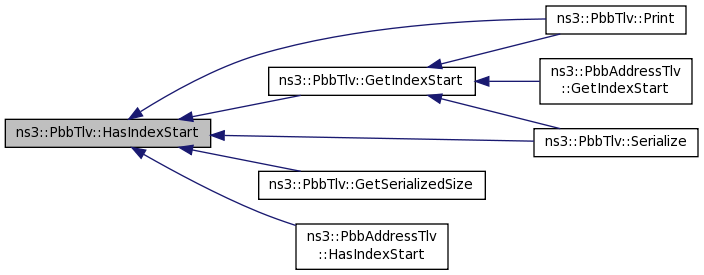

Here is the caller graph for this function:

bool ns3::PbbTlv::HasIndexStop ( void ) const

protected

Definition at line 2741 of file packetbb.cc.

References m_hasIndexStop, and NS_LOG_FUNCTION.

Referenced by GetIndexStop(), GetSerializedSize(), ns3::PbbAddressTlv::HasIndexStop(), Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbTlv::HasTypeExt ( void ) const

Tests whether or not this TLV has a type extension.

Returns: true if this TLV has a type extension, false otherwise.

This should be called before calling GetTypeExt to make sure there actually is one.

Definition at line 2695 of file packetbb.cc.

References m_hasTypeExt, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), GetTypeExt(), operator==(), Print(), and Serialize().

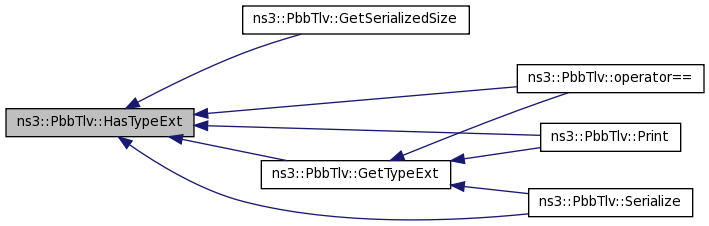

Here is the caller graph for this function:

bool ns3::PbbTlv::HasValue ( void ) const

Tests whether or not this TLV has a value.

Returns: true if this tlv has a TLV, false otherwise.

This should be called before calling GetTypeExt to make sure there actually is one.

Definition at line 2787 of file packetbb.cc.

References m_hasValue, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), GetValue(), operator==(), Print(), and Serialize().

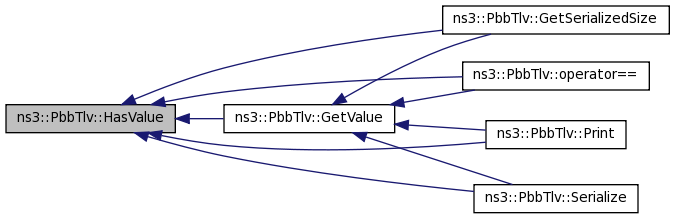

Here is the caller graph for this function:

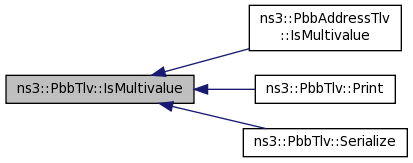

bool ns3::PbbTlv::IsMultivalue ( void ) const

protected

Definition at line 2755 of file packetbb.cc.

References m_isMultivalue, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::IsMultivalue(), Print(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbTlv::operator!= ( const PbbTlv & other ) const

Inequality operator for PbbTlv.

Parameters

other PbbTlv to compare to this one

Returns: true if PbbTlv are not equal

Definition at line 3024 of file packetbb.cc.

bool ns3::PbbTlv::operator== ( const PbbTlv & other ) const

Equality operator for PbbTlv.

Parameters

other PbbTlv to compare to this one

Returns: true if PbbTlv are equal

Definition at line 2979 of file packetbb.cc.

References ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasTypeExt(), HasValue(), and ns3::Buffer::PeekData().

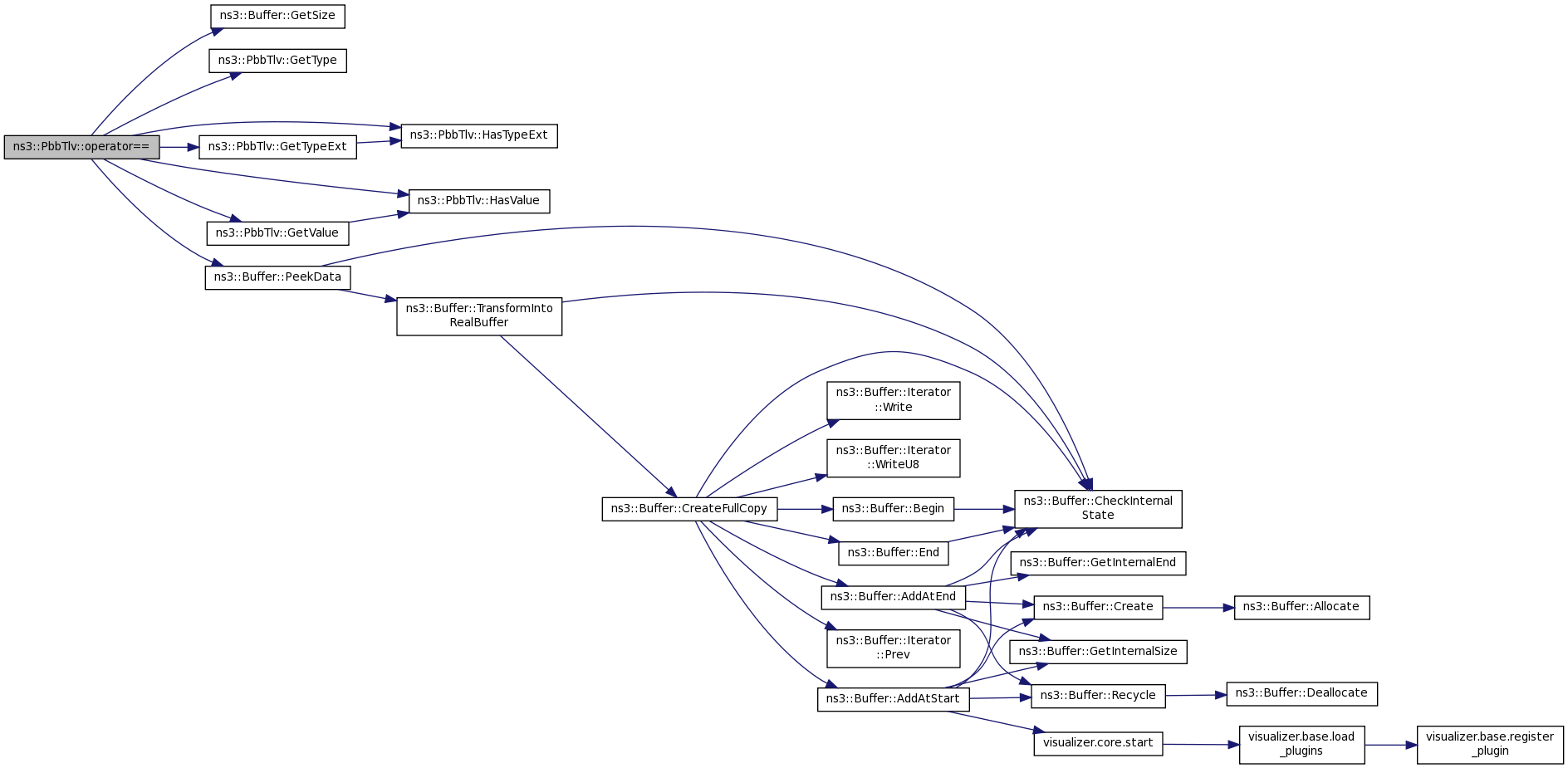

Here is the call graph for this function:

void ns3::PbbTlv::Print ( std::ostream & os ) const

Pretty-prints the contents of this TLV.

Parameters

os	a stream object to print to.

Definition at line 2934 of file packetbb.cc.

References NS_LOG_FUNCTION.

void ns3::PbbTlv::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this TLV, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 2941 of file packetbb.cc.

References GetIndexStart(), GetIndexStop(), ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), IsMultivalue(), and NS_LOG_FUNCTION.

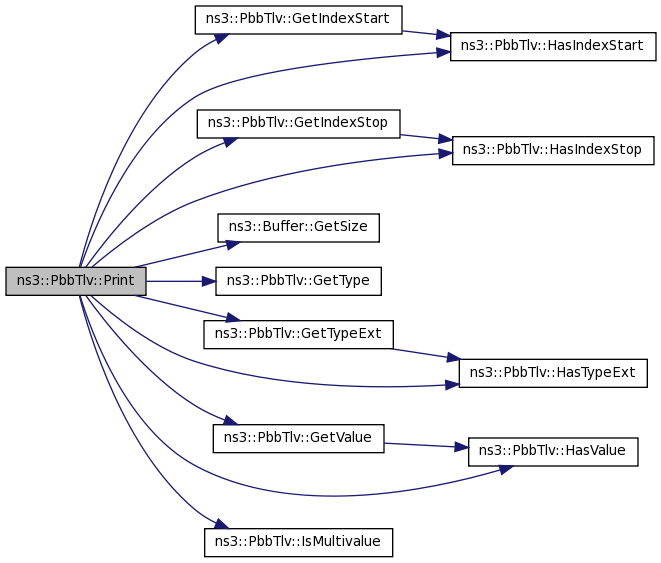

Here is the call graph for this function:

void ns3::PbbTlv::Serialize ( Buffer::Iterator & start ) const

Serializes this TLV into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. TLVs will be serialized by their containing blocks.

Definition at line 2832 of file packetbb.cc.

References GetIndexStart(), GetIndexStop(), ns3::Buffer::GetSize(), GetType(), GetTypeExt(), GetValue(), HasIndexStart(), HasIndexStop(), HasTypeExt(), HasValue(), IsMultivalue(), ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), THAS_EXT_LEN, THAS_MULTI_INDEX, THAS_SINGLE_INDEX, THAS_TYPE_EXT, THAS_VALUE, TIS_MULTIVALUE, ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

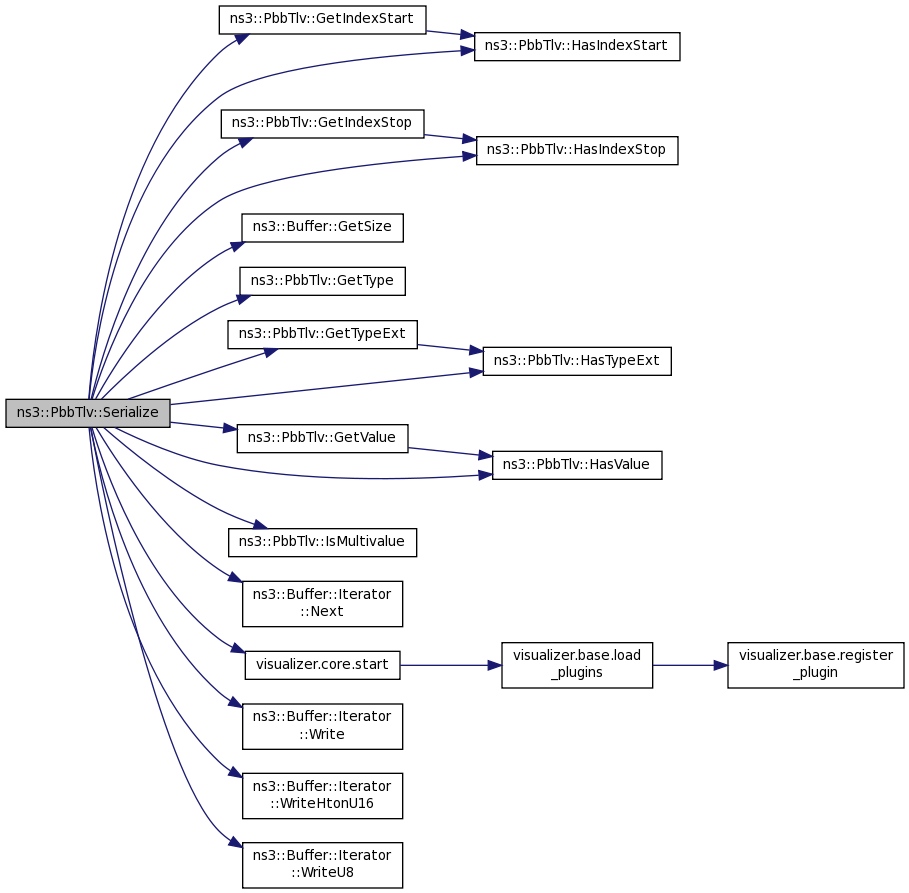

Here is the call graph for this function:

void ns3::PbbTlv::SetIndexStart ( uint8_t index )

protected

Definition at line 2702 of file packetbb.cc.

References m_hasIndexStart, m_indexStart, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::PbbAddressTlv::SetIndexStart().

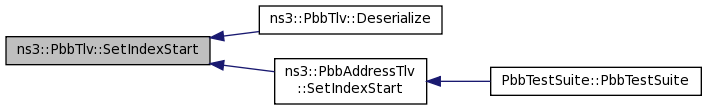

Here is the caller graph for this function:

void ns3::PbbTlv::SetIndexStop ( uint8_t index )

protected

Definition at line 2725 of file packetbb.cc.

References m_hasIndexStop, m_indexStop, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::PbbAddressTlv::SetIndexStop().

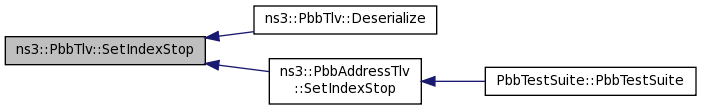

Here is the caller graph for this function:

void ns3::PbbTlv::SetMultivalue ( bool isMultivalue )

protected

Definition at line 2748 of file packetbb.cc.

References m_isMultivalue, and NS_LOG_FUNCTION.

Referenced by ns3::PbbAddressTlv::SetMultivalue().

Here is the caller graph for this function:

void ns3::PbbTlv::SetType ( uint8_t type )

Sets the type of this TLV.

Parameters

type	the type value to set.

Definition at line 2665 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbTlv::SetTypeExt ( uint8_t type )

Sets the type extension of this TLV.

Parameters

type	the type extension value to set.

The type extension is like a sub-type used to further distinguish between TLVs of the same type.

Definition at line 2679 of file packetbb.cc.

References m_hasTypeExt, m_typeExt, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

Here is the caller graph for this function:

void ns3::PbbTlv::SetValue ( Buffer start )

Sets the value of this message to the specified buffer.

Parameters

start a buffer instance.

The buffer is not copied until this TLV is serialized. You should not change the contents of the buffer you pass in to this function.

Definition at line 2762 of file packetbb.cc.

References m_hasValue, m_value, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by PbbTestSuite::PbbTestSuite().

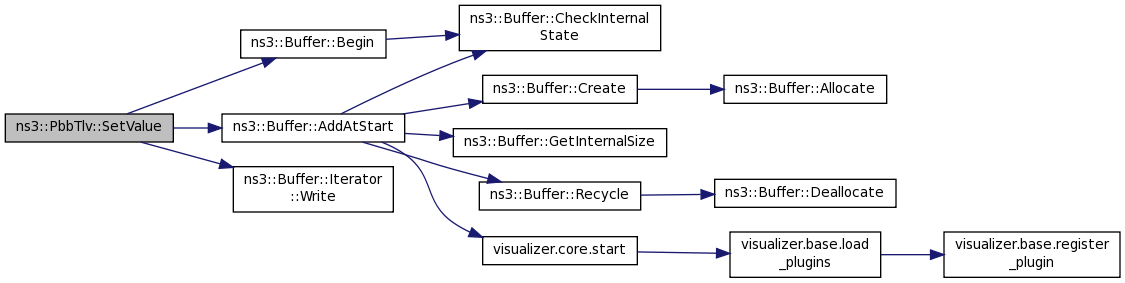

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PbbTlv::SetValue	(	const uint8_t *	buffer,
		uint32_t	size
	)

Sets the value of this message to a buffer with the specified data.

Parameters

buffer	a pointer to data to put in the TLVs buffer.
size	the size of the buffer.

The buffer is copied into a new buffer instance. You can free the data in the buffer provided anytime you wish.

Definition at line 2770 of file packetbb.cc.

References ns3::Buffer::AddAtStart(), ns3::Buffer::Begin(), m_hasValue, m_value, NS_LOG_FUNCTION, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

Member Data Documentation

bool ns3::PbbTlv::m_hasIndexStart

private

Definition at line 1737 of file packetbb.h.

Referenced by HasIndexStart(), PbbTlv(), and SetIndexStart().

bool ns3::PbbTlv::m_hasIndexStop

private

Definition at line 1740 of file packetbb.h.

Referenced by HasIndexStop(), PbbTlv(), and SetIndexStop().

bool ns3::PbbTlv::m_hasTypeExt

private

Definition at line 1734 of file packetbb.h.

Referenced by HasTypeExt(), PbbTlv(), and SetTypeExt().

bool ns3::PbbTlv::m_hasValue

private

Definition at line 1744 of file packetbb.h.

Referenced by Deserialize(), HasValue(), PbbTlv(), and SetValue().

uint8_t ns3::PbbTlv::m_indexStart

private

Definition at line 1738 of file packetbb.h.

Referenced by GetIndexStart(), and SetIndexStart().

uint8_t ns3::PbbTlv::m_indexStop

private

Definition at line 1741 of file packetbb.h.

Referenced by GetIndexStop(), and SetIndexStop().

bool ns3::PbbTlv::m_isMultivalue

private

Definition at line 1743 of file packetbb.h.

Referenced by IsMultivalue(), PbbTlv(), and SetMultivalue().

uint8_t ns3::PbbTlv::m_type

private

Definition at line 1732 of file packetbb.h.

Referenced by GetType(), and SetType().

uint8_t ns3::PbbTlv::m_typeExt

private

Definition at line 1735 of file packetbb.h.

Referenced by GetTypeExt(), and SetTypeExt().

Buffer ns3::PbbTlv::m_value

private

Definition at line 1745 of file packetbb.h.

Referenced by Deserialize(), GetValue(), SetValue(), and ~PbbTlv().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
