ns3::PssSchedulerMemberCschedSapProvider Class Reference

Inheritance diagram for ns3::PssSchedulerMemberCschedSapProvider:

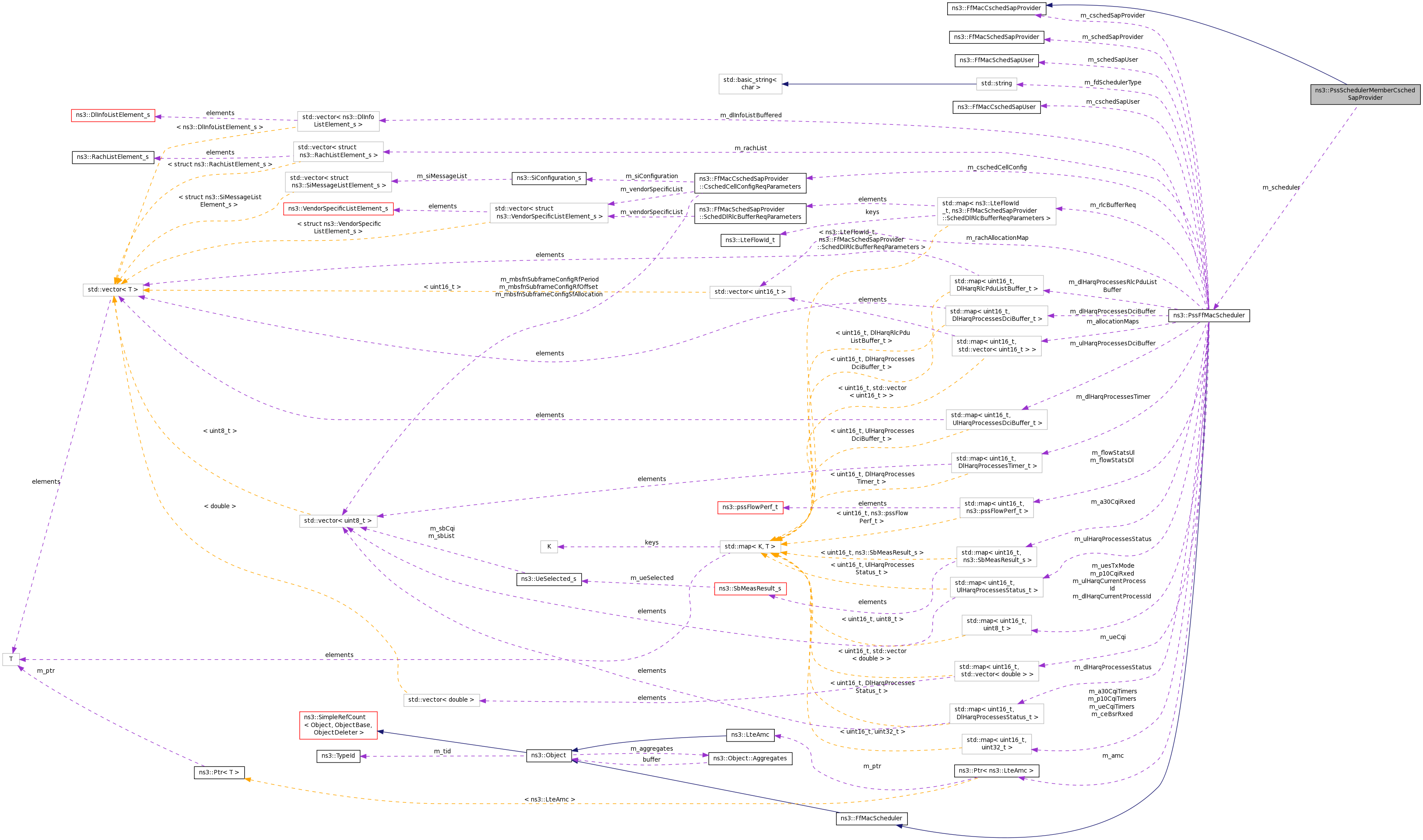

Collaboration diagram for ns3::PssSchedulerMemberCschedSapProvider:

Public Member Functions
	PssSchedulerMemberCschedSapProvider (PssFfMacScheduler *scheduler)
virtual void	CschedCellConfigReq (const struct CschedCellConfigReqParameters &params)
	CSCHED_CELL_CONFIG_REQ. More...
virtual void	CschedLcConfigReq (const struct CschedLcConfigReqParameters &params)
virtual void	CschedLcReleaseReq (const struct CschedLcReleaseReqParameters &params)
virtual void	CschedUeConfigReq (const struct CschedUeConfigReqParameters &params)
virtual void	CschedUeReleaseReq (const struct CschedUeReleaseReqParameters &params)
Public Member Functions inherited from ns3::FfMacCschedSapProvider
virtual	~FfMacCschedSapProvider ()

Private Member Functions
	PssSchedulerMemberCschedSapProvider ()

Private Attributes
PssFfMacScheduler *	m_scheduler

Detailed Description

Definition at line 54 of file pss-ff-mac-scheduler.cc.

Constructor & Destructor Documentation

ns3::PssSchedulerMemberCschedSapProvider::PssSchedulerMemberCschedSapProvider

(

PssFfMacScheduler *

scheduler

)

Definition at line 75 of file pss-ff-mac-scheduler.cc.

ns3::PssSchedulerMemberCschedSapProvider::PssSchedulerMemberCschedSapProvider ( )

private

Definition at line 71 of file pss-ff-mac-scheduler.cc.

Member Function Documentation

void ns3::PssSchedulerMemberCschedSapProvider::CschedCellConfigReq ( const struct CschedCellConfigReqParameters &  params )

virtual

CSCHED_CELL_CONFIG_REQ.

Implements ns3::FfMacCschedSapProvider.

Definition at line 81 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoCschedCellConfigReq(), and m_scheduler.

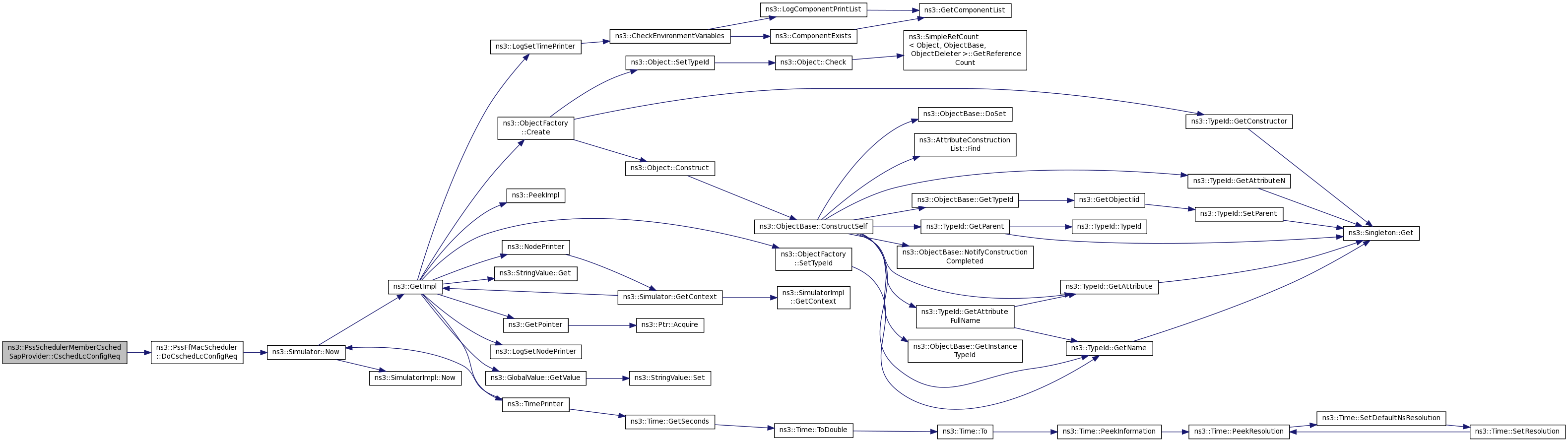

Here is the call graph for this function:

void ns3::PssSchedulerMemberCschedSapProvider::CschedLcConfigReq ( const struct CschedLcConfigReqParameters &  params )

virtual

Implements ns3::FfMacCschedSapProvider.

Definition at line 94 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoCschedLcConfigReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberCschedSapProvider::CschedLcReleaseReq ( const struct CschedLcReleaseReqParameters &  params )

virtual

Implements ns3::FfMacCschedSapProvider.

Definition at line 100 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoCschedLcReleaseReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberCschedSapProvider::CschedUeConfigReq ( const struct CschedUeConfigReqParameters &  params )

virtual

Implements ns3::FfMacCschedSapProvider.

Definition at line 87 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoCschedUeConfigReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::PssSchedulerMemberCschedSapProvider::CschedUeReleaseReq ( const struct CschedUeReleaseReqParameters &  params )

virtual

Implements ns3::FfMacCschedSapProvider.

Definition at line 106 of file pss-ff-mac-scheduler.cc.

References ns3::PssFfMacScheduler::DoCschedUeReleaseReq(), and m_scheduler.

Here is the call graph for this function:

Member Data Documentation

PssFfMacScheduler* ns3::PssSchedulerMemberCschedSapProvider::m_scheduler

private

Definition at line 68 of file pss-ff-mac-scheduler.cc.

Referenced by CschedCellConfigReq(), CschedLcConfigReq(), CschedLcReleaseReq(), CschedUeConfigReq(), and CschedUeReleaseReq().

---

The documentation for this class was generated from the following file:

• src/lte/model/pss-ff-mac-scheduler.cc
