ns3::SNRToBlockErrorRateManager Class Reference

This class handles the SNR to BlcER traces. More...

#include <snr-to-block-error-rate-manager.h>

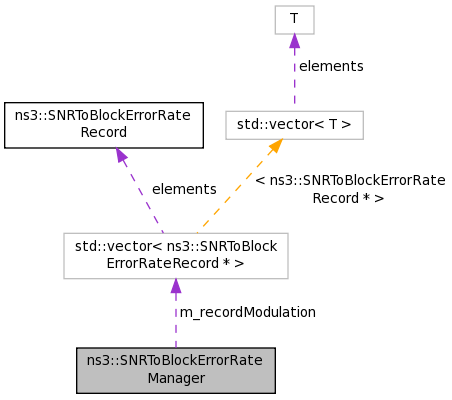

Collaboration diagram for ns3::SNRToBlockErrorRateManager:

Public Member Functions
	SNRToBlockErrorRateManager ()
	~SNRToBlockErrorRateManager (void)
void	ActivateLoss (bool loss)
	If activate loss is called with false, all the returned BlcER will be 0 (no losses) More...
double	GetBlockErrorRate (double SNR, uint8_t modulation)
	returns the Block Error Rate for a given modulation and SNR value More...
SNRToBlockErrorRateRecord *	GetSNRToBlockErrorRateRecord (double SNR, uint8_t modulation)
	returns a record of type SNRToBlockErrorRateRecord corresponding to a given modulation and SNR value More...
std::string	GetTraceFilePath (void)
void	LoadDefaultTraces (void)
	Loads the default traces from default-traces.h file. More...
void	LoadTraces (void)
	Loads the traces form the repository specified in the constructor or setted by SetTraceFilePath function. More...
void	ReLoadTraces (void)
	Reloads the trace. More...
void	SetTraceFilePath (char *traceFilePath)
	Set the path of the repository containing the traces. More...

Private Member Functions
void	ClearRecords (void)

Private Attributes
uint8_t	m_activateLoss
std::vector < SNRToBlockErrorRateRecord * > *	m_recordModulation [7]
char	m_traceFilePath [TRACE_FILE_PATH_SIZE]

Static Private Attributes
static const unsigned int	TRACE_FILE_PATH_SIZE = 1024

Detailed Description

This class handles the SNR to BlcER traces.

A path to a repository containing trace files should be provided. If no repository is provided the traces form default-traces.h will be loaded. A valid repository should contain 7 files, one for each modulation and coding scheme. The names of the files should respect the following format: modulation0.txt for modulation 0, modulation1.txt for modulation 1 and so on... The files format should be as follows SNR_value(1) BER(1) Blc_ER(1) STANDARD_DEVIATION(1) CONFIDENCE_INTERVAL1(1) CONFIDENCE_INTERVAL2(1) SNR_value(2) BER(2) Blc_ER(2) STANDARD_DEVIATION(2) CONFIDENCE_INTERVAL1(2) CONFIDENCE_INTERVAL2(2) ... ... ... ... ... ... ... ... ... ... ... ... SNR_value(n) BER(n) Blc_ER(n) STANDARD_DEVIATION(n) CONFIDENCE_INTERVAL1(n) CONFIDENCE_INTERVAL2(n)

Definition at line 46 of file snr-to-block-error-rate-manager.h.

Constructor & Destructor Documentation

ns3::SNRToBlockErrorRateManager::SNRToBlockErrorRateManager

(

void

)

Definition at line 34 of file snr-to-block-error-rate-manager.cc.

References m_activateLoss, m_recordModulation, and m_traceFilePath.

ns3::SNRToBlockErrorRateManager::~SNRToBlockErrorRateManager

(

void

)

Definition at line 45 of file snr-to-block-error-rate-manager.cc.

References ClearRecords(), and m_recordModulation.

Here is the call graph for this function:

Member Function Documentation

void ns3::SNRToBlockErrorRateManager::ActivateLoss

(

bool

loss

)

If activate loss is called with false, all the returned BlcER will be 0 (no losses)

Definition at line 74 of file snr-to-block-error-rate-manager.cc.

References m_activateLoss.

Referenced by ns3::SimpleOfdmWimaxPhy::ActivateLoss().

Here is the caller graph for this function:

void ns3::SNRToBlockErrorRateManager::ClearRecords ( void  )

private

Definition at line 55 of file snr-to-block-error-rate-manager.cc.

References m_recordModulation.

Referenced by LoadDefaultTraces(), LoadTraces(), ReLoadTraces(), and ~SNRToBlockErrorRateManager().

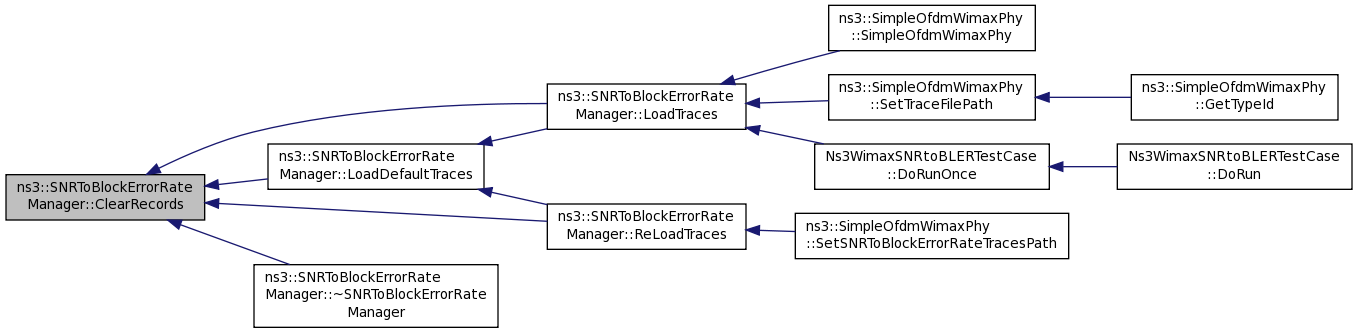

Here is the caller graph for this function:

double ns3::SNRToBlockErrorRateManager::GetBlockErrorRate	(	double	SNR,
		uint8_t	modulation
	)

returns the Block Error Rate for a given modulation and SNR value

Parameters

SNR	the SNR value
modulation	one of the seven MCS

Returns

the Block Error Rate

Definition at line 289 of file snr-to-block-error-rate-manager.cc.

References m_activateLoss, and m_recordModulation.

SNRToBlockErrorRateRecord * ns3::SNRToBlockErrorRateManager::GetSNRToBlockErrorRateRecord	(	double	SNR,
		uint8_t	modulation
	)

returns a record of type SNRToBlockErrorRateRecord corresponding to a given modulation and SNR value

Parameters

SNR	the SNR value
modulation	one of the seven MCS

Returns

the Block Error Rate

Definition at line 327 of file snr-to-block-error-rate-manager.cc.

References ns3::Copy(), m_activateLoss, and m_recordModulation.

Referenced by Ns3WimaxSNRtoBLERTestCase::DoRunOnce(), and ns3::SimpleOfdmWimaxPhy::StartReceive().

Here is the call graph for this function:

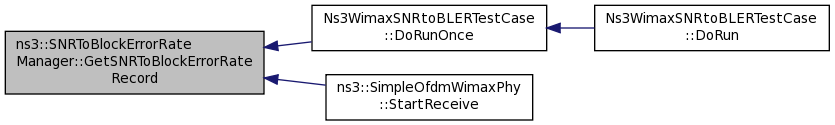

Here is the caller graph for this function:

std::string ns3::SNRToBlockErrorRateManager::GetTraceFilePath

(

void

)

Returns

the path to the repository containing the traces.

Definition at line 283 of file snr-to-block-error-rate-manager.cc.

References m_traceFilePath.

Referenced by ns3::SimpleOfdmWimaxPhy::GetTraceFilePath().

Here is the caller graph for this function:

void ns3::SNRToBlockErrorRateManager::LoadDefaultTraces

(

void

)

Loads the default traces from default-traces.h file.

Definition at line 116 of file snr-to-block-error-rate-manager.cc.

References ClearRecords(), m_activateLoss, m_recordModulation, modulation0, modulation1, modulation2, modulation3, modulation4, modulation5, and modulation6.

Referenced by LoadTraces(), and ReLoadTraces().

Here is the call graph for this function:

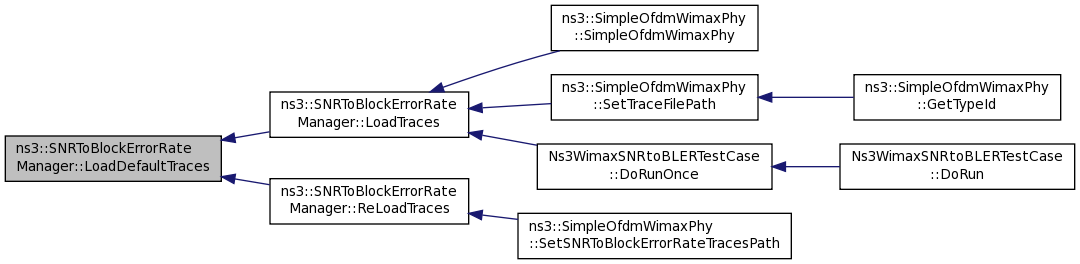

Here is the caller graph for this function:

void ns3::SNRToBlockErrorRateManager::LoadTraces

(

void

)

Loads the traces form the repository specified in the constructor or setted by SetTraceFilePath function.

If no repository is provided, default traces will be loaded from default-traces.h file

Definition at line 80 of file snr-to-block-error-rate-manager.cc.

References ClearRecords(), LoadDefaultTraces(), m_activateLoss, m_recordModulation, m_traceFilePath, and NS_LOG_INFO.

Referenced by Ns3WimaxSNRtoBLERTestCase::DoRunOnce(), ns3::SimpleOfdmWimaxPhy::SetTraceFilePath(), and ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy().

Here is the call graph for this function:

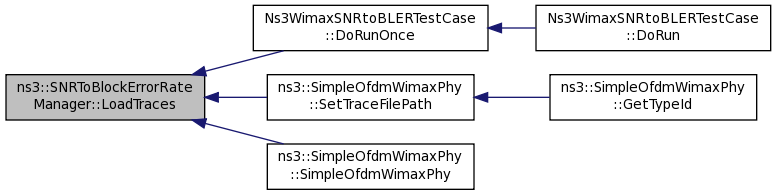

Here is the caller graph for this function:

void ns3::SNRToBlockErrorRateManager::ReLoadTraces

(

void

)

Reloads the trace.

Definition at line 236 of file snr-to-block-error-rate-manager.cc.

References ClearRecords(), LoadDefaultTraces(), m_activateLoss, m_recordModulation, m_traceFilePath, and NS_LOG_INFO.

Referenced by ns3::SimpleOfdmWimaxPhy::SetSNRToBlockErrorRateTracesPath().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SNRToBlockErrorRateManager::SetTraceFilePath

(

char *

traceFilePath

)

Set the path of the repository containing the traces.

Parameters

traceFilePath

the path to the repository.

Definition at line 275 of file snr-to-block-error-rate-manager.cc.

References m_traceFilePath, NS_ASSERT_MSG, and TRACE_FILE_PATH_SIZE.

Referenced by ns3::SimpleOfdmWimaxPhy::SetSNRToBlockErrorRateTracesPath(), ns3::SimpleOfdmWimaxPhy::SetTraceFilePath(), and ns3::SimpleOfdmWimaxPhy::SimpleOfdmWimaxPhy().

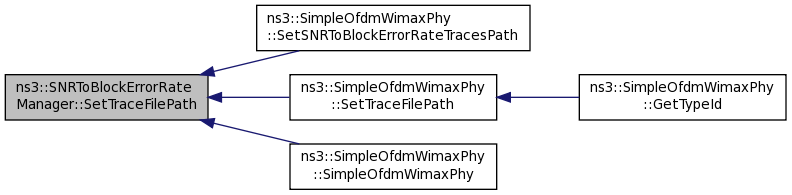

Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::SNRToBlockErrorRateManager::m_activateLoss

private

Definition at line 95 of file snr-to-block-error-rate-manager.h.

Referenced by ActivateLoss(), GetBlockErrorRate(), GetSNRToBlockErrorRateRecord(), LoadDefaultTraces(), LoadTraces(), ReLoadTraces(), and SNRToBlockErrorRateManager().

std::vector<SNRToBlockErrorRateRecord *>* ns3::SNRToBlockErrorRateManager::m_recordModulation[7]

private

Definition at line 99 of file snr-to-block-error-rate-manager.h.

Referenced by ClearRecords(), GetBlockErrorRate(), GetSNRToBlockErrorRateRecord(), LoadDefaultTraces(), LoadTraces(), ReLoadTraces(), SNRToBlockErrorRateManager(), and ~SNRToBlockErrorRateManager().

char ns3::SNRToBlockErrorRateManager::m_traceFilePath[TRACE_FILE_PATH_SIZE]

private

Definition at line 97 of file snr-to-block-error-rate-manager.h.

Referenced by GetTraceFilePath(), LoadTraces(), ReLoadTraces(), SetTraceFilePath(), and SNRToBlockErrorRateManager().

const unsigned int ns3::SNRToBlockErrorRateManager::TRACE_FILE_PATH_SIZE = 1024

staticprivate

Definition at line 96 of file snr-to-block-error-rate-manager.h.

Referenced by SetTraceFilePath().

---

The documentation for this class was generated from the following files:

• src/wimax/model/snr-to-block-error-rate-manager.h
• src/wimax/model/snr-to-block-error-rate-manager.cc
