ns3::SequenceNumber10 Class Reference

#include <lte-rlc-sequence-number.h>

Public Member Functions
	SequenceNumber10 ()
	SequenceNumber10 (uint16_t value)
	SequenceNumber10 (SequenceNumber10 const &value)
uint16_t	GetValue () const
	Extracts the numeric value of the sequence number. More...
bool	operator!= (const SequenceNumber10 &other) const
SequenceNumber10	operator+ (uint16_t delta) const
SequenceNumber10	operator++ (int)
SequenceNumber10	operator- (uint16_t delta) const
uint16_t	operator- (const SequenceNumber10 &other) const
bool	operator< (const SequenceNumber10 &other) const
bool	operator<= (const SequenceNumber10 &other) const
SequenceNumber10 &	operator= (uint16_t value)
bool	operator== (const SequenceNumber10 &other) const
bool	operator> (const SequenceNumber10 &other) const
bool	operator>= (const SequenceNumber10 &other) const
void	SetModulusBase (SequenceNumber10 modulusBase)
void	SetModulusBase (uint16_t modulusBase)

Private Attributes
uint16_t	m_modulusBase
uint16_t	m_value

Friends
std::ostream &	operator<< (std::ostream &os, const SequenceNumber10 &val)

Detailed Description

Definition at line 33 of file lte-rlc-sequence-number.h.

Constructor & Destructor Documentation

ns3::SequenceNumber10::SequenceNumber10 ( )

inline

Definition at line 36 of file lte-rlc-sequence-number.h.

ns3::SequenceNumber10::SequenceNumber10 ( uint16_t  value )

inlineexplicit

Definition at line 41 of file lte-rlc-sequence-number.h.

ns3::SequenceNumber10::SequenceNumber10 ( SequenceNumber10 const &  value )

inline

Definition at line 46 of file lte-rlc-sequence-number.h.

Member Function Documentation

uint16_t ns3::SequenceNumber10::GetValue ( void  ) const

inline

Extracts the numeric value of the sequence number.

Returns

the sequence number value

Definition at line 62 of file lte-rlc-sequence-number.h.

References m_value.

Referenced by ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcAm::DoReportBufferStatus(), ns3::LteRlcUm::ExpireReorderingTimer(), ns3::LteRlcAm::ExpireReorderingTimer(), operator>(), ns3::LteRlcUm::ReassembleSnInterval(), ns3::LteRlcHeader::Serialize(), and ns3::LteRlcAmHeader::Serialize().

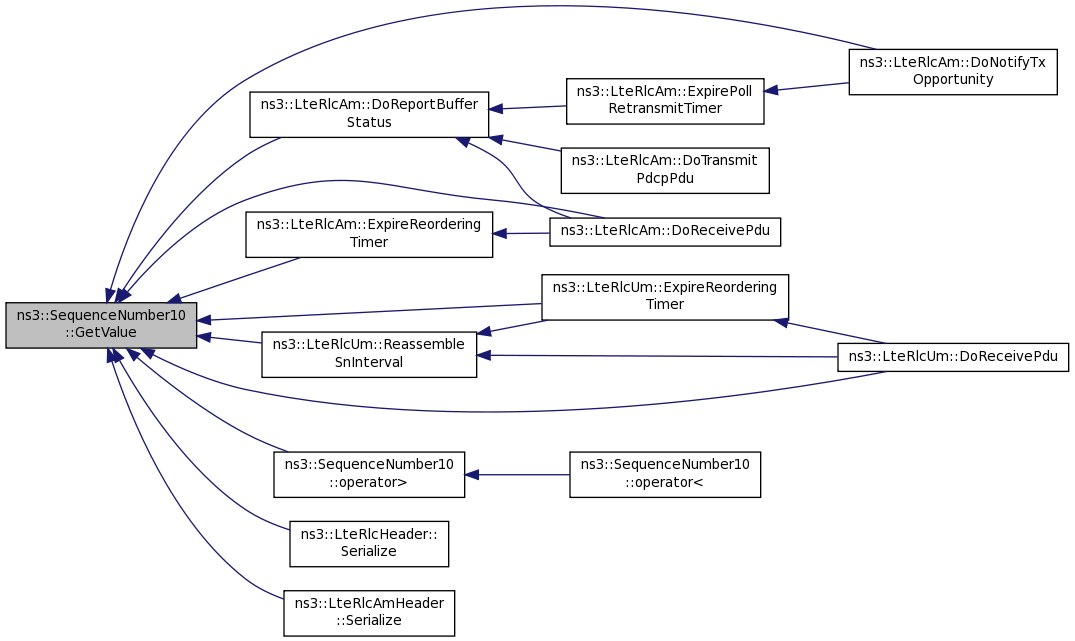

Here is the caller graph for this function:

bool ns3::SequenceNumber10::operator!= ( const SequenceNumber10 &  other ) const

inline

Definition at line 117 of file lte-rlc-sequence-number.h.

References m_value.

SequenceNumber10 ns3::SequenceNumber10::operator+ ( uint16_t  delta ) const

inline

Definition at line 85 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and SetModulusBase().

Here is the call graph for this function:

SequenceNumber10 ns3::SequenceNumber10::operator++ ( int  )

inline

Definition at line 78 of file lte-rlc-sequence-number.h.

References m_value.

SequenceNumber10 ns3::SequenceNumber10::operator- ( uint16_t  delta ) const

inline

Definition at line 92 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and SetModulusBase().

Here is the call graph for this function:

uint16_t ns3::SequenceNumber10::operator- ( const SequenceNumber10 &  other ) const

inline

Definition at line 99 of file lte-rlc-sequence-number.h.

References m_value.

bool ns3::SequenceNumber10::operator< ( const SequenceNumber10 &  other ) const

inline

Definition at line 132 of file lte-rlc-sequence-number.h.

References m_value, and operator>().

Here is the call graph for this function:

bool ns3::SequenceNumber10::operator<= ( const SequenceNumber10 &  other ) const

inline

Definition at line 122 of file lte-rlc-sequence-number.h.

SequenceNumber10& ns3::SequenceNumber10::operator= ( uint16_t  value )

inline

Definition at line 51 of file lte-rlc-sequence-number.h.

References m_value.

bool ns3::SequenceNumber10::operator== ( const SequenceNumber10 &  other ) const

inline

Definition at line 112 of file lte-rlc-sequence-number.h.

References m_value.

bool ns3::SequenceNumber10::operator> ( const SequenceNumber10 &  other ) const

inline

Definition at line 105 of file lte-rlc-sequence-number.h.

References GetValue(), m_modulusBase, and m_value.

Referenced by operator<().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::SequenceNumber10::operator>= ( const SequenceNumber10 &  other ) const

inline

Definition at line 127 of file lte-rlc-sequence-number.h.

void ns3::SequenceNumber10::SetModulusBase ( SequenceNumber10  modulusBase )

inline

Definition at line 67 of file lte-rlc-sequence-number.h.

References m_modulusBase, and m_value.

Referenced by ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcAm::IsInsideReceivingWindow(), ns3::LteRlcUm::IsInsideReorderingWindow(), operator+(), and operator-().

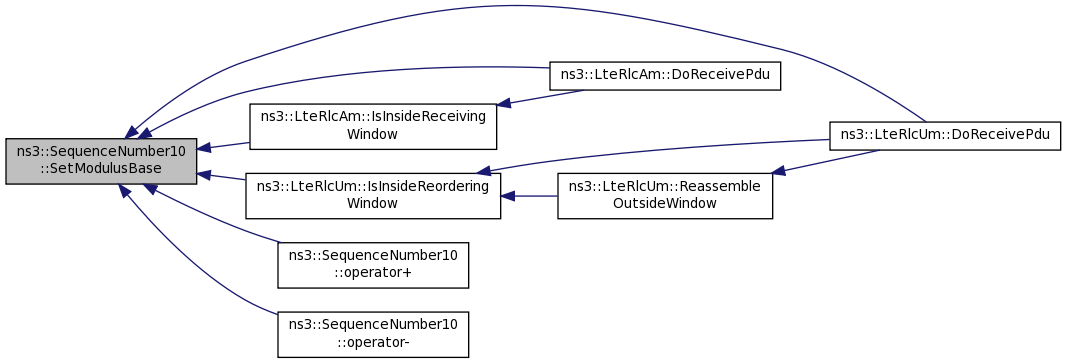

Here is the caller graph for this function:

void ns3::SequenceNumber10::SetModulusBase ( uint16_t  modulusBase )

inline

Definition at line 72 of file lte-rlc-sequence-number.h.

References m_modulusBase.

Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  os, const SequenceNumber10 &  val  )

friend

Definition at line 27 of file lte-rlc-sequence-number.cc.

Member Data Documentation

uint16_t ns3::SequenceNumber10::m_modulusBase

private

Definition at line 142 of file lte-rlc-sequence-number.h.

Referenced by operator+(), operator-(), operator>(), and SetModulusBase().

uint16_t ns3::SequenceNumber10::m_value

private

Definition at line 141 of file lte-rlc-sequence-number.h.

Referenced by GetValue(), operator!=(), operator+(), operator++(), operator-(), operator<(), ns3::operator<<(), operator=(), operator==(), operator>(), and SetModulusBase().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-rlc-sequence-number.h
