ns3::ServiceFlowRecord Class Reference

this class implements a structure to manage some parameters and statistics related to a service flow More...

#include <service-flow-record.h>

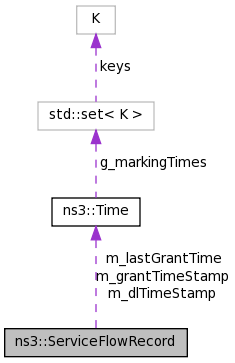

Collaboration diagram for ns3::ServiceFlowRecord:

Public Member Functions
	ServiceFlowRecord (void)
	~ServiceFlowRecord (void)
uint32_t	GetBacklogged (void) const
uint32_t	GetBackloggedTemp (void) const
uint32_t	GetBwSinceLastExpiry (void)
uint32_t	GetBytesRcvd (void) const
uint32_t	GetBytesSent (void) const
Time	GetDlTimeStamp (void) const
uint32_t	GetGrantedBandwidth (void)
uint32_t	GetGrantedBandwidthTemp (void)
uint32_t	GetGrantSize (void) const
Time	GetGrantTimeStamp (void) const
Time	GetLastGrantTime (void) const
uint32_t	GetPktsRcvd (void) const
uint32_t	GetPktsSent (void) const
uint32_t	GetRequestedBandwidth (void)
void	IncreaseBacklogged (uint32_t backlogged)
void	IncreaseBackloggedTemp (uint32_t backloggedTemp)
void	SetBacklogged (uint32_t backlogged)
void	SetBackloggedTemp (uint32_t backloggedTemp)
void	SetBwSinceLastExpiry (uint32_t bwSinceLastExpiry)
void	SetBytesRcvd (uint32_t bytesRcvd)
	Set the number of received bytes. More...
void	SetBytesSent (uint32_t bytesSent)
	Set the number of sent bytes. More...
void	SetDlTimeStamp (Time dlTimeStamp)
	Set the DlTimeStamp. More...
void	SetGrantedBandwidth (uint32_t grantedBandwidth)
void	SetGrantedBandwidthTemp (uint32_t grantedBandwidthTemp)
void	SetGrantSize (uint32_t grantSize)
	Set the grant size (only for UGS service flows) More...
void	SetGrantTimeStamp (Time grantTimeStamp)
	Set the grant time stamp. More...
void	SetLastGrantTime (Time grantTime)
void	SetPktsRcvd (uint32_t pktsRcvd)
	Set the number of received packet. More...
void	SetPktsSent (uint32_t pktsSent)
	set the number of sent packets in this service flow More...
void	SetRequestedBandwidth (uint32_t requestedBandwidth)
void	UpdateBwSinceLastExpiry (uint32_t bwSinceLastExpiry)
void	UpdateBytesRcvd (uint32_t bytesRcvd)
	update the number of received bytes by adding bytesRcvd More...
void	UpdateBytesSent (uint32_t bytesSent)
	update the number of sent bytes by adding bytesSent More...
void	UpdateGrantedBandwidth (uint32_t grantedBandwidth)
void	UpdateGrantedBandwidthTemp (uint32_t grantedBandwidthTemp)
void	UpdatePktsRcvd (uint32_t pktsRcvd)
	update the number of received packets by adding pktsRcvd More...
void	UpdatePktsSent (uint32_t pktsSent)
	update the number of sent packets by adding pktsSent More...
void	UpdateRequestedBandwidth (uint32_t requestedBandwidth)

Private Attributes
int32_t	m_backlogged
int32_t	m_backloggedTemp
uint32_t	m_bwSinceLastExpiry
uint32_t	m_bytesRcvd
uint32_t	m_bytesSent
Time	m_dlTimeStamp
uint32_t	m_grantedBandwidth
uint32_t	m_grantedBandwidthTemp
uint32_t	m_grantSize
Time	m_grantTimeStamp
Time	m_lastGrantTime
uint32_t	m_pktsRcvd
uint32_t	m_pktsSent
uint32_t	m_requestedBandwidth

Detailed Description

this class implements a structure to manage some parameters and statistics related to a service flow

Definition at line 36 of file service-flow-record.h.

Constructor & Destructor Documentation

ns3::ServiceFlowRecord::ServiceFlowRecord

(

void

)

Definition at line 25 of file service-flow-record.cc.

References m_backlogged, m_backloggedTemp, m_grantedBandwidthTemp, and m_lastGrantTime.

ns3::ServiceFlowRecord::~ServiceFlowRecord

(

void

)

Definition at line 44 of file service-flow-record.cc.

Member Function Documentation

uint32_t ns3::ServiceFlowRecord::GetBacklogged

(

void

)

const

Definition at line 234 of file service-flow-record.cc.

References m_backlogged.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

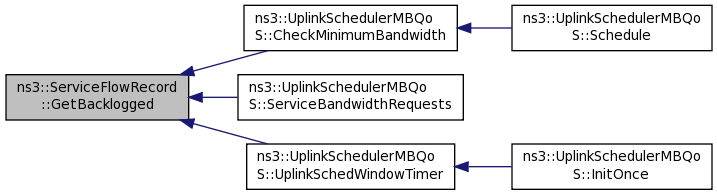

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetBackloggedTemp

(

void

)

const

Definition at line 252 of file service-flow-record.cc.

References m_backloggedTemp.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetBwSinceLastExpiry

(

void

)

Definition at line 270 of file service-flow-record.cc.

References m_bwSinceLastExpiry.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

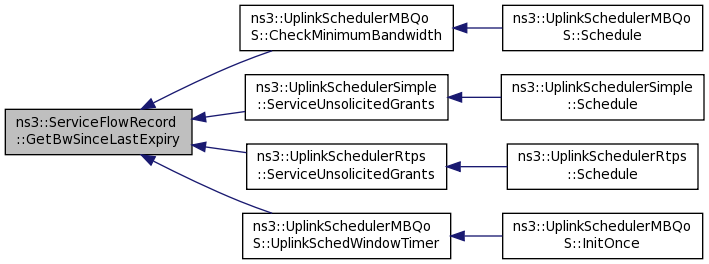

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetBytesRcvd

(

void

)

const

Returns

The number of received bytes

Definition at line 151 of file service-flow-record.cc.

References m_bytesRcvd.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetBytesSent

(

void

)

const

Returns

The number of sent bytes

Definition at line 133 of file service-flow-record.cc.

References m_bytesSent.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

Time ns3::ServiceFlowRecord::GetDlTimeStamp

(

void

)

const

Returns

the DlTimeStamp: time when this service flow's traffic was last sent

Definition at line 79 of file service-flow-record.cc.

References m_dlTimeStamp.

Referenced by ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), and ns3::BSSchedulerSimple::SelectConnection().

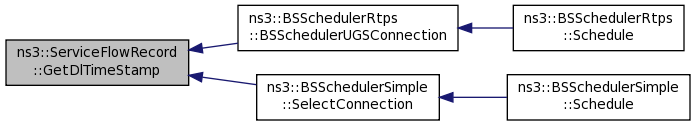

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetGrantedBandwidth

(

void

)

Definition at line 186 of file service-flow-record.cc.

References m_grantedBandwidth.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

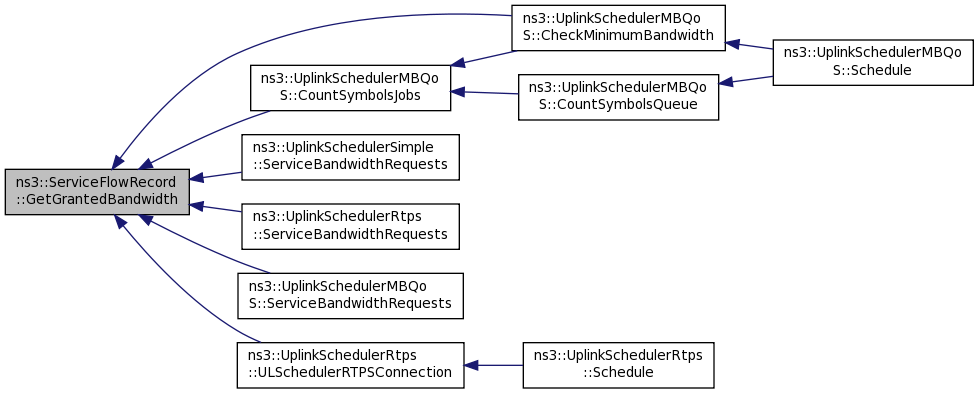

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetGrantedBandwidthTemp

(

void

)

Definition at line 204 of file service-flow-record.cc.

References m_grantedBandwidthTemp.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetGrantSize

(

void

)

const

Returns

the grant size (only for ugs service flows)

Definition at line 55 of file service-flow-record.cc.

References m_grantSize.

Referenced by ns3::BandwidthManager::CalculateAllocationSize().

Here is the caller graph for this function:

Time ns3::ServiceFlowRecord::GetGrantTimeStamp

(

void

)

const

Returns

the grant time stamp. Used for data allocation for ugs flows, and unicast poll (bw request) for non-UGS flows

Definition at line 67 of file service-flow-record.cc.

References m_grantTimeStamp.

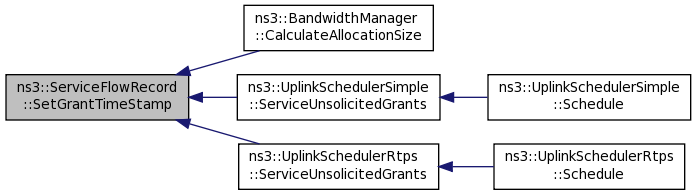

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants().

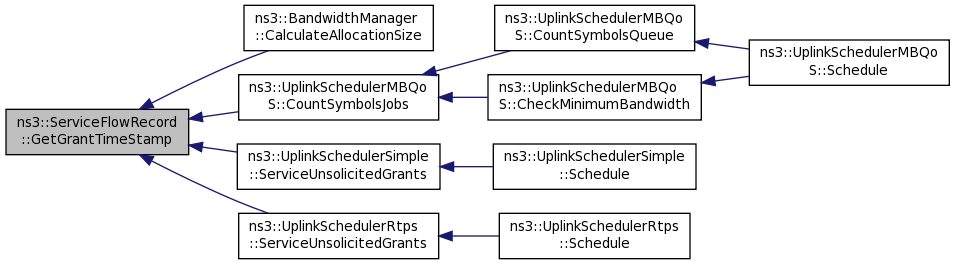

Here is the caller graph for this function:

Time ns3::ServiceFlowRecord::GetLastGrantTime

(

void

)

const

Definition at line 216 of file service-flow-record.cc.

References m_lastGrantTime.

Referenced by ns3::UplinkSchedulerMBQoS::DetermineDeadline().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetPktsRcvd

(

void

)

const

Returns

the number of received packet

Definition at line 115 of file service-flow-record.cc.

References m_pktsRcvd.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetPktsSent

(

void

)

const

Returns

the number of sent packet in this service flow

Definition at line 97 of file service-flow-record.cc.

References m_pktsSent.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

uint32_t ns3::ServiceFlowRecord::GetRequestedBandwidth

(

void

)

Definition at line 168 of file service-flow-record.cc.

References m_requestedBandwidth.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth(), ns3::UplinkSchedulerMBQoS::CountSymbolsJobs(), ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::IncreaseBacklogged

(

uint32_t

backlogged

)

Definition at line 228 of file service-flow-record.cc.

References m_backlogged.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::IncreaseBackloggedTemp

(

uint32_t

backloggedTemp

)

Definition at line 246 of file service-flow-record.cc.

References m_backloggedTemp.

void ns3::ServiceFlowRecord::SetBacklogged

(

uint32_t

backlogged

)

Definition at line 222 of file service-flow-record.cc.

References m_backlogged.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetBackloggedTemp

(

uint32_t

backloggedTemp

)

Definition at line 240 of file service-flow-record.cc.

References m_backloggedTemp.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetBwSinceLastExpiry

(

uint32_t

bwSinceLastExpiry

)

Definition at line 258 of file service-flow-record.cc.

References m_bwSinceLastExpiry.

Referenced by ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

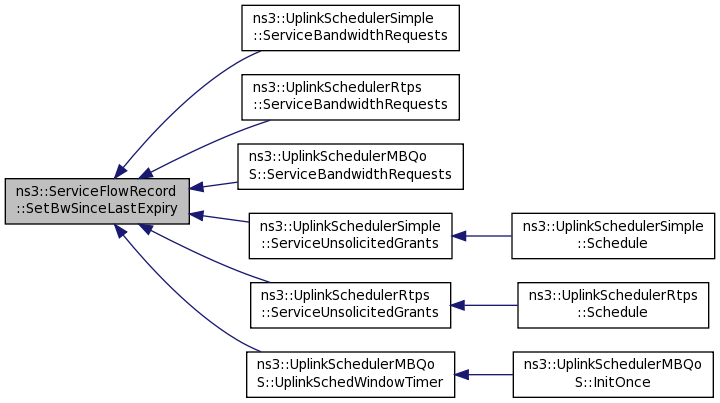

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetBytesRcvd

(

uint32_t

bytesRcvd

)

Set the number of received bytes.

Parameters

bytesRcvd

the number of received bytes

Definition at line 139 of file service-flow-record.cc.

References m_bytesRcvd.

void ns3::ServiceFlowRecord::SetBytesSent

(

uint32_t

bytesSent

)

Set the number of sent bytes.

Parameters

bytesSent

the number of sent bytes

Definition at line 121 of file service-flow-record.cc.

References m_bytesSent.

void ns3::ServiceFlowRecord::SetDlTimeStamp

(

Time

dlTimeStamp

)

Set the DlTimeStamp.

Parameters

dlTimeStamp

time when this service flow's traffic was last sent.

Definition at line 73 of file service-flow-record.cc.

References m_dlTimeStamp.

Referenced by ns3::BSSchedulerRtps::BSSchedulerRTPSConnection(), ns3::BSSchedulerRtps::BSSchedulerUGSConnection(), and ns3::BSSchedulerSimple::SelectConnection().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetGrantedBandwidth

(

uint32_t

grantedBandwidth

)

Definition at line 174 of file service-flow-record.cc.

References m_grantedBandwidth.

Referenced by ns3::UplinkSchedulerSimple::OnSetRequestedBandwidth(), ns3::UplinkSchedulerRtps::OnSetRequestedBandwidth(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

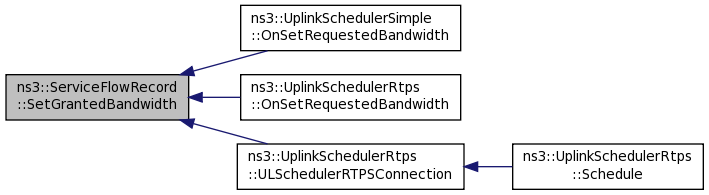

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetGrantedBandwidthTemp

(

uint32_t

grantedBandwidthTemp

)

Definition at line 191 of file service-flow-record.cc.

References m_grantedBandwidthTemp.

Referenced by ns3::UplinkSchedulerMBQoS::CheckMinimumBandwidth().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetGrantSize

(

uint32_t

grantSize

)

Set the grant size (only for UGS service flows)

Parameters

grantSize

the grant size to set

Definition at line 49 of file service-flow-record.cc.

References m_grantSize.

Referenced by ns3::UplinkSchedulerSimple::SetupServiceFlow(), ns3::UplinkSchedulerMBQoS::SetupServiceFlow(), and ns3::UplinkSchedulerRtps::SetupServiceFlow().

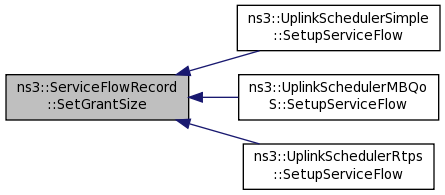

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetGrantTimeStamp

(

Time

grantTimeStamp

)

Set the grant time stamp.

Used for data alocation for ugs flows, and unicast poll (bw request) for non-UGS flows

Parameters

grantTimeStamp

the grant time stamp to set

Definition at line 61 of file service-flow-record.cc.

References m_grantTimeStamp.

Referenced by ns3::BandwidthManager::CalculateAllocationSize(), ns3::UplinkSchedulerSimple::ServiceUnsolicitedGrants(), and ns3::UplinkSchedulerRtps::ServiceUnsolicitedGrants().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetLastGrantTime

(

Time

grantTime

)

Definition at line 210 of file service-flow-record.cc.

References m_lastGrantTime.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), and ns3::UplinkSchedulerMBQoS::ServiceUnsolicitedGrants().

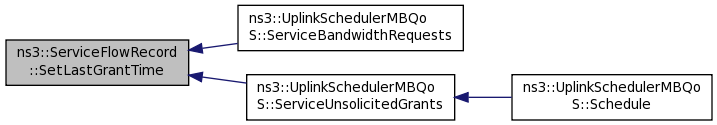

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::SetPktsRcvd

(

uint32_t

pktsRcvd

)

Set the number of received packet.

Parameters

pktsRcvd

The number of received packets

Definition at line 103 of file service-flow-record.cc.

References m_pktsRcvd.

void ns3::ServiceFlowRecord::SetPktsSent

(

uint32_t

pktsSent

)

set the number of sent packets in this service flow

Parameters

pktsSent

the number of sent packets

Definition at line 85 of file service-flow-record.cc.

References m_pktsSent.

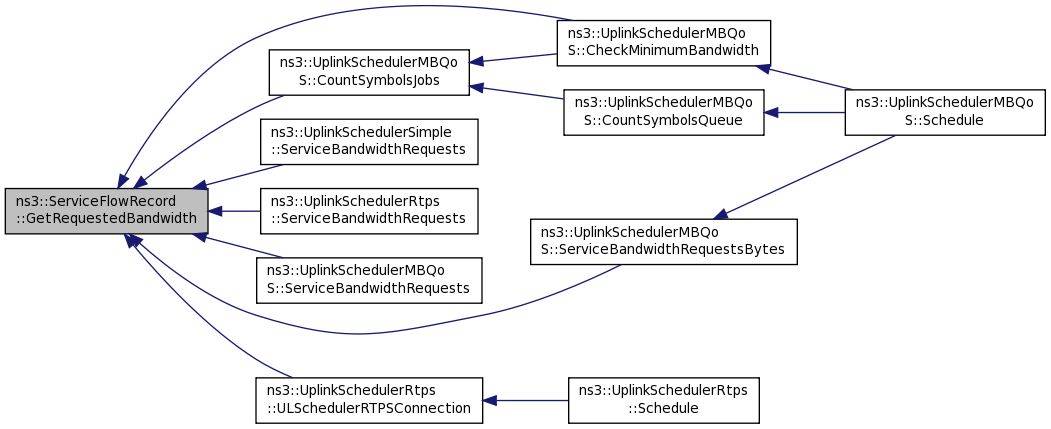

void ns3::ServiceFlowRecord::SetRequestedBandwidth

(

uint32_t

requestedBandwidth

)

Definition at line 157 of file service-flow-record.cc.

References m_requestedBandwidth.

Referenced by ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

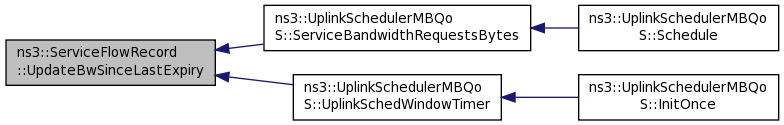

void ns3::ServiceFlowRecord::UpdateBwSinceLastExpiry

(

uint32_t

bwSinceLastExpiry

)

Definition at line 264 of file service-flow-record.cc.

References m_bwSinceLastExpiry.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), and ns3::UplinkSchedulerMBQoS::UplinkSchedWindowTimer().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdateBytesRcvd

(

uint32_t

bytesRcvd

)

update the number of received bytes by adding bytesRcvd

Parameters

bytesRcvd

the number of bytes to add

Definition at line 145 of file service-flow-record.cc.

References m_bytesRcvd.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdateBytesSent

(

uint32_t

bytesSent

)

update the number of sent bytes by adding bytesSent

Parameters

bytesSent

the number of bytes to add

Definition at line 127 of file service-flow-record.cc.

References m_bytesSent.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

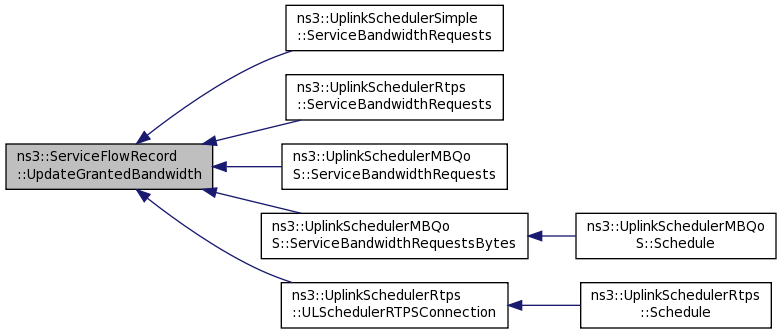

void ns3::ServiceFlowRecord::UpdateGrantedBandwidth

(

uint32_t

grantedBandwidth

)

Definition at line 180 of file service-flow-record.cc.

References m_grantedBandwidth.

Referenced by ns3::UplinkSchedulerSimple::ServiceBandwidthRequests(), ns3::UplinkSchedulerRtps::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequests(), ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes(), and ns3::UplinkSchedulerRtps::ULSchedulerRTPSConnection().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdateGrantedBandwidthTemp

(

uint32_t

grantedBandwidthTemp

)

Definition at line 197 of file service-flow-record.cc.

References m_grantedBandwidthTemp.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdatePktsRcvd

(

uint32_t

pktsRcvd

)

update the number of received packets by adding pktsRcvd

Parameters

pktsRcvd

the number of received packets to add

Definition at line 109 of file service-flow-record.cc.

References m_pktsRcvd.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdatePktsSent

(

uint32_t

pktsSent

)

update the number of sent packets by adding pktsSent

Parameters

pktsSent

the number of sent packets to add

Definition at line 91 of file service-flow-record.cc.

References m_pktsSent.

Referenced by ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

void ns3::ServiceFlowRecord::UpdateRequestedBandwidth

(

uint32_t

requestedBandwidth

)

Definition at line 162 of file service-flow-record.cc.

References m_requestedBandwidth.

Referenced by ns3::UplinkSchedulerMBQoS::ServiceBandwidthRequestsBytes().

Here is the caller graph for this function:

Member Data Documentation

int32_t ns3::ServiceFlowRecord::m_backlogged

private

Definition at line 174 of file service-flow-record.h.

Referenced by GetBacklogged(), IncreaseBacklogged(), ServiceFlowRecord(), and SetBacklogged().

int32_t ns3::ServiceFlowRecord::m_backloggedTemp

private

Definition at line 175 of file service-flow-record.h.

Referenced by GetBackloggedTemp(), IncreaseBackloggedTemp(), ServiceFlowRecord(), and SetBackloggedTemp().

uint32_t ns3::ServiceFlowRecord::m_bwSinceLastExpiry

private

Definition at line 172 of file service-flow-record.h.

Referenced by GetBwSinceLastExpiry(), SetBwSinceLastExpiry(), and UpdateBwSinceLastExpiry().

uint32_t ns3::ServiceFlowRecord::m_bytesRcvd

private

Definition at line 164 of file service-flow-record.h.

Referenced by GetBytesRcvd(), SetBytesRcvd(), and UpdateBytesRcvd().

uint32_t ns3::ServiceFlowRecord::m_bytesSent

private

Definition at line 163 of file service-flow-record.h.

Referenced by GetBytesSent(), SetBytesSent(), and UpdateBytesSent().

Time ns3::ServiceFlowRecord::m_dlTimeStamp

private

Definition at line 157 of file service-flow-record.h.

Referenced by GetDlTimeStamp(), and SetDlTimeStamp().

uint32_t ns3::ServiceFlowRecord::m_grantedBandwidth

private

Definition at line 167 of file service-flow-record.h.

Referenced by GetGrantedBandwidth(), SetGrantedBandwidth(), and UpdateGrantedBandwidth().

uint32_t ns3::ServiceFlowRecord::m_grantedBandwidthTemp

private

Definition at line 168 of file service-flow-record.h.

Referenced by GetGrantedBandwidthTemp(), ServiceFlowRecord(), SetGrantedBandwidthTemp(), and UpdateGrantedBandwidthTemp().

uint32_t ns3::ServiceFlowRecord::m_grantSize

private

Definition at line 155 of file service-flow-record.h.

Referenced by GetGrantSize(), and SetGrantSize().

Time ns3::ServiceFlowRecord::m_grantTimeStamp

private

Definition at line 156 of file service-flow-record.h.

Referenced by GetGrantTimeStamp(), and SetGrantTimeStamp().

Time ns3::ServiceFlowRecord::m_lastGrantTime

private

Definition at line 173 of file service-flow-record.h.

Referenced by GetLastGrantTime(), ServiceFlowRecord(), and SetLastGrantTime().

uint32_t ns3::ServiceFlowRecord::m_pktsRcvd

private

Definition at line 161 of file service-flow-record.h.

Referenced by GetPktsRcvd(), SetPktsRcvd(), and UpdatePktsRcvd().

uint32_t ns3::ServiceFlowRecord::m_pktsSent

private

Definition at line 160 of file service-flow-record.h.

Referenced by GetPktsSent(), SetPktsSent(), and UpdatePktsSent().

uint32_t ns3::ServiceFlowRecord::m_requestedBandwidth

private

Definition at line 166 of file service-flow-record.h.

Referenced by GetRequestedBandwidth(), SetRequestedBandwidth(), and UpdateRequestedBandwidth().

---

The documentation for this class was generated from the following files:

• src/wimax/model/service-flow-record.h
• src/wimax/model/service-flow-record.cc
