The Supported Rates Information ElementThis class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates. More...

#include <supported-rates.h>

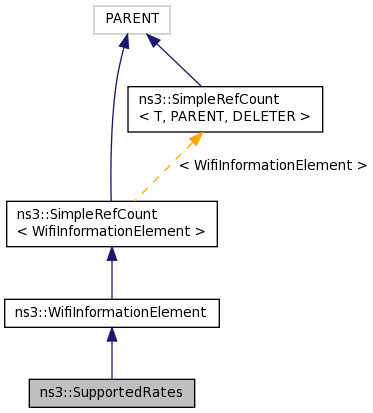

Inheritance diagram for ns3::SupportedRates:

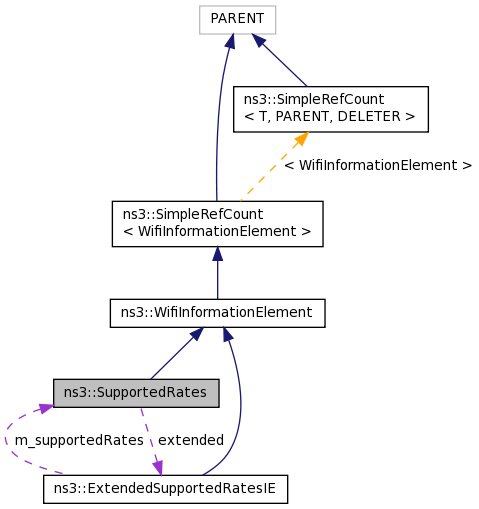

Collaboration diagram for ns3::SupportedRates:

Public Member Functions
	SupportedRates ()

void	AddSupportedRate (uint32_t bs)
	Add the given rate to the supported rates. More...

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const
	Own unique Element ID. More...

uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetNRates (void) const
	Return the number of supported rates. More...

uint32_t	GetRate (uint8_t i) const
	Return the rate at the given index. More...

bool	IsBasicRate (uint32_t bs) const
	Check if the given rate is a basic rate. More...

bool	IsSupportedRate (uint32_t bs) const
	Check if the given rate is supported. More...

void	SerializeInformationField (Buffer::Iterator start) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBasicRate (uint32_t bs)
	Set the given rate to basic rates. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following... More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
ExtendedSupportedRatesIE	extended

Private Attributes
uint8_t	m_nRates
	Number of supported rates. More...

uint8_t	m_rates [MAX_SUPPORTED_RATES]
	List of supported bitrate (divided by 500000) More...

Friends
class	ExtendedSupportedRatesIE

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The Supported Rates Information Element

This class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates.

The ExtendedSupportedRatesIE class (of which an instance exists in objects of this class) deals with rates beyond the first 8.

Definition at line 108 of file supported-rates.h.

Constructor & Destructor Documentation

ns3::SupportedRates::SupportedRates ( )

Definition at line 29 of file supported-rates.cc.

Member Function Documentation

void ns3::SupportedRates::AddSupportedRate ( uint32_t bs )

Add the given rate to the supported rates.

Parameters

bs	the rate to be added

Definition at line 36 of file supported-rates.cc.

References IsSupportedRate(), m_nRates, m_rates, MAX_SUPPORTED_RATES, NS_ASSERT, and NS_LOG_DEBUG.

Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and SetBasicRate().

Here is the call graph for this function:

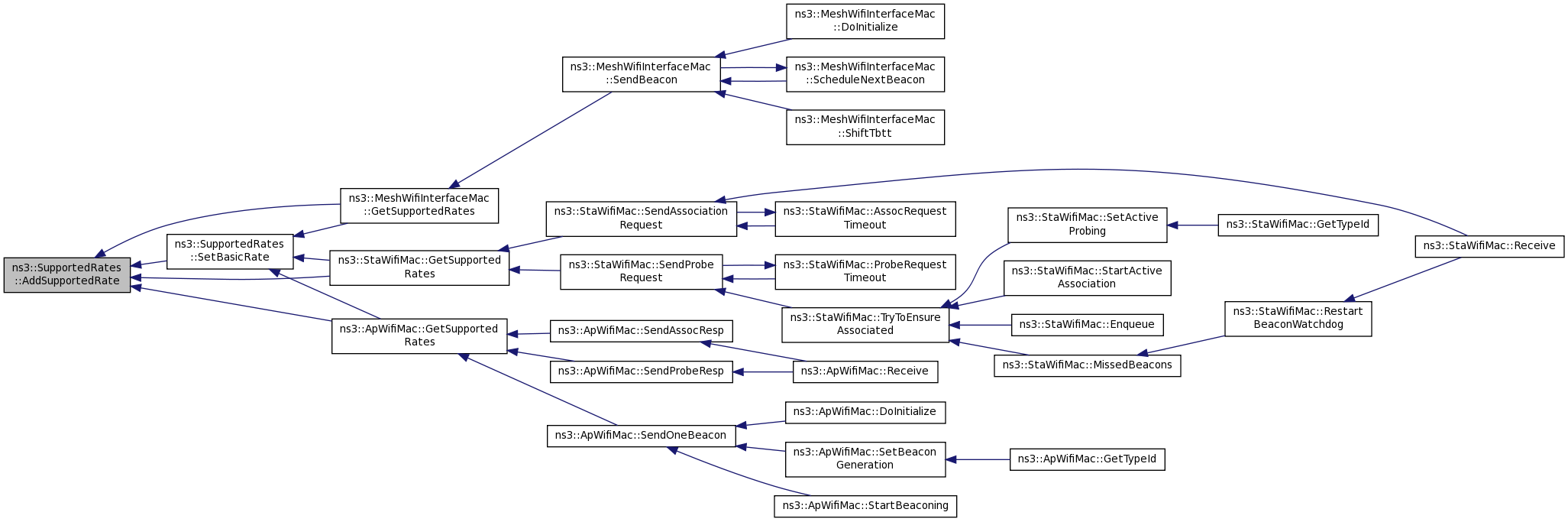

Here is the caller graph for this function:

uint8_t ns3::SupportedRates::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 127 of file supported-rates.cc.

References m_nRates, m_rates, NS_ASSERT, and ns3::Buffer::Iterator::Read().

Here is the call graph for this function:

WifiInformationElementId ns3::SupportedRates::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 106 of file supported-rates.cc.

References IE_SUPPORTED_RATES.

uint8_t ns3::SupportedRates::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 111 of file supported-rates.cc.

References m_nRates.

uint8_t ns3::SupportedRates::GetNRates ( void ) const

Return the number of supported rates.

Returns: the number of supported rates

Definition at line 95 of file supported-rates.cc.

References m_nRates.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

uint32_t ns3::SupportedRates::GetRate ( uint8_t i ) const

Return the rate at the given index.

Parameters

i	the given index

Returns: the rate

Definition at line 100 of file supported-rates.cc.

References m_rates.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

bool ns3::SupportedRates::IsBasicRate ( uint32_t bs ) const

Check if the given rate is a basic rate.

Parameters

bs	the rate to be checked

Returns: true if the rate is a basic rate, false otherwise

Definition at line 68 of file supported-rates.cc.

References m_nRates, and m_rates.

Referenced by ns3::operator<<(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

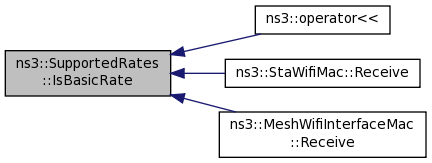

Here is the caller graph for this function:

bool ns3::SupportedRates::IsSupportedRate ( uint32_t bs ) const

Check if the given rate is supported.

Parameters

bs	the rate to be checked

Returns: true if the rate is supported, false otherwise

Definition at line 81 of file supported-rates.cc.

References m_nRates, and m_rates.

Referenced by AddSupportedRate(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

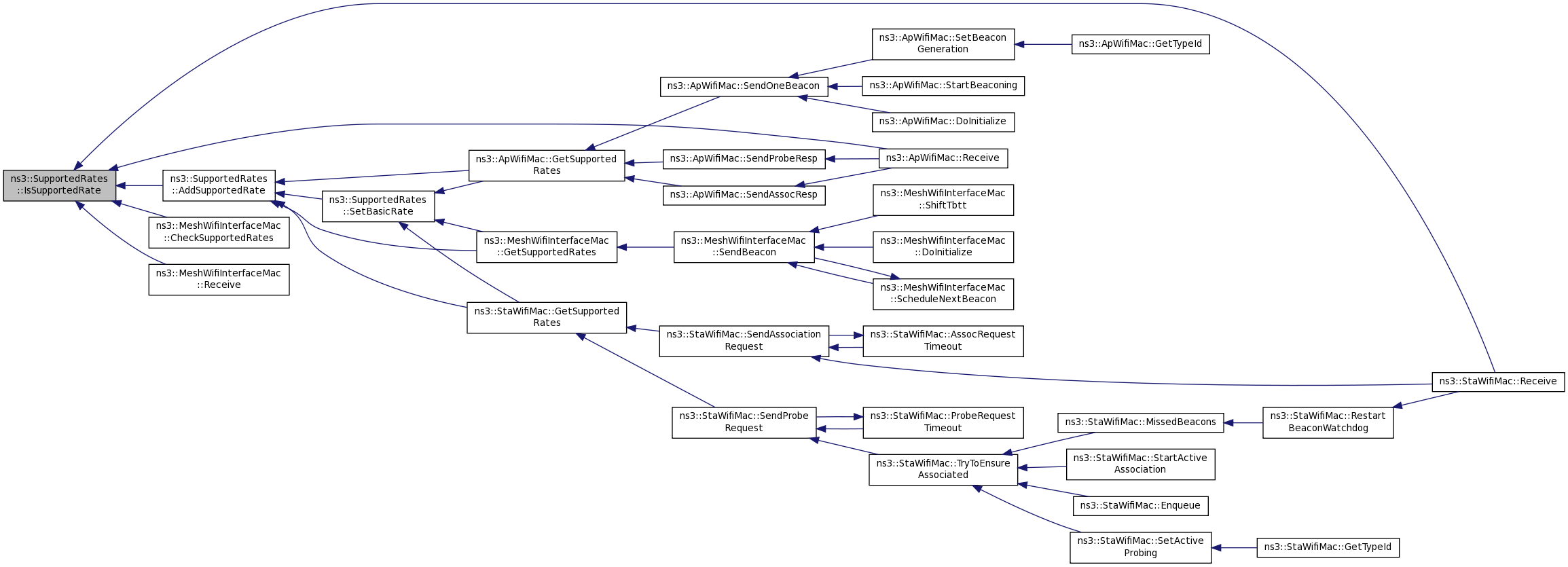

Here is the caller graph for this function:

void ns3::SupportedRates::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 119 of file supported-rates.cc.

References m_nRates, m_rates, and ns3::Buffer::Iterator::Write().

Here is the call graph for this function:

void ns3::SupportedRates::SetBasicRate ( uint32_t bs )

Set the given rate to basic rates.

Parameters

bs	the rate to be set

Definition at line 48 of file supported-rates.cc.

References AddSupportedRate(), m_nRates, m_rates, and NS_LOG_DEBUG.

Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

Here is the call graph for this function:

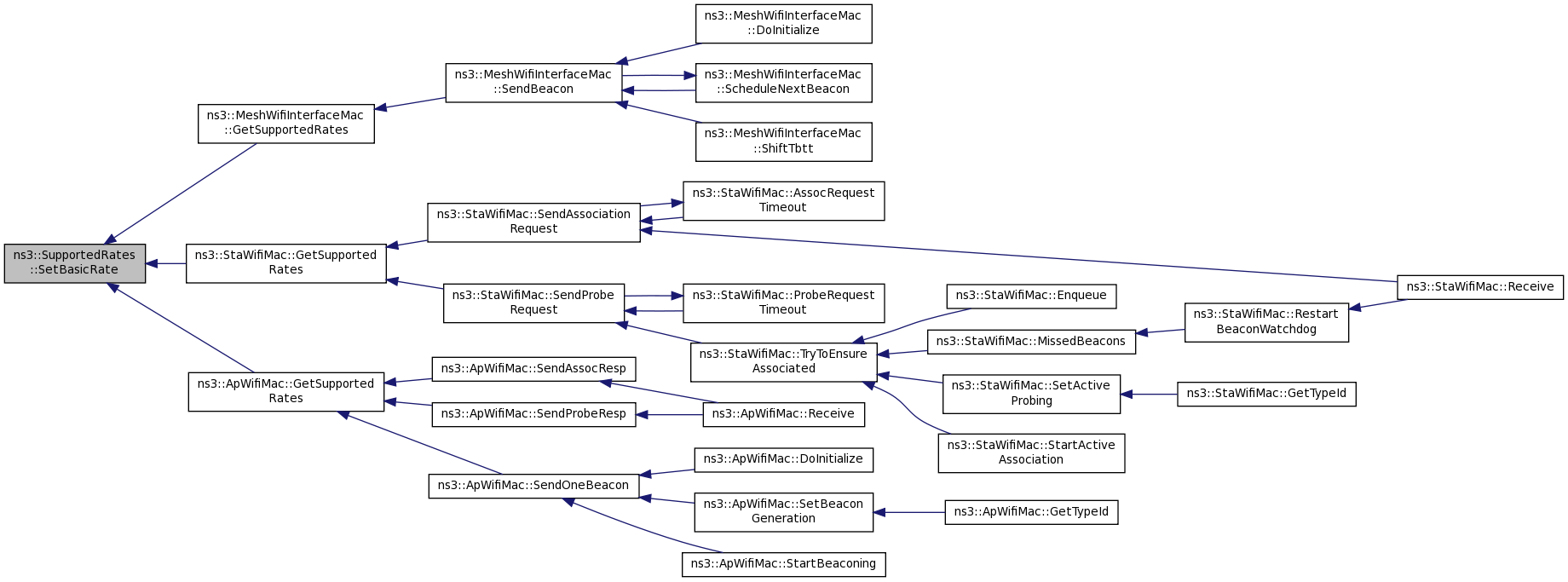

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ExtendedSupportedRatesIE

friend

Definition at line 168 of file supported-rates.h.

Member Data Documentation

ExtendedSupportedRatesIE ns3::SupportedRates::extended

Definition at line 169 of file supported-rates.h.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), ns3::MgtAssocRequestHeader::Deserialize(), ns3::MgtAssocResponseHeader::Deserialize(), ns3::MgtProbeRequestHeader::Deserialize(), ns3::MgtProbeResponseHeader::Deserialize(), ns3::dot11s::PeerLinkFrameStart::GetSerializedSize(), ns3::MgtAssocRequestHeader::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), ns3::MgtProbeResponseHeader::GetSerializedSize(), ns3::dot11s::PeerLinkFrameStart::Serialize(), ns3::MgtAssocRequestHeader::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

uint8_t ns3::SupportedRates::m_nRates

private

Number of supported rates.

Definition at line 171 of file supported-rates.h.

Referenced by AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), DeserializeInformationField(), ns3::ExtendedSupportedRatesIE::GetInformationFieldSize(), GetInformationFieldSize(), GetNRates(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), IsBasicRate(), IsSupportedRate(), ns3::ExtendedSupportedRatesIE::Serialize(), ns3::ExtendedSupportedRatesIE::SerializeInformationField(), SerializeInformationField(), and SetBasicRate().

uint8_t ns3::SupportedRates::m_rates[MAX_SUPPORTED_RATES]

private

List of supported bitrate (divided by 500000)

Definition at line 172 of file supported-rates.h.

Referenced by AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), DeserializeInformationField(), GetRate(), IsBasicRate(), IsSupportedRate(), ns3::ExtendedSupportedRatesIE::SerializeInformationField(), SerializeInformationField(), and SetBasicRate().

The documentation for this class was generated from the following files:

src/wifi/model/supported-rates.h
src/wifi/model/supported-rates.cc
