ns3::TracedValue< T > Class Template Reference
Tracing

trace classes with value semantics More...

#include <traced-value.h>

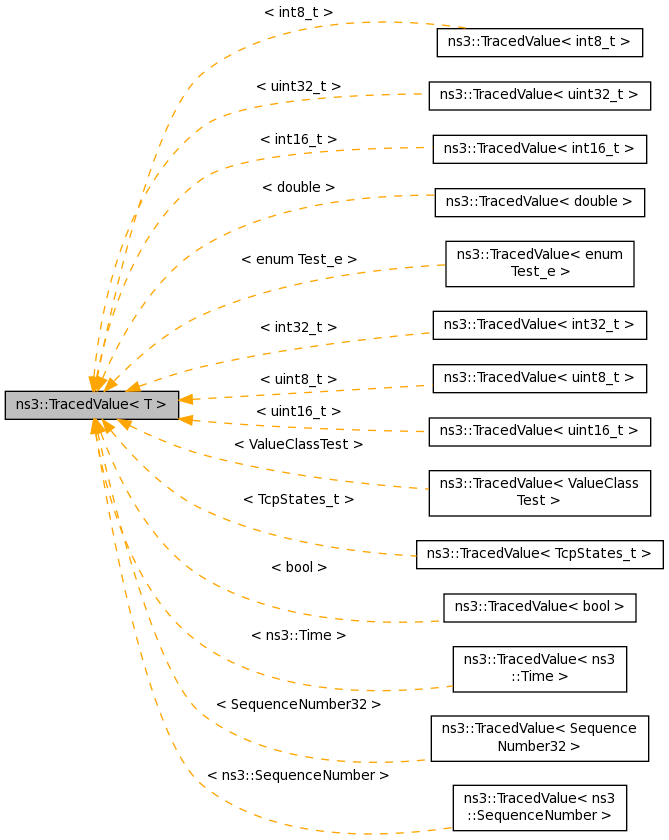

+ Inheritance diagram for ns3::TracedValue< T >:

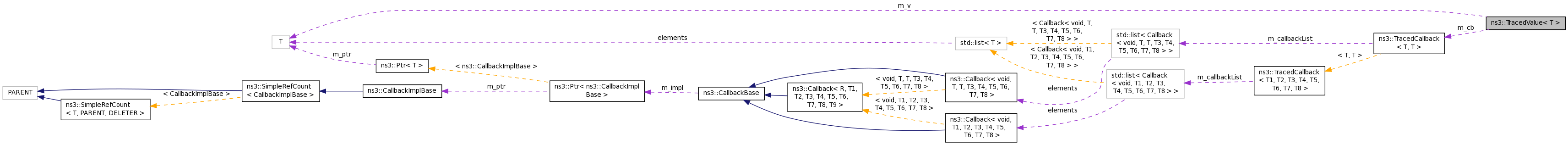

+ Collaboration diagram for ns3::TracedValue< T >:

Public Member Functions

 TracedValue ()

 TracedValue (const TracedValue &o)

 TracedValue (const T &v)

template<typename U >
 TracedValue (const TracedValue< U > &other)

template<typename U >
 TracedValue (const U &other)

void Connect (const CallbackBase &cb, std::string path)

void ConnectWithoutContext (const CallbackBase &cb)

void Disconnect (const CallbackBase &cb, std::string path)

void DisconnectWithoutContext (const CallbackBase &cb)

T Get (void) const

 operator T () const

TracedValue & operator++ ()

TracedValue operator++ (int)

TracedValue & operator-- ()

TracedValue operator-- (int)

TracedValue & operator= (const TracedValue &o)

void Set (const T &v)


Private Attributes

TracedCallback< T, T > m_cb

T m_v


Detailed Description

template<typename T>
class ns3::TracedValue< T >

trace classes with value semantics

If you want to trace the change of value of a class or primitive type which have value semantics (they must support operator !=), you can wrap them in an instance of this template: this instance will behave just like the original class (if it did not export any special method), and will define Connect/DisconnectWithoutContext methods to work with ns3::MakeTraceSourceAccessor.

Definition at line 53 of file traced-value.h.

Constructor & Destructor Documentation

template<typename T>
ns3::TracedValue< T >::TracedValue ( )
inline

Definition at line 56 of file traced-value.h.

template<typename T>
ns3::TracedValue< T >::TracedValue ( const TracedValue< T > &  o)
inline

Definition at line 58 of file traced-value.h.

template<typename T>
ns3::TracedValue< T >::TracedValue ( const T &  v)
inline

Definition at line 60 of file traced-value.h.

template<typename T>
template<typename U >
ns3::TracedValue< T >::TracedValue ( const TracedValue< U > &  other)
inline

Definition at line 71 of file traced-value.h.

template<typename T>
template<typename U >
ns3::TracedValue< T >::TracedValue ( const U &  other)
inline

Definition at line 75 of file traced-value.h.

Member Function Documentation

template<typename T>
void ns3::TracedValue< T >::Connect ( const CallbackBase &  cb,
std::string  path
)
inline

Definition at line 81 of file traced-value.h.

template<typename T>
void ns3::TracedValue< T >::ConnectWithoutContext ( const CallbackBase &  cb)
inline

Definition at line 78 of file traced-value.h.

template<typename T>
void ns3::TracedValue< T >::Disconnect ( const CallbackBase &  cb,
std::string  path
)
inline

Definition at line 87 of file traced-value.h.

template<typename T>
void ns3::TracedValue< T >::DisconnectWithoutContext ( const CallbackBase &  cb)
inline

Definition at line 84 of file traced-value.h.

template<typename T>
T ns3::TracedValue< T >::Get ( void  ) const
inline

Definition at line 97 of file traced-value.h.

Referenced by ns3::TcpSocketBase::BytesInFlight(), ns3::TcpTxBuffer::CopyFromSequence(), ns3::TcpTxBuffer::DiscardUpTo(), ns3::TcpSocketBase::DoForwardUp(), ns3::TcpNewReno::NewAck(), ns3::TcpReno::NewAck(), ns3::TcpTahoe::NewAck(), ns3::TcpWestwood::NewAck(), ns3::TcpSocketBase::NewAck(), ns3::operator!(), ns3::operator!=(), ns3::operator%(), ns3::operator%=(), ns3::operator&(), ns3::operator&=(), ns3::operator*(), ns3::operator*=(), ns3::operator+(), ns3::TracedValue< ns3::SequenceNumber >::operator++(), ns3::operator+=(), ns3::operator-(), ns3::TracedValue< ns3::SequenceNumber >::operator--(), ns3::operator-=(), ns3::operator/(), ns3::operator/=(), ns3::operator==(), ns3::operator>(), ns3::operator>=(), ns3::operator>>(), ns3::operator>>=(), ns3::operator^(), ns3::operator^=(), ns3::operator|(), ns3::operator|=(), ns3::operator~(), ns3::TcpWestwood::Retransmit(), ns3::TcpSocketBase::SendDataPacket(), ns3::TcpSocketBase::UnAckDataCount(), ns3::TcpNewReno::Window(), ns3::TcpReno::Window(), ns3::TcpTahoe::Window(), and ns3::TcpWestwood::Window().

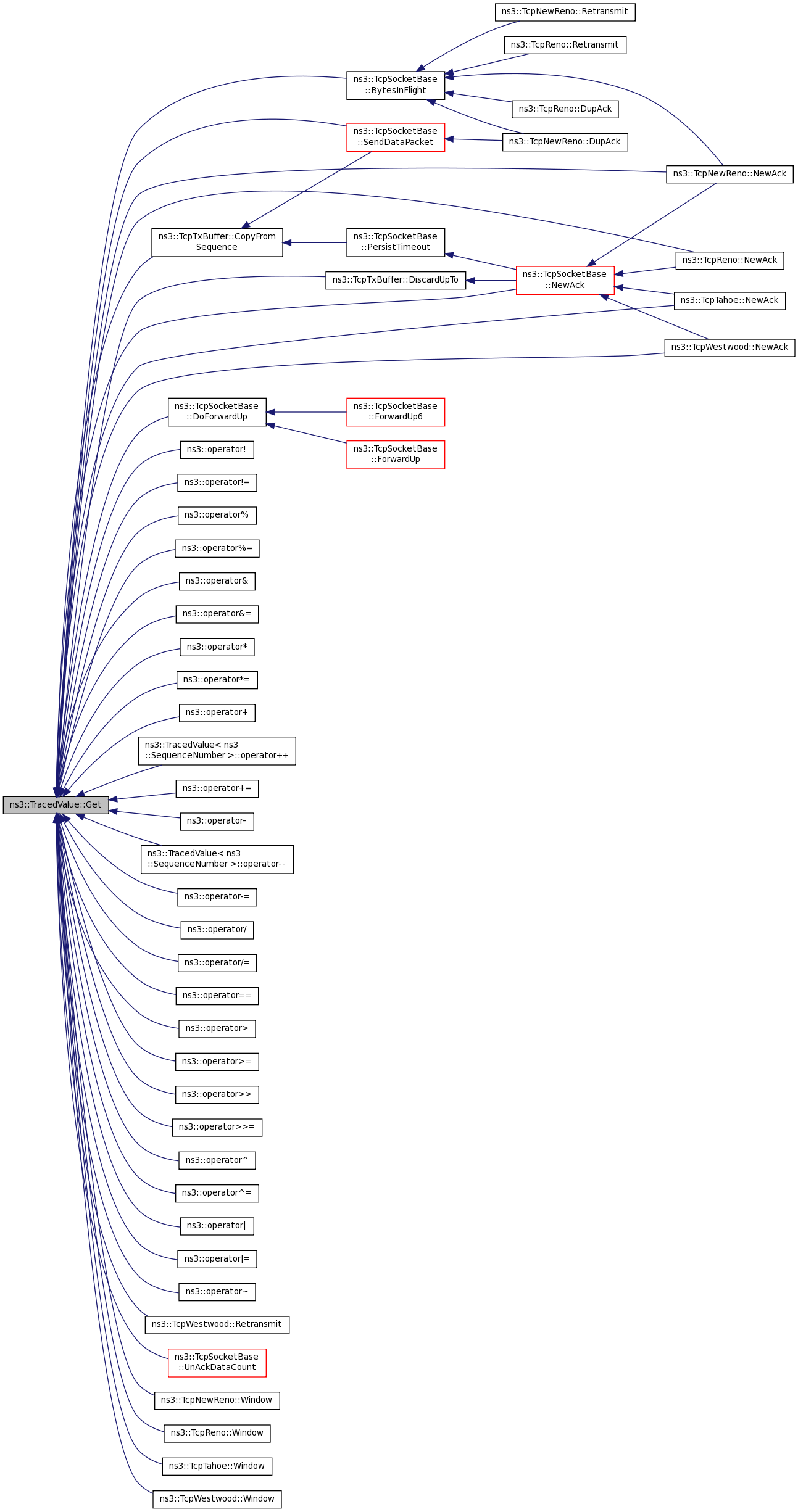

+ Here is the caller graph for this function:

template<typename T>
ns3::TracedValue< T >::operator T ( ) const
inline

Definition at line 62 of file traced-value.h.

template<typename T>
TracedValue& ns3::TracedValue< T >::operator++ ( )
inline

Definition at line 100 of file traced-value.h.

template<typename T>
TracedValue ns3::TracedValue< T >::operator++ ( int  )
inline

Definition at line 114 of file traced-value.h.

template<typename T>
TracedValue& ns3::TracedValue< T >::operator-- ( )
inline

Definition at line 107 of file traced-value.h.

template<typename T>
TracedValue ns3::TracedValue< T >::operator-- ( int  )
inline

Definition at line 122 of file traced-value.h.

template<typename T>
TracedValue& ns3::TracedValue< T >::operator= ( const TracedValue< T > &  o)
inline

Definition at line 65 of file traced-value.h.

template<typename T>
void ns3::TracedValue< T >::Set ( const T &  v)
inline

Definition at line 90 of file traced-value.h.

Referenced by ns3::operator%=(), ns3::operator&=(), ns3::operator*=(), ns3::TracedValue< ns3::SequenceNumber >::operator++(), ns3::operator+=(), ns3::TracedValue< ns3::SequenceNumber >::operator--(), ns3::operator-=(), ns3::operator/=(), ns3::TracedValue< ns3::SequenceNumber >::operator=(), ns3::operator>>=(), ns3::operator^=(), and ns3::operator|=().

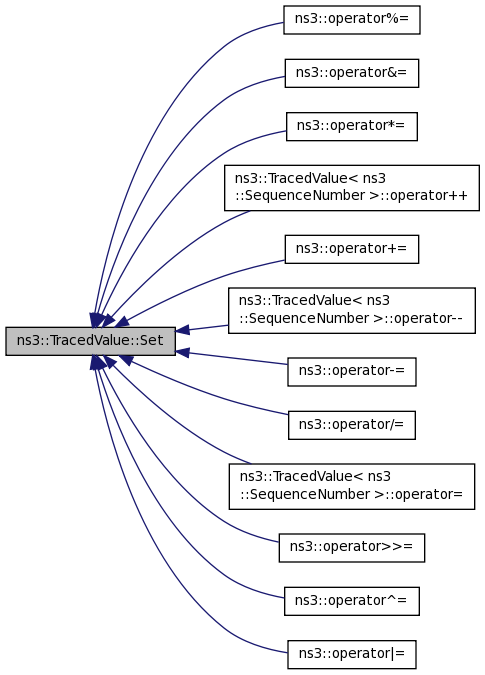

+ Here is the caller graph for this function:

Member Data Documentation

template<typename T>
TracedCallback<T,T> ns3::TracedValue< T >::m_cb
private

Definition at line 132 of file traced-value.h.

Referenced by ns3::TracedValue< ns3::SequenceNumber >::Connect(), ns3::TracedValue< ns3::SequenceNumber >::ConnectWithoutContext(), ns3::TracedValue< ns3::SequenceNumber >::Disconnect(), ns3::TracedValue< ns3::SequenceNumber >::DisconnectWithoutContext(), and ns3::TracedValue< ns3::SequenceNumber >::Set().

template<typename T>
T ns3::TracedValue< T >::m_v
private

Definition at line 131 of file traced-value.h.

Referenced by ns3::TracedValue< ns3::SequenceNumber >::Get(), ns3::TracedValue< ValueClassTest >::operator ValueClassTest(), ns3::TracedValue< ns3::SequenceNumber >::operator=(), and ns3::TracedValue< ns3::SequenceNumber >::Set().

The documentation for this class was generated from the following file:
