ns3::aodv::ChainRegressionTest Class Reference

AODV chain regression test. More...

#include <aodv-regression.h>

+ Inheritance diagram for ns3::aodv::ChainRegressionTest:

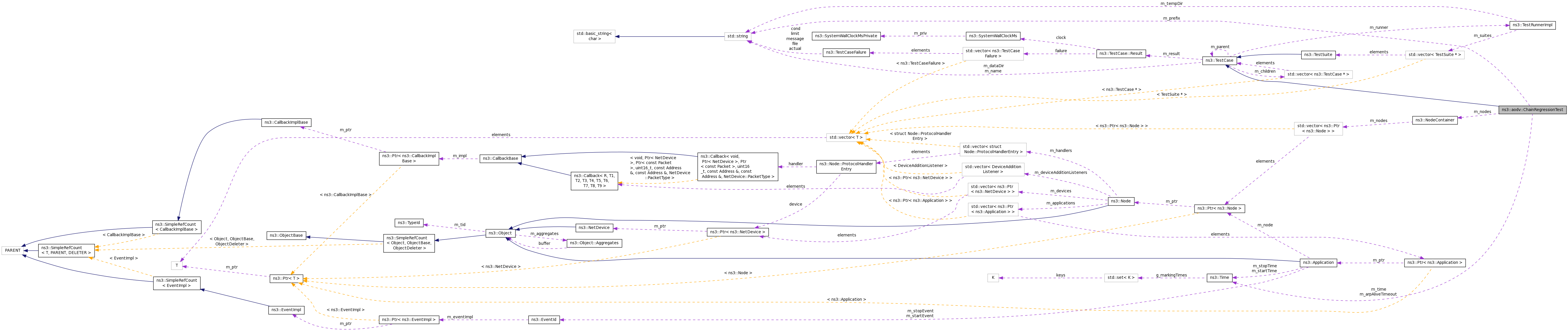

+ Collaboration diagram for ns3::aodv::ChainRegressionTest:

Public Member Functions

 ChainRegressionTest (const char *const prefix, Time time=Seconds(10), uint32_t size=5, Time arpAliveTimeout=Seconds(120))
 Create test case. More...

 ~ChainRegressionTest ()

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...


Private Member Functions

void CheckResults ()
 Compare traces with reference ones. More...

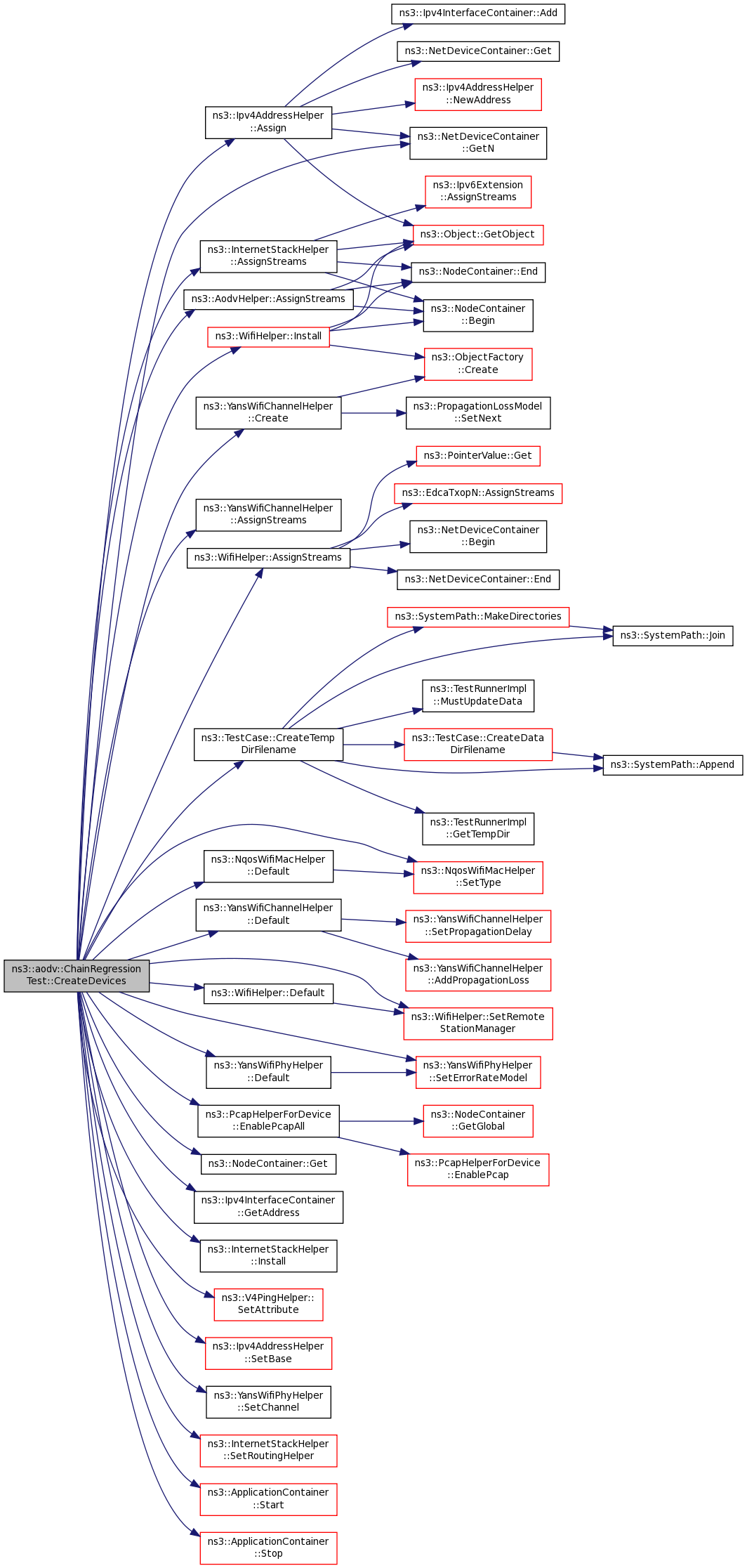

void CreateDevices ()
 Create devices, install TCP/IP stack and applications. More...

void CreateNodes ()
 Create test topology. More...

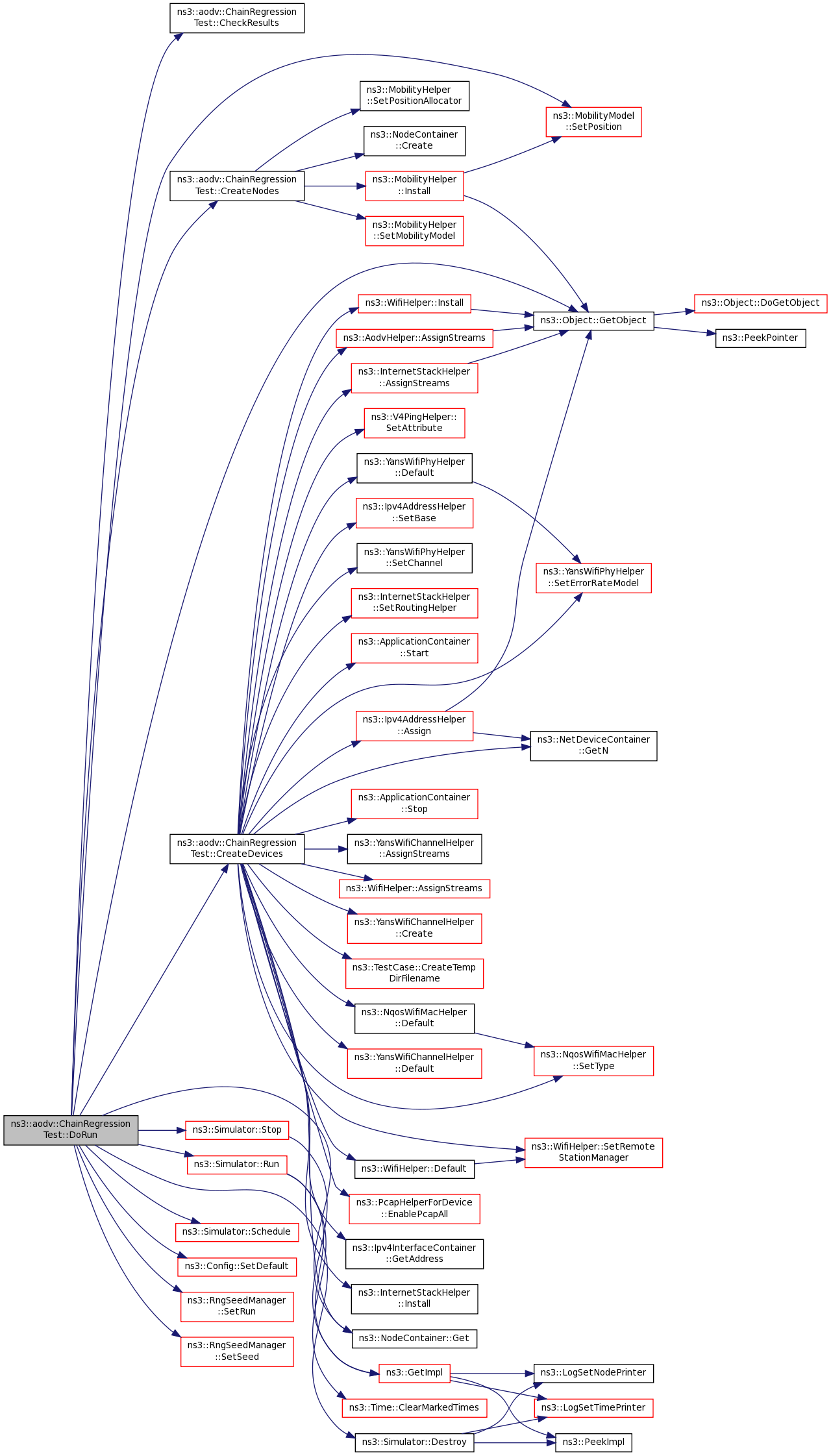

void DoRun ()
 Go. More...


Private Attributes

const Time m_arpAliveTimeout
 ARP alive timeout. More...

NodeContainerm_nodes

const std::string m_prefix
 PCAP file names prefix. More...

const uint32_t m_size
 Chain size. More...

const double m_step
 Chain step, meters. More...

const Time m_time
 Total simulation time. More...


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)

void AddTestCase (TestCase *testCase) NS_DEPRECATED
 Add an individual child TestCase case to this TestCase. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

std::string CreateDataDirFilename (std::string filename)

std::string CreateTempDirFilename (std::string filename)

bool GetErrorStatus (void) const NS_DEPRECATED

std::string GetName (void) const

bool IsStatusFailure (void) const

bool IsStatusSuccess (void) const

bool MustAssertOnFailure (void) const

bool MustContinueOnFailure (void) const

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)

void SetDataDir (std::string directory)


Detailed Description

AODV chain regression test.

This script creates 1-dimensional grid topology and then ping last node from the first one:

[10.1.1.1] <– step –> [10.1.1.2] <– step –> [10.1.1.3] <– step –> [10.1.1.4] <– step –> [10.1.1.5]

Each node can hear only his right and his left neighbor, if they exist. When one third of total time expired, central node moves away. After this, node 3 doesn't hear any packets from other nodes and nobody hears his packets. We want to demonstrate in this script 1) route establishing 2) broken link detection both from layer 2 information and hello messages.

 Expected packets time diagram.
           1       2       3       4       5
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=0, ID=1, org_seqno=1) src = 10.1.1.1
           |<------|------>|       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=1, ID=1, org_seqno=1) src = 10.1.1.2
           |       |<------|------>|       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=2, ID=1, org_seqno=1) src = 10.1.1.3
           |       |       |<------|------>|        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, U=1, hop=3, ID=1, org_seqno=1) src = 10.1.1.4
           |       |       |       |<------|------> ARP request. Who has 10.1.1.4? Tell 10.1.1.5
           |       |       |       |======>|        ARP reply
           |       |       |       |<======|        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=0, dst_seqno=0) src=10.1.1.5
           |       |       |<------|------>|        ARP request. Who has 10.1.1.3? Tell 10.1.1.4
           |       |       |======>|       |        ARP reply
           |       |       |<======|       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=1, dst_seqno=0) src=10.1.1.4
           |       |<------|------>|       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.3
           |       |======>|       |       |        ARP reply
           |       |<======|       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=2, dst_seqno=0) src=10.1.1.3
           |<------|------>|       |       |        ARP request. Who has 10.1.1.1? Tell 10.1.1.2
           |======>|       |       |       |        ARP reply
           |<======|       |       |       |        RREP (orig 10.1.1.1, dst 10.1.1.5, hop=3, dst_seqno=0) src=10.1.1.2
   <-------|------>|       |       |       |        ARP request. Who has 10.1.1.2? Tell 10.1.1.1
           |<======|       |       |       |
           |======>|       |       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.1 next_hop=10.1.1.2
           |<------|------>|       |       |        ARP request. Who has 10.1.1.3? Tell 10.1.1.2
           |       |<======|       |       |        ARP reply
           |       |======>|       |       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.2 next_hop=10.1.1.3
           |       |<------|------>|       |        ARP request. Who has 10.1.1.4? Tell 10.1.1.3
           |       |       |<======|       |        ARP reply
           |       |       |======>|       |        ICMP (ping) request 0 from 10.1.1.1 to 10.1.1.5; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |<------|------>|        ARP request. Who has 10.1.1.5? Tell 10.1.1.4
           |       |       |       |<======|        ARP reply
           |       |       |       |======>|        ICMP (ping) request 0; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 0; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 0; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 0; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 0; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 1; src=10.1.1.1 next_hop=10.1.1.2
           |       |       |<------|------>|        Hello
           |       |======>|       |       |        ICMP (ping) request 1; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 1; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 1; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 1; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 1; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 11; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 1; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
           |<------|------>|       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |<------|------>|        Hello
           |       |<------|------>|       |        Hello
           |======>|       |       |       |        ICMP (ping) request 2; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 2; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 2; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 2; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 2; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 2; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 2; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 2; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |       |<------|------>|       |        Hello
           |<------|------>|       |       |        Hello
           |       |       |<------|------>|        Hello
           |======>|       |       |       |        ICMP (ping) request 3; src=10.1.1.1 next_hop=10.1.1.2
           |       |======>|       |       |        ICMP (ping) request 3; src=10.1.1.2 next_hop=10.1.1.3
           |       |       |======>|       |        ICMP (ping) request 3; src=10.1.1.3 next_hop=10.1.1.4
           |       |       |       |======>|        ICMP (ping) request 3; src=10.1.1.4 next_hop=10.1.1.5
           |       |       |       |<======|        ICMP (ping) reply 3; src=10.1.1.5 next_hop=10.1.1.4
           |       |       |<======|       |        ICMP (ping) reply 3; src=10.1.1.4 next_hop=10.1.1.3
           |       |<======|       |       |        ICMP (ping) reply 3; src=10.1.1.3 next_hop=10.1.1.2
           |<======|       |       |       |        ICMP (ping) reply 3; src=10.1.1.2 next_hop=10.1.1.1
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello   |
           |       |    <--|-->    |       |        Hello   |Node 3 move away => nobody hear his packets and node 3 doesn't hear anything !
           |       |       |    <--|------>|        Hello   |
           |======>|       |       |       |        ICMP (ping) request 4; src=10.1.1.1 next_hop=10.1.1.2
           |       |==>    |       |       |        ICMP (ping) request 4; src=10.1.1.2 next_hop=10.1.1.3.   7 retries.
           |<======|       |       |       |        RERR (unreachable dst 10.1.1.3 & 10.1.1.5) src=10.1.1.2
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        Hello
           |<------|-->    |       |       |        Hello
           |       |    <--|-->    |       |        Hello
           |       |       |    <--|------>|        Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=2, org_seqno=2) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=2, org_seqno=2) src = 10.1.1.2
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |======>|        RERR (unreachable dst 10.1.1.1 & 10.1.1.3) src=10.1.1.4
           |       |       |       |<------|------> Hello
           |       |       |    <--|------>|        Hello
           |       |    <--|-->    |       |        Hello
           |<------|-->    |       |       |        Hello
    <------|------>|       |       |       |        Hello
           |       |       |       |<------|------> Hello
    <------|------>|       |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=0, ID=4, org_seqno=3) src = 10.1.1.1
           |<------|-->    |       |       |        RREQ (orig 10.1.1.1, dst 10.1.1.5, G=1, hop=1, ID=4, org_seqno=3) src = 10.1.1.2

..................................................................
 *

Definition at line 153 of file aodv-regression.h.

Constructor & Destructor Documentation

ns3::aodv::ChainRegressionTest::ChainRegressionTest ( const char *const  prefix,
Time  time = Seconds (10),
uint32_t  size = 5,
Time  arpAliveTimeout = Seconds (120)
)

Create test case.

Parameters
prefixUnique file names prefix
sizeNumber of nodes in the chain
timeSimulation time
arpAliveTimeoutARP alive timeout, this is used to check that ARP and routing do not interfere

Definition at line 78 of file aodv-regression.cc.

ns3::aodv::ChainRegressionTest::~ChainRegressionTest ( )

Definition at line 89 of file aodv-regression.cc.

References m_nodes.

Member Function Documentation

void ns3::aodv::ChainRegressionTest::CheckResults ( )
private

Compare traces with reference ones.

Definition at line 188 of file aodv-regression.cc.

References m_prefix, m_size, and NS_PCAP_TEST_EXPECT_EQ.

Referenced by DoRun().

+ Here is the caller graph for this function:

void ns3::aodv::ChainRegressionTest::CreateNodes ( )
private

Create test topology.

Definition at line 119 of file aodv-regression.cc.

References ns3::NodeContainer::Create(), ns3::MobilityHelper::Install(), m_nodes, m_size, m_step, ns3::MobilityHelper::SetMobilityModel(), and ns3::MobilityHelper::SetPositionAllocator().

Referenced by DoRun().

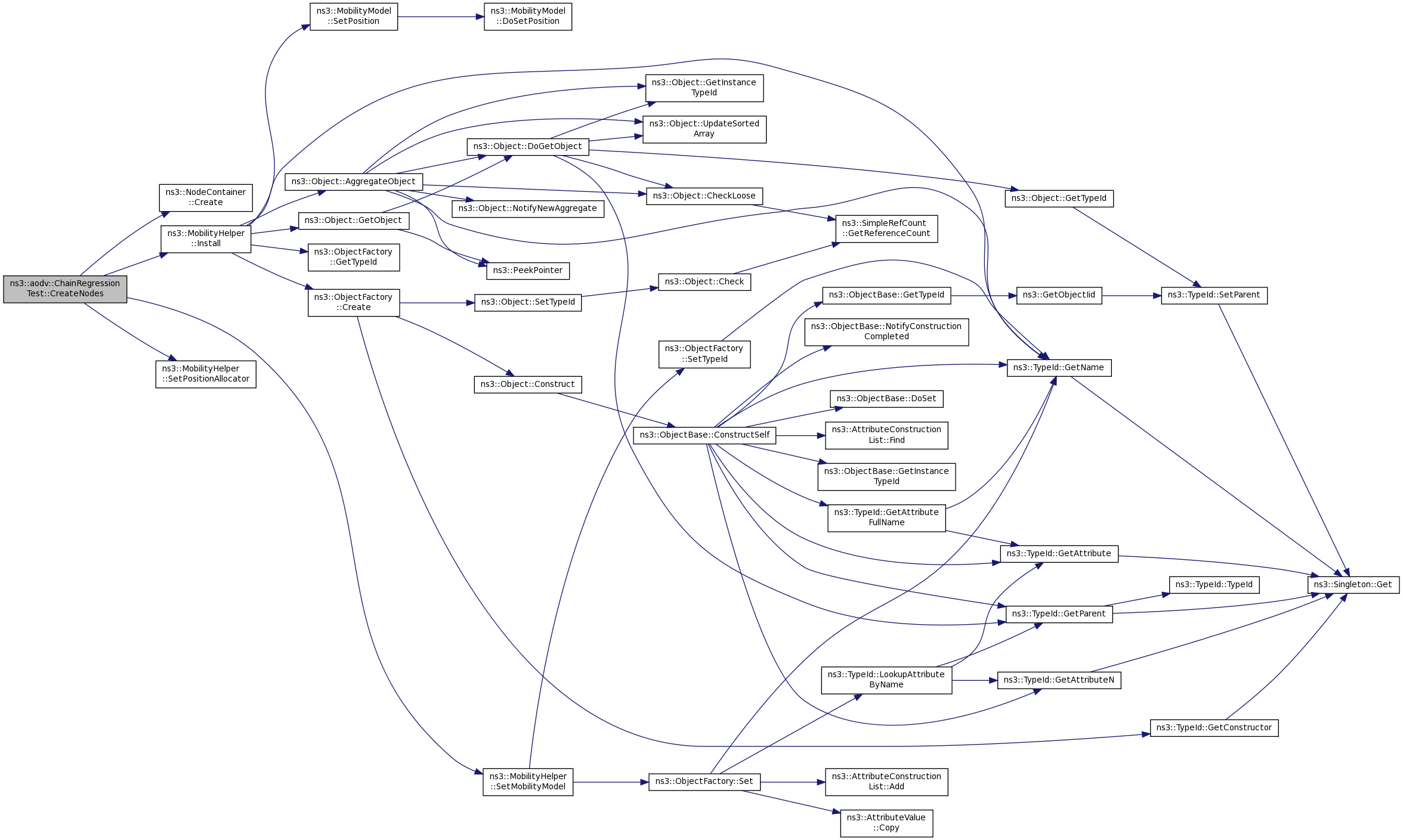

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

const Time ns3::aodv::ChainRegressionTest::m_arpAliveTimeout
private

ARP alive timeout.

Definition at line 180 of file aodv-regression.h.

Referenced by DoRun().

NodeContainer* ns3::aodv::ChainRegressionTest::m_nodes
private
Internal: It is important to have pointers here

Definition at line 169 of file aodv-regression.h.

Referenced by CreateDevices(), CreateNodes(), DoRun(), and ~ChainRegressionTest().

const std::string ns3::aodv::ChainRegressionTest::m_prefix
private

PCAP file names prefix.

Definition at line 172 of file aodv-regression.h.

Referenced by CheckResults(), and CreateDevices().

const uint32_t ns3::aodv::ChainRegressionTest::m_size
private

Chain size.

Definition at line 176 of file aodv-regression.h.

Referenced by CheckResults(), CreateDevices(), CreateNodes(), and DoRun().

const double ns3::aodv::ChainRegressionTest::m_step
private

Chain step, meters.

Definition at line 178 of file aodv-regression.h.

Referenced by CreateNodes().

const Time ns3::aodv::ChainRegressionTest::m_time
private

Total simulation time.

Definition at line 174 of file aodv-regression.h.

Referenced by CreateDevices(), and DoRun().


The documentation for this class was generated from the following files:
