Describes Mesh Configuration Element see 7.3.2.86 of 802.11s draft 3.0. More...

#include <ie-dot11s-configuration.h>

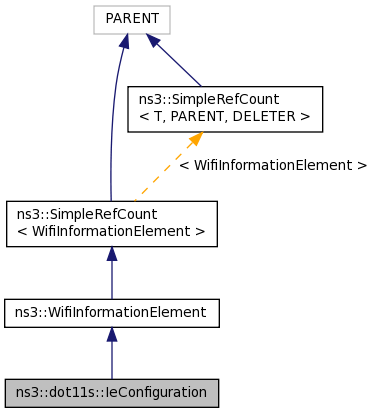

Inheritance diagram for ns3::dot11s::IeConfiguration:

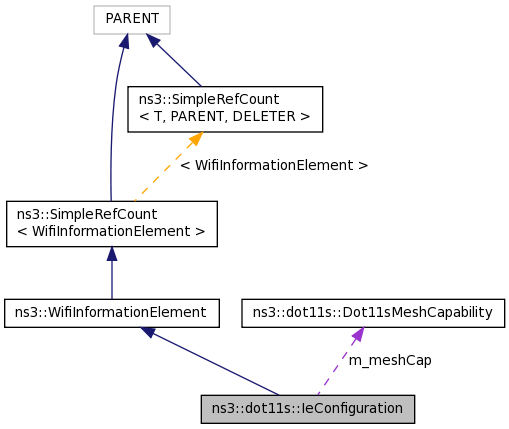

Collaboration diagram for ns3::dot11s::IeConfiguration:

Public Member Functions
	IeConfiguration ()

uint8_t	GetNeighborCount ()

bool	IsAirtime ()

bool	IsHWMP ()

Dot11sMeshCapability const &	MeshCapability ()

void	SetMetric (dot11sPathSelectionMetric metricId)

void	SetNeighborCount (uint8_t neighbors)

void	SetRouting (dot11sPathSelectionProtocol routingId)

Inherited from WifiInformationElement
virtual WifiInformationElementId	ElementId () const
	Own unique Element ID. More...

virtual uint8_t	GetInformationFieldSize () const
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

virtual void	SerializeInformationField (Buffer::Iterator i) const
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual uint8_t	DeserializeInformationField (Buffer::Iterator i, uint8_t length)
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

virtual void	Print (std::ostream &os) const
	In addition, a subclass may optionally override the following... More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

virtual bool	operator< (WifiInformationElement const &a) const
	Compare information elements using Element ID. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
dot11sAuthenticationProtocol	m_APId
	Auth protocol ID. More...

dot11sPathSelectionMetric	m_APSMId
	Active Path Metric ID. More...

dot11sPathSelectionProtocol	m_APSPId
	Active Path Selection Protocol ID. More...

dot11sCongestionControlMode	m_CCMId
	Congestion Control Mode ID. More...

Dot11sMeshCapability	m_meshCap

uint8_t	m_neighbors

dot11sSynchronizationProtocolIdentifier	m_SPId
	Sync protocol ID. More...

Friends
bool	operator== (const IeConfiguration &a, const IeConfiguration &b)

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Describes Mesh Configuration Element see 7.3.2.86 of 802.11s draft 3.0.

Definition at line 101 of file ie-dot11s-configuration.h.

Constructor & Destructor Documentation

ns3::dot11s::IeConfiguration::IeConfiguration ( )

Definition at line 102 of file ie-dot11s-configuration.cc.

Member Function Documentation

uint8_t ns3::dot11s::IeConfiguration::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 137 of file ie-dot11s-configuration.cc.

References ns3::dot11s::Dot11sMeshCapability::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, m_SPId, NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and conf::version.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize().

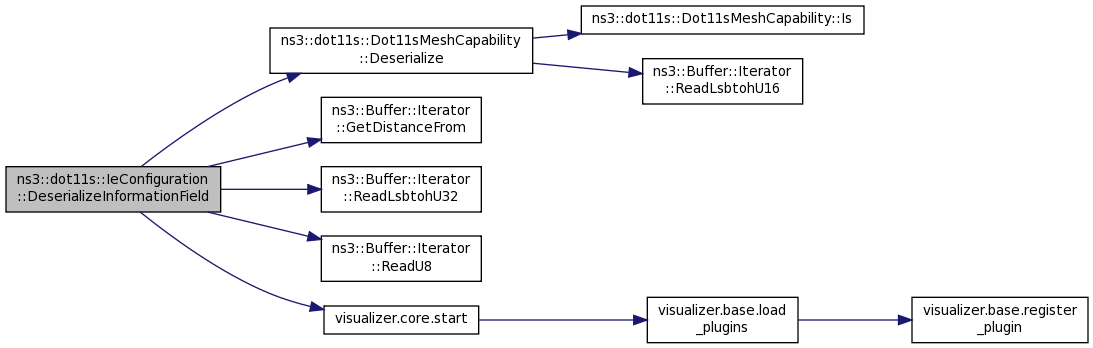

Here is the call graph for this function:

Here is the caller graph for this function:

WifiInformationElementId ns3::dot11s::IeConfiguration::ElementId ( ) const

virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 97 of file ie-dot11s-configuration.cc.

References IE11S_MESH_CONFIGURATION.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), and Print().

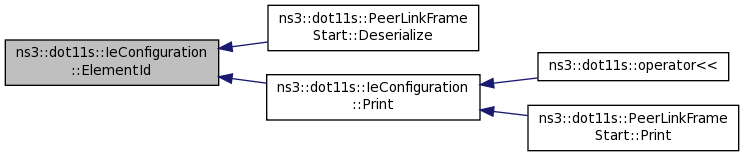

Here is the caller graph for this function:

uint8_t ns3::dot11s::IeConfiguration::GetInformationFieldSize ( ) const

virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 108 of file ie-dot11s-configuration.cc.

References ns3::dot11s::Dot11sMeshCapability::GetSerializedSize(), and m_meshCap.

Referenced by ns3::dot11s::PeerLinkFrameStart::Deserialize(), and ns3::dot11s::PeerLinkFrameStart::GetSerializedSize().

Here is the call graph for this function:

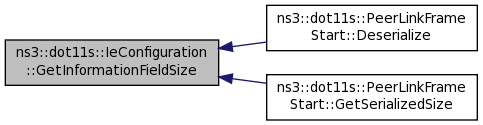

Here is the caller graph for this function:

uint8_t ns3::dot11s::IeConfiguration::GetNeighborCount ( )

Definition at line 197 of file ie-dot11s-configuration.cc.

References m_neighbors.

bool ns3::dot11s::IeConfiguration::IsAirtime ( )

Definition at line 187 of file ie-dot11s-configuration.cc.

References m_APSMId, and ns3::dot11s::METRIC_AIRTIME.

bool ns3::dot11s::IeConfiguration::IsHWMP ( )

Definition at line 182 of file ie-dot11s-configuration.cc.

References m_APSPId, and ns3::dot11s::PROTOCOL_HWMP.

Dot11sMeshCapability const & ns3::dot11s::IeConfiguration::MeshCapability ( )

Definition at line 202 of file ie-dot11s-configuration.cc.

References m_meshCap.

void ns3::dot11s::IeConfiguration::Print ( std::ostream & os ) const

virtual

In addition, a subclass may optionally override the following...

Generate human-readable form of IE

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 159 of file ie-dot11s-configuration.cc.

References ElementId(), ns3::dot11s::Dot11sMeshCapability::GetUint16(), m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, and m_SPId.

Referenced by ns3::dot11s::operator<<(), and ns3::dot11s::PeerLinkFrameStart::Print().

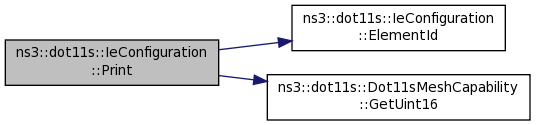

Here is the call graph for this function:

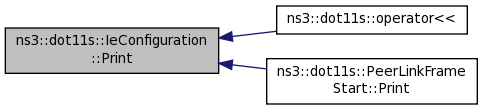

Here is the caller graph for this function:

void ns3::dot11s::IeConfiguration::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 120 of file ie-dot11s-configuration.cc.

References m_APId, m_APSMId, m_APSPId, m_CCMId, m_meshCap, m_neighbors, m_SPId, ns3::dot11s::Dot11sMeshCapability::Serialize(), ns3::Buffer::Iterator::WriteHtolsbU32(), and ns3::Buffer::Iterator::WriteU8().

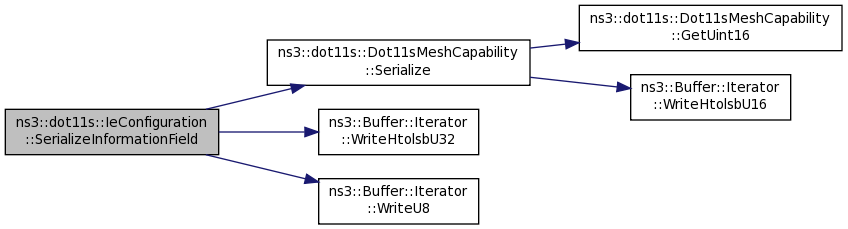

Here is the call graph for this function:

void ns3::dot11s::IeConfiguration::SetMetric ( dot11sPathSelectionMetric metricId )

Definition at line 177 of file ie-dot11s-configuration.cc.

References m_APSMId.

void ns3::dot11s::IeConfiguration::SetNeighborCount ( uint8_t neighbors )

Definition at line 192 of file ie-dot11s-configuration.cc.

References m_neighbors.

Referenced by ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame().

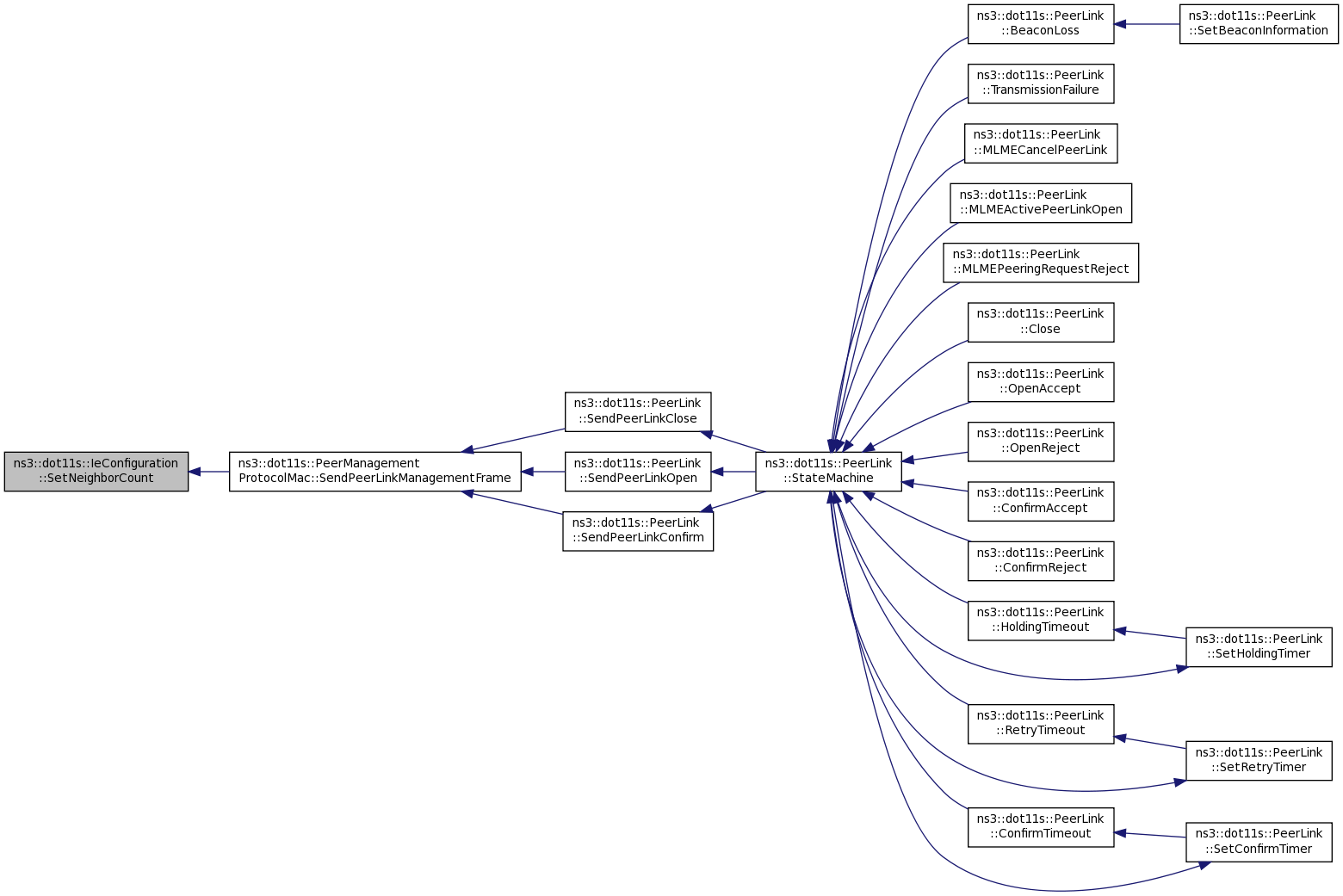

Here is the caller graph for this function:

void ns3::dot11s::IeConfiguration::SetRouting ( dot11sPathSelectionProtocol routingId )

Definition at line 172 of file ie-dot11s-configuration.cc.

References m_APSPId.

Friends And Related Function Documentation

bool operator==	(	const IeConfiguration &	a,
		const IeConfiguration &	b
	)

friend

Definition at line 214 of file ie-dot11s-configuration.cc.

Member Data Documentation

dot11sAuthenticationProtocol ns3::dot11s::IeConfiguration::m_APId

private

Auth protocol ID.

Definition at line 132 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), ns3::dot11s::operator==(), Print(), and SerializeInformationField().

dot11sPathSelectionMetric ns3::dot11s::IeConfiguration::m_APSMId

private

Active Path Metric ID.

Definition at line 126 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), IsAirtime(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), and SetMetric().

dot11sPathSelectionProtocol ns3::dot11s::IeConfiguration::m_APSPId

private

Active Path Selection Protocol ID.

Definition at line 124 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), IsHWMP(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), and SetRouting().

dot11sCongestionControlMode ns3::dot11s::IeConfiguration::m_CCMId

private

Congestion Control Mode ID.

Definition at line 128 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), ns3::dot11s::operator==(), Print(), and SerializeInformationField().

Dot11sMeshCapability ns3::dot11s::IeConfiguration::m_meshCap

private

Definition at line 133 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), GetInformationFieldSize(), MeshCapability(), ns3::dot11s::operator==(), Print(), and SerializeInformationField().

uint8_t ns3::dot11s::IeConfiguration::m_neighbors

private

Definition at line 134 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), GetNeighborCount(), ns3::dot11s::operator==(), Print(), SerializeInformationField(), and SetNeighborCount().

dot11sSynchronizationProtocolIdentifier ns3::dot11s::IeConfiguration::m_SPId

private

Sync protocol ID.

Definition at line 130 of file ie-dot11s-configuration.h.

Referenced by DeserializeInformationField(), ns3::dot11s::operator==(), Print(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/mesh/model/dot11s/ie-dot11s-configuration.h
src/mesh/model/dot11s/ie-dot11s-configuration.cc
